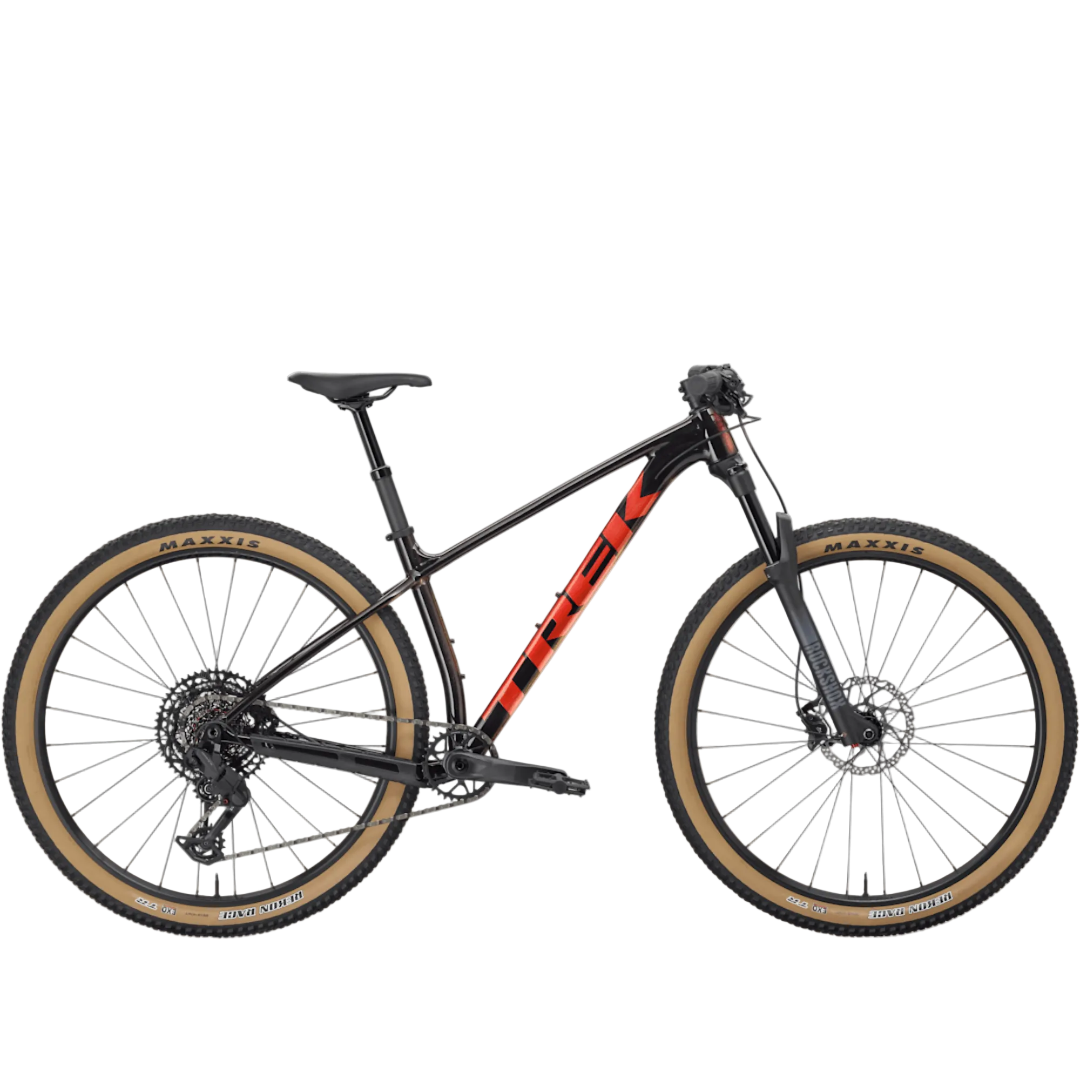

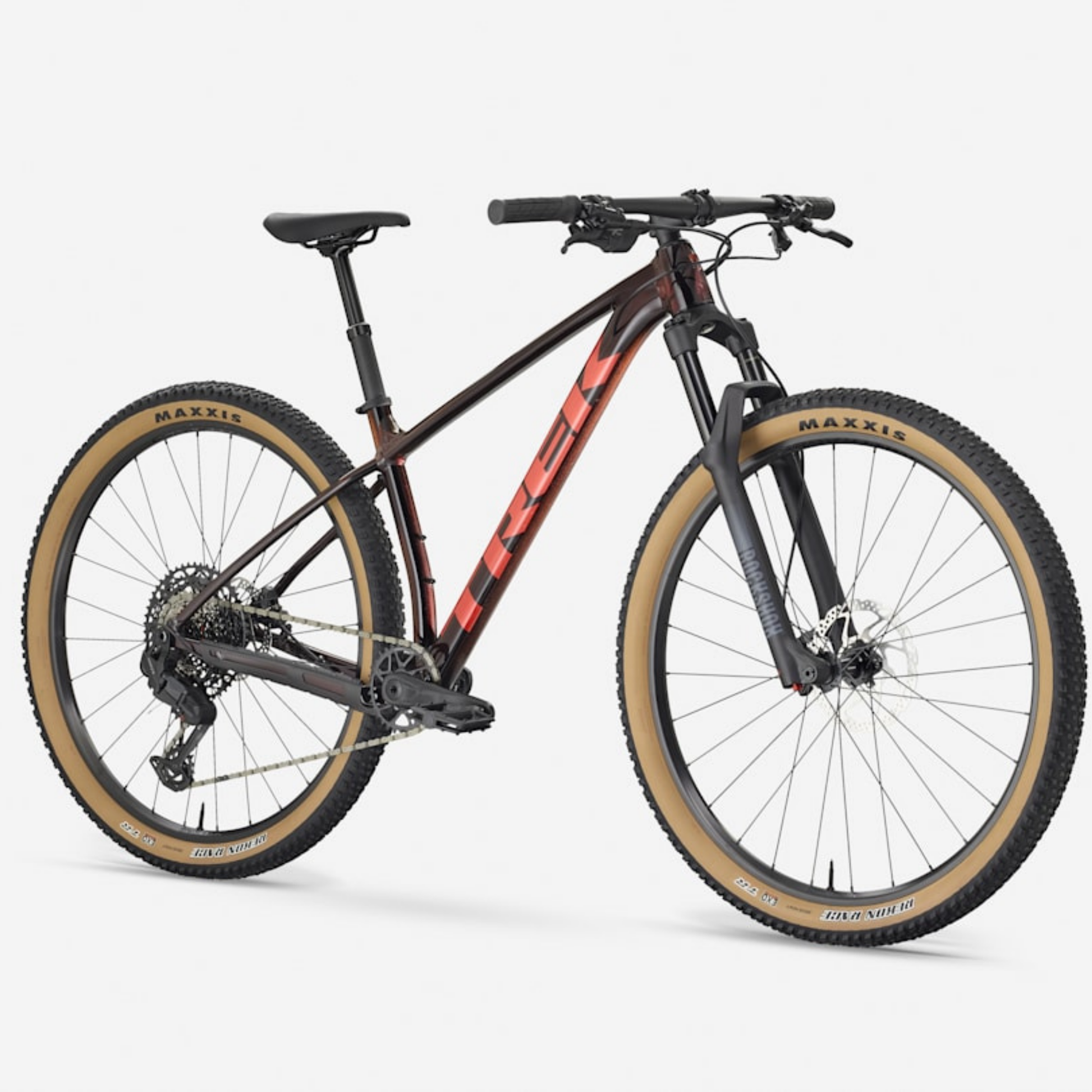

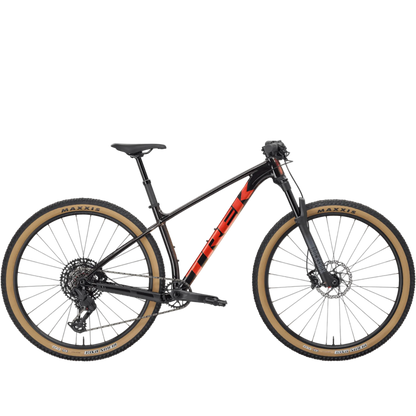

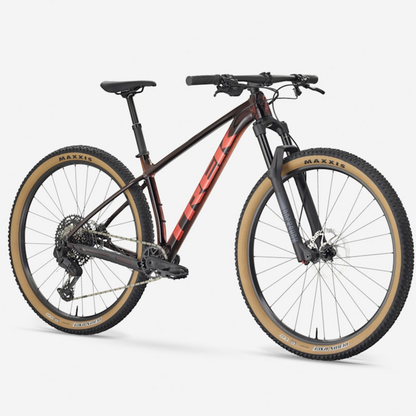

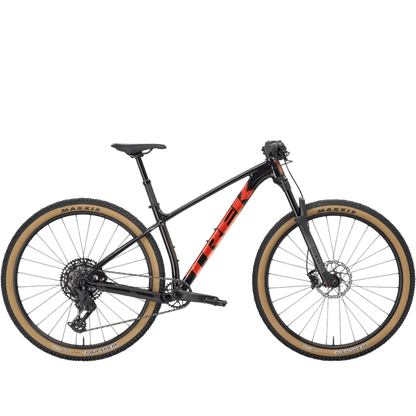

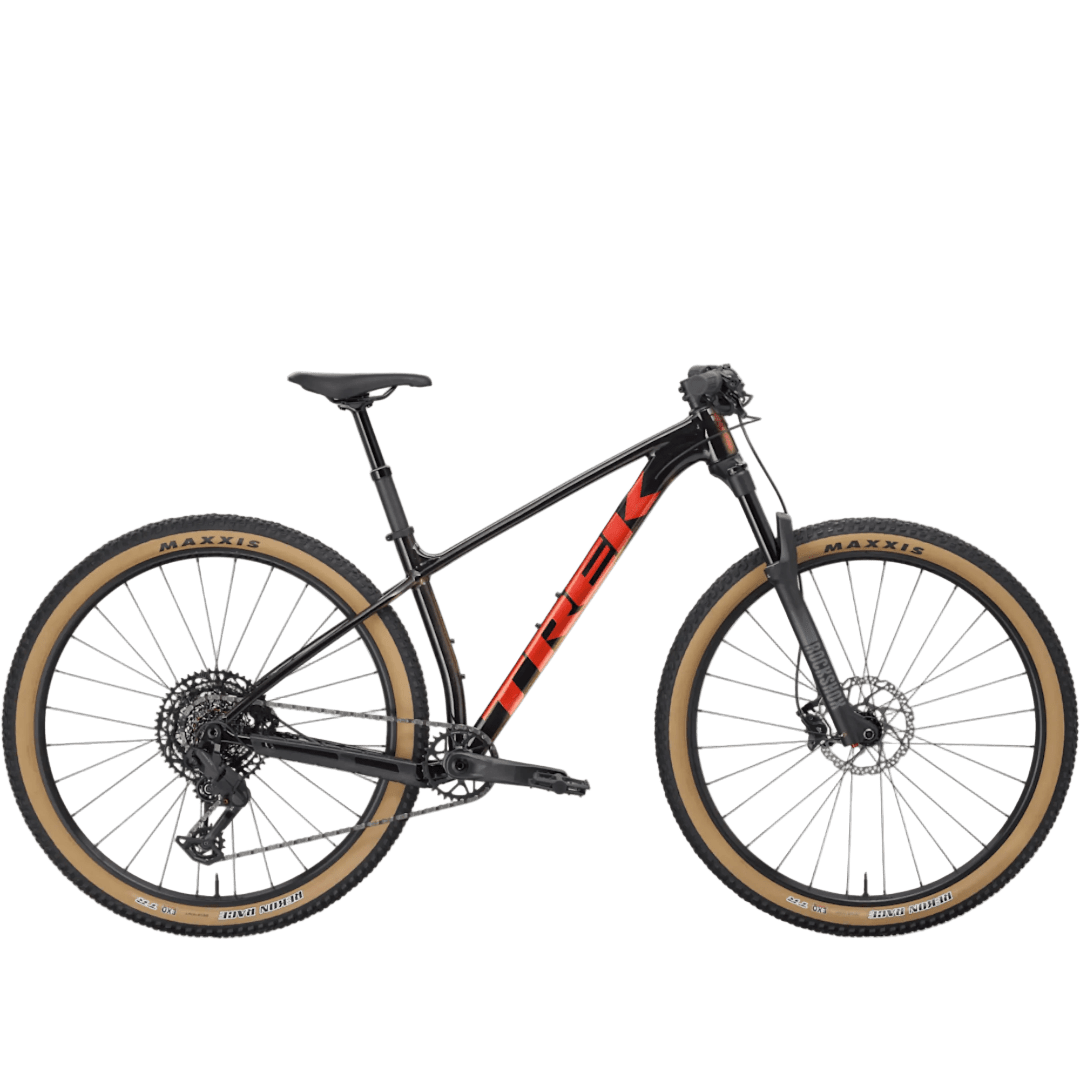

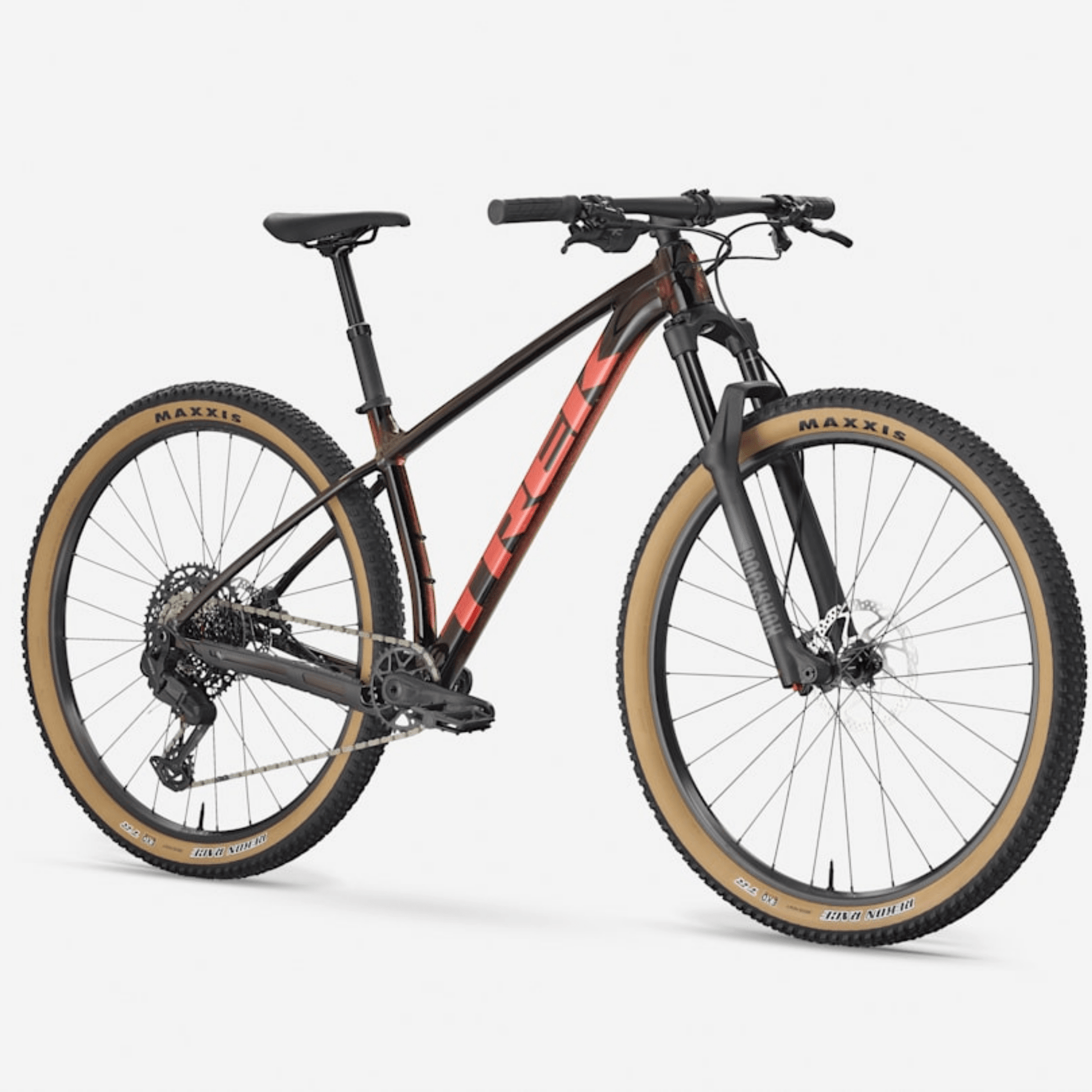

The Trek Procaliber 8 is a fast, capable cross-country hardtail designed for riders who want to push the pace on singletrack, marathon events, and XC race courses. Built around Trek's lightweight Alpha Platinum Aluminium frame and paired with a 120mm RockShox Recon Gold RL suspension fork, it delivers confident handling, efficient climbing, and precise control on technical terrain. Its SRAM Eagle 70 T-Type 12-speed drivetrain provides crisp, reliable shifting under load, while Shimano hydraulic disc brakes, Bontrager Kovee Tubeless Ready wheels, and a dropper seatpost complete a build that's ready for everything from weekend trail rides to race day.
Specifications
Frameset

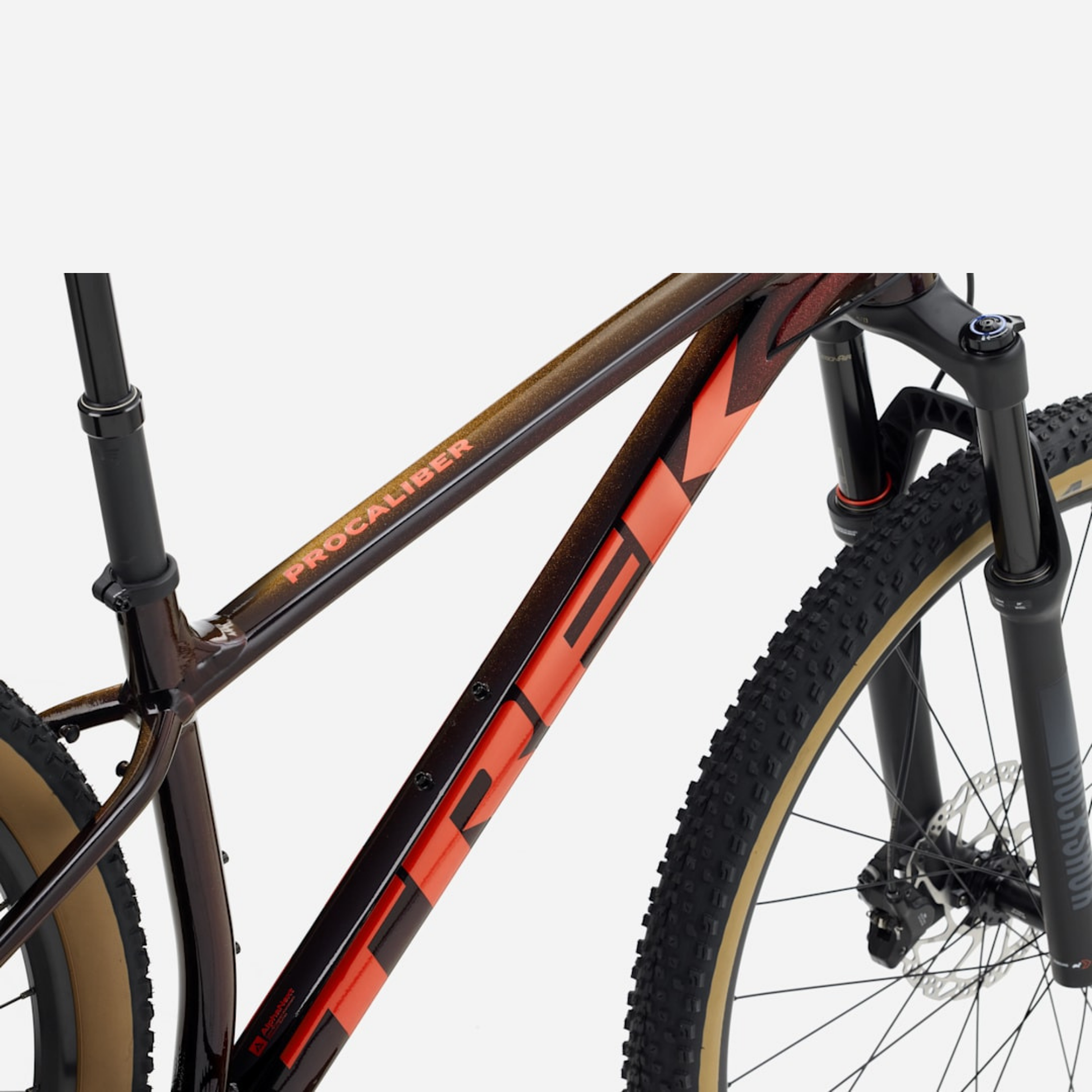

| Frame |
Alpha Platinum Aluminium, tapered head tube, internal cable routing, BSA 73 threaded bottom bracket, hidden rack & kickstand mounts, UDH, Boost 148, 12 mm thru-axle |

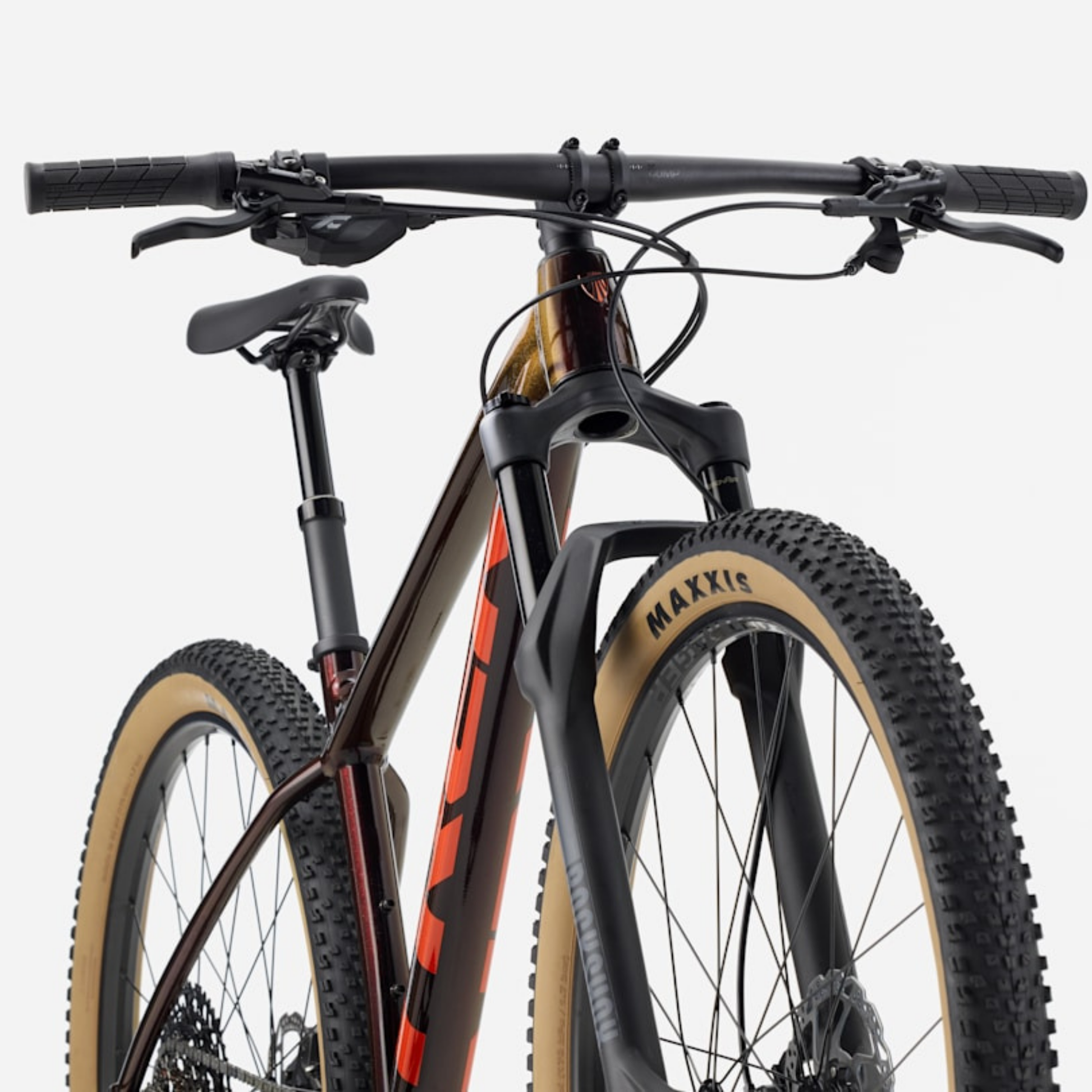

| Fork |
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, Boost 110, 15 mm Maxle Stealth, 120 mm travel |

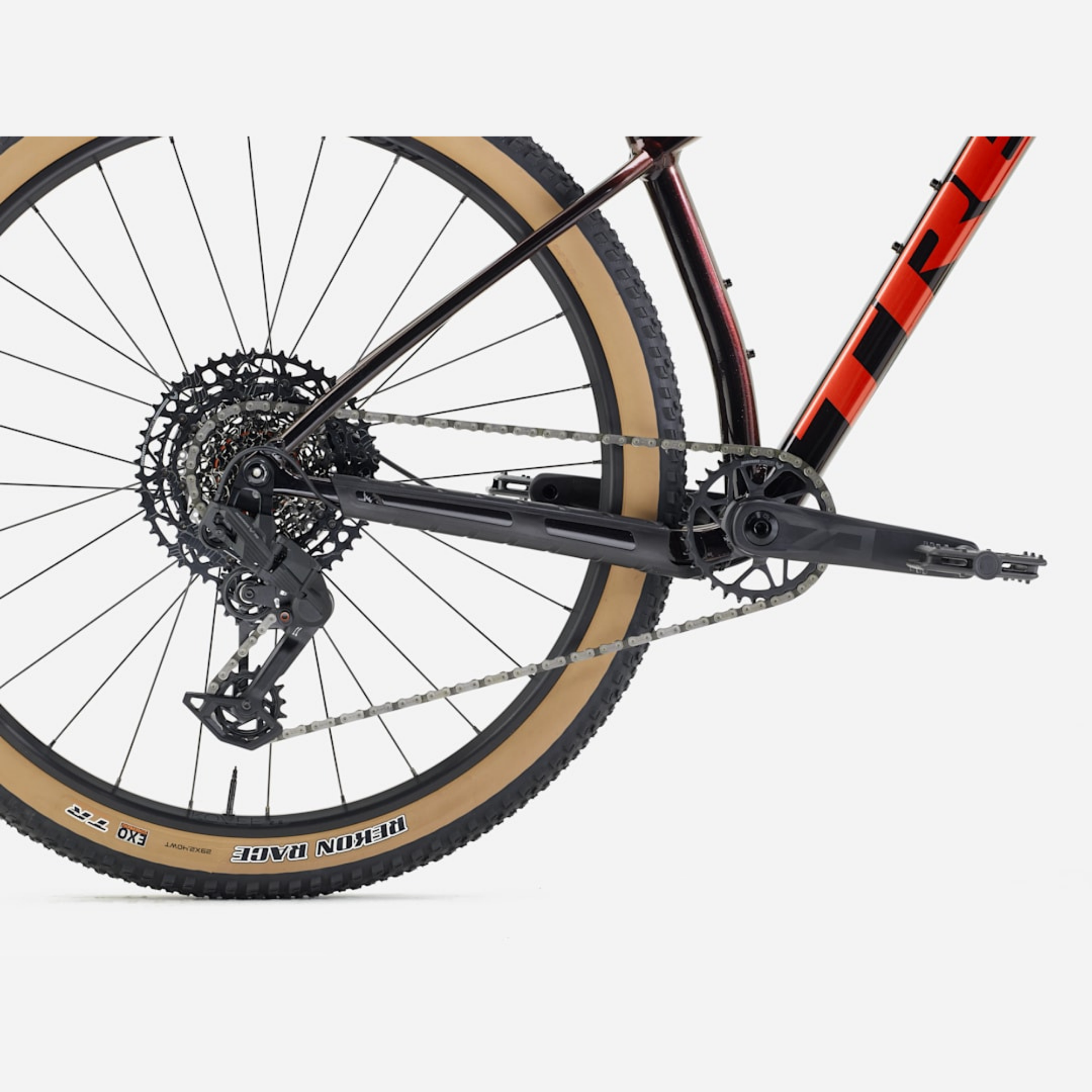

Drivetrain
| Shifting |
SRAM Eagle 70 T-Type shifter and rear derailleur, 12-speed |
| Crank |
SRAM Eagle 70 T-Type DUB, 32T |
| Bottom bracket |
SRAM DUB MTB Wide, BSA 73 threaded |
| Cassette / chain |
SRAM Eagle XS-1270 T-Type, 10-52T, 12-speed — SRAM Eagle 70 T-Type chain |
| Pedals |
VP-536 nylon platform |
Wheels
| Hubs |
Shimano TC500 alloy front, CenterLock, 110x15 mm thru-axle / TC500-HG rear |
| Rims |
Bontrager Kovee, double-wall, Tubeless Ready, 23 mm internal width |
| Tyres |
Maxxis Rekon Race, Tubeless Ready, EXO casing, folding bead, 29x2.40″ |
| Brakes |
Shimano hydraulic disc, MT4100 lever / MT410 caliper, RT54 CenterLock rotors (180 mm front / 160 mm rear) |
Components

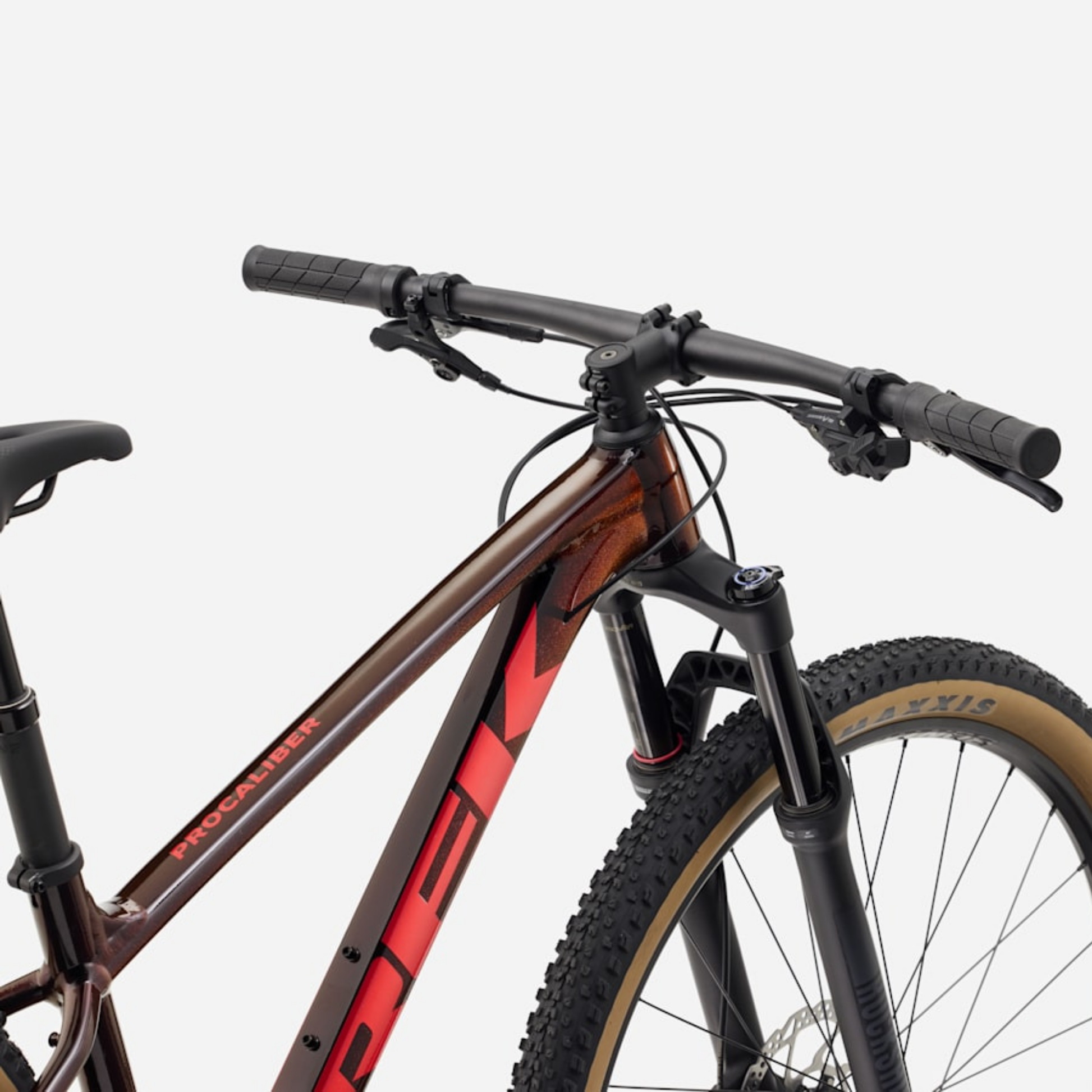

| Handlebar |
Bontrager Comp / Rhythm Comp alloy, size-specific — 72 cm (S–M), 75 cm (ML–XL) |
| Stem |
Bontrager Comp / Elite, Blendr-compatible, 7° — 50–80 mm depending on size |
| Grips |
Trek Line Comp, lock-on |
| Saddle |
Trek Verse Short, chromoly rails, 145 mm |
| Seatpost |
Bontrager Line internal dropper post, travel varies by size |
| Headset |
Semi-integrated, sealed cartridge bearings |
Sizing and geometry
Sizing
| Size |
S |
M |
ML |
L |
XL |
| Rider height |
155–165 cm |
165–176 cm |
173–180 cm |
177–188 cm |
188–195 cm |
| Inseam |
74–78 cm |
79–83 cm |
81–86 cm |
84–89 cm |
89–91 cm |
All measurements in cm unless stated otherwise.
| Frame size |
S |
M |
ML |
L |
XL |
| Seat tube |
39.0 |
42.0 |
44.0 |
46.0 |
51.0 |
| Seat tube angle |
71.0° |
71.5° |
72.0° |
72.5° |
73.0° |
| Head tube length |
9.0 |
9.0 |
9.0 |
9.0 |
12.0 |
| Head angle |
67.0° |
67.0° |
67.0° |
67.0° |
67.0° |
| Effective top tube |
57.7 |
59.8 |
61.3 |
62.8 |
67.7 |
| Bottom bracket height |
30.3 |
30.3 |
30.3 |
30.3 |
30.3 |
| Bottom bracket drop |
6.4 |
6.4 |
6.4 |
6.4 |
6.4 |
| Chainstay length |
43.0 |
43.0 |
43.5 |
43.5 |
44.0 |
| Wheelbase |
111.0 |
113.5 |
115.5 |
117.1 |
122.7 |
| Standover |
74.7 |
74.9 |
75.8 |
76.3 |
79.1 |
| Frame reach |
40.5 |
43.0 |
44.5 |
46.0 |
50.0 |
| Frame stack |
61.4 |
61.4 |
61.4 |
61.4 |
64.2 |
Geometry sourced from Trek's manufacturer specifications for the Procaliber 8 alloy platform.
