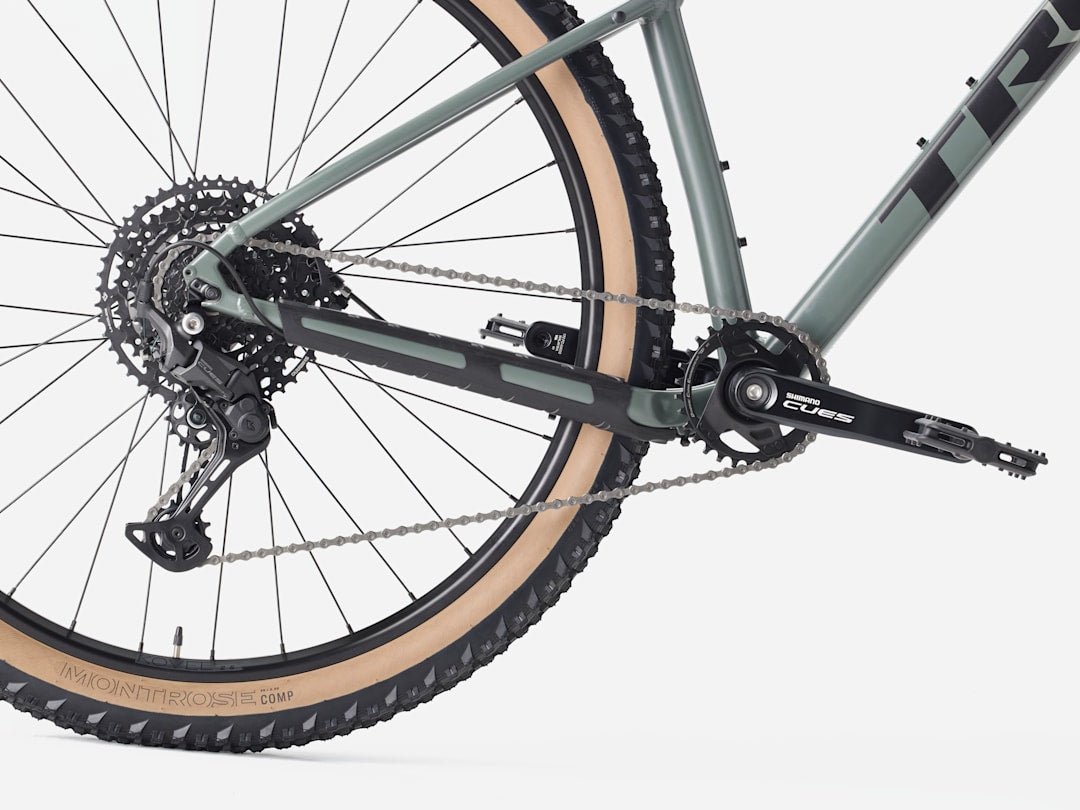

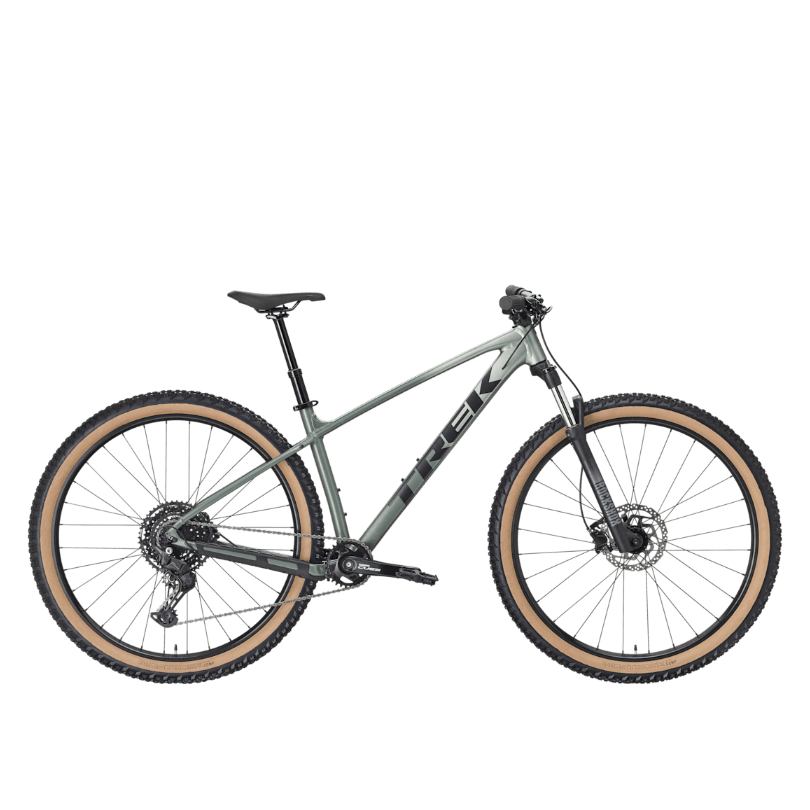

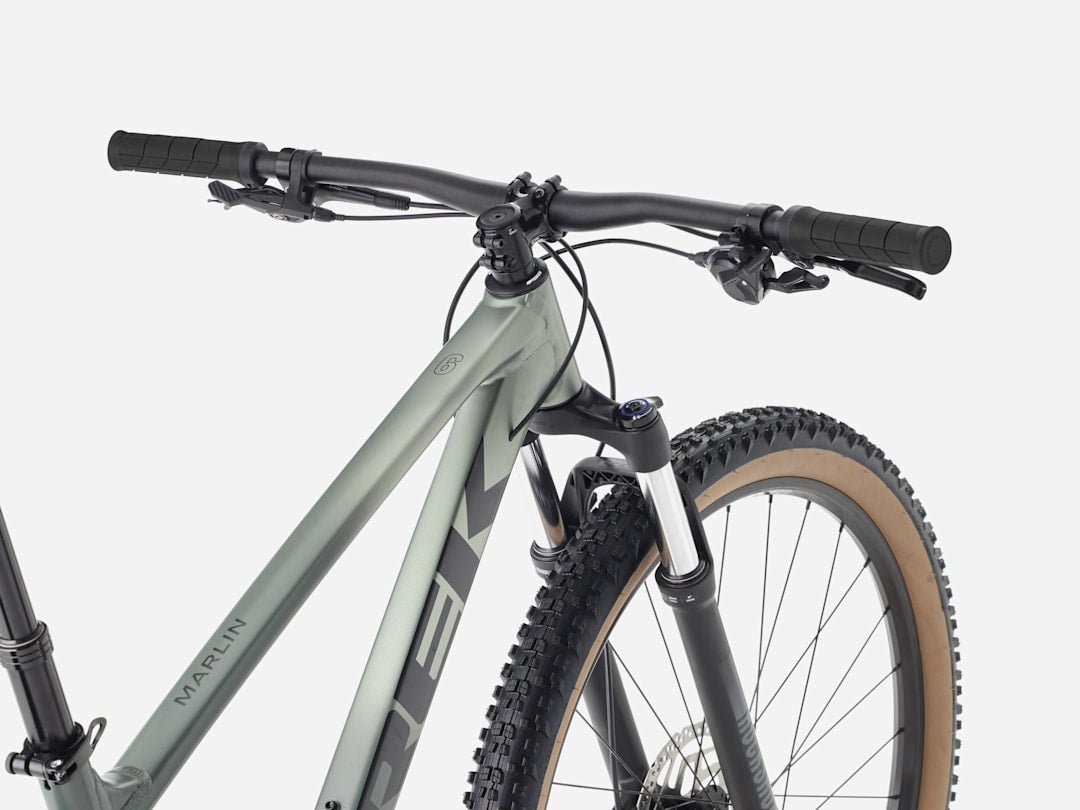

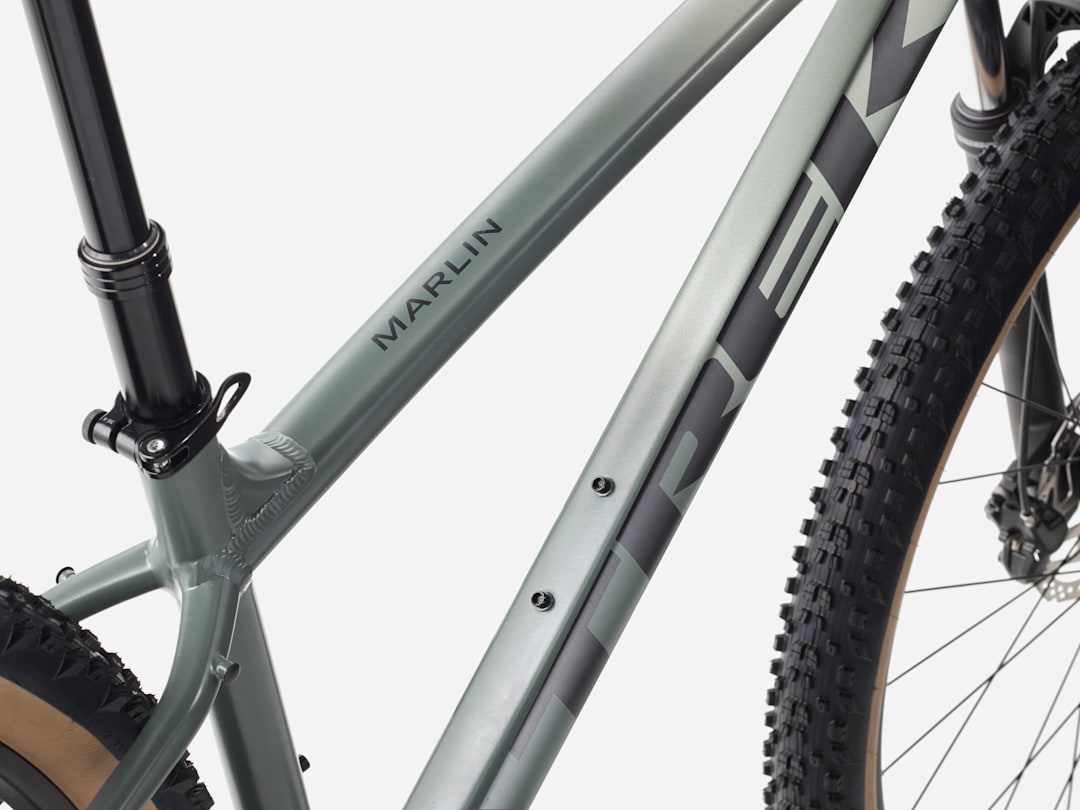

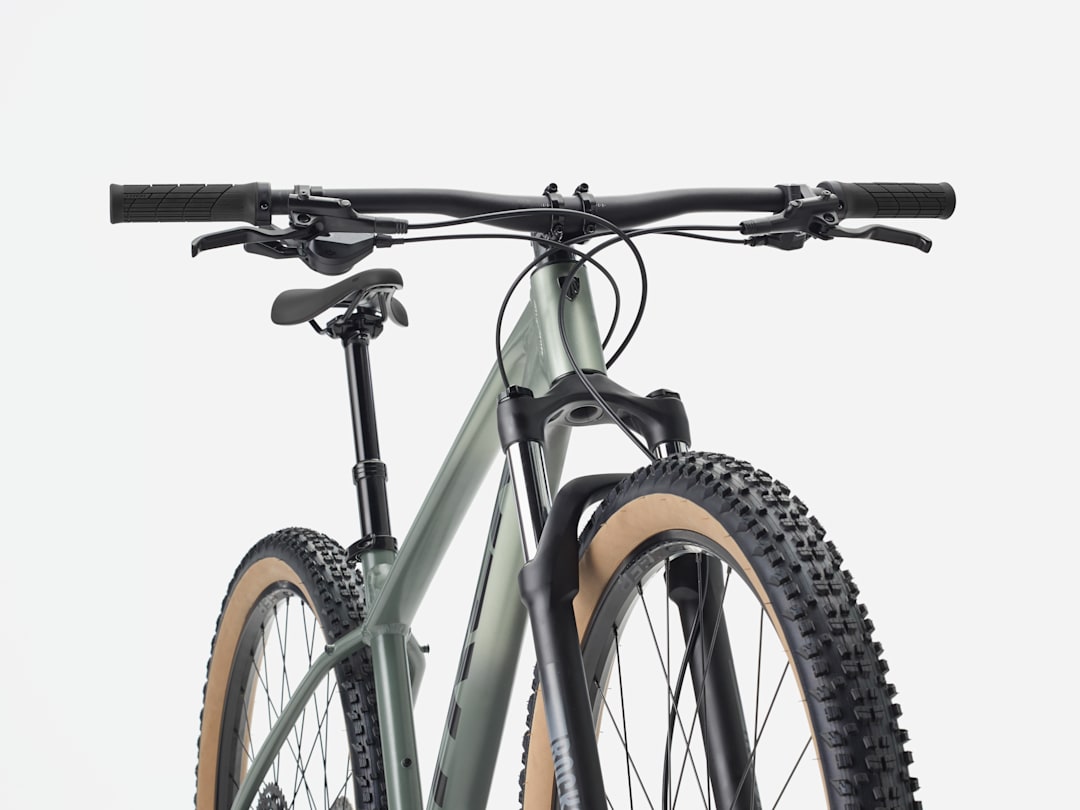

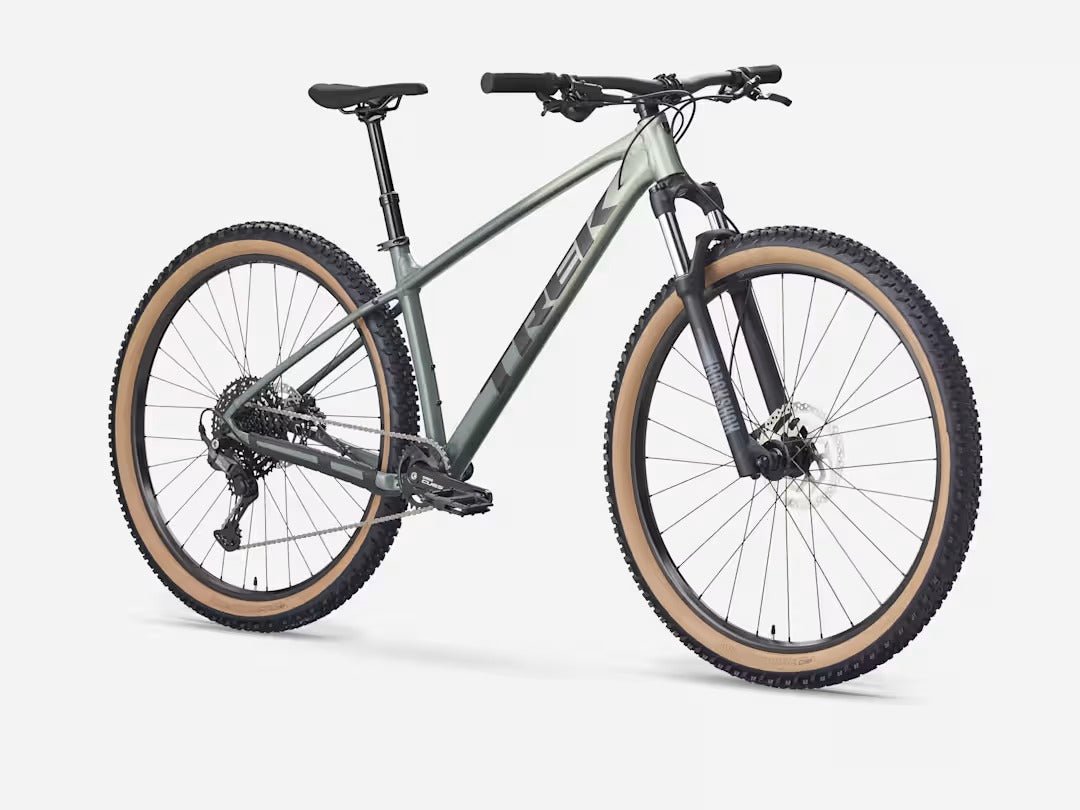

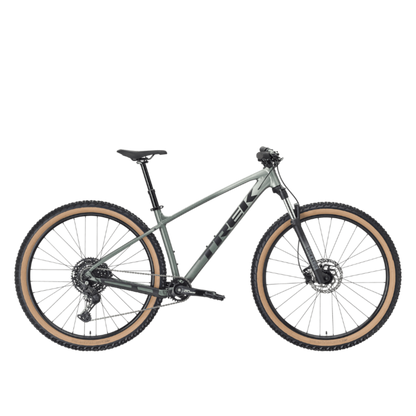

The Trek Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated, slacker frame geometry makes it easier to control on descents, the RockShox Judy suspension fork takes the edge off bumpy trails, and a dropper post plus a 10-speed Shimano CUES drivetrain give you real trail capability. Integrated rack and kickstand mounts make it easy to add accessories, so it doubles as a tough everyday bike.
Specifications
| Frame | Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew (XS adds a curved top tube) |
| Fork | RockShox Judy, coil spring, preload, TurnKey lockout, 100 mm QR, 100 mm travel XS–S: 42 mm offset for 27.5" wheel M–XL: 46 mm offset for 29" wheel |
| Shifter | Shimano CUES U6000, 10-speed |
| Rear derailleur | Shimano CUES U6000 GS |
| Crank | Shimano U4000, 30T chainring XS–ML: 170 mm L–XL: 175 mm |
| Bottom bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedals | VP-536 nylon platform |
| Front hub | Formula DC-20, alloy, 6-bolt, 100 mm |
| Rear hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm, 173x5 mm QR skewer |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 23 mm width, Presta valve, Bontrager TLR rim strip |
| Tyres | XS–S: Maxxis Ikon, Tubeless Ready, EXO casing, folding bead, 60 tpi, 27.5x2.35" M–XL: Maxxis Rekon Race, Tubeless Ready, EXO casing, folding bead, 60 tpi, 29x2.35" |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | TranzX JD-YSI34 dropper, 31.6 mm XS–S: 100 mm travel, 350 mm length M: 125 mm travel, 405 mm length ML–XL: 150 mm travel, 456 mm length |
| Handlebar | Bontrager alloy, 31.8 mm XS: 5 mm rise, 690 mm width S: 15 mm rise, 720 mm width M–XL: 15 mm rise, 750 mm width |
| Stem | Bontrager Comp, 31.8 mm, 7° XS–S: 35 mm M–L: 50 mm, Blendr-compatible XL: 60 mm, Blendr-compatible |
| Grips | Trek Line Comp, nylon lock-on |
| Headset | Semi-integrated, 1-1/8" |
| Brakes | Shimano MT200 hydraulic disc |
| Brake rotors | Shimano RT26, 6-bolt, 160 mm (180 mm front on M–XL) |
| Bike weight (M) | 15.00 kg / 33.07 lbs |
| Weight limit | 136 kg / 300 lbs total — bike + rider + cargo |
Specifications may vary by frame size and are subject to change without notice. Compatible components may be substituted due to supply chain availability.
Sizing and geometry
Sizing
| Size | XS | S | M | ML | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
| Rider height | 145–155 cm / 4'9" – 5'1" | 155–165 cm / 5'1" – 5'5" | 165–177 cm / 5'5" – 5'10" | 173–180 cm / 5'8" – 5'11" | 177–188 cm / 5'10" – 6'2" | 188–195 cm / 6'2" – 6'5" | 195–203 cm / 6'5" – 6'8" |
| Inseam | 69–73 cm / 27" – 29" | 74–78 cm / 29" – 31" | 79–83 cm / 31" – 33" | 81–86 cm / 32" – 34" | 84–89 cm / 33" – 35" | 89–91 cm / 35" – 36" | 91–97 cm / 36" – 38" |
Frame geometry
| Frame size | XS (14.5") | S (15.5") | M (17.5") | ML (18.5") | L (19.5") | XL (21.5") |
|---|---|---|---|---|---|---|
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
| Seat tube | 34.0 | 37.0 | 41.9 | 44.4 | 47.0 | 52.1 |
| Seat tube angle | 73.8° | 73.8° | 71.9° | 71.9° | 71.9° | 71.9° |
| Effective seat tube angle | 74.0° | 74.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Head tube length | 9.0 | 10.0 | 9.0 | 9.0 | 10.0 | 12.0 |
| Head angle | 66.5° | 66.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Effective top tube | 55.1 | 57.9 | 60.2 | 61.8 | 63.8 | 65.9 |
| Bottom bracket height | 31.3 | 31.3 | 31.0 | 31.0 | 31.0 | 31.0 |
| Bottom bracket drop | 4.5 | 4.5 | 5.8 | 5.8 | 5.8 | 5.8 |
| Chainstay length | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 |
| Offset | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Trail | 11.0 | 11.0 | 9.3 | 9.3 | 9.3 | 9.3 |
| Wheelbase | 109.2 | 112.1 | 110.0 | 111.6 | 113.7 | 115.9 |
| Standover | 65.8 | 69.2 | 74.8 | 75.8 | 75.7 | 76.9 |
| Frame reach | 39.0 | 41.5 | 41.8 | 43.4 | 45.1 | 46.6 |
| Frame stack | 56.3 | 57.2 | 60.2 | 60.2 | 61.1 | 63.0 |
All measurements in cm unless stated otherwise.
