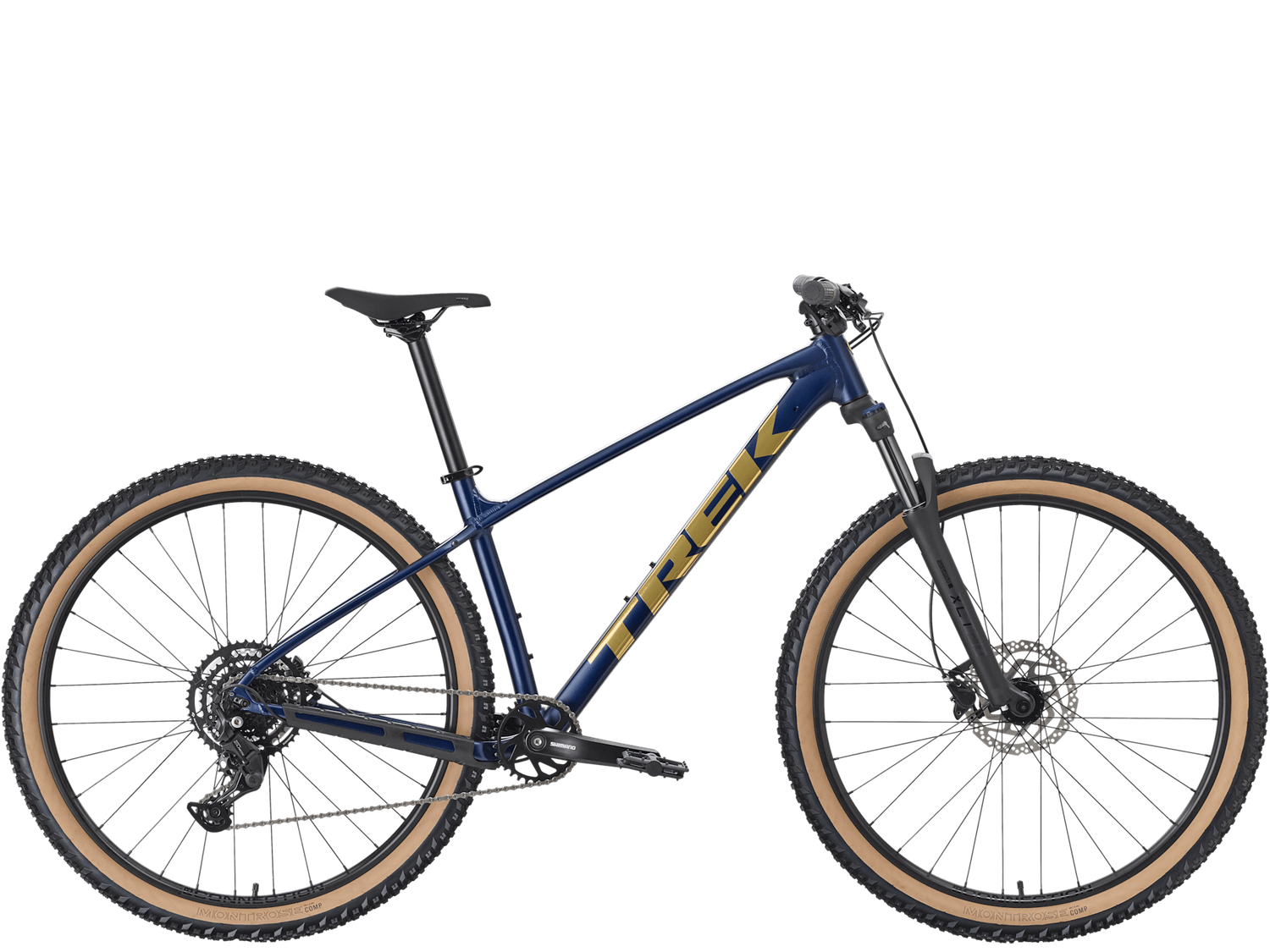

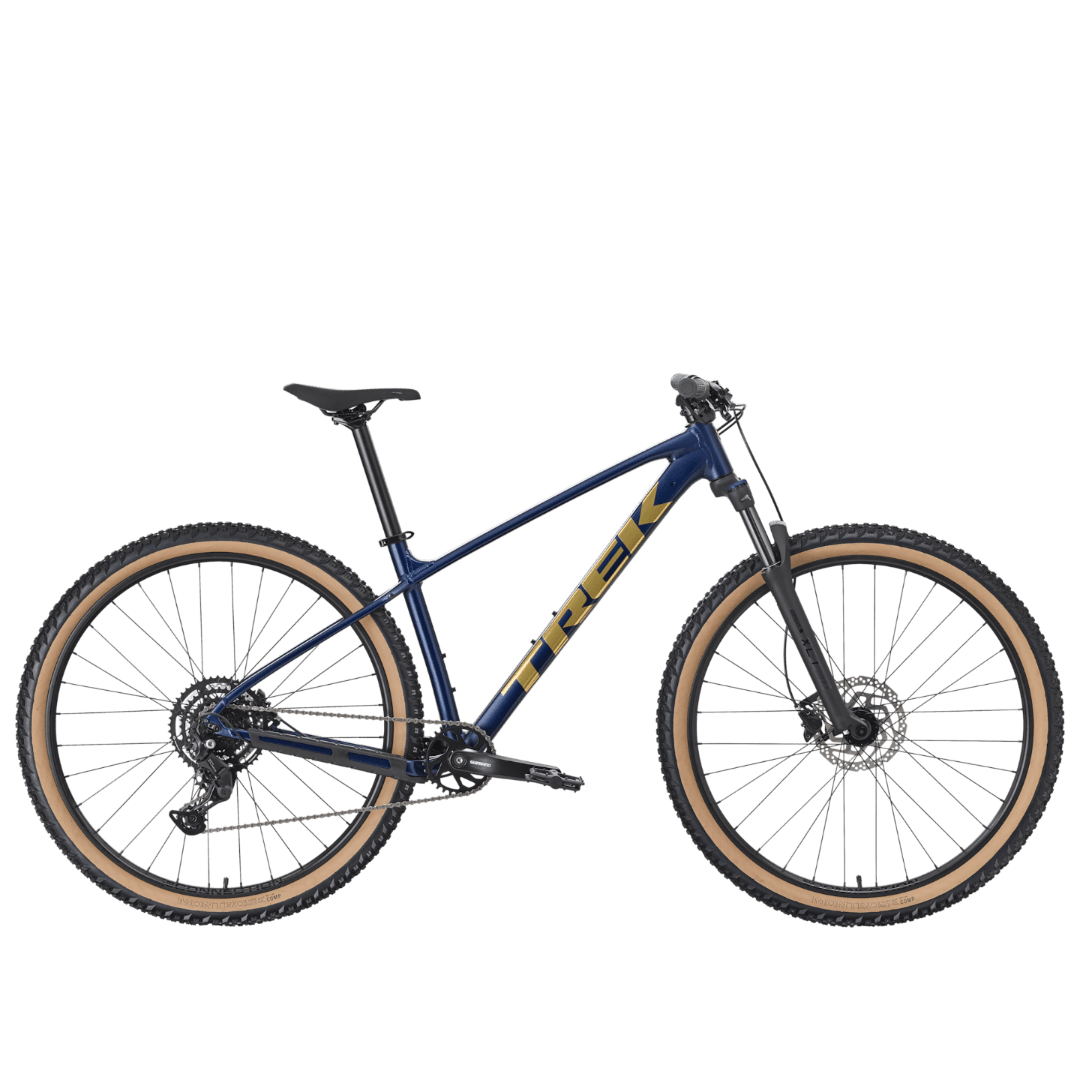

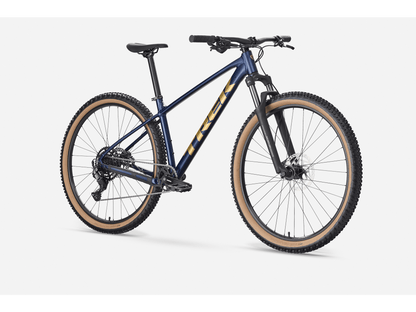

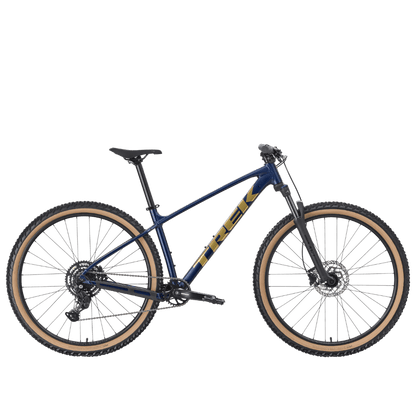

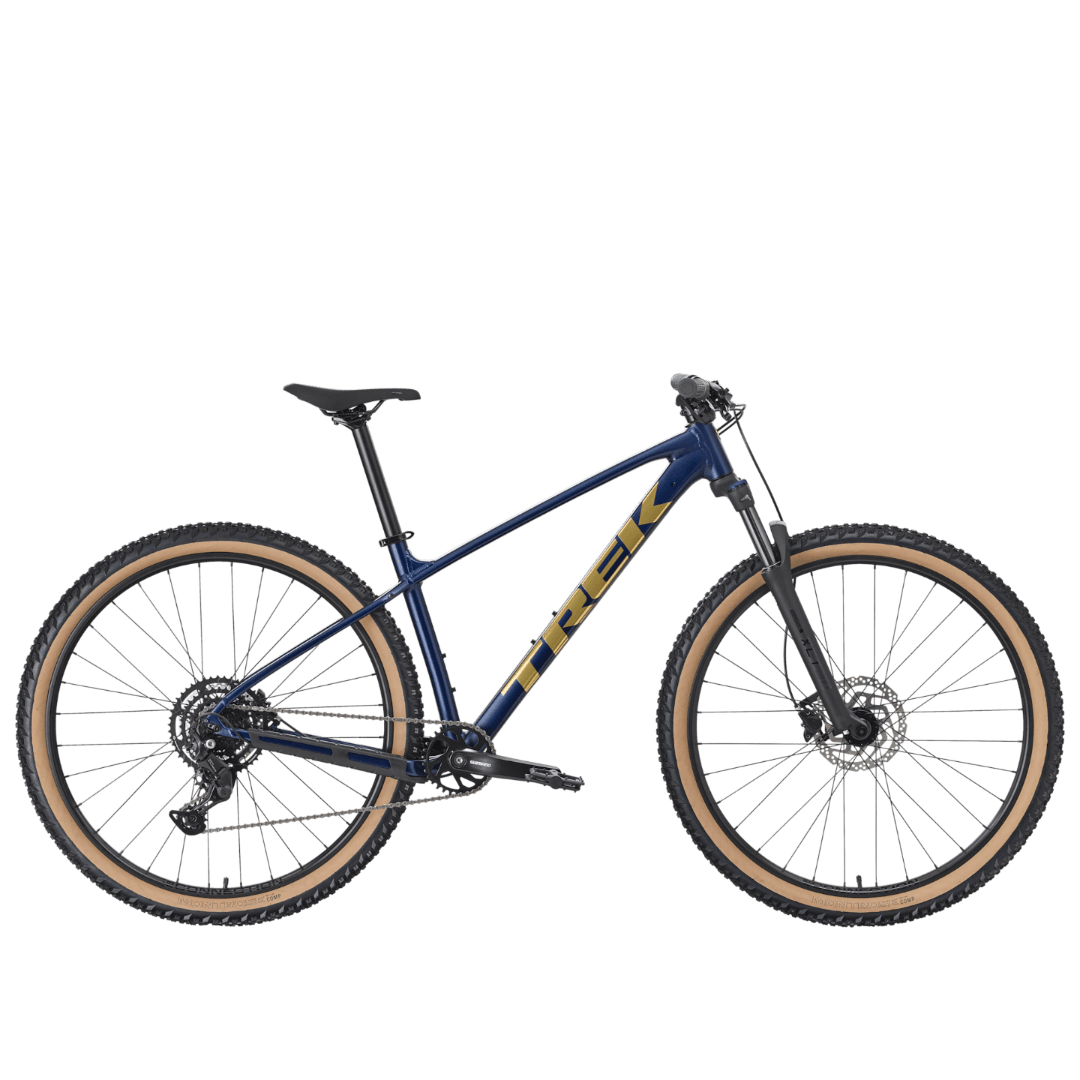

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Specifications
Shown for size M. A few parts change slightly by frame size — noted in brackets where they do.
| Frame | Alpha Silver Aluminium, internal derailleur & dropper post routing, rack + kickstand mounts, 135×5 mm ThruSkew (XS gets a curved top tube for a lower standover) |
| Fork | SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 100 mm travel (80 mm on XS) — 27.5" wheel on XS/S, 29" wheel on M and up |
| Hubs | Formula DC-20 front / DC-22 rear, alloy, 6-bolt, Shimano 8/9/10 freehub |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14g stainless steel, black |
| Tyres | Bontrager Montrose Comp, wire bead, 30 tpi — 27.5×2.40" on XS/S, 29×2.40" on M and up |

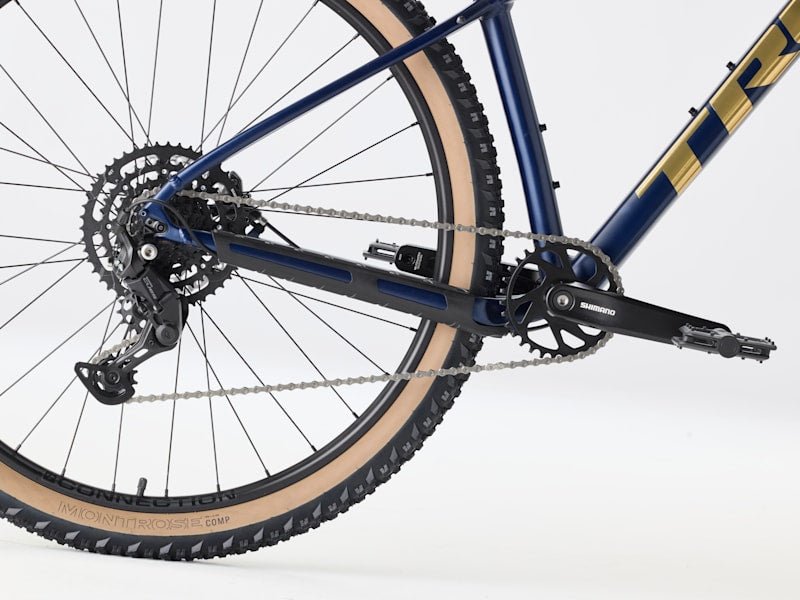

| Shifting | Shimano U4000 shifter, CUES U4000 rear derailleur, 9-speed |
| Crank | Shimano CUES U4001, 32T, 52 mm chain line — 170 mm (XS–ML) / 175 mm (L–XXL) |
| Cassette / chain | Shimano LINKGLIDE LG300 11-46 9-speed, LG500 chain |
| Bottom bracket | Shimano, 73 mm threaded, 122.5 mm spindle |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset — 330 mm (XS–M) / 400 mm (ML–XXL) |
| Handlebar | Bontrager alloy, 31.8 mm — 690 mm/5 mm rise (XS), 720 mm/15 mm rise (S), 750 mm/15 mm rise (M and up) |
| Stem | Bontrager Comp, 31.8 mm, 7°, Blendr compatible (S and up) — 35 mm (XS/S), 50 mm (M–L), 60 mm (XL), 70 mm (XXL) |
| Grips | Trek Line Comp, nylon lock-on |
| Headset | Semi-integrated, 1-1/8" |
| Brakes | Shimano MT200 hydraulic disc, Shimano RT26 6-bolt rotors — 160/180 mm, size-dependent (ask us in-store for the exact spec on your size) |
| Bike weight (M) | 15.10 kg / 33.29 lbs |
| Weight limit | 136 kg / 300 lbs total — bike + rider + cargo |
Specifications are subject to change without notice; compatible parts may be substituted due to supply chain issues.
Sizing and geometry
How tall are you?
Stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall, parallel with the floor. Mark the spot where the bottom of the book touches the wall — the distance from that mark to the floor is your height.
What is your inside leg?
Stand barefoot with your back straight and against a wall. Tuck a ruler between your legs so it extends to the floor. Using both hands, keeping it level, pull the ruler up into your crotch as if sitting on the saddle. Measure the distance from the top edge of the ruler to the ground — that's your inside leg. It's the most important measurement for finding your size, so measure carefully.
Sizing
| Size | Rider height (cm) | Rider height (ft/in) | Inseam (cm) | Inseam (in) |
|---|---|---|---|---|
| XS | 145–155 | 4'9"–5'1" | 69–73 | 27"–29" |
| S | 155–165 | 5'1"–5'5" | 74–78 | 29"–31" |
| M | 165–177 | 5'5"–5'10" | 79–83 | 31"–33" |
| ML | 173–180 | 5'8"–5'11" | 81–86 | 32"–34" |
| L | 177–188 | 5'10"–6'2" | 84–89 | 33"–35" |
| XL | 188–195 | 6'2"–6'5" | 89–91 | 35"–36" |
| 2XL | 195–203 | 6'5"–6'8" | 91–97 | 36"–38" |
All measurements in cm unless stated otherwise.
| Specification | XS (14.5") | S (15.5") | M (17.5") | ML (18.5") | L (19.5") | XL (21.5") |
|---|---|---|---|---|---|---|
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
| Seat tube | 34.0 | 37.0 | 41.9 | 44.4 | 47.0 | 52.1 |
| Seat tube angle | 73.8° | 73.8° | 71.9° | 71.9° | 71.9° | 71.9° |
| Head tube length | 9.0 | 10.0 | 9.0 | 9.0 | 10.0 | 12.0 |
| Head angle | 66.5° | 66.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Effective top tube | 55.1 | 57.9 | 60.2 | 61.8 | 63.8 | 65.9 |
| Bottom bracket height | 31.3 | 31.3 | 31.0 | 31.0 | 31.0 | 31.0 |
| Chainstay length | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 |
| Wheelbase | 109.2 | 112.1 | 110.0 | 111.6 | 113.7 | 115.9 |
| Standover | 65.8 | 69.2 | 74.8 | 75.8 | 75.7 | 76.9 |
| Frame reach | 39.0 | 41.5 | 41.8 | 43.4 | 45.1 | 46.6 |
| Frame stack | 56.3 | 57.2 | 60.2 | 60.2 | 61.1 | 63.0 |
Full geometry chart including bottom bracket drop, fork offset and trail available in-store.
