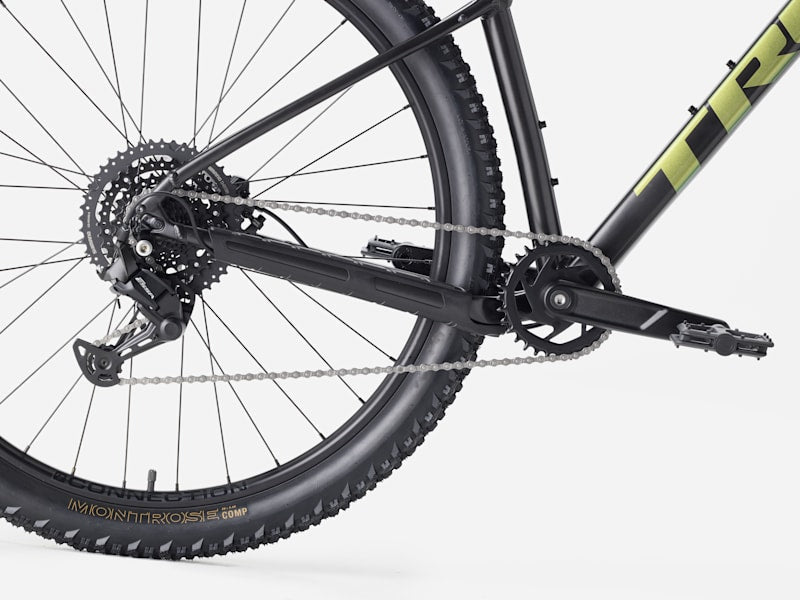

Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
| Category | Component | Size / Details |
|---|---|---|
| Frameset | Frame |
XXS / XS: Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew S / M / ML / L / XL / XXL: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
| Fork |
XXS: SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel XS: SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel S: SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel M / ML / L / XL / XXL: SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Wheels | Front Hub | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm | |
| Rear Skewer | 173x5 mm QR | |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve | |
| Tyre |
XXS: Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35'' XS / S: Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" M / ML / L / XL / XXL: Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40" |
|
| Drivetrain | Shifter | Shimano M315, 8-speed |
| Rear Derailleur | Shimano ESSA U2000 | |
| Crank |
XXS / XS: ProWheel alloy, 32T narrow-wide steel ring, 160 mm length S / M / ML: ProWheel alloy, 32T narrow-wide steel ring, 170 mm length L / XL / XXL: ProWheel alloy, 32T narrow-wide steel ring, 175 mm length |
|
| Cassette | Shimano HG300, 11-45, 8-speed | |
| Chain | KMC Z8.3, 8-speed | |
| Pedal | Nylon platform | |
| Components | Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost |
XXS: Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length XS / S / M: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length ML / L / XL / XXL: Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar |
XXS / XS: Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width S: Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width M / ML / L / XL / XXL: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on | |
| Stem |
XXS / XS / S: Bontrager Comp, 31.8 mm, 7°, 35 mm length M / ML / L: Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 50 mm length XL: Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 60 mm length XXL: Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 70 mm length |
|
| Headset | Semi-integrated, 1-1/8" | |
| Brake |
XXS / XS / S: Tektro HD-M276 hydraulic disc XXS / XS / S / M / ML / L / XL / XXL: Power BH-M286TF hydraulic disc, 160 mm rotor M / ML / L / XL / XXL: Tektro HD-M275 hydraulic disc M / ML / L / XL / XXL: Power BH-M286TF hydraulic disc, 180 mm rotor |
|
| Brake Rotor |
XXS / XS / S / M / ML / L / XL / XXL: Tektro, 6-bolt, 160 mm M / ML / L / XL / XXL: Tektro, 6-bolt, 180 mm |
|
| Weight | Bike Weight (M) | 14.90 kg / 32.85 lbs |
| Weight Limit | Maximum total weight (bike + rider + cargo): 136 kg / 300 lbs | |
| Note | Specifications subject to change without notice; compatible parts may be substituted due to supply chain issues. |
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | Rider Height (cm) | Rider Height (ft/in) | Inseam (cm) | Inseam (in) |
|---|---|---|---|---|
| XS | 145 – 155 | 4'9" – 5'1" | 69 – 73 | 27" – 29" |
| S | 155 – 165 | 5'1" – 5'5" | 74 – 78 | 29" – 31" |
| M | 165 – 177 | 5'5" – 5'10" | 79 – 83 | 31" – 33" |
| ML | 173 – 180 | 5'8" – 5'11" | 81 – 86 | 32" – 34" |
| L | 177 – 188 | 5'10" – 6'2" | 84 – 89 | 33" – 35" |
| XL | 188 – 195 | 6'2" – 6'5" | 89 – 91 | 35" – 36" |
| 2XL | 195 – 203 | 6'5" – 6'8" | 91 – 97 | 36" – 38" |
All measurements provided in cm unless otherwise stated.
| Specification | XS (14.5") | S (15.5") | M (17.5") | ML (18.5") | L (19.5") | XL (21.5") |
|---|---|---|---|---|---|---|
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
| A — Seat tube (cm) | 34.0 | 37.0 | 41.9 | 44.4 | 47.0 | 52.1 |
| B — Seat tube angle | 73.8° | 73.8° | 71.9° | 71.9° | 71.9° | 71.9° |
| Effective seat tube angle | 74.0° | 74.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| C — Head tube length (cm) | 9.0 | 10.0 | 9.0 | 9.0 | 10.0 | 12.0 |
| D — Head angle | 66.5° | 66.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| E — Effective top tube (cm) | 55.1 | 57.9 | 60.2 | 61.8 | 63.8 | 65.9 |
| F — Bottom bracket height (cm) | 31.3 | 31.3 | 31.0 | 31.0 | 31.0 | 31.0 |
| G — Bottom bracket drop (cm) | 4.5 | 4.5 | 5.8 | 5.8 | 5.8 | 5.8 |
| H — Chainstay length (cm) | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 |
| I — Offset (cm) | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| J — Trail (cm) | 11.0 | 11.0 | 9.3 | 9.3 | 9.3 | 9.3 |
| K — Wheelbase (cm) | 109.2 | 112.1 | 110.0 | 111.6 | 113.7 | 115.9 |
| L — Standover (cm) | 65.8 | 69.2 | 74.8 | 75.8 | 75.7 | 76.9 |
| M — Frame reach (cm) | 39.0 | 41.5 | 41.8 | 43.4 | 45.1 | 46.6 |
| N — Frame stack (cm) | 56.3 | 57.2 | 60.2 | 60.2 | 61.1 | 63.0 |
