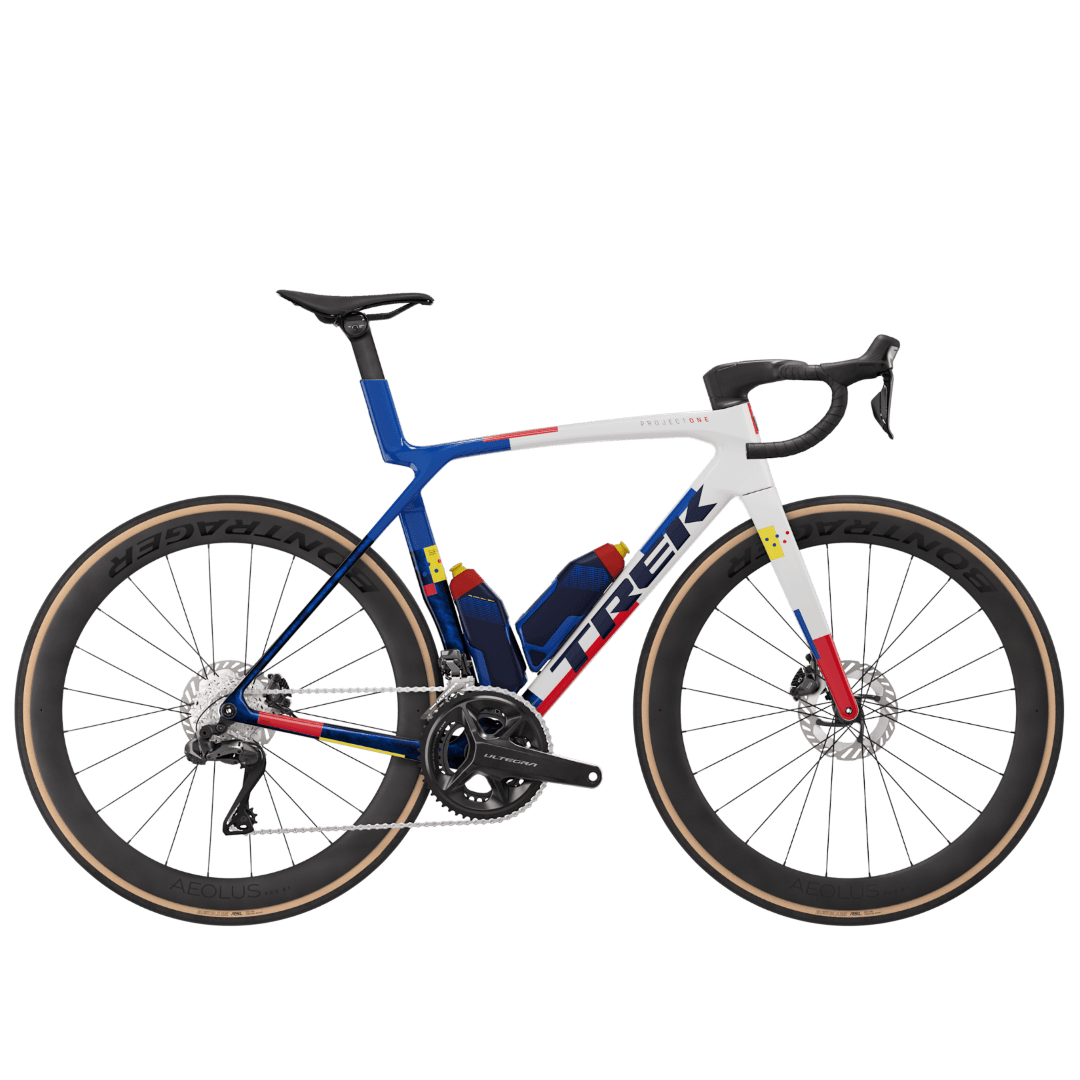

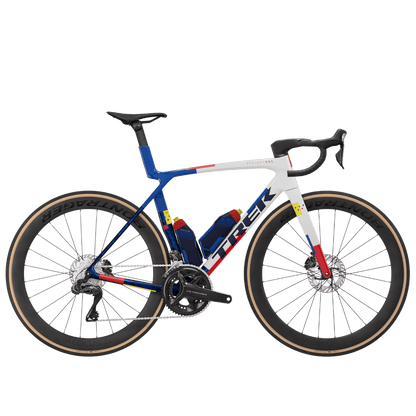

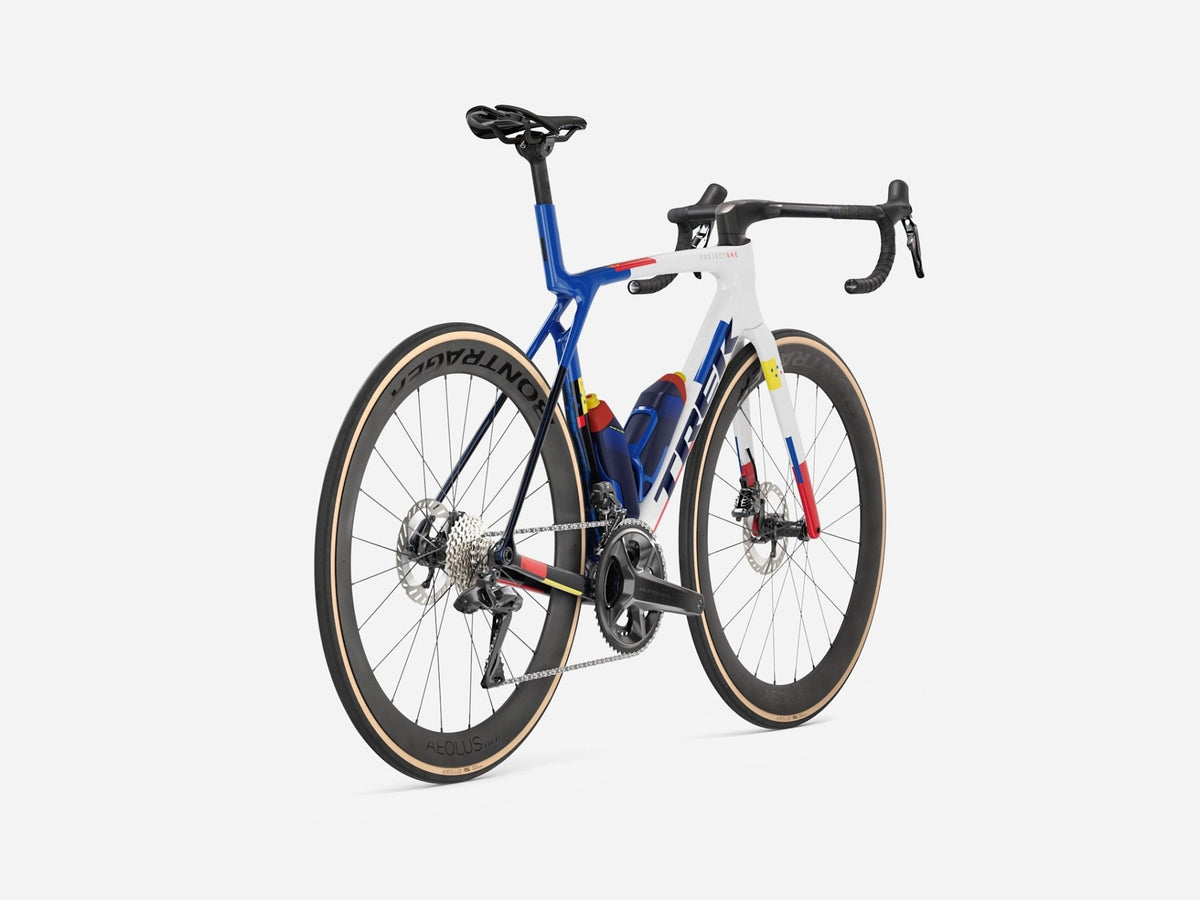

Madone SLR 7 Gen 8 is an aero, featherlight road bike built to race. Its 900 Series OCLV Carbon frame cuts weight and adds aero gains, while IsoFlow technology boosts comfort without sacrificing speed. It's race-ready with a wireless 2x12 Shimano Ultegra Di2 groupset, Bontrager Aeolus Pro 51 wheels, a Trek Aero RSL one-piece bar/stem, and RSL Aero Bottles and Cages for added drag reduction.
Specifications
Frameset

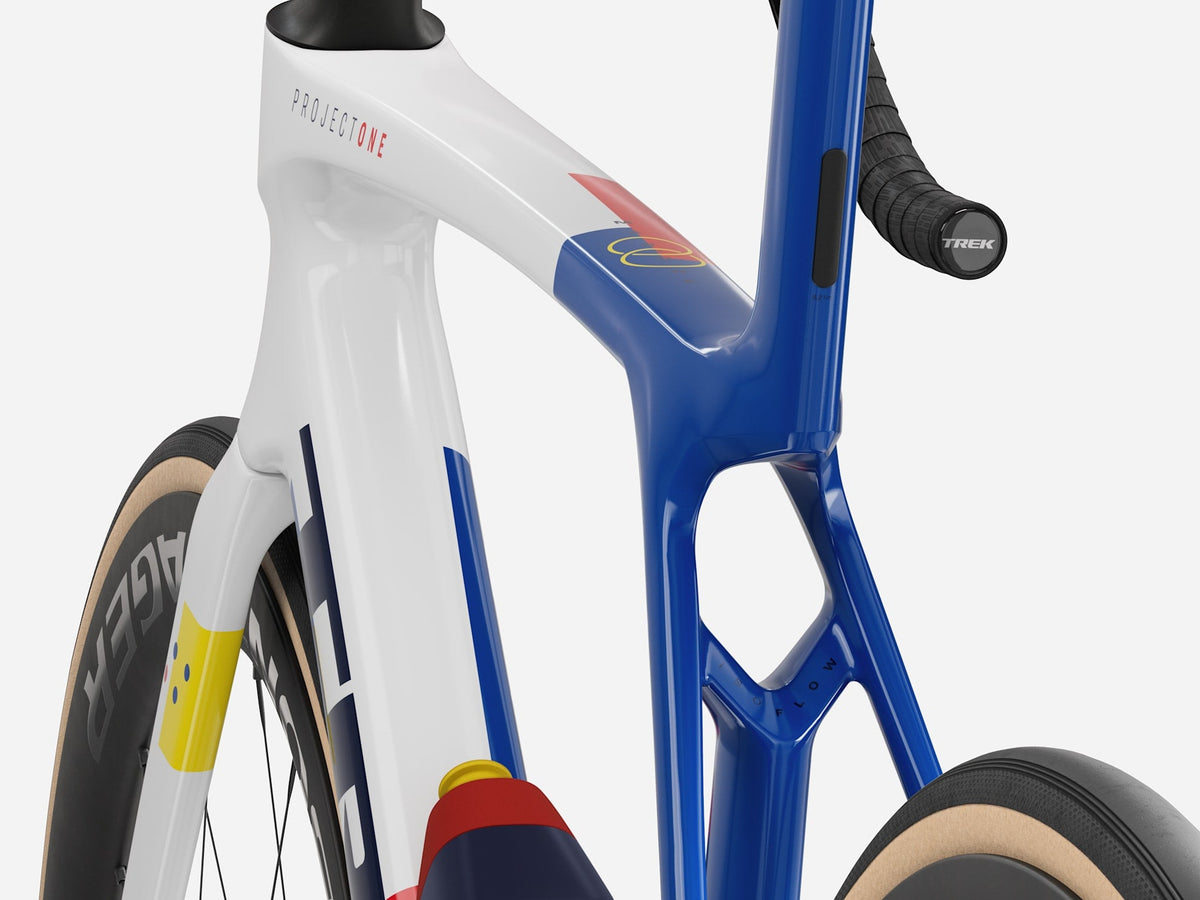

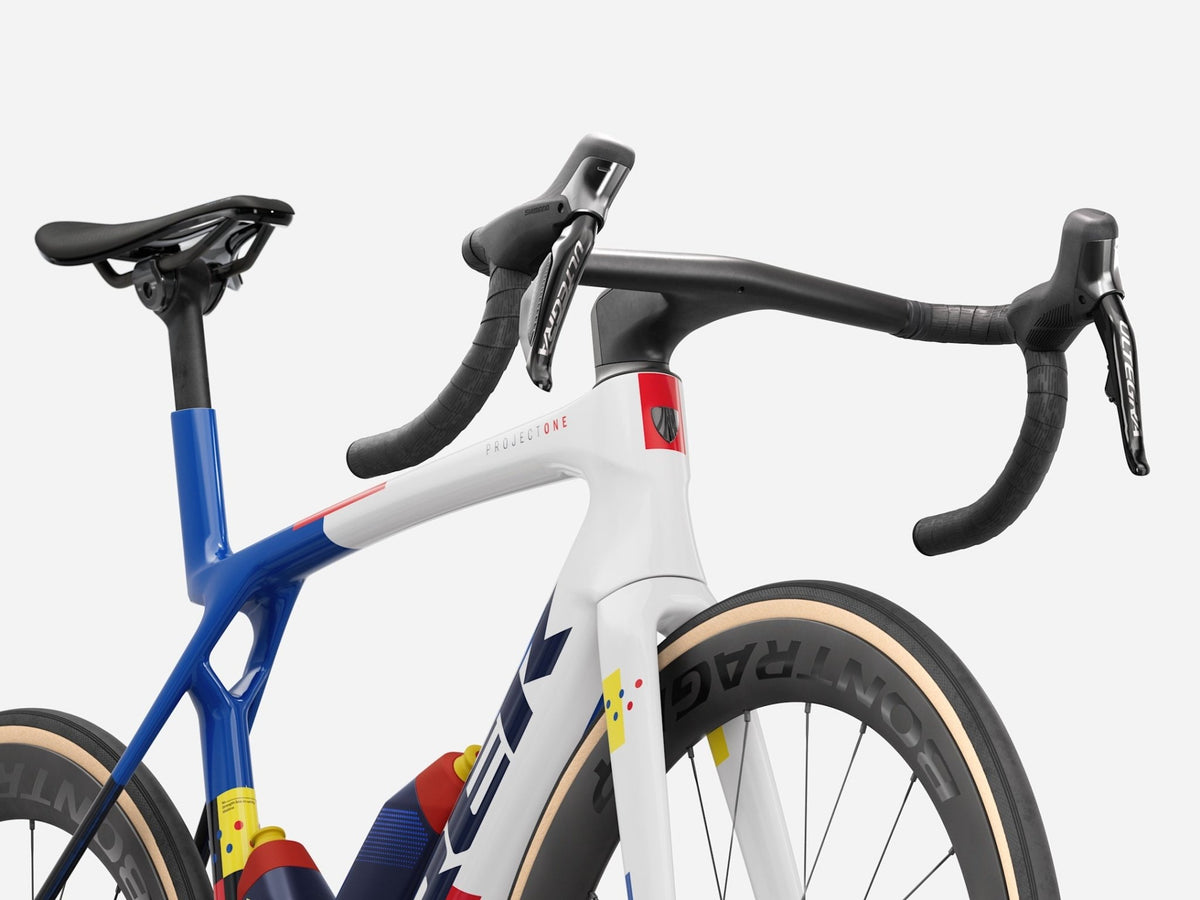

| Frame |
900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork |
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |

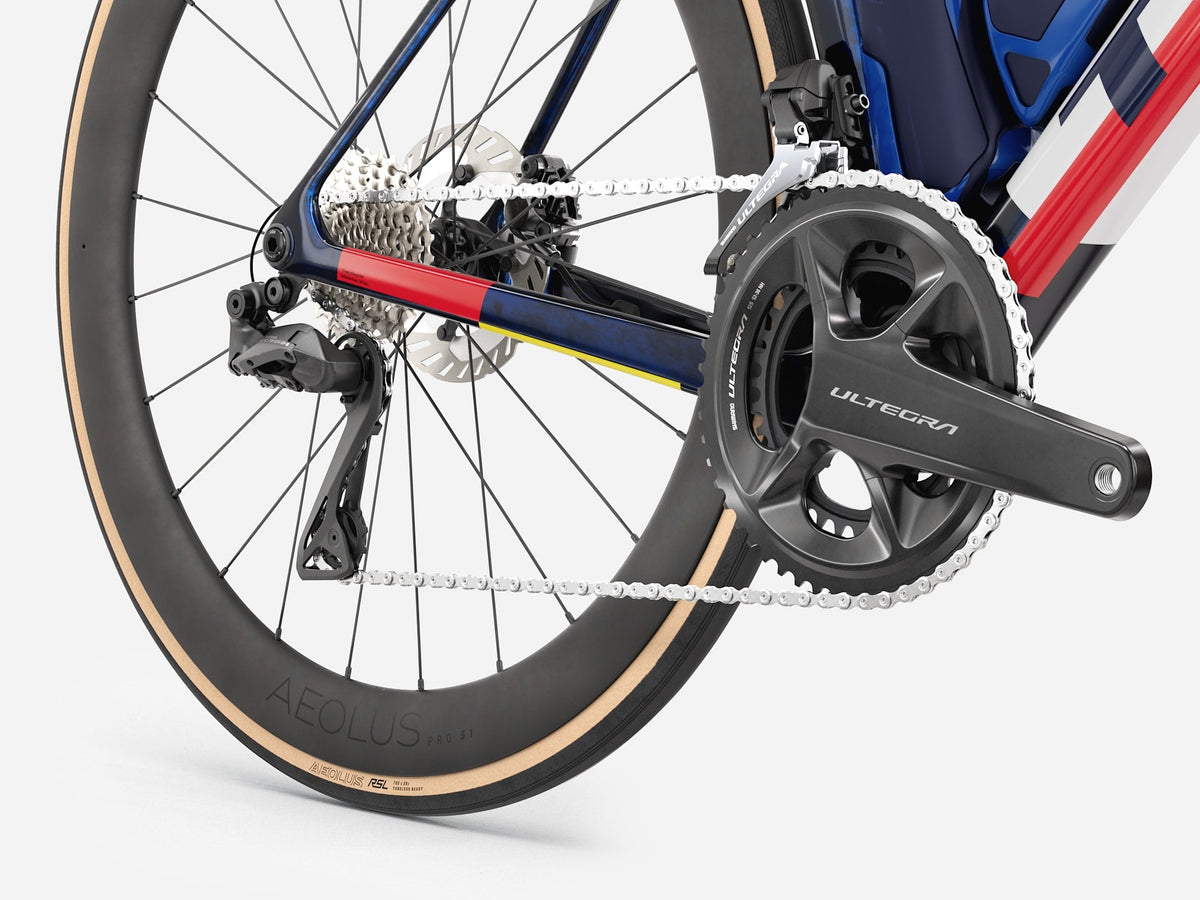

Drivetrain
| Shifting |
Shimano Ultegra R8170/R8171 Di2, 12-speed, R8150 Di2 front/rear derailleur, 34T max cog |
| Battery |
Shimano BT-DN300 |
| Crank |
Shimano Ultegra R8100, 52/36 — 160 mm (XS–S), 165 mm (XS–ML), 170 mm (M–ML), 172.5 mm (L–XL) |
| Bottom bracket |
Praxis, T47 threaded, internal bearing |
| Cassette / chain |
Shimano Ultegra R8101, 11-30, 12-speed — Shimano Ultegra/XT M8100 chain |
Wheels
| Wheelset |
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, Bontrager Switch thru axles |
| Tyres |
Pirelli P Zero Race / TLR RS, 120 tpi, tubeless-compatible, 700x28 mm (or Bontrager Aeolus RSL RD, 170 tpi, on select sizes) |
| Brakes |
Shimano hydraulic disc, CL800 CenterLock 160 mm rotors, max 180 mm front / 160 mm rear |
Components
| Saddle |
Bontrager Aeolus Pro / Trek Aeolus Pro, carbon rails, 145 mm width |
| Seatpost |
Madone aero carbon, 0 mm offset, short length |

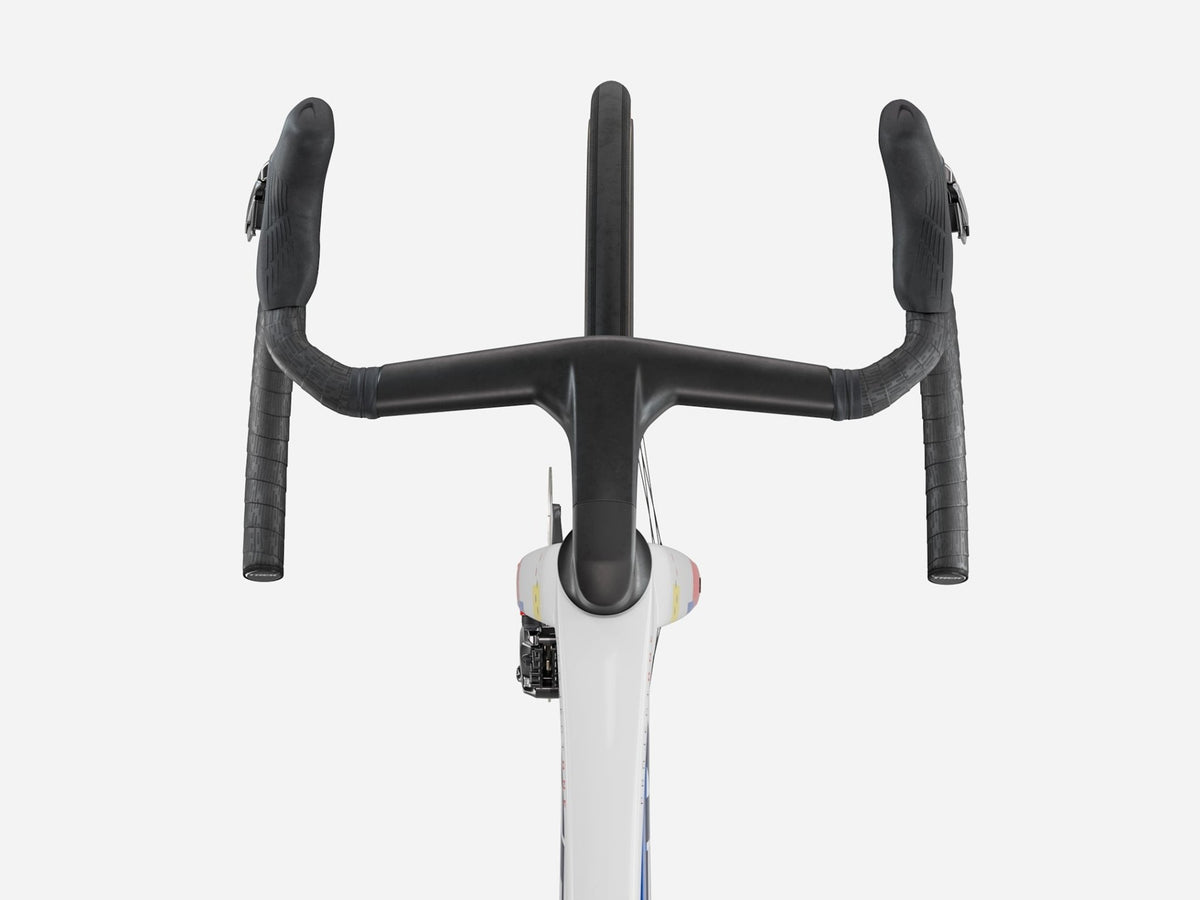

| Handlebar / stem |
Trek Aero RSL one-piece bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop — control width 35–41 cm and stem length 80–110 mm depending on size |
| Handlebar tape |
Trek EcoTack |
Weight
| Bike weight (ML) |
7.52 kg / 16.58 lbs (with TLR sealant, no tubes, no bottles/cages) |
| Weight limit |
125 kg / 275 lbs total — bike + rider + cargo |
Specifications apply to all sizes unless listed separately. Product information, specifications, equipment, materials, colours and pricing may change without notice; compatible components may be substituted due to supply chain availability.
Sizing and geometry
Sizing
| Size |
XS |
S |
M |
ML |
L |
XL |
| Rider height |
143–158 cm |
158–162 cm |
162–173 cm |
173–179 cm |
179–188 cm |
188–199 cm |
| Inseam |
67–74 cm |
74–76 cm |
76–81 cm |
81–84 cm |
84–88 cm |
88–100 cm |
All measurements in cm unless stated otherwise.
| Frame size |
XS |
S |
M |
ML |
L |
XL |
| Seat tube |
40.4 |
44.0 |
47.6 |
51.2 |
54.8 |
60.9 |
| Seat tube angle |
73.8° |
73.8° |
73.6° |
73.4° |
73.4° |
73.4° |
| Head tube length |
10.0 |
12.1 |
13.6 |
15.0 |
17.2 |
20.1 |
| Head angle |
71.6° |
72.2° |
72.9° |
73.5° |
73.8° |
73.9° |
| Effective top tube |
51.7 |
53.2 |
54.5 |
55.7 |
56.8 |
58.4 |
| Bottom bracket drop |
7.2 |
7.2 |
7.0 |
7.0 |
6.8 |
6.8 |
| Chainstay length |
41.0 |
41.0 |
41.0 |
41.0 |
41.1 |
41.2 |
| Fork offset |
5.0 |
4.5 |
4.5 |
4.0 |
4.0 |
4.0 |
| Trail |
6.1 |
6.2 |
5.8 |
5.9 |
5.7 |
5.7 |
| Wheelbase |
97.1 |
97.6 |
98.1 |
98.0 |
99.0 |
100.7 |
| Standover |
70.4 |
73.4 |
76.2 |
79.0 |
82.0 |
86.3 |
| Frame reach |
37.0 |
37.8 |
38.4 |
38.9 |
39.4 |
40.2 |
| Frame stack |
50.7 |
53.0 |
54.6 |
56.2 |
58.2 |
61.0 |
