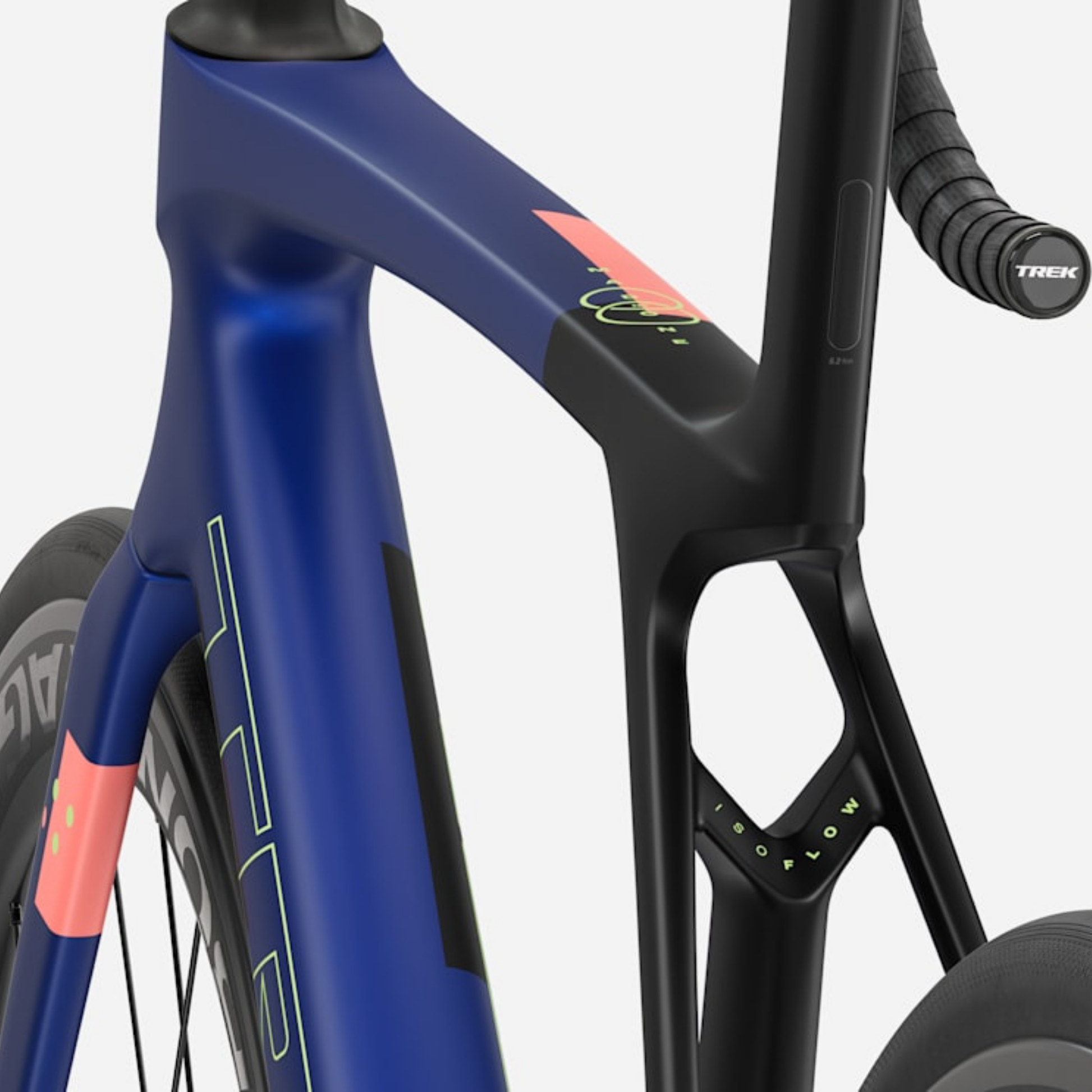

The Trek Madone SL 6 Gen 8 brings WorldTour-inspired speed, aerodynamics, and lightweight performance to riders looking for a premium race bike without the flagship price tag. Built around Trek's lightweight 500 Series OCLV Carbon frame with Full System Foil aero tube shaping and IsoFlow technology, it delivers exceptional efficiency, comfort, and responsiveness for racing, fast group rides, and endurance performance.
Specifications
Frameset
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, electronic/mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered steerer, internal brake routing, flat mount disc, 12x100 mm thru axle |
| Headset | Trek RCS integrated headset system |
Drivetrain
| Shifting | Shimano 105 R7170 Di2 shifter, R7150 Di2 front/rear derailleur, 12-speed electronic, 36T max cog |
| Crank | Shimano 105 R7100, 50/34 |
| Bottom bracket | T47 threaded |
| Cassette | Shimano 105 CS-7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
Wheels
| Wheelset | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready |
| Tyres | Bontrager Aeolus Pro TLR, 700x28c — max tyre clearance 32 mm |
Components
| Handlebar | Bontrager Aero Pro, OCLV Carbon |
| Stem | Trek RCS integrated stem |
| Bar tape | Trek EcoTack |
| Saddle | Bontrager Aeolus Elite, Austenite rails, 145 mm |
| Seatpost | Madone aero carbon seatpost |
| Brakes | Shimano 105 hydraulic disc, CL700 CenterLock 160 mm rotors front and rear |
Weight
| Bike weight (ML) | 8.16 kg, tubeless setup |
| Weight limit | 125 kg / 275 lbs total — bike + rider + cargo |
Specifications may vary slightly between frame sizes and are subject to change without notice.
Sizing and geometry
Sizing
| Size | XS (47) | S (50) | M (52–54) | ML (56) | L (58) | XL (60–62) |
|---|---|---|---|---|---|---|
| Rider height | 143–158 cm | 158–162 cm | 162–173 cm | 173–179 cm | 179–188 cm | 188–213 cm |
| Inseam | 67–74 cm | 74–76 cm | 76–81 cm | 81–84 cm | 84–88 cm | 88–100 cm |
All measurements in cm unless stated otherwise.
| Frame size | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Seat tube | 40.4 | 44.0 | 47.6 | 51.2 | 54.8 | 60.9 |
| Seat tube angle | 73.8° | 73.8° | 73.6° | 73.4° | 73.4° | 73.4° |
| Head tube length | 10.0 | 12.1 | 13.6 | 15.0 | 17.2 | 20.1 |
| Head angle | 71.6° | 72.2° | 72.9° | 73.5° | 73.8° | 73.9° |
| Effective top tube | 51.7 | 53.2 | 54.5 | 55.7 | 56.8 | 58.4 |
| Bottom bracket drop | 7.2 | 7.2 | 7.0 | 7.0 | 6.8 | 6.8 |
| Chainstay length | 41.0 | 41.0 | 41.0 | 41.0 | 41.1 | 41.2 |
| Wheelbase | 97.1 | 97.6 | 98.1 | 98.0 | 99.0 | 100.7 |
| Standover | 70.4 | 73.4 | 76.2 | 79.0 | 82.0 | 86.3 |
| Frame reach | 37.0 | 37.8 | 38.4 | 38.9 | 39.4 | 40.2 |
| Frame stack | 50.7 | 53.0 | 54.6 | 56.2 | 58.2 | 61.0 |
