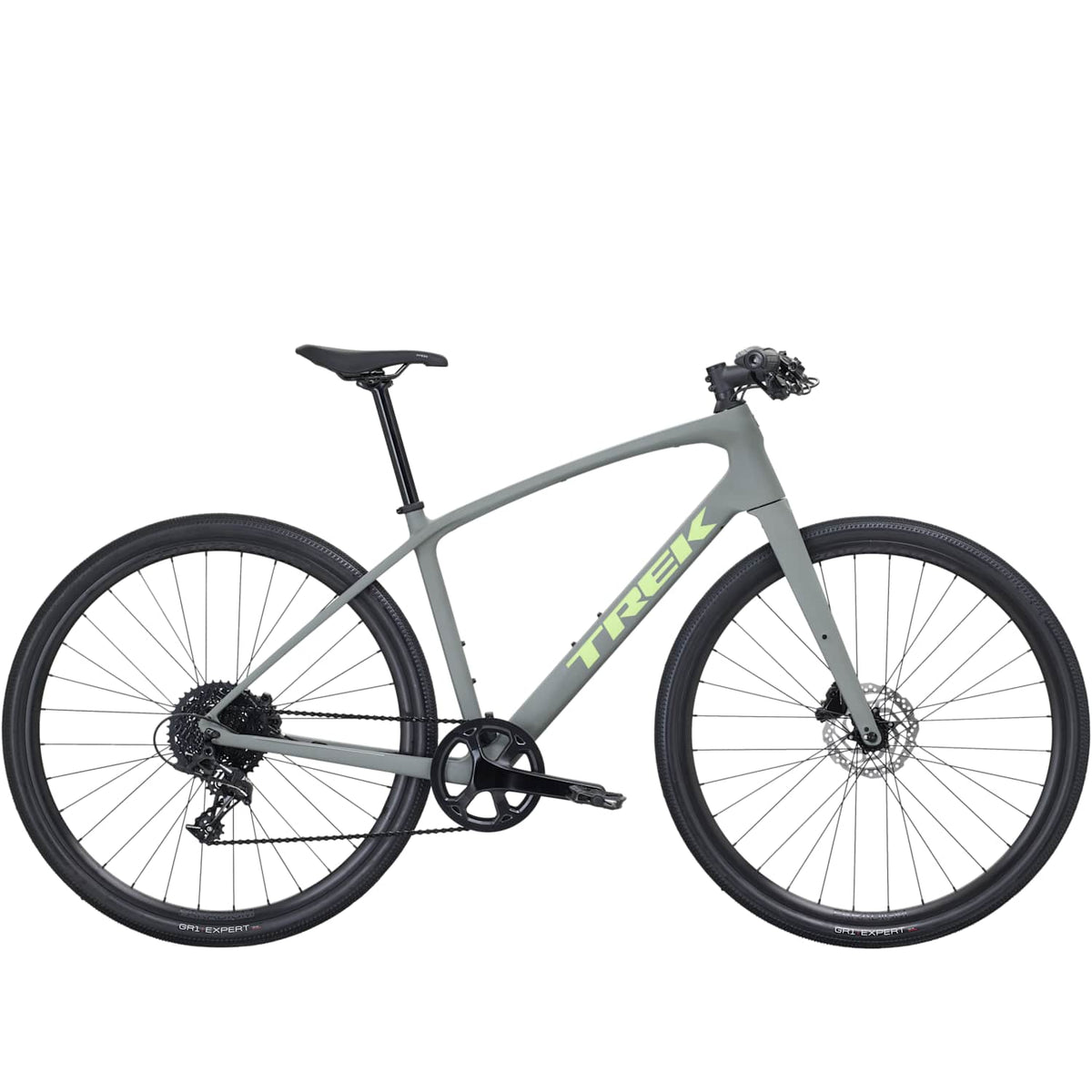

The FX Sport SL 5 is a carbon fibre fitness bike for riders who want the speed of a lightweight road bike with the comfort and control of a flat handlebar. It steps up to an 11-speed SRAM Apex 1x drivetrain with a wide 11-42 cassette, and keeps the 400 Series OCLV Carbon frame, carbon fork, hydraulic disc brakes and tubeless-ready rims, making it ideal for everything from solo workouts to fast group rides.
Specifications
| Frame | 400 Series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 135x5 mm ThruSkew |
| Fork | Carbon, hidden mudguard mounts, flat mount disc, 100x5 mm thru-skew |
| Shifter | SRAM Apex, 11-speed |
| Rear derailleur | SRAM Apex 1, long cage, 42T max cog |
| Crank | Prowheel alloy, 42T narrow-wide ring, 175 mm |
| Cassette / chain | microSHIFT XLE, 11-42, 11-speed — KMC X11 chain |
| Pedals | Bontrager City pedals |
| Hubs | Formula CL-51 / CL-52 alloy — 100x5 mm front, 135x5 mm rear |
| Rims | Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve |
| Tyres | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c |
| Brakes | Shimano hydraulic disc, MT201 lever, UR300 calliper — Shimano RT10 160 mm rotors |
| Saddle | Trek Verse Short Trail |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm (S) |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm (S) |
| Grips | Trek ergonomic PRO, lock-on |
Specifications are subject to change without notice; due to supply chain availability, compatible components may occasionally be substituted.
Sizing and geometry
Sizing
| Size | S |
|---|---|
| Rider height | 155–165 cm |
| Inseam | 72–78 cm |
All measurements in cm unless stated otherwise.
| Frame size | S |
|---|---|
| Seat tube | 40.6 |
| Seat tube angle | 74.5° |
| Head tube length | 14.0 |
| Head angle | 70.5° |
| Effective top tube | 54.3 |
| Bottom bracket drop | 6.5 |
| Chainstay length | 44.2 |
| Wheelbase | 105.4 |
| Standover | 75.1 |
| Frame reach | 38.5 |
| Frame stack | 56.8 |
