IN-STORE PICKUP ONLY
Trek Bicycles & Bontrager Spares/Accessories are only available for in-store pickup from our Pune Bike Shop.
Please Call or Whatsapp (+91) 7020425618 to talk to our Product Specialists.

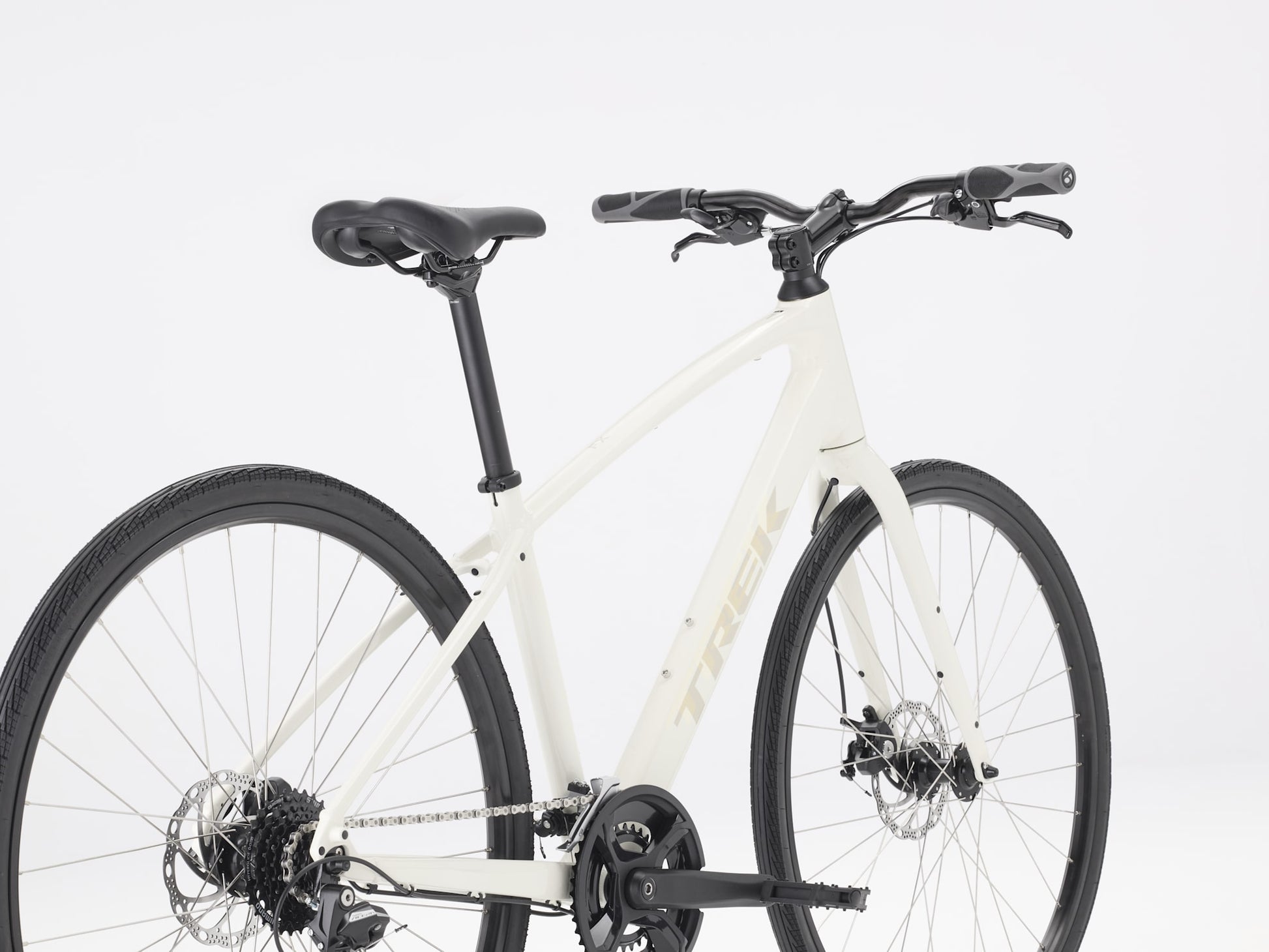

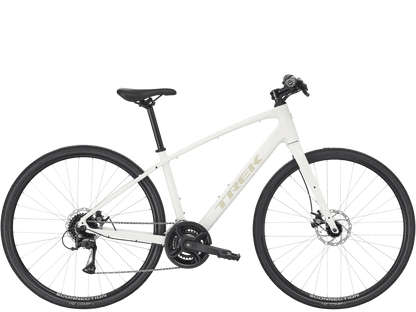

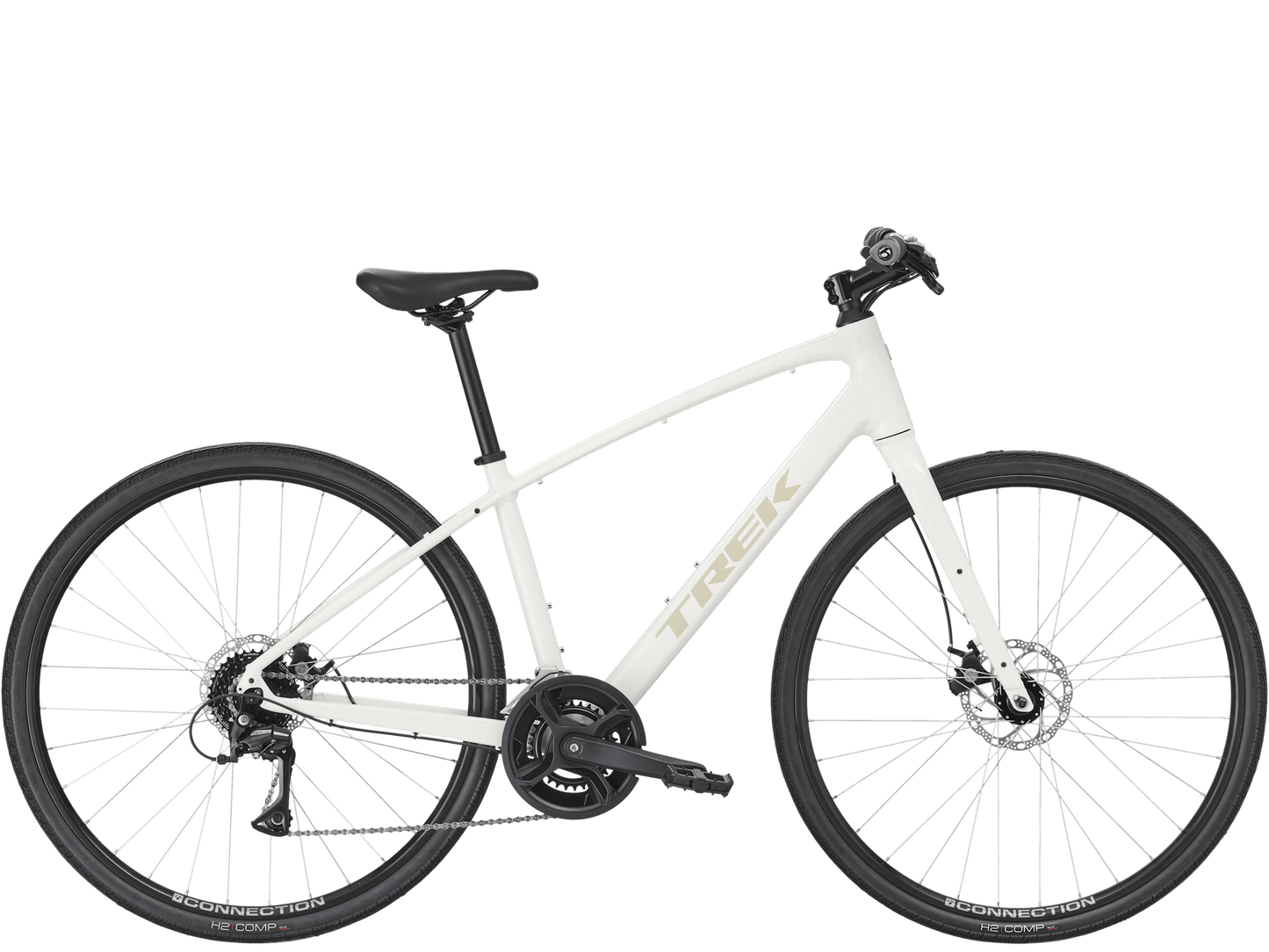

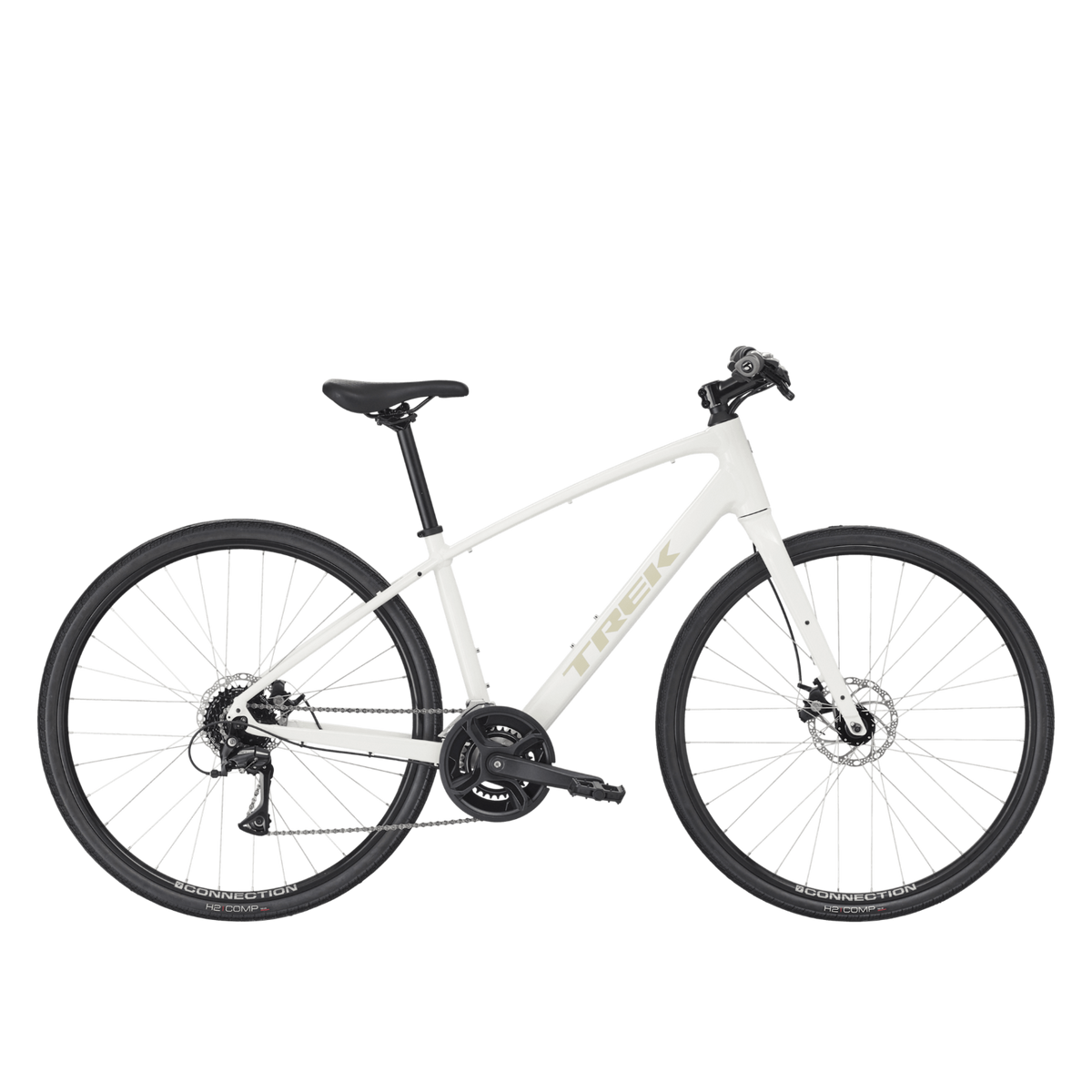

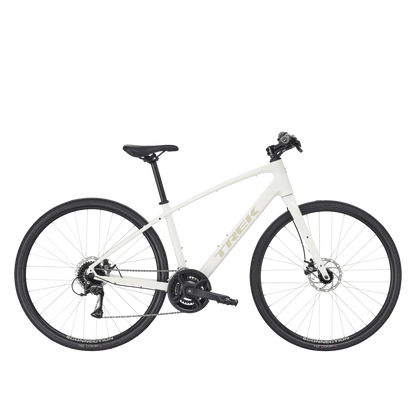

The FX 1 is a versatile and sleek hybrid bike for riding all around town. It's perfect to ride for exercise, commuting or fun. You get price-conscious parts that still deliver a big range of speeds, disc brakes that let you stop on a penny and loads of mounts for accessories.
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make – this one included – had made the switch, driving a major drop in our footprint.
| Component | Category | Specification |
|---|---|---|
| Frame & Fork | ||
| Frame | Frameset | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mountRear axle: 135×5 mm QR |
| Fork | Frameset | FX steel, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR |
| Wheels | ||
| Front hub | Wheels | Formula DC-20, alloy, 6-bolt, 100×5 mmSkewer: 139×5 mm bolt-on |
| Rear hub | Wheels | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mmSkewer: 152×5 mm QR |
| Tyre | Wheels | Bontrager H2 Comp, wire bead, 30 tpi, 700×35 mm |

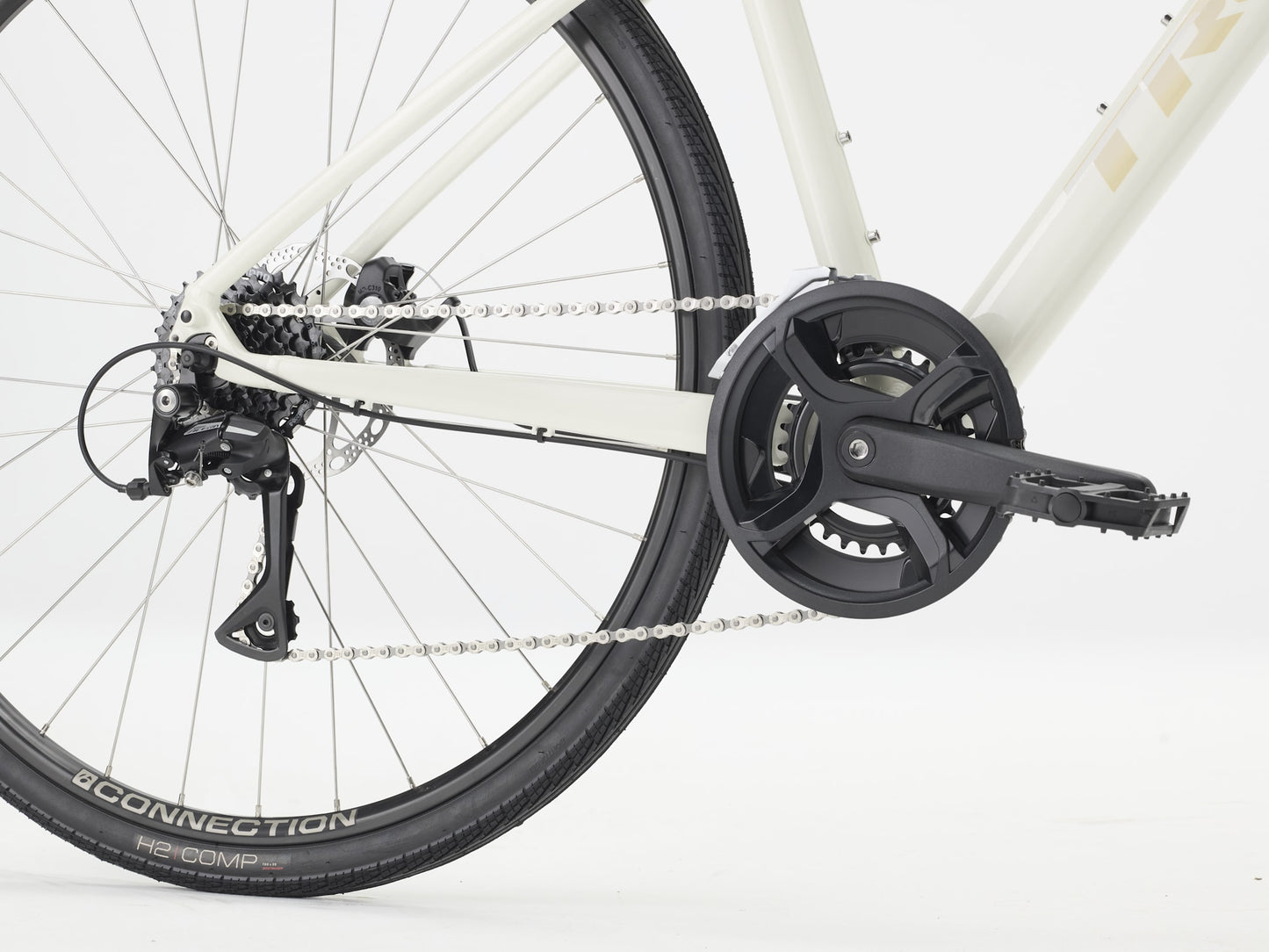

| Drivetrain | ||
| Shifters | Drivetrain | Shimano EF500XS–XL: 8-speed rear & 2-speed front |
| Front derailleur | Drivetrain | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Drivetrain | Shimano Acera M3020-8, 40T max cog |
| Crankset | Drivetrain | Forged alloy, 46/30T chainrings, 170 mm arms |
| Bottom bracket | Drivetrain | Sealed cartridge, 68 mm |
| Cassette | Drivetrain | Shimano 8-speed, 12–32T |
| Chain | Drivetrain | KMC Z8.3 |
| Pedals | Drivetrain | Wellgo nylon platform |
| Brakes | ||
| Brake | Brakes | Tektro MD-U310 mechanical disc |
| Rotors | Brakes | Tektro wave, 6-bolt, 160 mm |
| Components | ||
| Saddle | Components | Bontrager Sport |
| Seatpost | Components | Bontrager alloy, 27.2 mm, 12 mm offsetXS–M: 330 mm | L–XL: 400 mm |

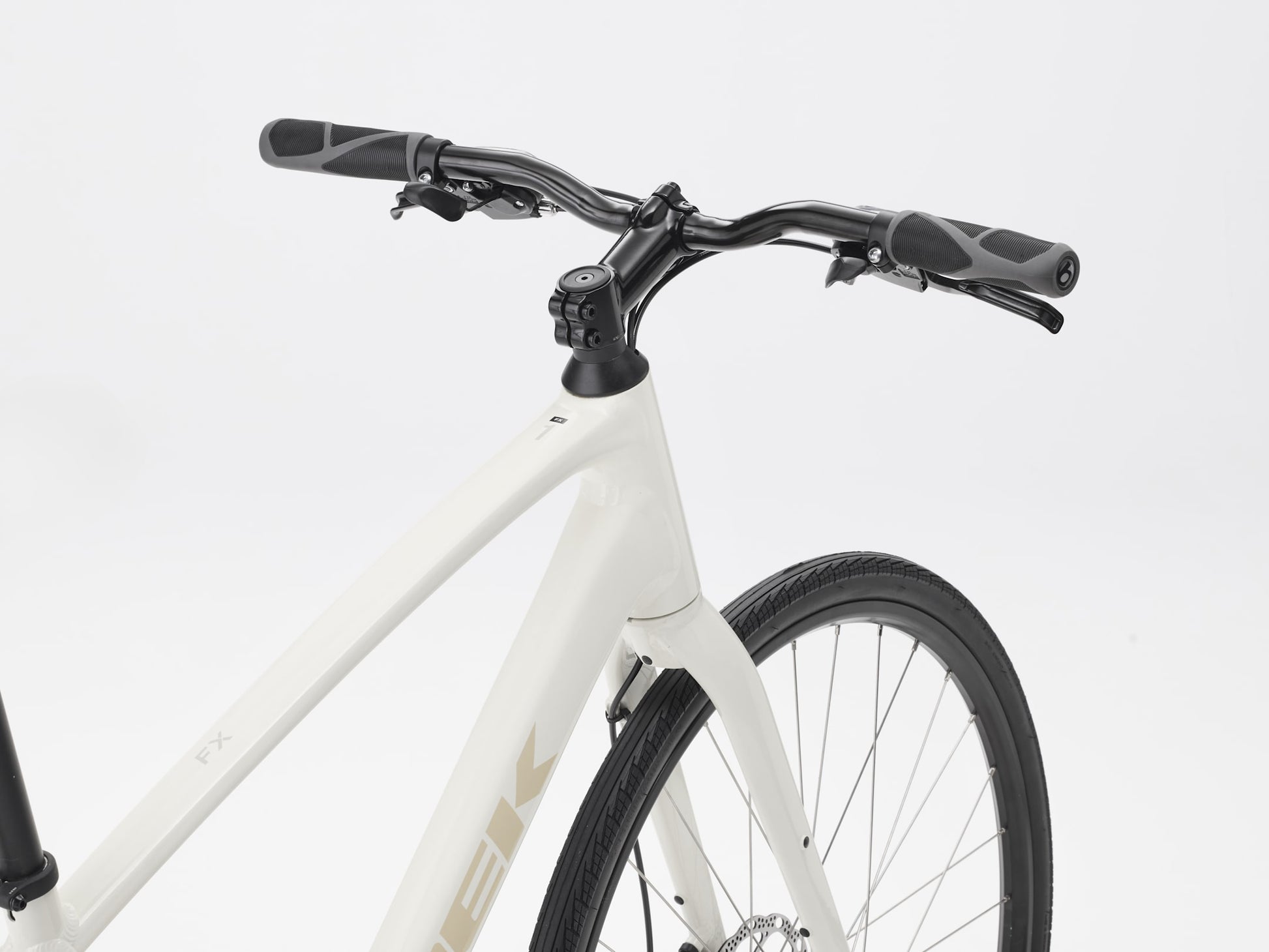

| Handlebar | Components | Bontrager Riser, steel, 25.4 mm, 30 mm riseXS–L: 600 mm wide | XL: 620 mm wide |
| Stem | Components | Bontrager alloy, 25.4 mm clamp, 10°XS–M: 90 mm | L–XL: 110 mm |
| Grips | Components | Trek Ergonomic Comp, lock-on |
| Weight | ||
| Weight (size M) | Weight | 13.00 kg / 28.67 lbs |
| Max total weight limit | Weight | 136 kg / 300 lbs (rider + bike + cargo combined) |
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | Rider Height | Inseam |
| XS | 147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M | 165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L | 175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL | 186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
| Frame size number | 40 | 45 | 50 | 55 | 60 |
| Frame size letter | XS | S | M | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 33 | 37.5 | 42 | 47 | 52 |
| B — Seat tube angle | 75.0° | 74.5° | 74.0° | 73.5° | 72.5° |
| C — Head tube length | 12 | 14 | 17 | 19 | 22 |
| D — Head angle | 70.0° | 70.5° | 71.0° | 71.5° | 72.5° |
| E — Effective top tube | 53 | 54.3 | 56 | 58 | 61 |
| F — Bottom bracket height | 29 | 28.5 | 29 | 29 | 29 |
| G — Bottom bracket drop | 7 | 6.5 | 7 | 7 | 7 |
| H — Chainstay length | 45 | 44.7 | 45 | 45 | 45 |
| I — Offset | 5 | 5 | 5 | 5 | 5 |
| J — Trail | 7 | 7.1 | 7 | 6 | 6 |
| K — Wheelbase | 105 | 105.9 | 107 | 108 | 109 |
| L — Standover | 68 | 71.5 | 75 | 79 | 84 |
| M — Frame reach | 38 | 38.5 | 39 | 40 | 41 |
| N — Frame stack | 54 | 56.8 | 59 | 62 | 65 |
Trek bicycles and Bontrager accessories are reserved online and collected in person — this ensures the right size, a proper bike fit and expert guidance before you ride away.
