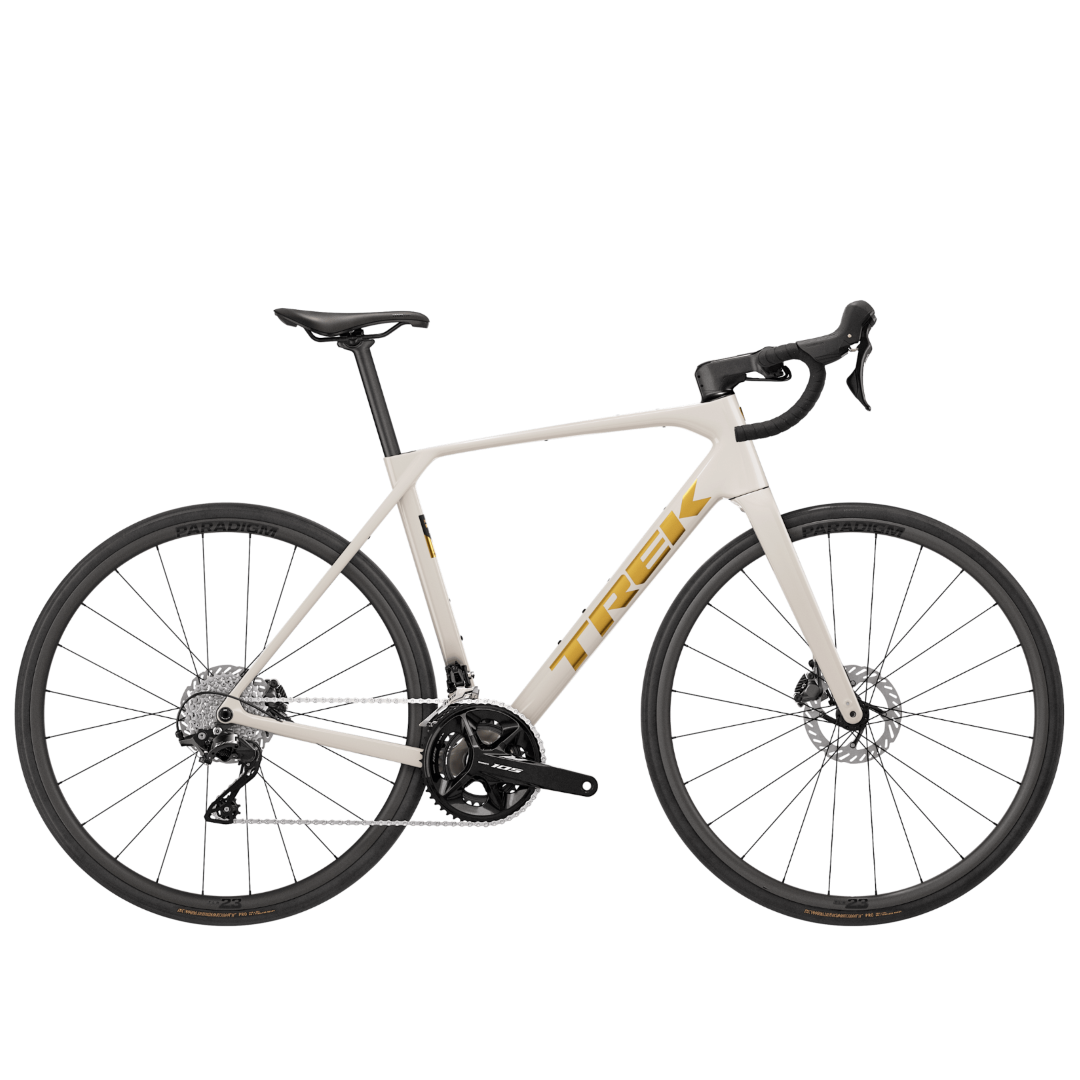

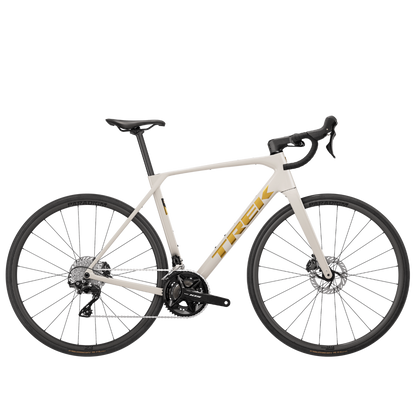

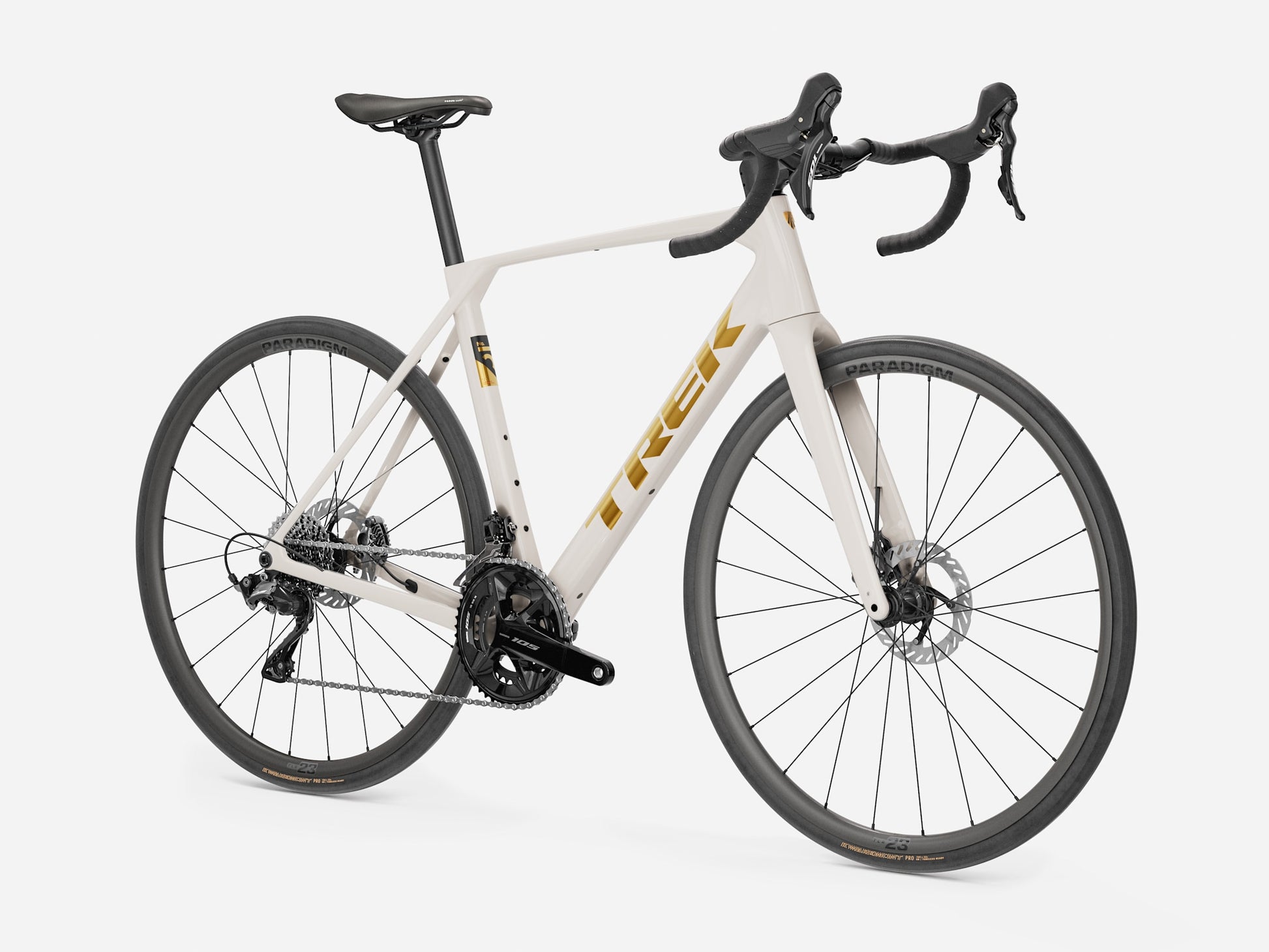

The Domane SL 5 is a lightweight carbon endurance bike that blends all-day comfort with clean, modern simplicity. Built from 500 Series OCLV Carbon, it features all-road 40mm tyre clearance and a streamlined design that gets back to the essence of road riding. A 12-speed Shimano 105 drivetrain delivers precise shifting, while a sleek riser bar adds comfort without cluttering the front end, making it ready for long miles, big days, and light gravel detours.
Specifications
| Frame | 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, mudguard mounts, flat mount disc, UDH 142x12mm thru axle |
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Shifter | Shimano 105 R7120, 12-speed |

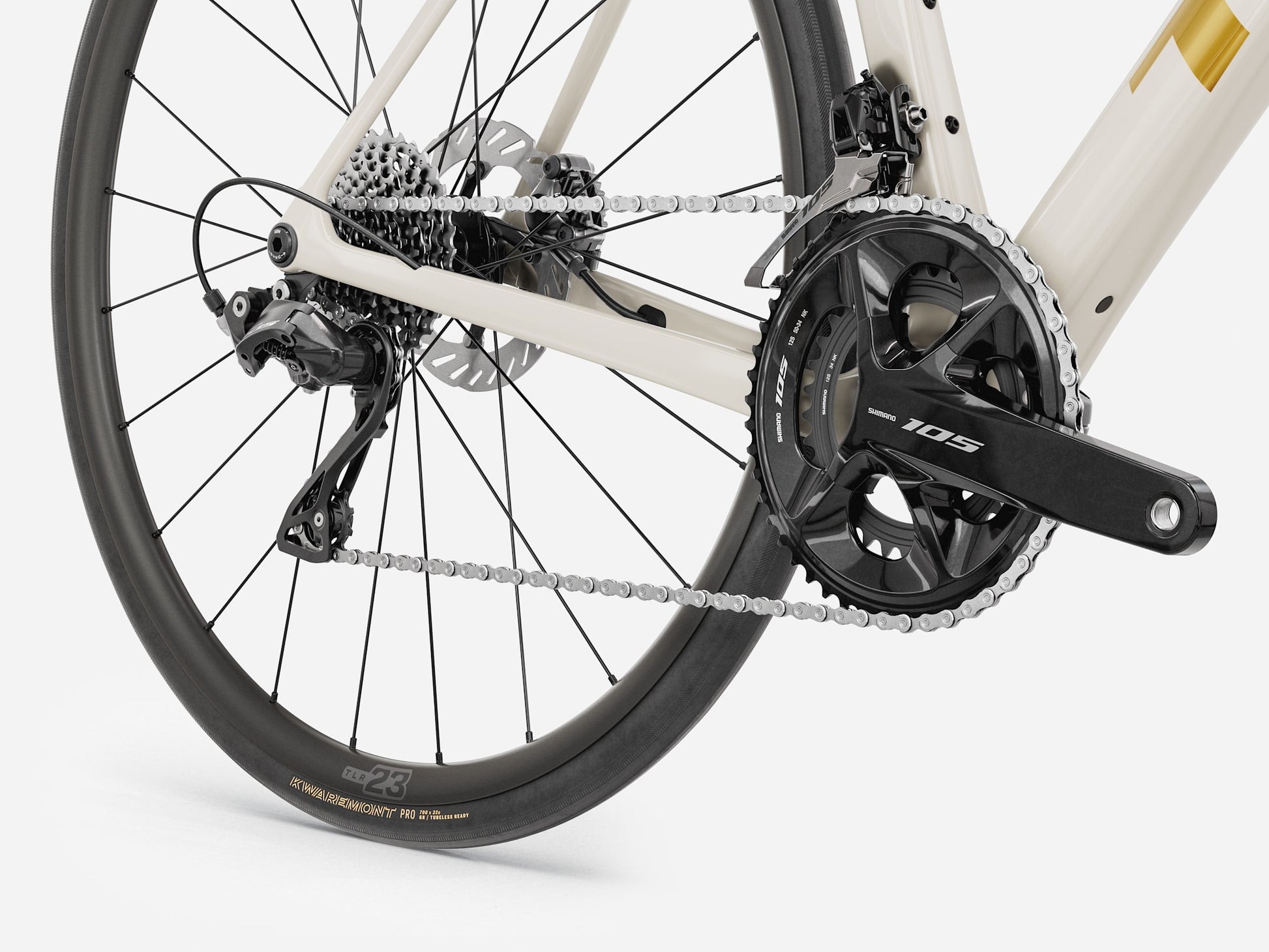

| Crank | Shimano 105 R7100, 50/34T |
| Crank length | XS, S: 160mm M, ML: 165mm L, XL: 170mm |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max chainring size | 1x: 48T, 2x: 52T |
| Front hub | Bontrager alloy, sealed bearing, CenterLock disc, 100x12mm thru axle |
| Rear hub | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Front axle | Bontrager Switch chamfered thru axle |
| Rear axle | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve |
| Spokes | 14g stainless steel, black |
| Tyre | Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 TPI, 700x35mm |
| Tyre sealant | Bontrager TLR sealant, 180ml / 6oz |
| Max tyre size | 40mm |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |

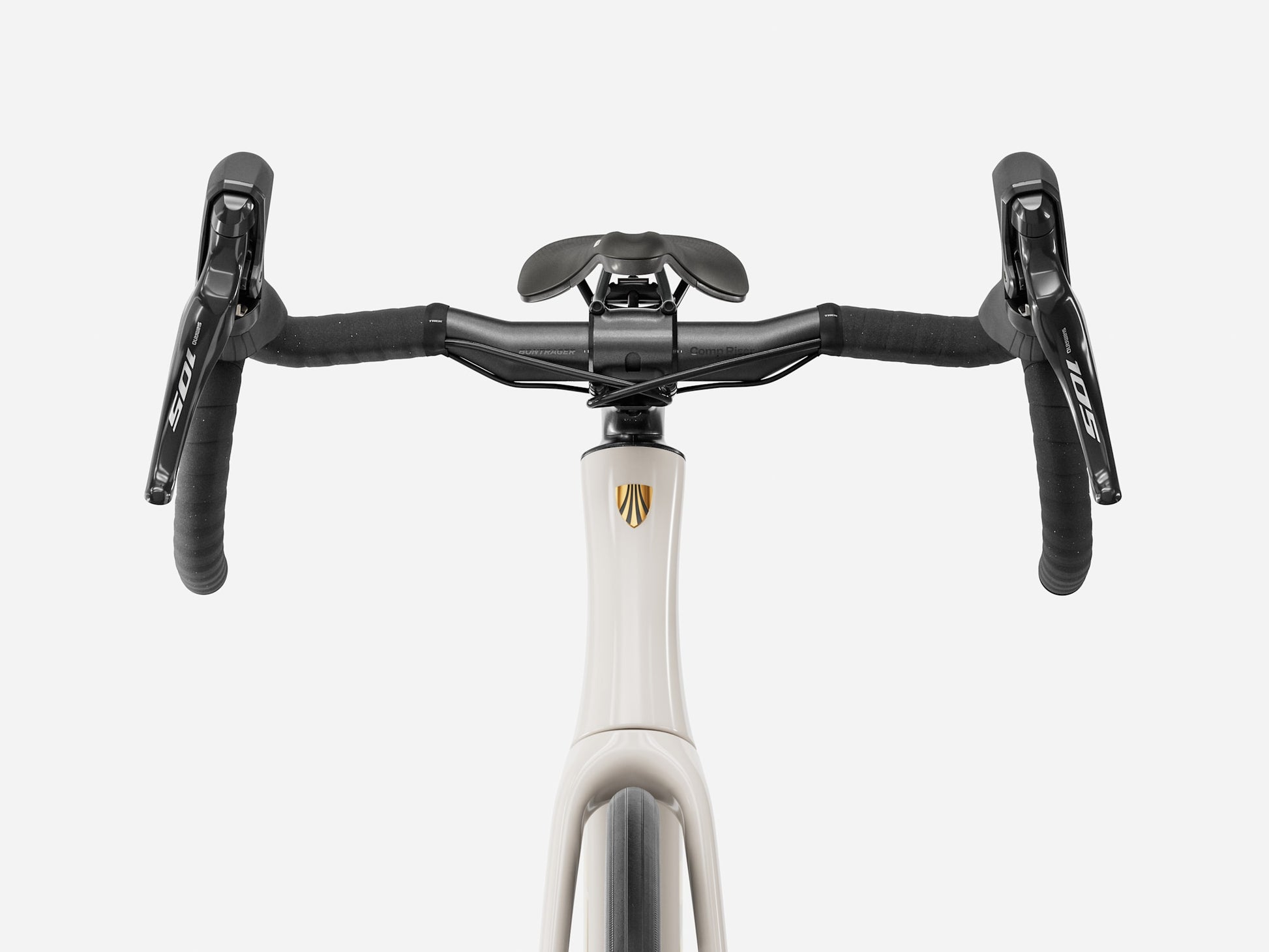

| Handlebar | XS: Bontrager Comp Riser, alloy, 20mm rise, 31.8mm, 70mm reach, 36cm width S: 38cm width M, ML: 40cm width L, XL: 42cm width |
| Handlebar tape | Trek gel cork |
| Stem | XS: Trek RCS Pro, -7-degree, 80mm S: 90mm M: 100mm ML, L: 110mm XL: 120mm |
| Brake rotor | Shimano CL700, CentreLock, 160mm |
| Max brake rotor size | 180mm front, 160mm rear |
| Bike weight (ML) | 8.84 kg / 19.49 lbs (with TLR sealant, no tubes) |
| Weight limit | 125 kg / 275 lbs total — bike + rider + cargo |
Specifications may vary by frame size. Product information, specifications, equipment, materials, colours and pricing may change without notice. Compatible components may be substituted due to supply chain availability.
Sizing and geometry
Sizing
| Size | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Rider height | 143 – 158cm / 4'8" – 5'2" | 158 – 162cm / 5'2" – 5'4" | 162 – 173cm / 5'4" – 5'8" | 173 – 179cm / 5'8" – 5'10" | 179 – 188cm / 5'10" – 6'2" | 188 – 213cm / 6'2" – 7'0" |
| Inseam | 67 – 74cm / 26" – 29" | 74 – 76cm / 29" – 30" | 76 – 81cm / 30" – 32" | 81 – 84cm / 32" – 33" | 84 – 88cm / 33" – 35" | 88 – 100cm / 35" – 39" |
Frame geometry
Diagram illustrates Trek's standard geometry measurement points (A–N) used in the table below; frame silhouette shown is a generic Trek road frame and does not depict the Domane SL specifically.
| Size | XS (47cm) | S (50cm) | M (52-54cm) | ML (56cm) | L (58cm) | XL (60-62cm) |
|---|---|---|---|---|---|---|
| Stack | 52.4 | 55.5 | 57.5 | 59.6 | 61.8 | 64.8 |
| Reach | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.4 |
| Seat tube, C-T | 44.4 | 47.6 | 50.0 | 53.3 | 55.3 | 59.3 |
| Seat tube angle | 73.5° | 73.7° | 73.5° | 73.3° | 73.3° | 73.3° |
| Head tube angle | 71.3° | 71.1° | 71.2° | 71.9° | 72.0° | 72.1° |
| Head tube length | 10.6 | 13.9 | 15.9 | 17.0 | 19.2 | 22.6 |
| Bottom bracket drop | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.5 |
| Chainstay length | 42.0 | 42.0 | 42.0 | 42.0 | 42.0 | 42.0 |
| Wheelbase | 98.7 | 100.2 | 101.1 | 101.0 | 101.9 | 103.3 |
| Standover height | 72.1 | 75.3 | 77.5 | 80.5 | 82.6 | 86.3 |
All measurements in cm unless stated otherwise. Geometry is for the Domane SL Gen 5 platform, shared across SL 4, SL 5, and SL 6 AXS.
