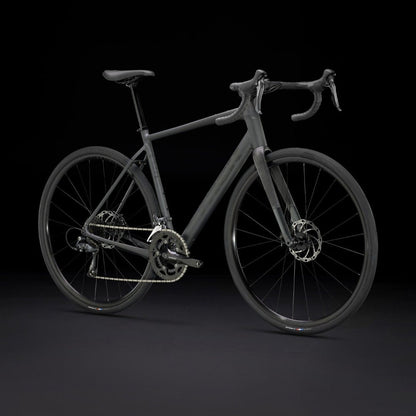

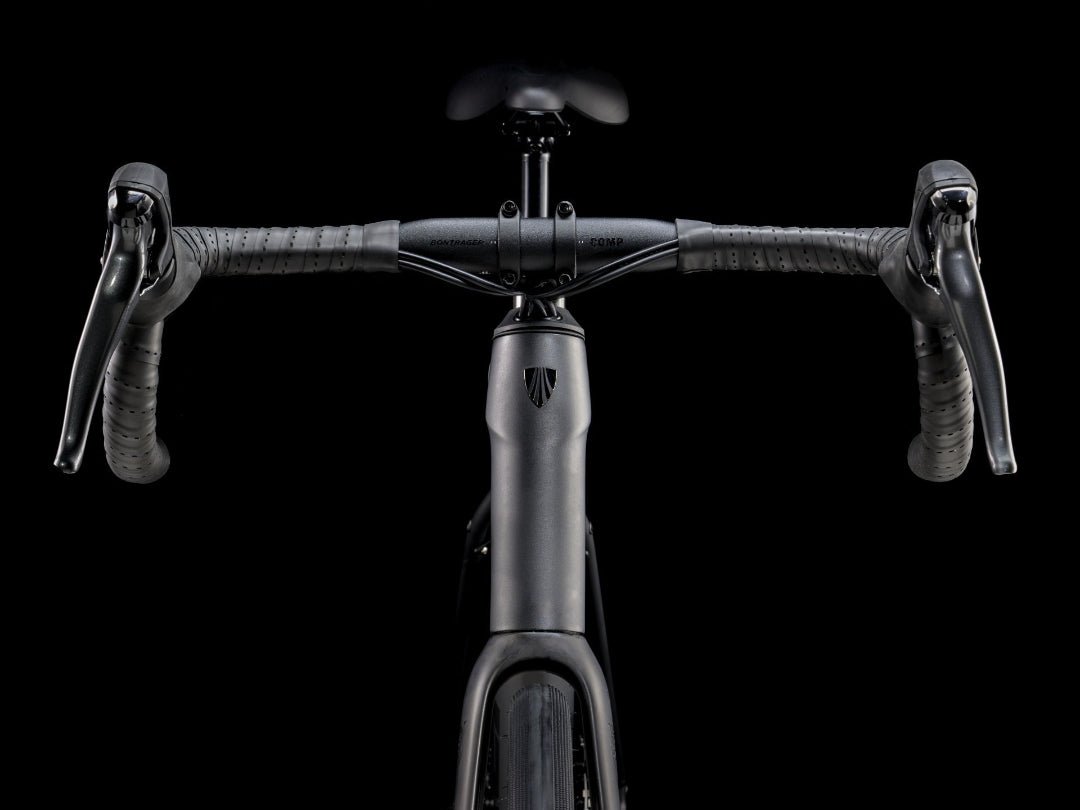

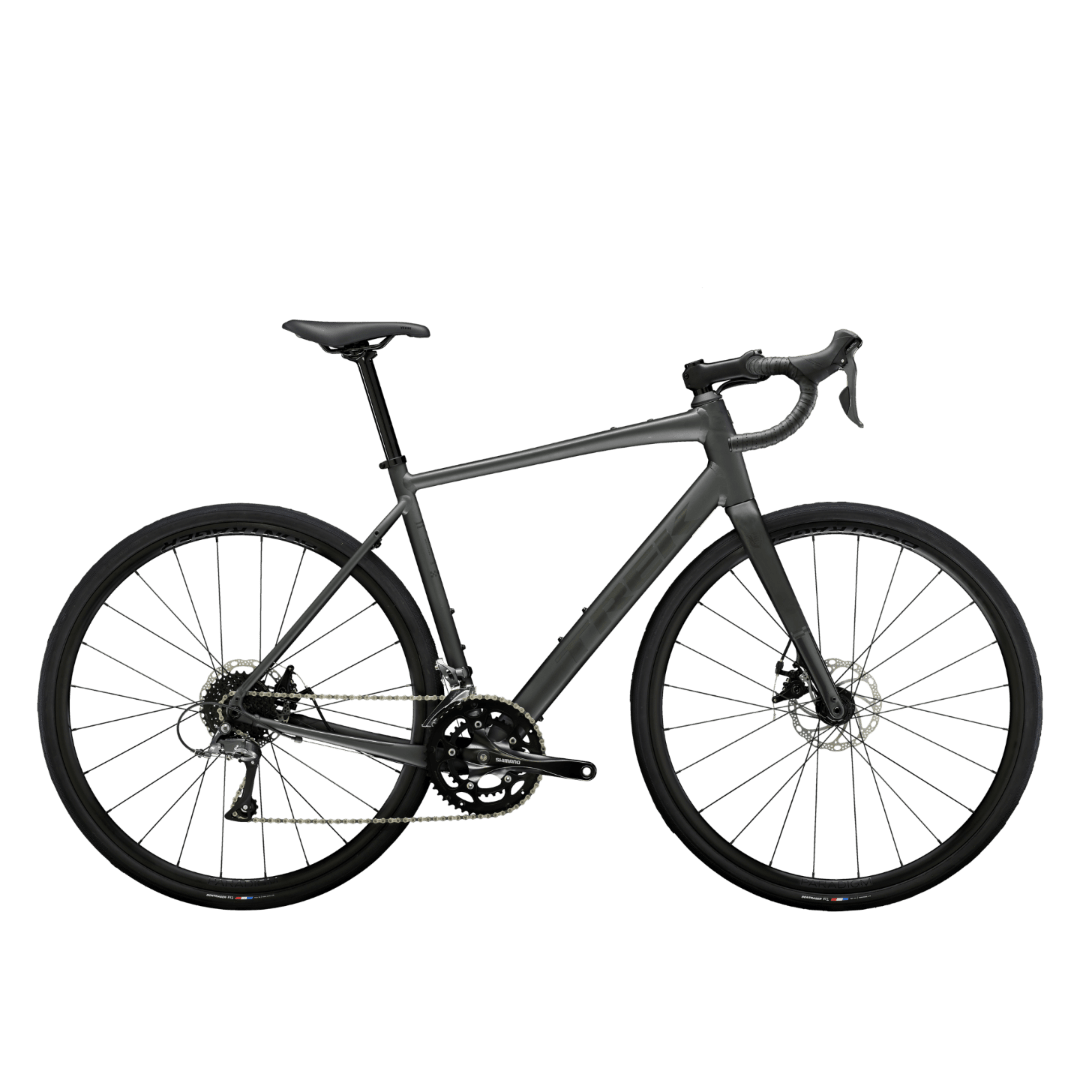

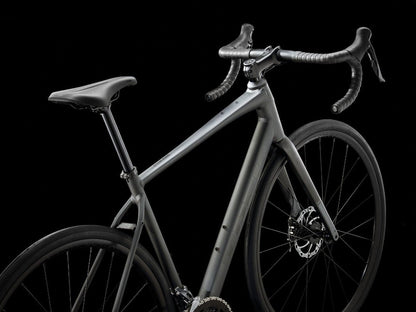

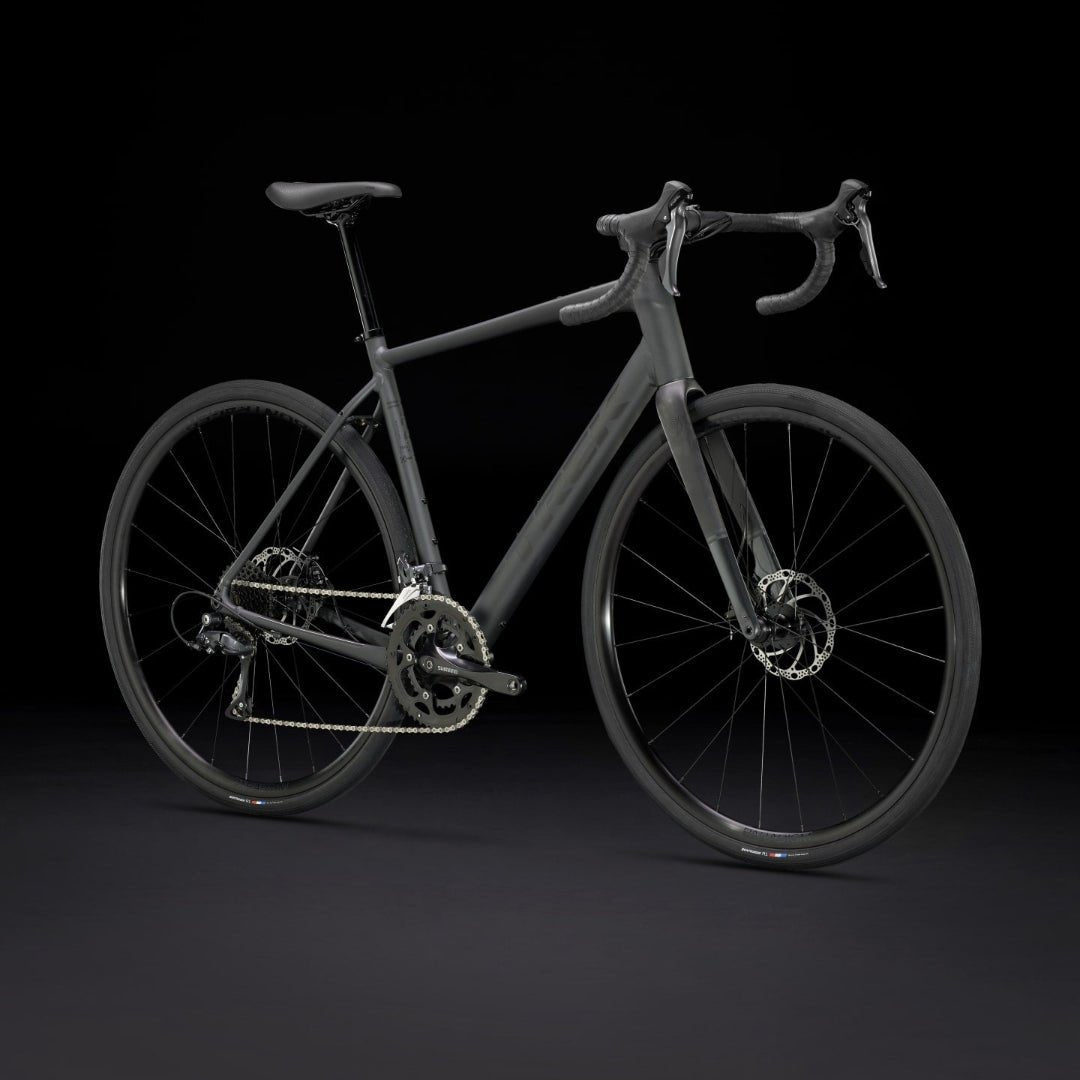

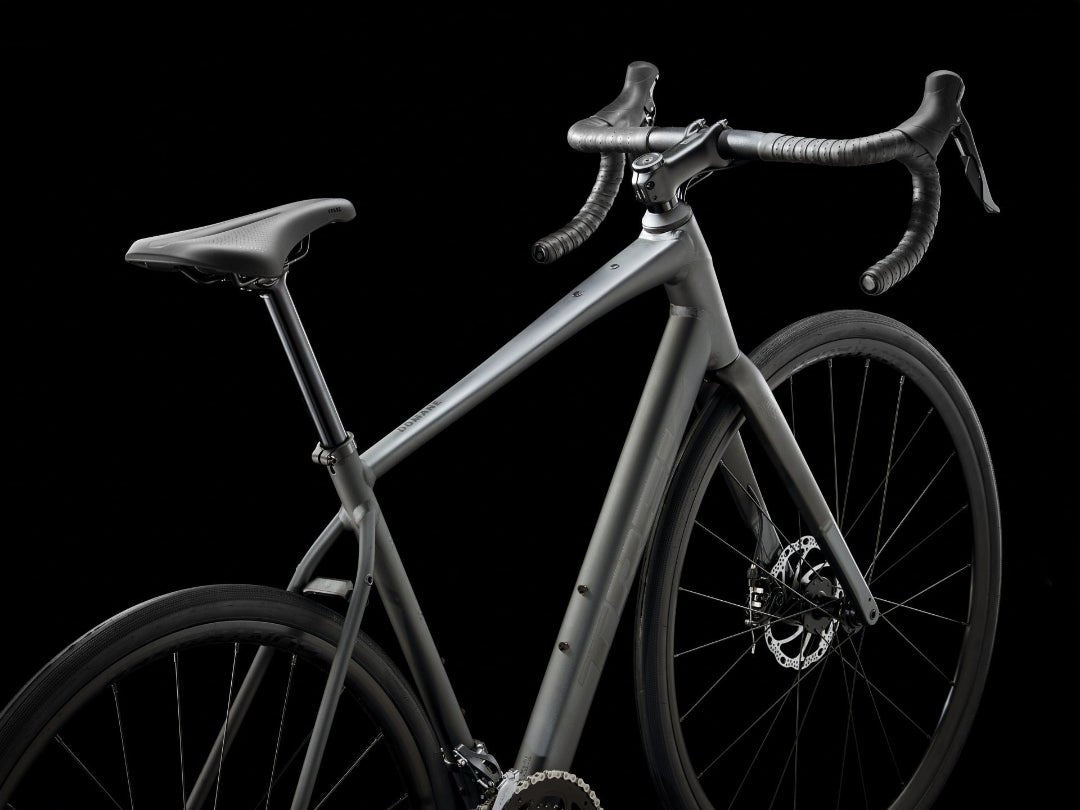

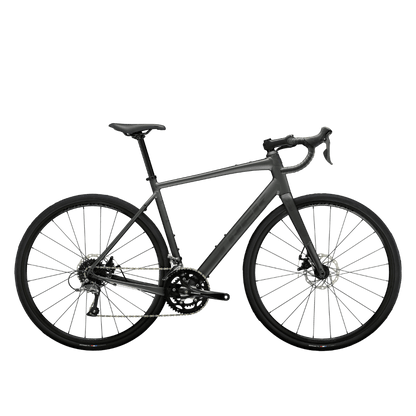

Trek Domane AL 2 Gen 4 - Matte Lithium Grey
Trek
IN-STORE PICKUP ONLY
Trek Bicycles & Bontrager Spares/Accessories are only available for in-store pickup from our Pune Bike Shop.
Please Call or Whatsapp (+91) 7020425618 to talk to our Product Specialists.

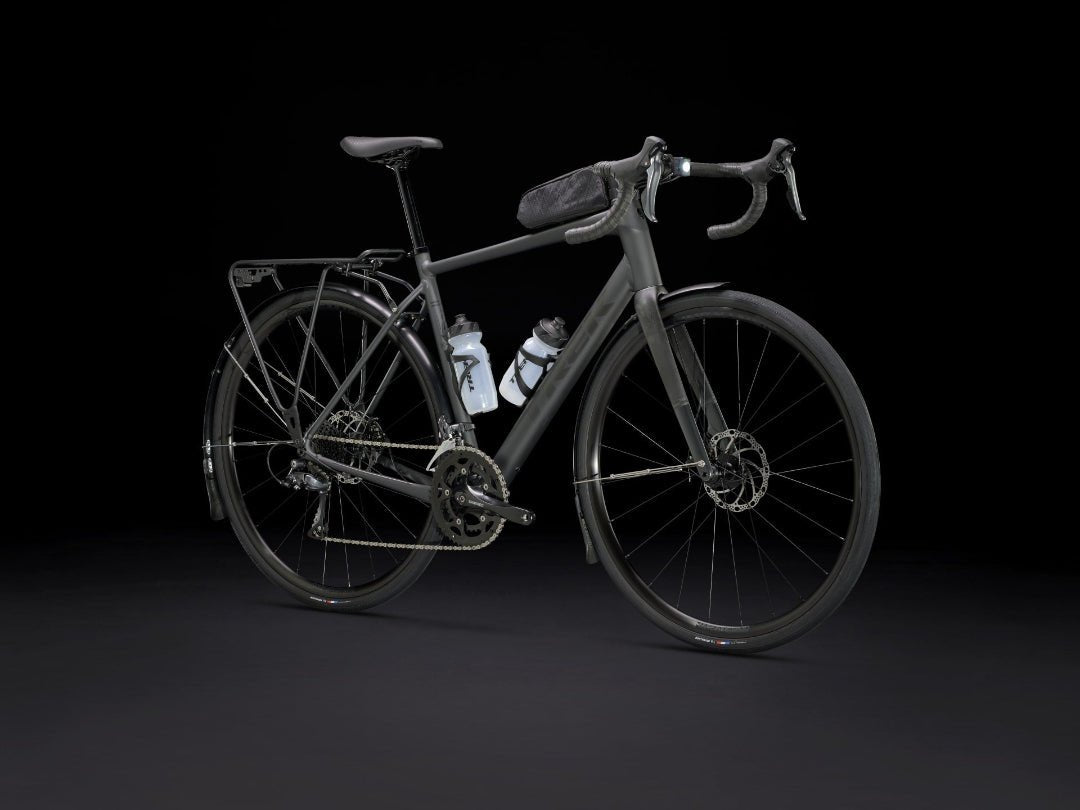

The Domane AL 2 is a speedy and versatile performance road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, an 8-speed Shimano Claris drivetrain, rack, mudguard and top tube mounts, and a comfortable all-day riding position – the Domane AL 2 is perfect for group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.
*Please note - spec applies to all sizes unless listed separately
| Frameset | |
| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |

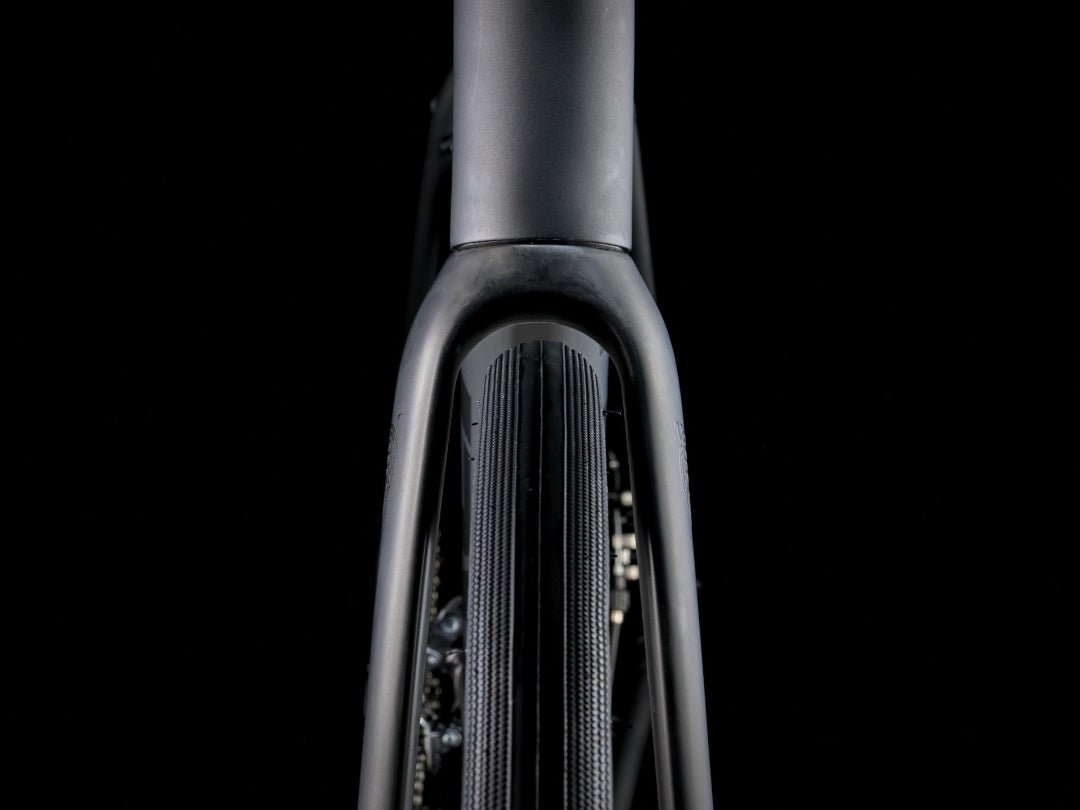

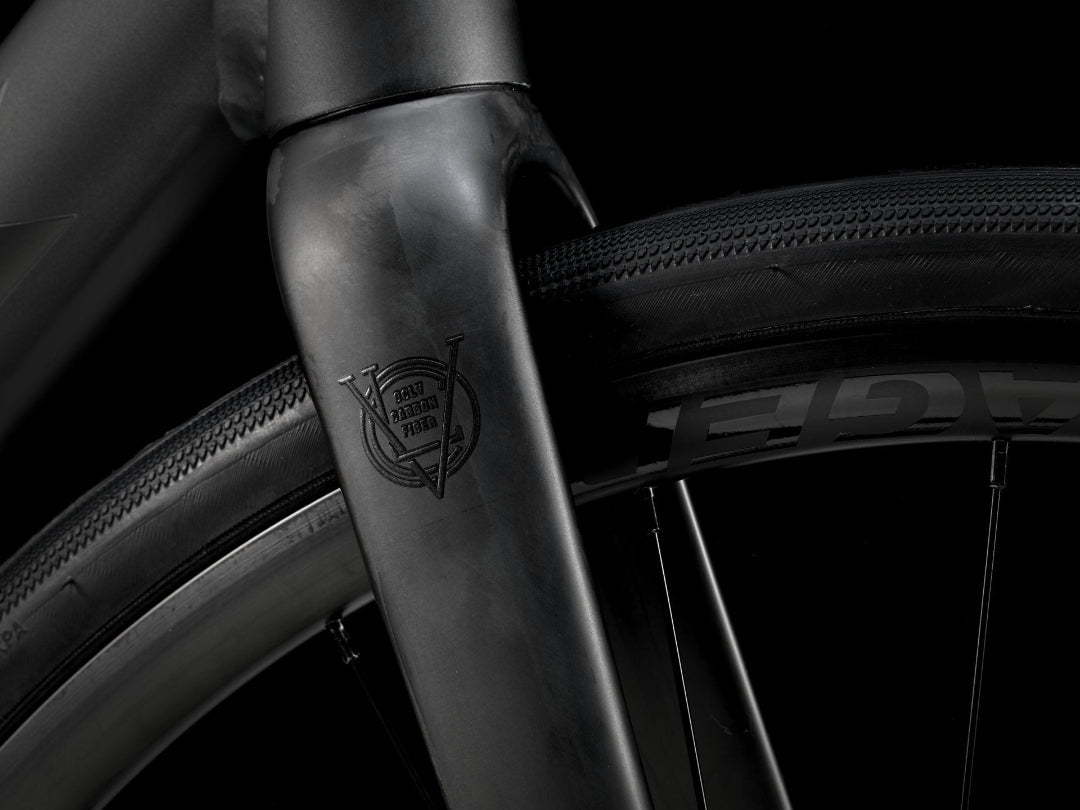

| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | 56 - 10.55 kg / 23.26 lb |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |

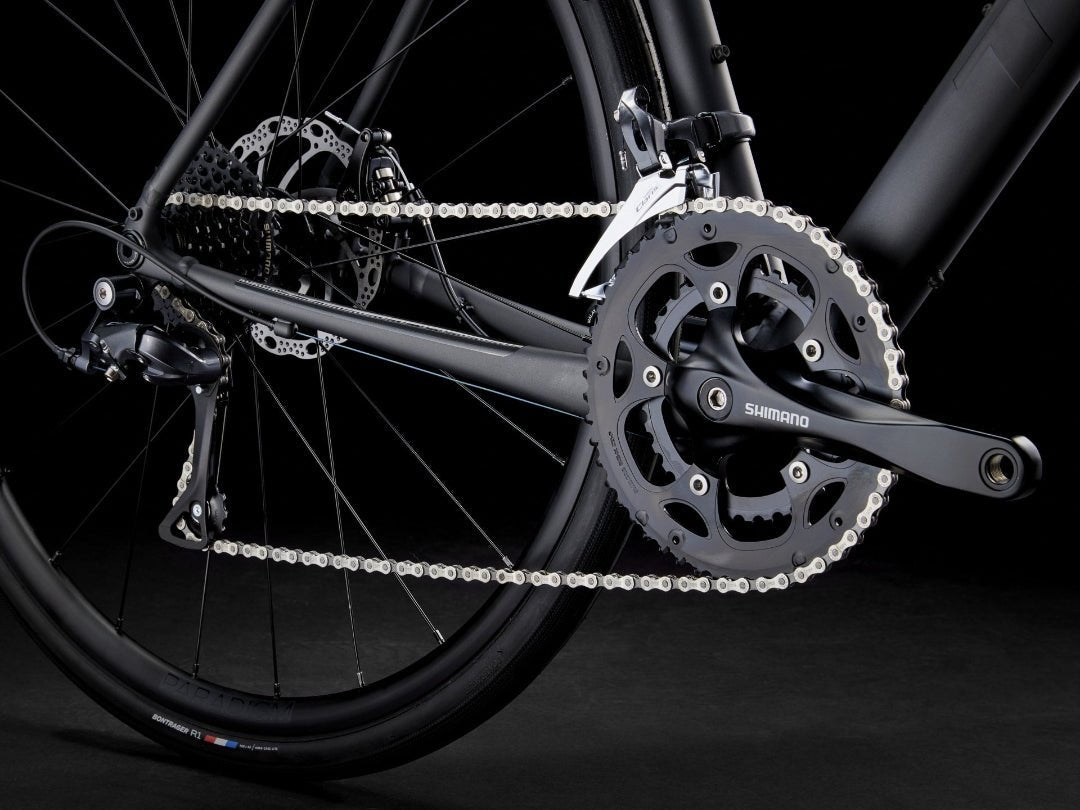

| Drivetrain | |
| *Shifter | Size: 44, 49, 52, 54, 56, 58 |
| Shimano Claris ST-R2000-L, 8 speed, left | |
| Size: 44, 49, 52, 54, 56, 58 | |
| Shimano Claris ST-R2000-R, 8 speed, right | |
| Front derailleur | Shimano Claris R2000, 31.8 mm clamp |
| Rear derailleur | Shimano Claris R2000, medium cage, 34T max cog |
| *Crank | Size: 44 |
| Shimano RS200, 50/34 (compact), 165 mm length | |
| Size: 49, 52, 54 | |
| Shimano RS200, 50/34 (compact), 170 mm length | |
| Size: 56, 58 | |
| Shimano RS200, 50/34 (compact), 175 mm length | |
| Bottom bracket | Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle |
| Cassette | Shimano HG31, 11-32, 8-speed |
| Chain | Shimano Sora HG71, 8 speed |
| Max. chainring size1x: 50T, 2x: 50/34 | |
| Wheels | |
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Components | |
| Saddle | Verse Short, steel rails, 145 mm width |
| *Seatpost | Size: 44, 49 |
| Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length | |
| Size: 52, 54, 56, 58 | |
| Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length | |

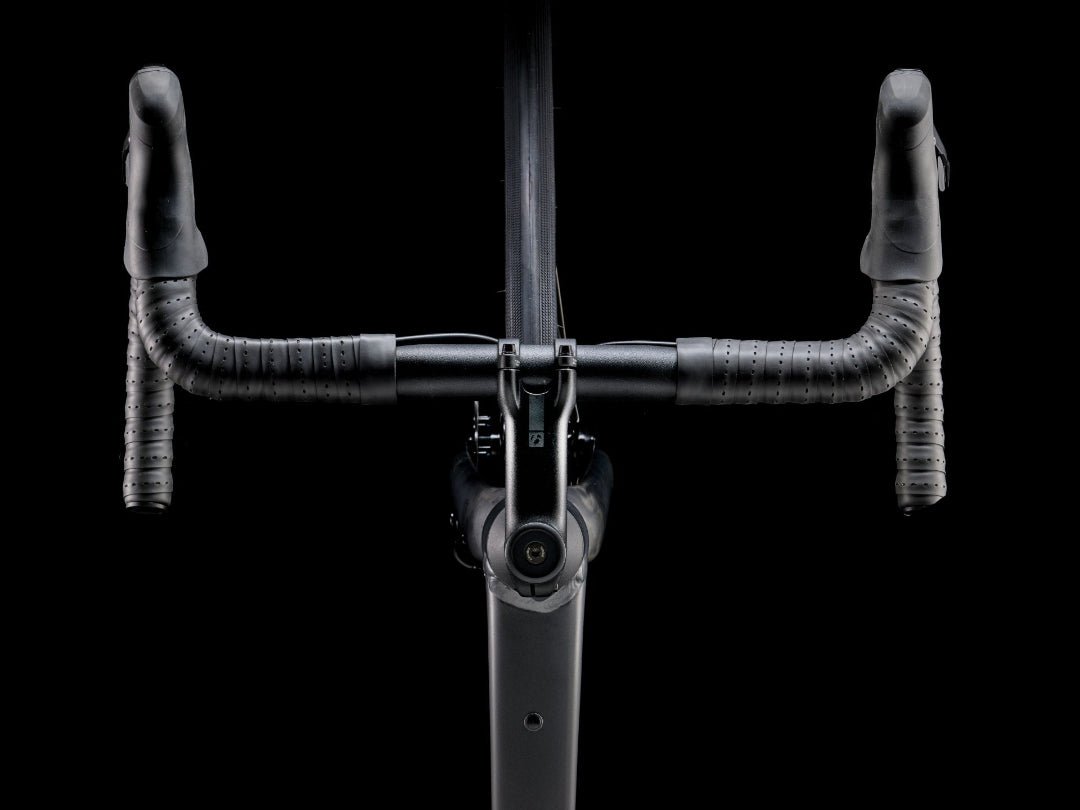

| *Handlebar | Size: 44 |
| Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width | |
| Size: 44, 49 | |
| Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width | |
| Size: 49 | |
| Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width | |
| Size: 52 | |
| Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width | |
| Size: 52 | |
| Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width | |
| Size: 54, 56 | |
| Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width | |
| Size: 54, 56 | |
| Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width | |
| Size: 58 | |
| Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width | |
| Size: 58 | |
| Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width | |
| Handlebar tape | Bontrager Supertack Perf tape |

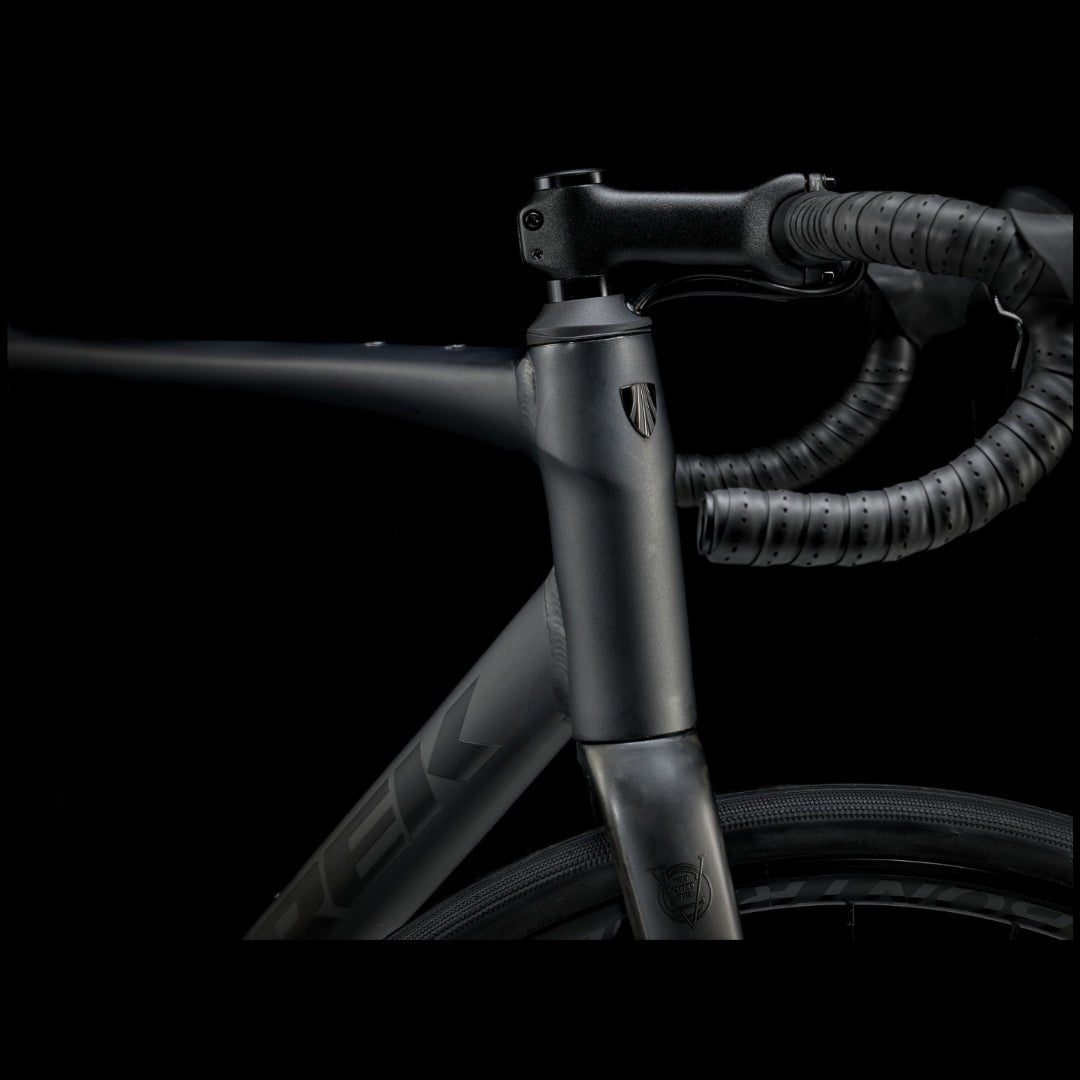

| *Stem | Size: 44 |
| Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length | |
| Size: 49 | |
| Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | |
| Size: 52, 54 | |
| Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length | |
| Size: 56, 58 | |
| Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length | |

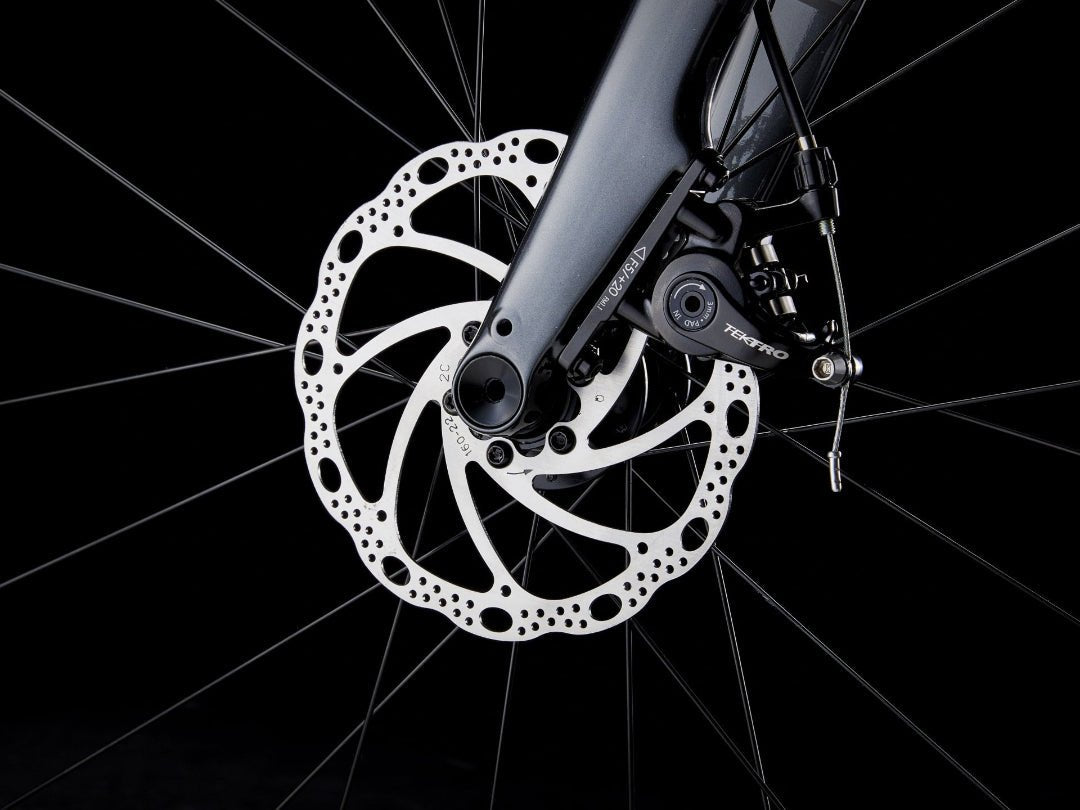

| Brake | Tektro C550 mechanical disc brake, dual piston, flat mount |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | 44 | 47 | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
| Rider Height | 150 - 153 cm 4'11" - 5'0" |
152 - 158 cm 5'0" - 5'2" |
158 - 163 cm 5'2" - 5'4" |
163 - 168 cm 5'4" - 5'6" |
168 - 174 cm 5'6" - 5'9" |
174 - 180 cm 5'9" - 5'11" |
180 - 185 cm 5'11" - 6'1" |
185 - 190 cm 6'1" - 6'3" |
190 - 195 cm 6'3" - 6'5" |
| Inseam | 71 - 73 cm 28" - 29" |
71 - 75 cm 28" - 30" |
74 - 77 cm 29" - 30" |
76 - 79 cm 30" - 31" |
78 - 82 cm 31" - 32" |
81 - 85 cm 32" - 33" |
84 - 87 cm 33" - 34" |
86 - 90 cm 34" - 35" |
89 - 92 cm 35" - 36" |
All measurements provided in cm unless otherwise stated.
| Frame size number | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 47.5 | 50 | 52.5 | 54.8 | 56.7 |
| B — Seat tube angle | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° |
| C — Head tube length | 14.5 | 16 | 17.5 | 19.5 | 22 |
| D — Head angle | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° |
| E — Effective top tube | 53 | 54.2 | 55.4 | 56.7 | 57.9 |
| G — Bottom bracket drop | 8 | 8 | 7.8 | 7.8 | 7.5 |
| H — Chainstay length | 42 | 42 | 42 | 42.5 | 42.5 |
| I — Offset | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| J — Trail | 5.9 | 5.9 | 6.1 | 6 | 5.9 |
| K — Wheelbase | 100.3 | 101 | 100.8 | 102.2 | 103.2 |
| L — Standover | 73.5 | 75.4 | 77.6 | 79.6 | 81.7 |
| M — Frame reach | 37.1 | 37.4 | 37.7 | 38 | 38.3 |
| N — Frame stack | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 |
| Stem length | 90 | 90 | 100 | 100 | 110 |
| Saddle rail height min (w/short mast) | 61.5 | 64 | 67 | 69 | 71 |
| Saddle rail height max (w/short mast) | 68 | 70.5 | 73.5 | 75.5 | 77.5 |
| Saddle rail height min (w/tall mast) | 64.5 | 67 | 70 | 72 | 74 |
| Saddle rail height max (w/tall mast) | 71 | 73.5 | 76.5 | 78.5 | 80.5 |
