Product tag
D BYK STORE
VendorTrek
CategoryBikes
SKU5298085
UPC768682519769
Size52
MRPRs. 222,799.00

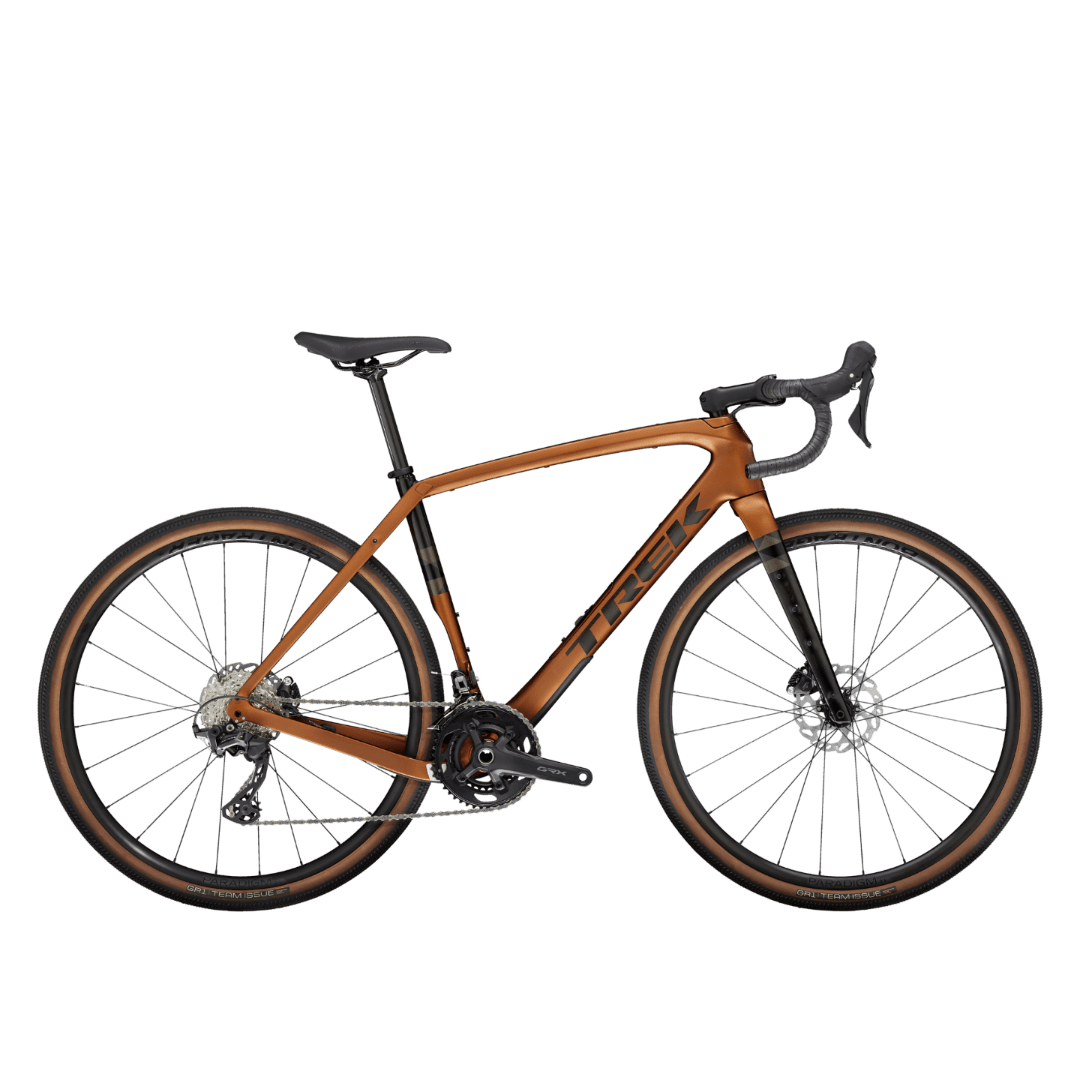

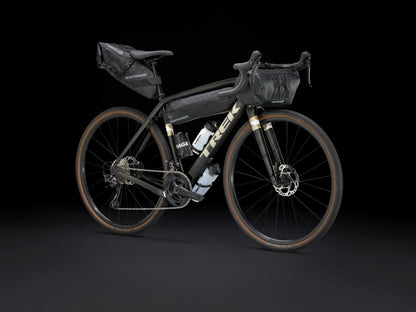

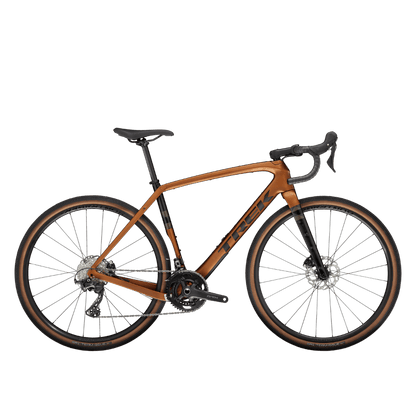

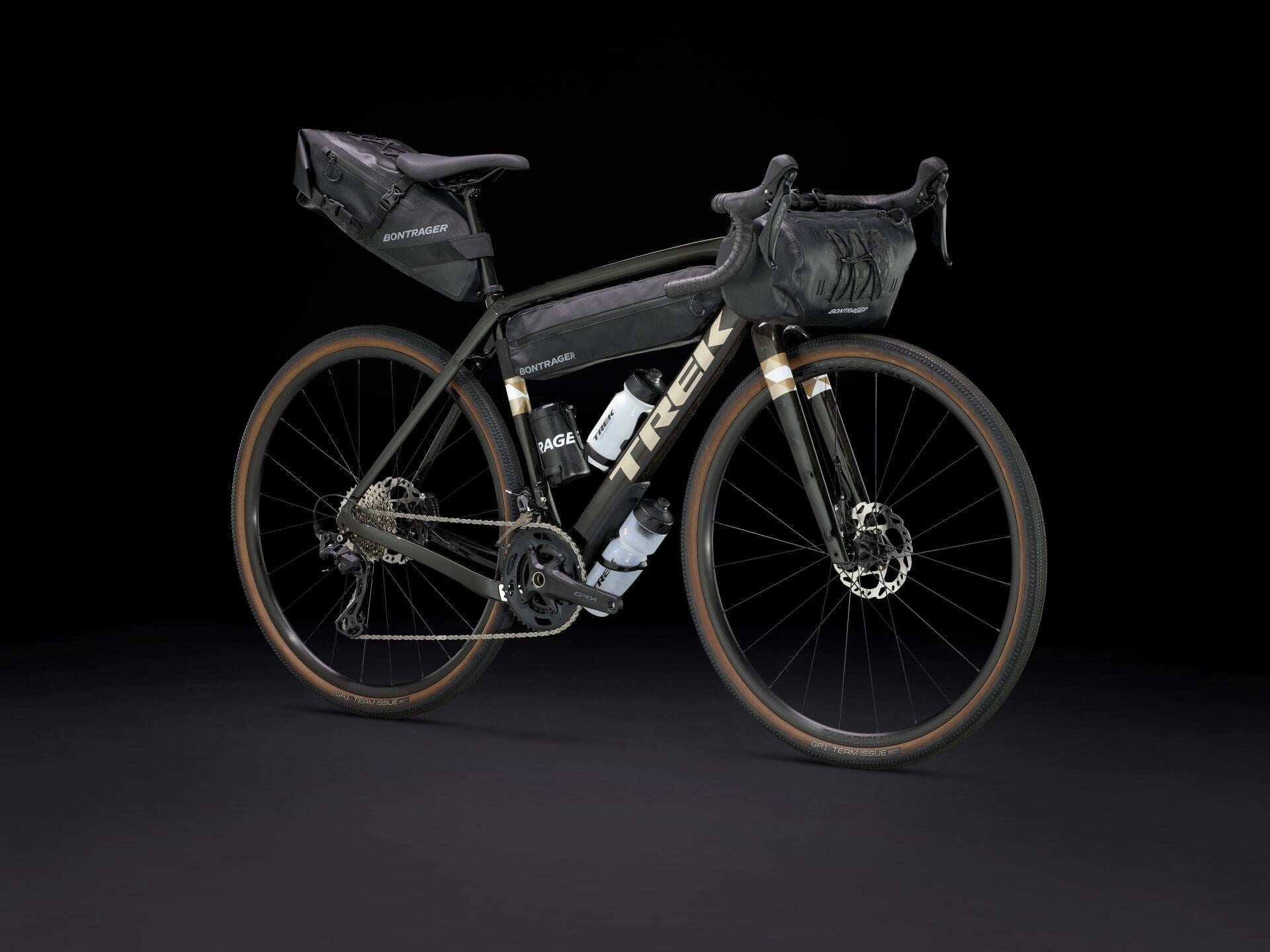

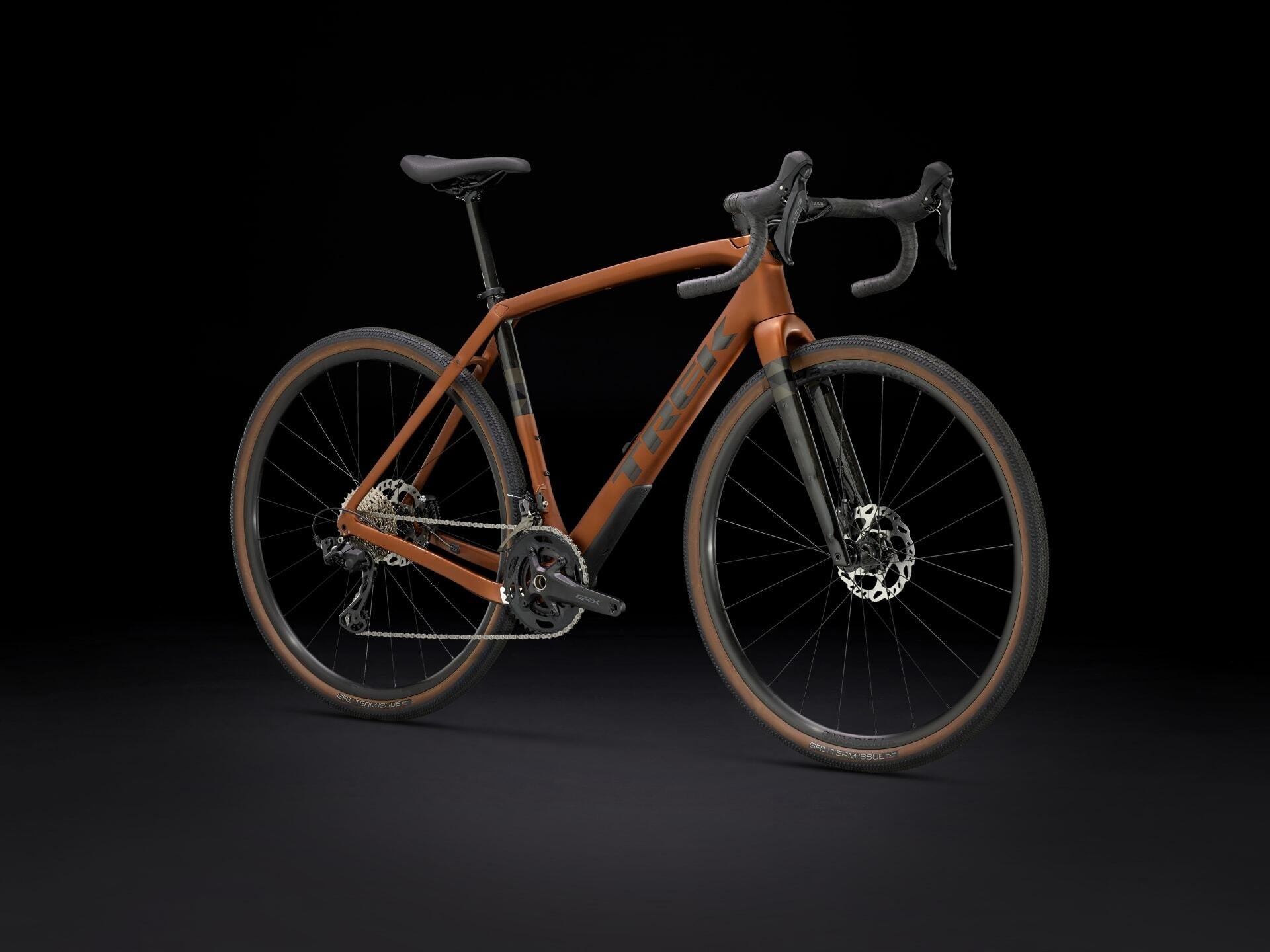

The Checkpoint SL 5 is a carbon gravel bike made for epic adventures. It's built with lightweight OCLV Carbon, a 2x12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.
Specifications
Frameset

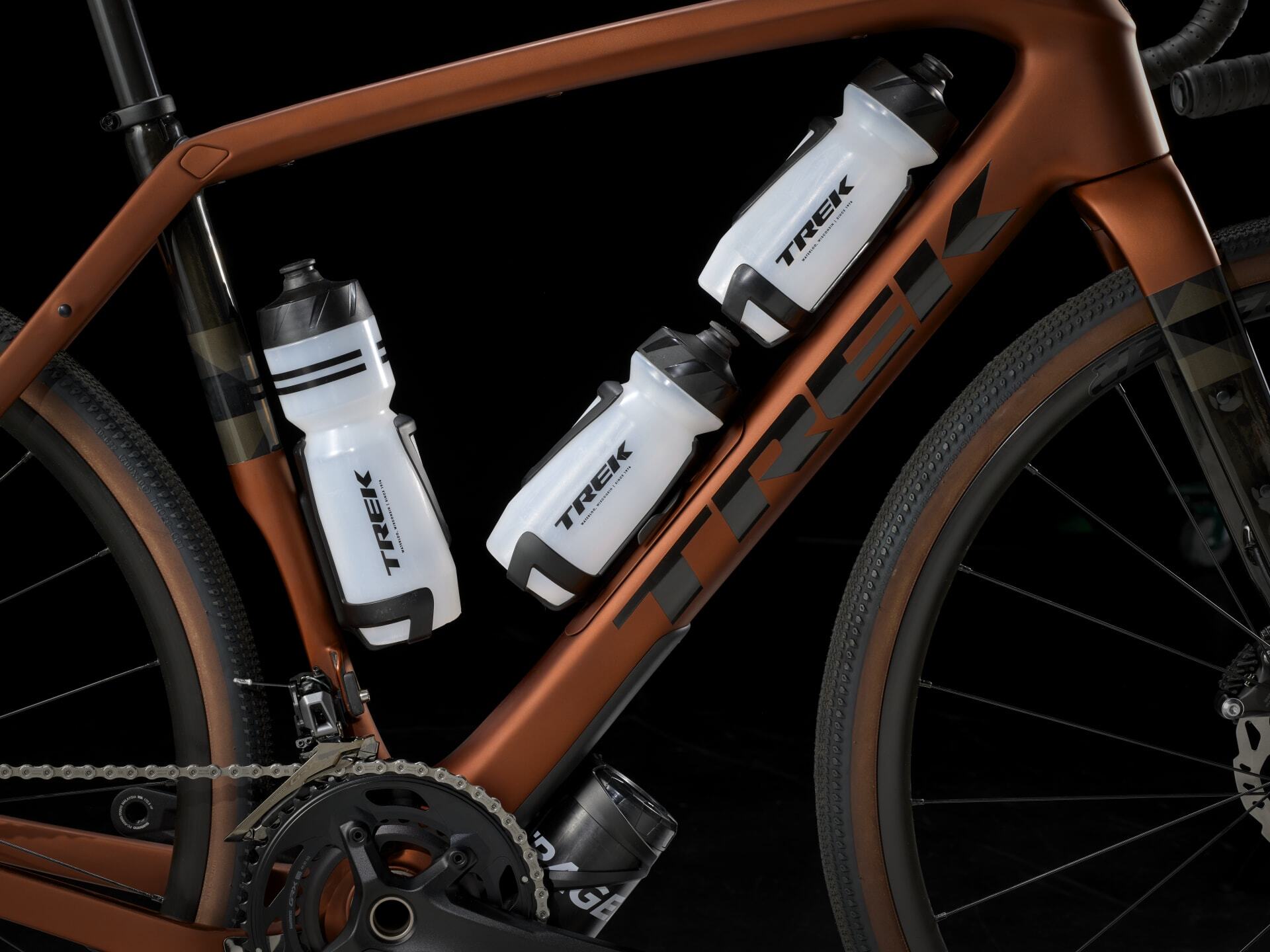

| Frame | 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle |
| Fork | Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100 mm thru axle |
Drivetrain

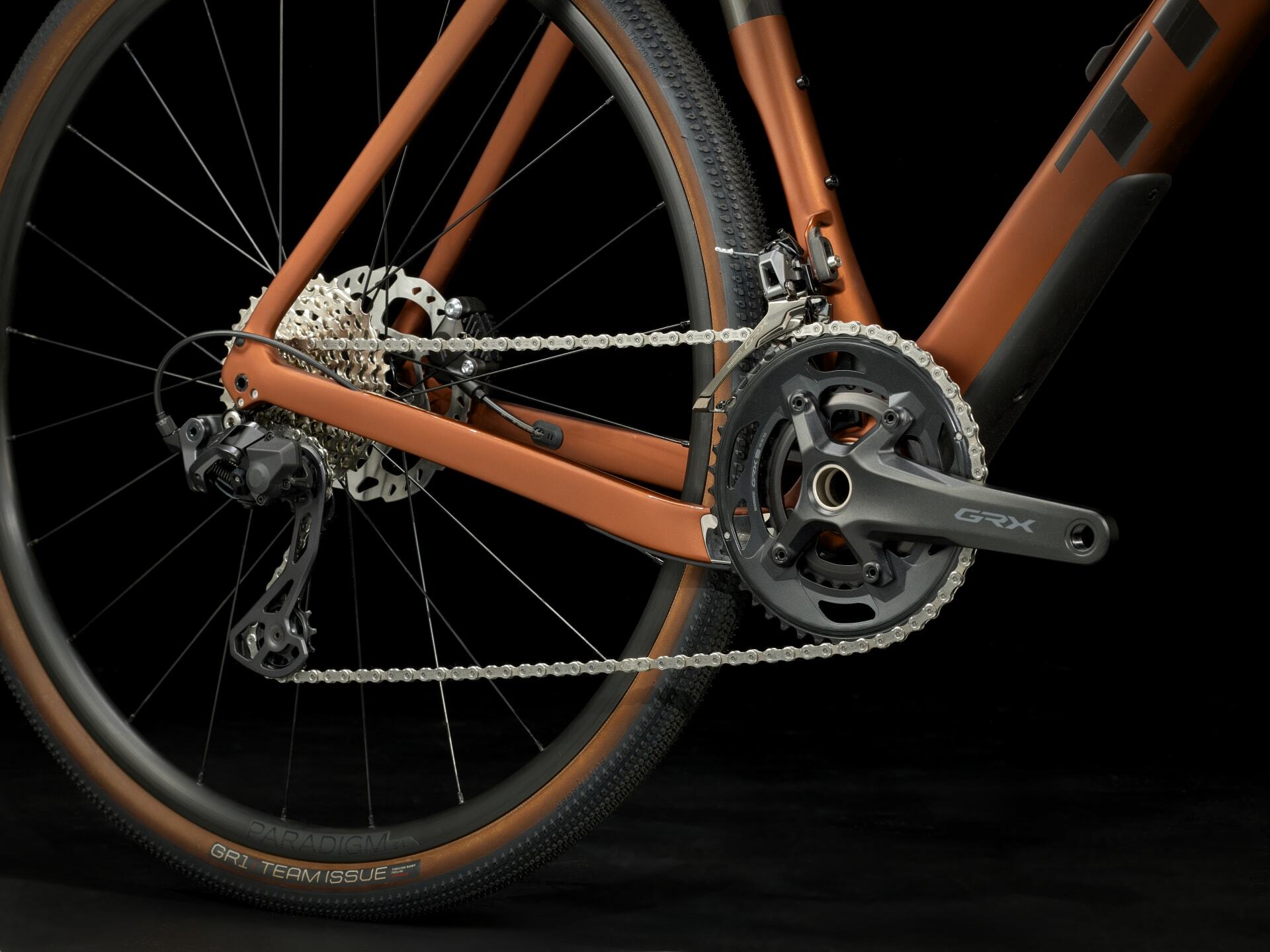

| Shifting | Shimano GRX RX610 shifter, RX820 front/rear derailleur, 12-speed, 36T max cog |
| Crank | Shimano GRX RX610, 46/30 — 165 mm (49), 170 mm (52), 172.5 mm (54–56), 175 mm (58) |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7100, 11-36, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
Wheels
| Hubs | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, Bontrager Switch thru axles |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyres | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c |
Components
| Saddle | Bontrager Verse Comp, steel rails — 155 mm (49–52), 145 mm (54–58) |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar | Bontrager Elite Gravel — 38 cm (49), 40 cm (52), 42 cm (54–56), 44 cm (58) |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7° — 70–90 mm depending on size |
| Brakes | Shimano hydraulic disc, RT70 CenterLock 160 mm rotors |

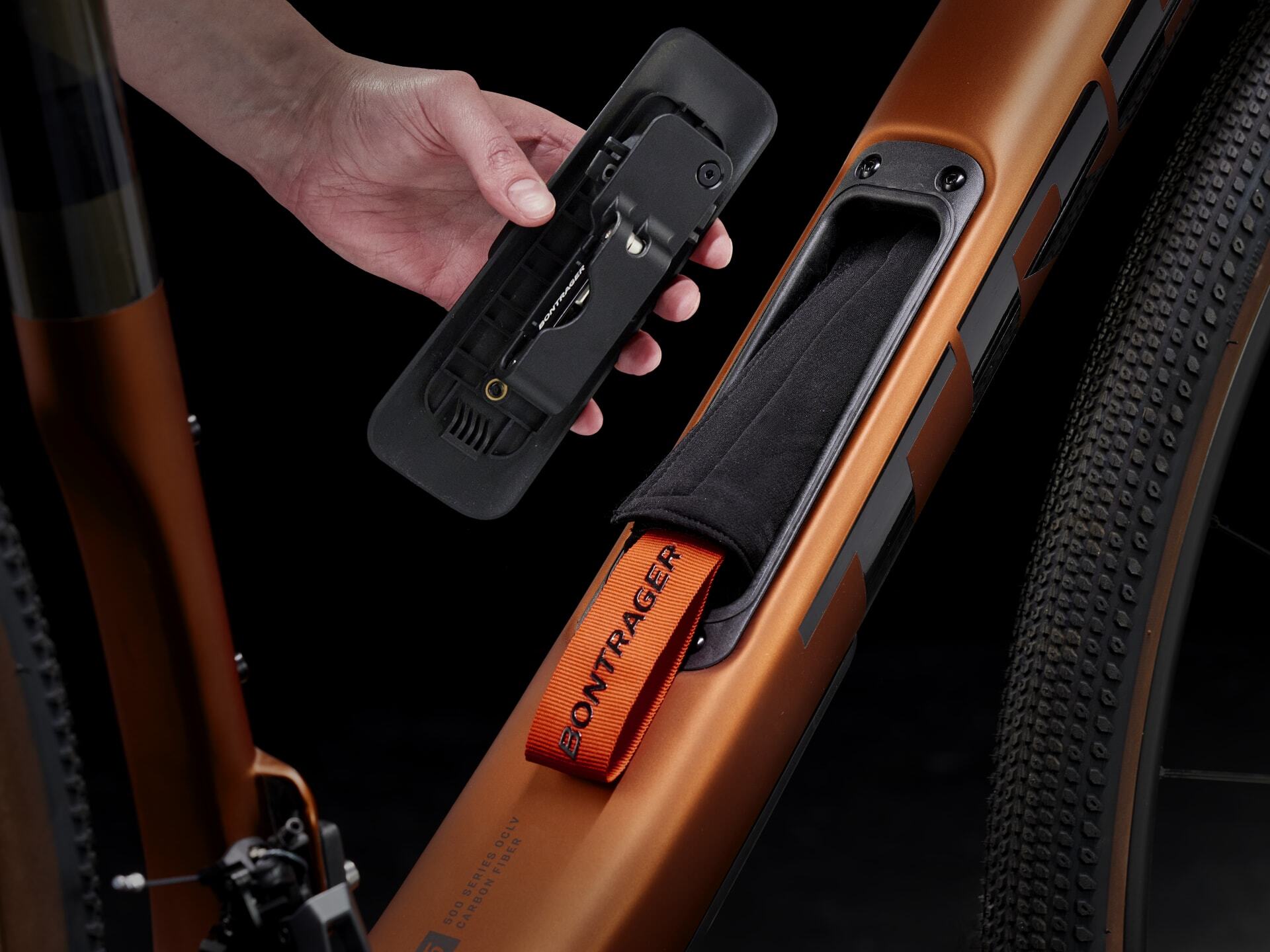

| Storage | Bontrager BITS internal frame storage bag |
Weight
| Bike weight (56) | 9.65 kg / 21.28 lbs (with TLR sealant, no tubes) |
| Weight limit | 125 kg / 275 lbs total — bike + rider + cargo |
Specifications are subject to change without notice; compatible parts may be substituted due to supply chain issues.
Sizing and geometry
Sizing
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider height | 156–163 cm | 163–168 cm | 168–174 cm | 174–180 cm | 180–185 cm | 185–191 cm |
| Inseam | 74–77 cm | 76–79 cm | 78–82 cm | 81–85 cm | 84–87 cm | 86–90 cm |
All measurements in cm unless stated otherwise.
| Frame size | 49 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| Seat tube | 49 | 52 | 54 | 56 | 58 |
| Seat tube angle | 74.1° | 73.7° | 73.2° | 72.8° | 72.5° |
| Head tube length | 9 | 10.5 | 12.5 | 14.5 | 16.5 |
| Head angle | 71.2° | 71.6° | 71.8° | 72.2° | 72.3° |
| Effective top tube | 54.1 | 55.5 | 57 | 58.4 | 59.7 |
| Bottom bracket drop | 7.8 | 7.8 | 7.6 | 7.6 | 7.4 |
| Chainstay length | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| Wheelbase | 102.5 | 103.3 | 104.1 | 104.8 | 105.8 |
| Standover | 73.5 | 76.5 | 78.9 | 80.9 | 82.9 |
| Frame reach | 39.3 | 39.9 | 40.3 | 40.7 | 41.1 |
| Frame stack | 53.8 | 55.3 | 57.1 | 59.2 | 60.9 |
Trek bicycles and Bontrager accessories are reserved online and collected in person — this ensures the right size, a proper bike fit and expert guidance before you ride away.
