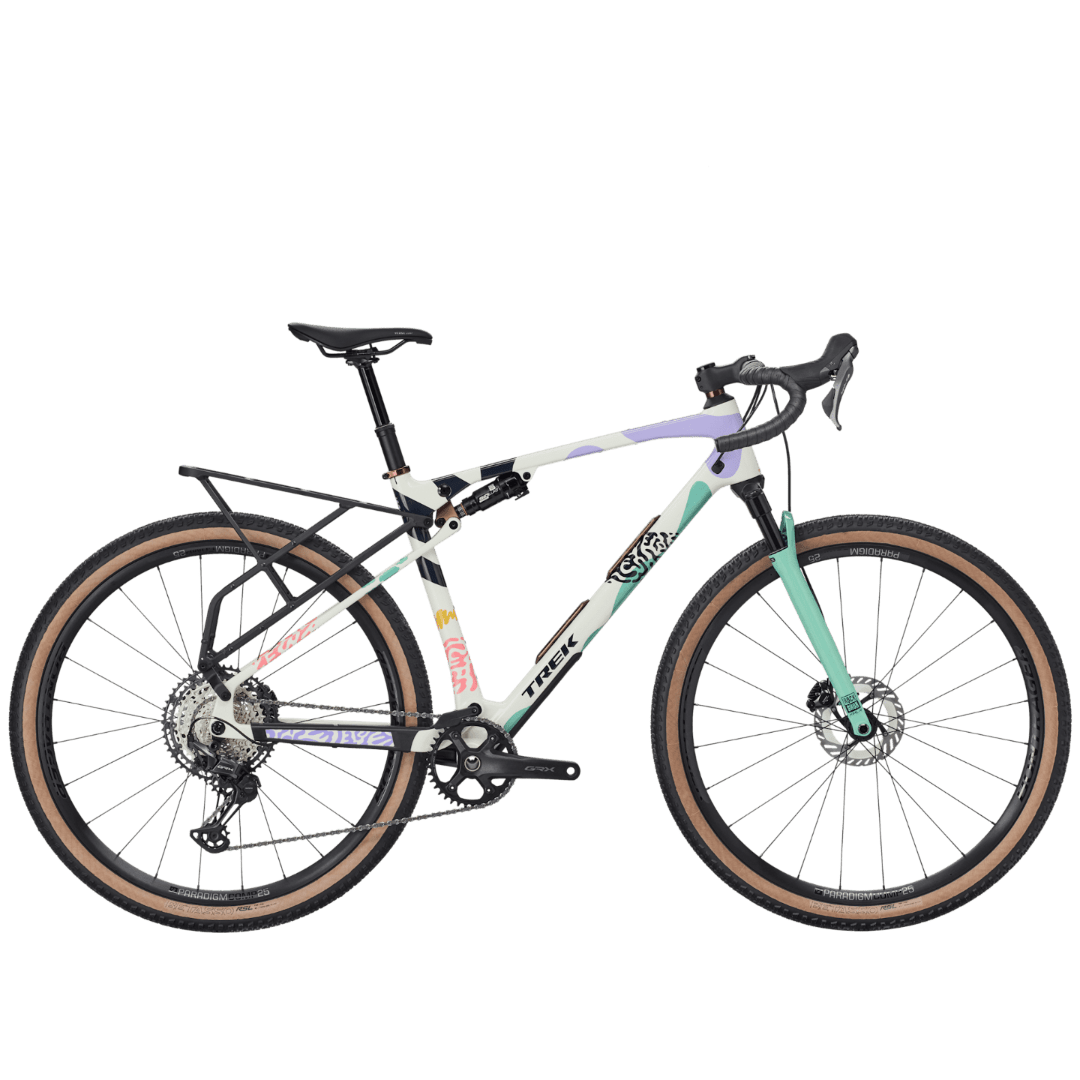

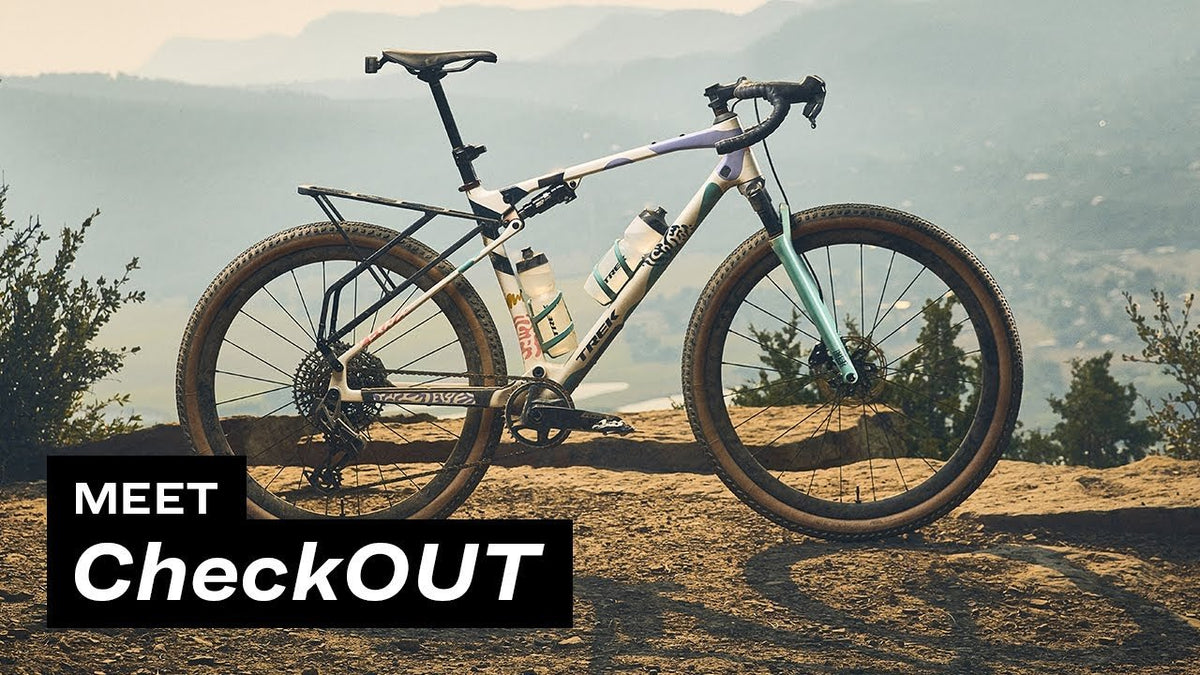

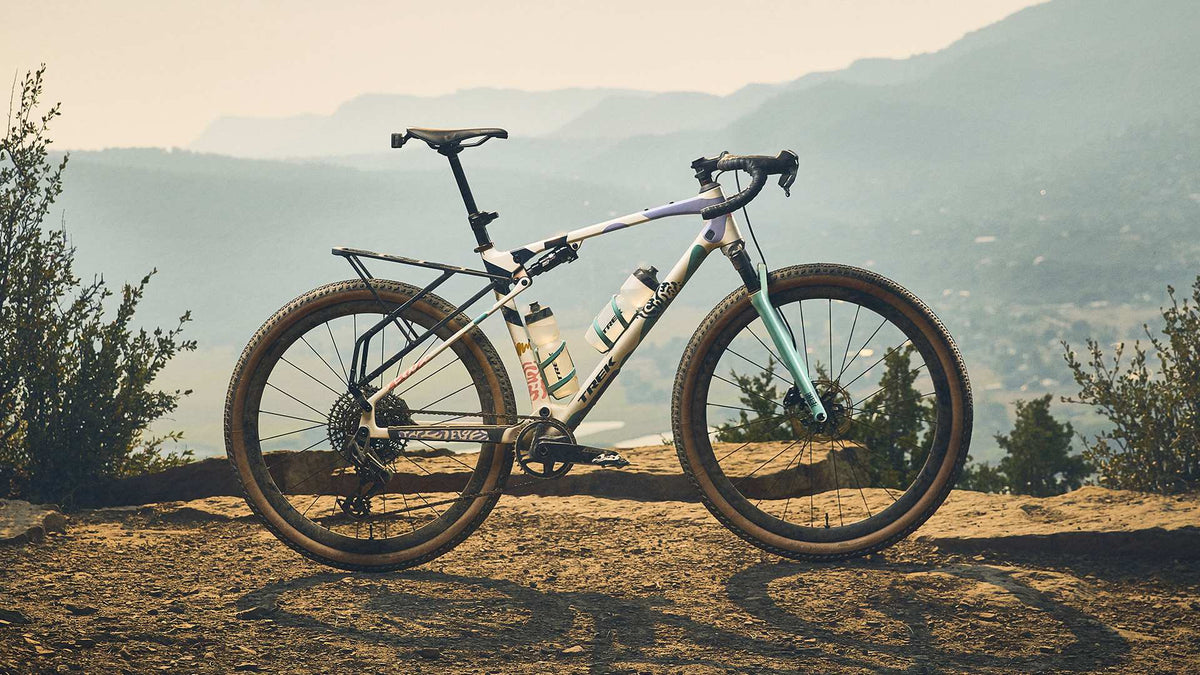

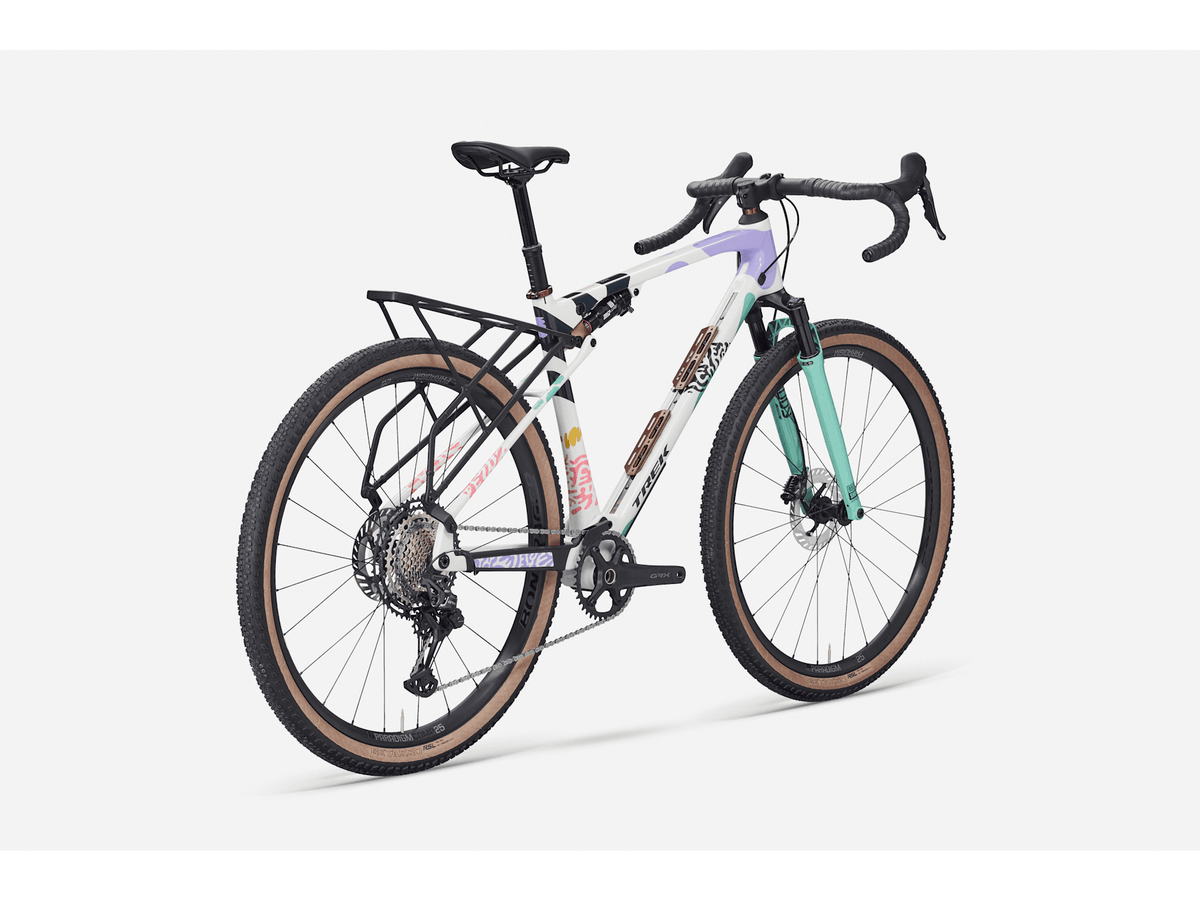

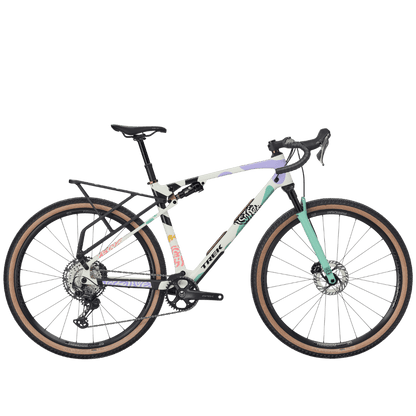

The CheckOUT SL 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post.
Specifications |
|
|---|---|
| Frameset |
|
| Frame |
500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel |
| Fork |
RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel |
| Shock |
RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm |
| Weight |
|
| Weight |
ML - 11.97 kg / 26.39 lbs (with TLR sealant, no tubes, excluding rear rack) |
| Weight limit |
Maximum total weight (bike, rider, cargo): 125 kg / 275 lb |

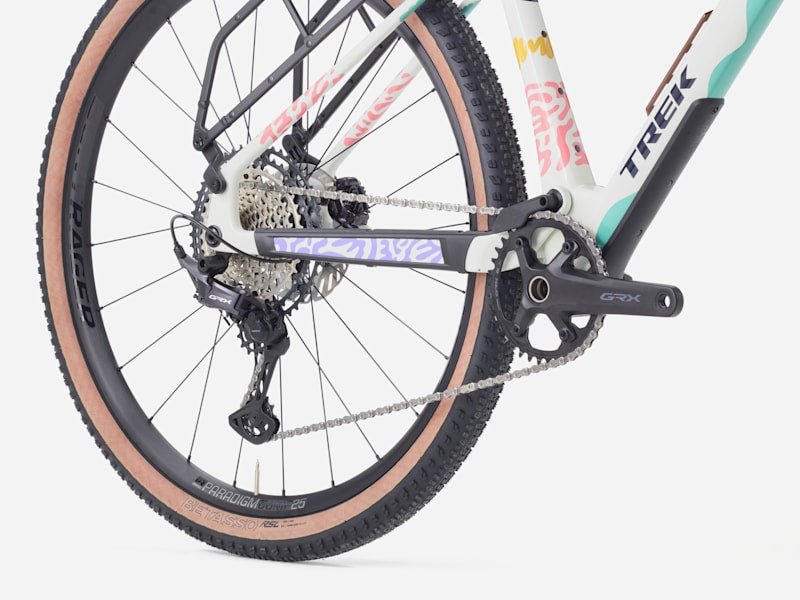

| Drivetrain |
|
| Shifter |
Shimano GRX RX820, 12-speed |
| Rear derailleur |
Shimano GRX RX822, 51T max cog |
| Crank |
Size S: Shimano GRX RX610, 38T, 160 mm length Size M, ML: Shimano GRX RX610, 38T, 170 mm length Size L: Shimano GRX RX610, 38T, 172.5 mm length |
| Bottom bracket |
Praxis, T47 threaded, internal bearing |
| Cassette |
Shimano XT M8200, 10-51, 12-speed |
| Chain |
Shimano XT M8100, 12-speed |
| Max chainring size |
1x: 38T |
| Wheels |
|
| Front wheel |
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Rear wheel |
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano Micro Spline freehub, 142x12 mm thru axle |
| Rear skewer |
Bontrager Switch chamfered thru axle, removable lever |
| Tyres |
Bontrager Betasso RSL GX, Tubeless Ready, aramid bead, 60 tpi, 700x55 mm |
| Tyre part |
Bontrager TLR sealant, 180 ml / 6 oz |
| Rim strip |
Bontrager TLR |
| Max tyre size |
56 mm / 2.20" (as measured, see manual for details) |
| Components |
|
| Saddle |
Verse Short Comp, steel rails, 145 mm width |
| Seatpost |
TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length |

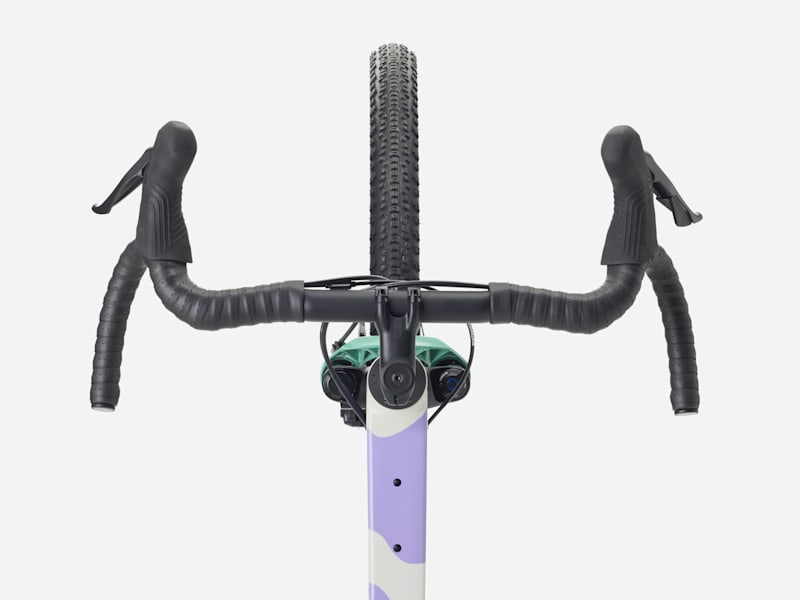

| Handlebar |
Size S: Bontrager GR Checkout, 42 cm Size M: Bontrager GR Checkout, 44 cm Size ML, L: Bontrager GR Checkout, 46 cm |
| Handlebar tape |
Bontrager Supertack Perf tape |
| Stem |
Size S, M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7°, 60 mm length Size ML, L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7°, 70 mm length |
| Brake rotor |
Shimano CL800, CentreLock, 160 mm |
| Rotor size (max) |
180 mm front and rear |
| Accessories |
|
| Cargo rack |
Checkout rear rack |
| Note |
|
|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. |
|
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
Sizing |
|||
|---|---|---|---|
| Size |
Rider Height |
Rider Height (ft/in) |
Inseam |
| S (49cm) |
158 - 164 cm |
5'2" - 5'5" |
74 - 77 cm / 29" - 30" |
| M (52-54cm) |
164 - 177 cm |
5'5" - 5'10" |
77 - 83 cm / 30" - 33" |
| ML (56cm) |
177 - 188 cm |
5'10" - 6'2" |
83 - 88 cm / 33" - 35" |
| L (58cm) |
188 - 194 cm |
6'2" - 6'4" |
88 - 91 cm / 35" - 36" |
| XL (61cm) |
194 - 203 cm |
6'4" - 6'8" |
91 - 95 cm / 36" - 37" |
All measurements provided in cm unless otherwise stated.

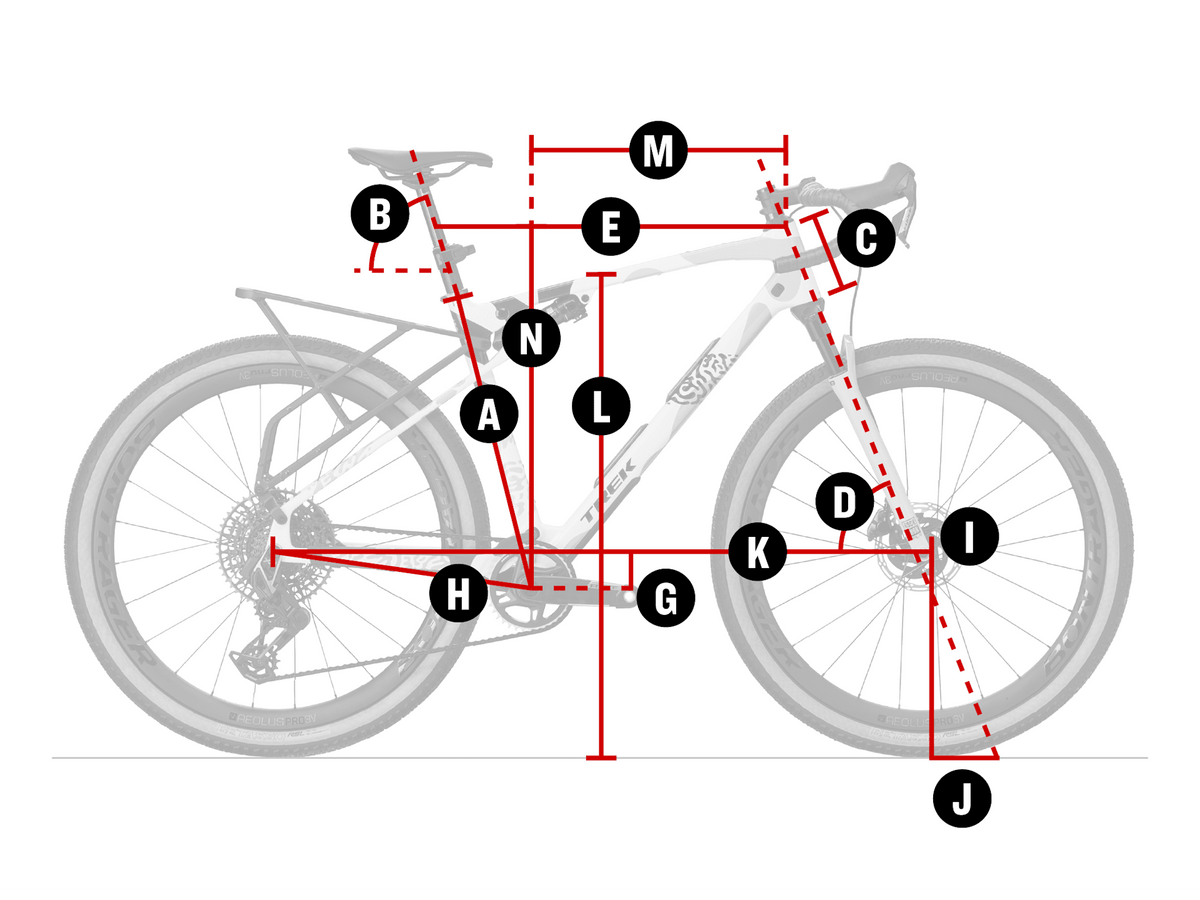

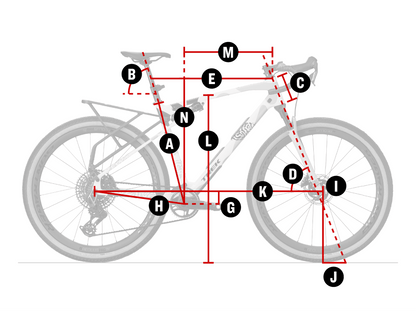

| Measurement |
S |
M |
ML |
L |
|---|---|---|---|---|
| Wheel size |
700c |
700c |
700c |
700c |
| A — Seat tube |
44.0 |
47.0 |
52.0 |
54.0 |
| B — Seat tube angle |
74.6° |
74.2° |
73.7° |
73.0° |
| C — Head tube length |
8.3 |
12.2 |
13.8 |
15.9 |
| D — Head angle |
68.8° |
69.0° |
69.4° |
69.5° |
| E — Effective top tube |
56.4 |
58.9 |
59.7 |
61.3 |
| G — Bottom bracket drop |
7.0 |
7.0 |
7.0 |
6.8 |
| H — Chainstay length |
44.2 |
44.2 |
44.2 |
44.2 |
| I — Offset |
4.8 |
4.8 |
4.8 |
4.8 |
| J — Trail |
9.2 |
9.1 |
8.8 |
8.8 |
| K — Wheelbase |
108.1 |
110.5 |
111.7 |
113.5 |
| L — Standover |
77.2 |
80.4 |
84.0 |
86.1 |
| M — Frame reach |
39.5 |
40.7 |
41.7 |
42.7 |
| N — Frame stack |
58.0 |
61.7 |
63.4 |
65.2 |
