TreeFrog Pro 1 Bike Rack (For Road/MTB)

The 9-12x100mm universal fork mount takes either a standard 9 mm quick release or a 12x100mm thru-axle fork without swapping parts (a 9-15x100mm mount is available as an alternative). 12 mm, 15 mm and 20 mm thru-axle mounts, including Lefty, can be ordered separately. The rack packs into a backpack, so it's easy to travel with or use on a rental car.

The Pro 1 weighs 2.8 kg and holds one bike up to 20 kg. For e-bikes, see the Pro 2 or Pro 3.

Features:

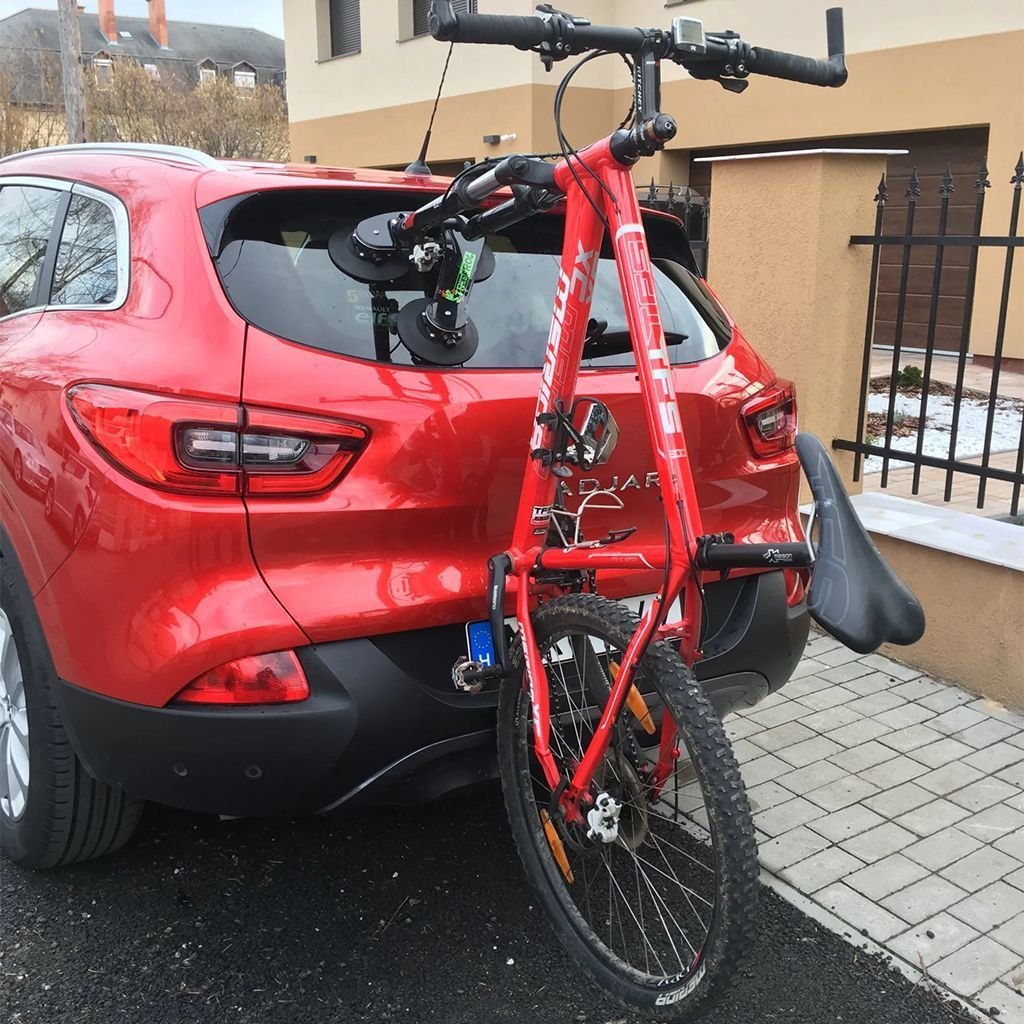

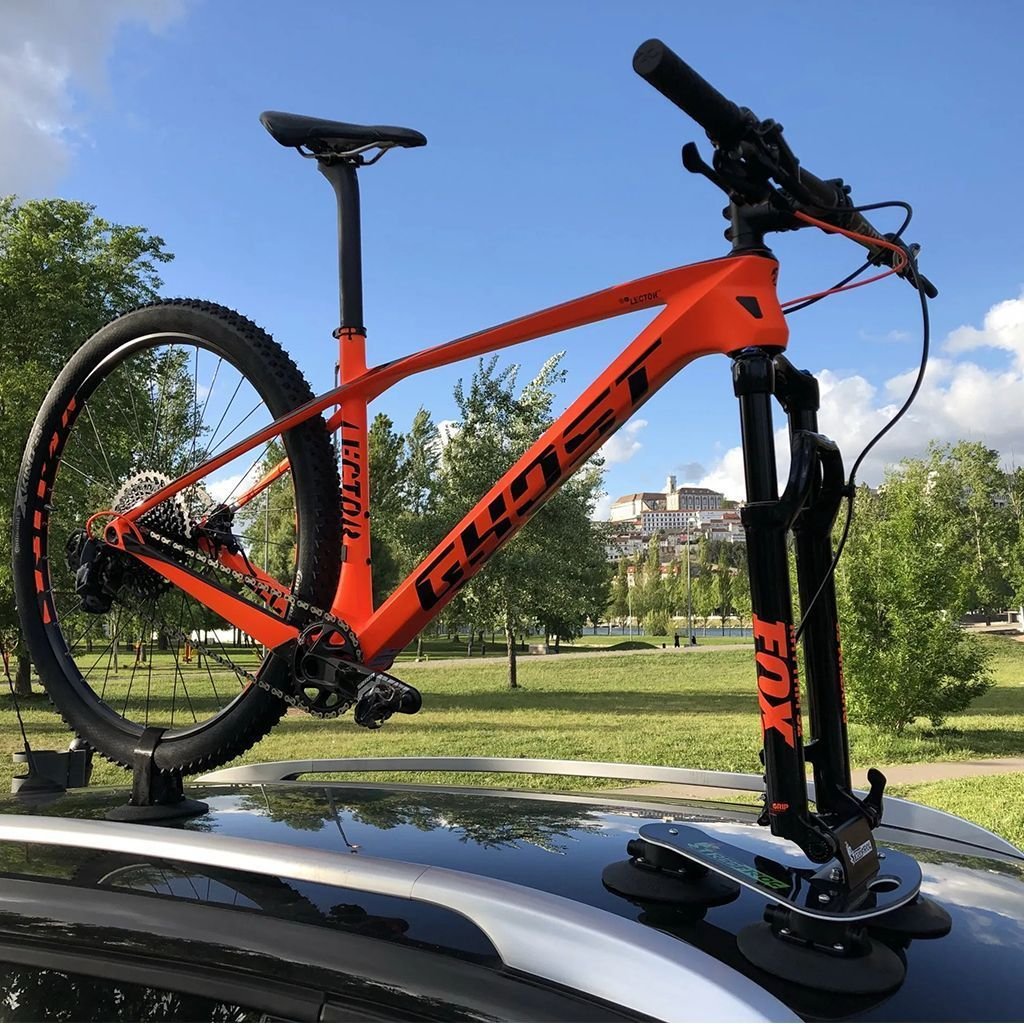

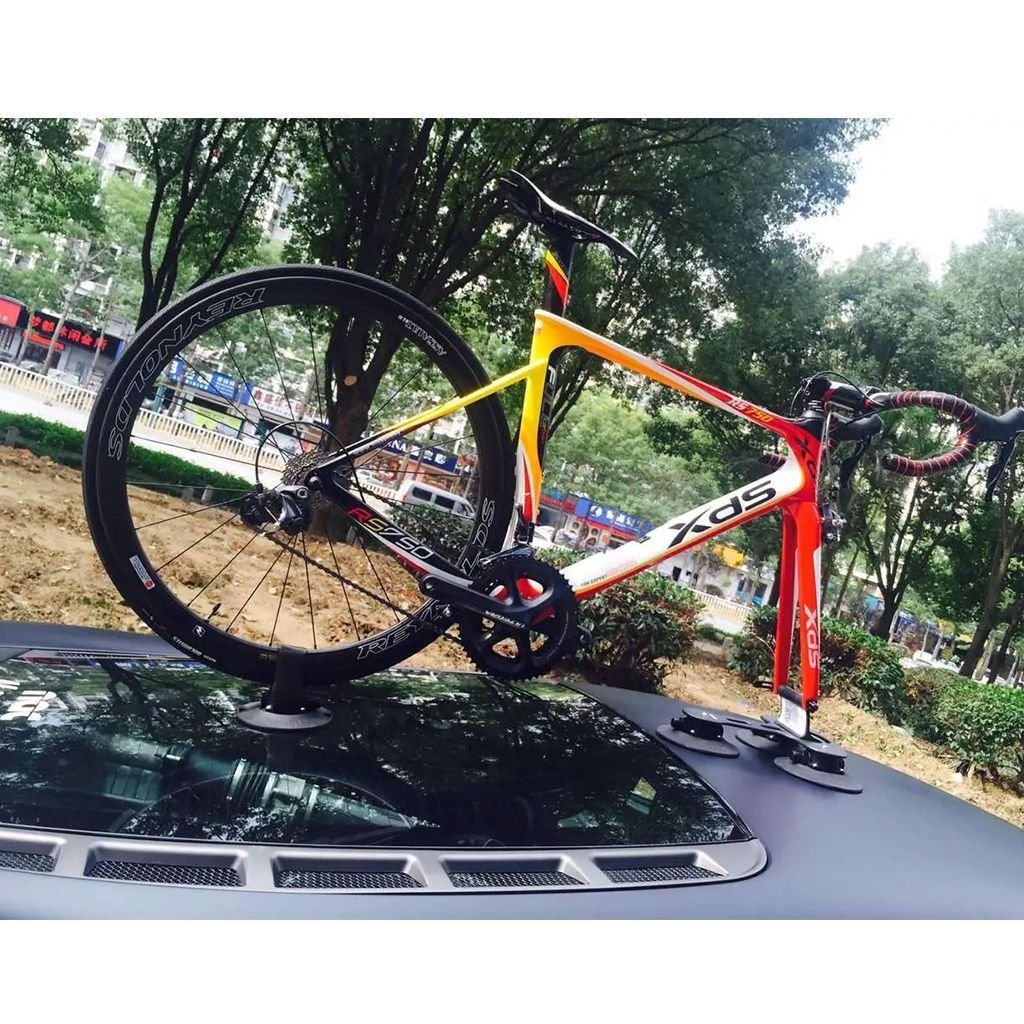

• Made for quick and easy roof top, trunk, or hatchback attachment
• No tools or expertise is required, racks can easily be installed and removed
• Suitable for attachment to glass or smooth-painted rigid surfaces including vehicle body panels made from steel, aluminium, carbon fiber, fiberglass and structural composites
• Keep the inside of your vehicle clean and damage free by transporting bikes using the Tree Frog racks
• Optional security cable system is offered (not included) for locking bikes and rack to vehicles
• Includes storage caps for vacuum cups, to protect against dirt and damage
• 2 years warranty against defects in materials and workmanship

Specifications:

• CNC-cut double layer polycarbonate board (stronger than high density polyethylene HDPE)
• 6061 Anodized aluminum bracketry
• 304 Stainless steel ‘rust free’ hardware
• Bike weight limit capacity is 45lbs / 20kg
• Certification: German TUV SUD test (German DIN bicycle racks tests)
• 6” Suction cup diameter
• Rack weight: 6.2 lbs / 2.8 Kg
• Footprint front: 13.4 in x 14.0 in / 34.0 cm x 35.5 cm
• Footprint rear: 6 in / 15.2 cm diameter

Scope of supply:

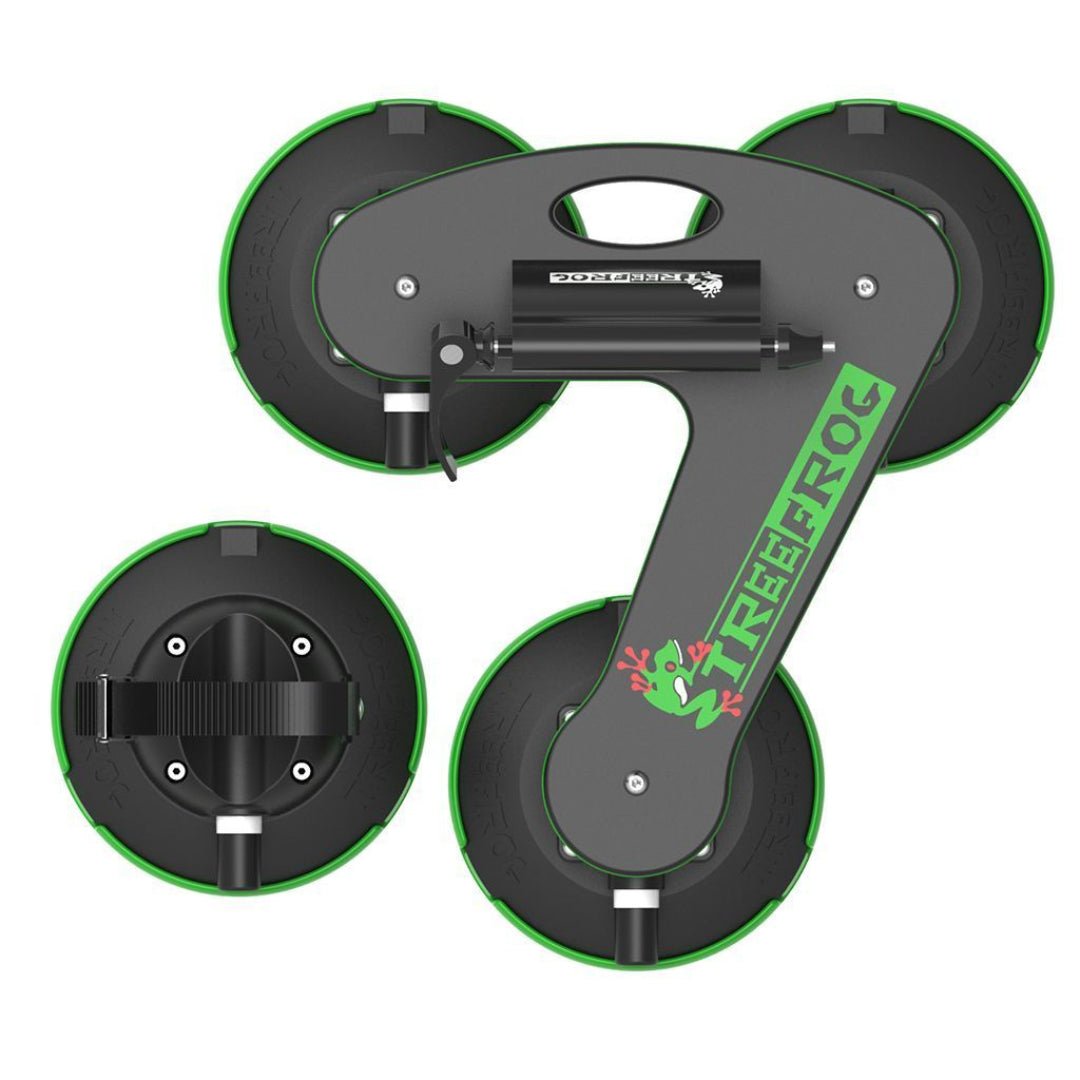

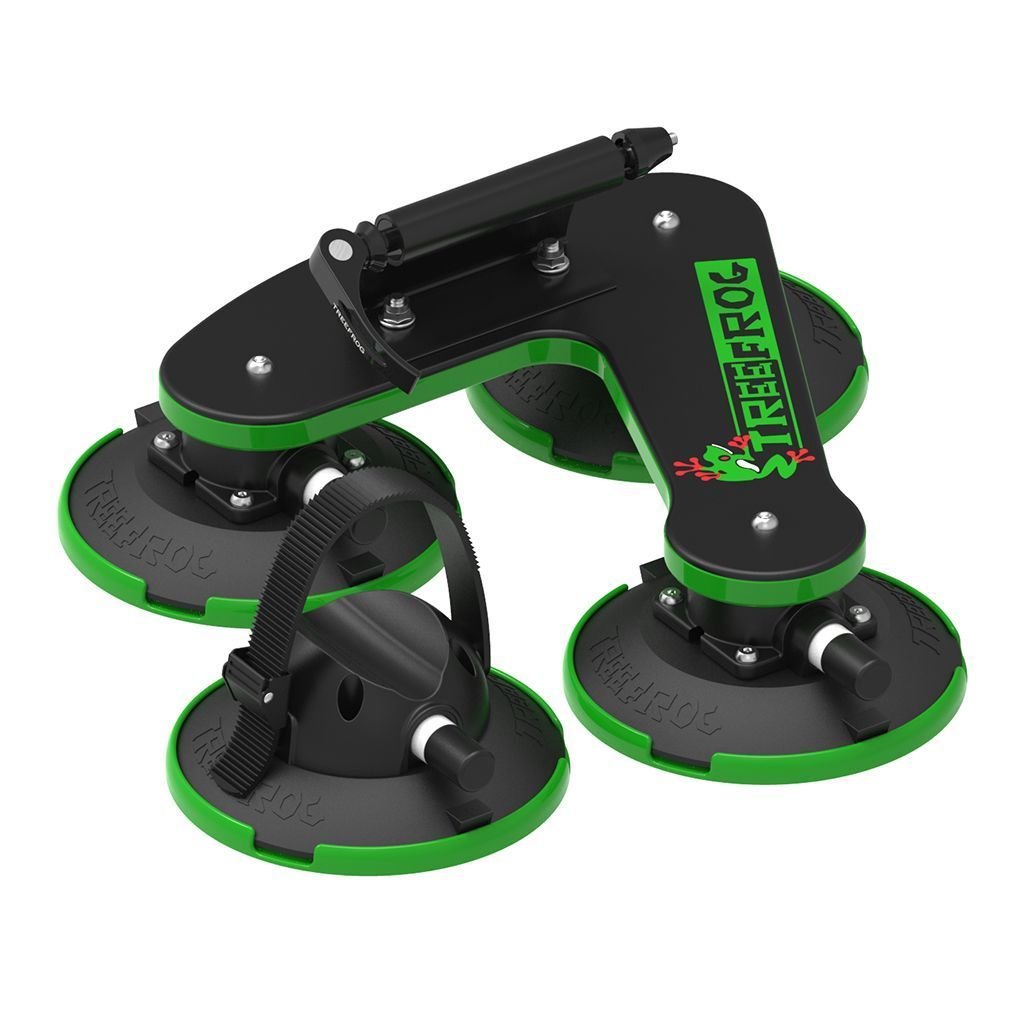

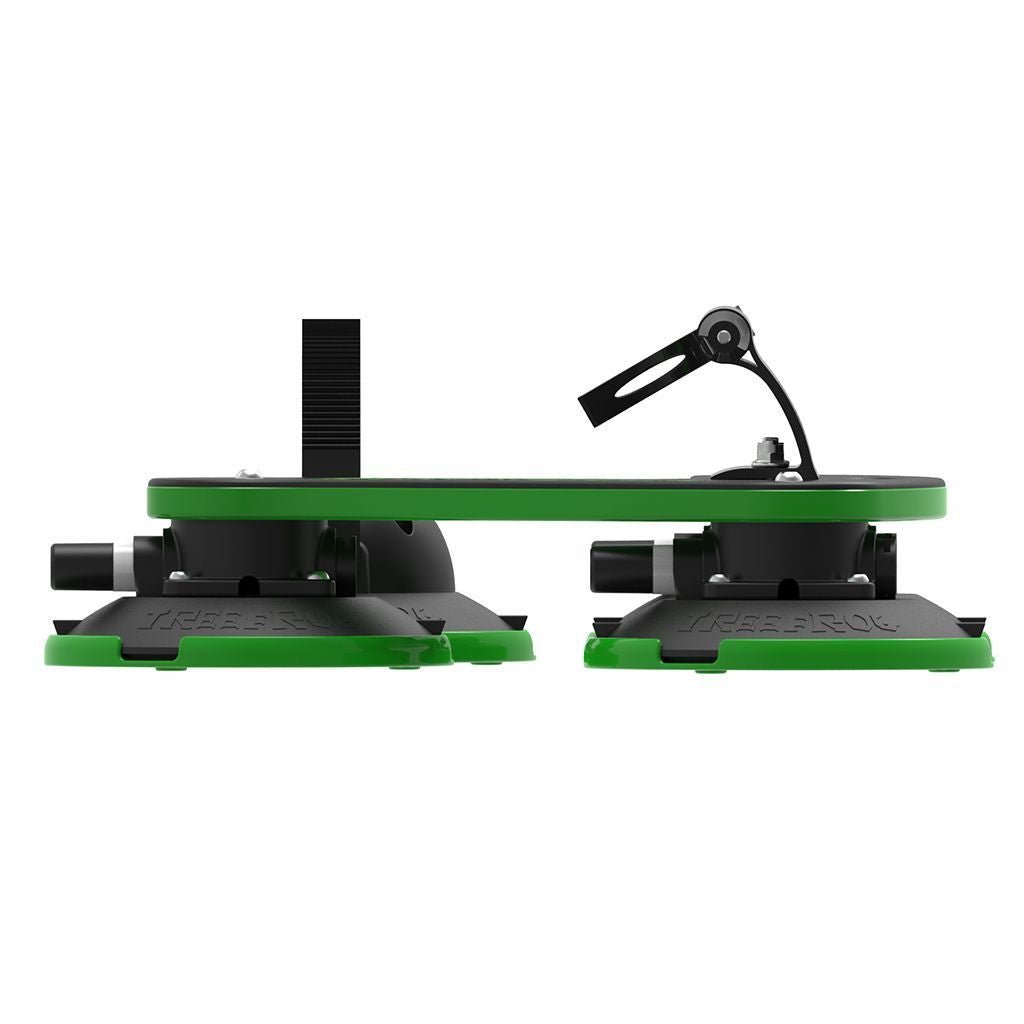

• 1 x Front mounting platform with 3 vacuum cups and covers
• 1 x Universal 9-12x100mm (or, 9-15x100mm) fork mount and quick release skewer
• 1 x Rear wheel holders with vacuum cup and a strong ladder strap
• 1 x Spray water bottle and cleaning microfiber cloth
• 1 x Crank arm holding Velcro strap
• 1 x 5g lubricant for vacuum pump maintenance
