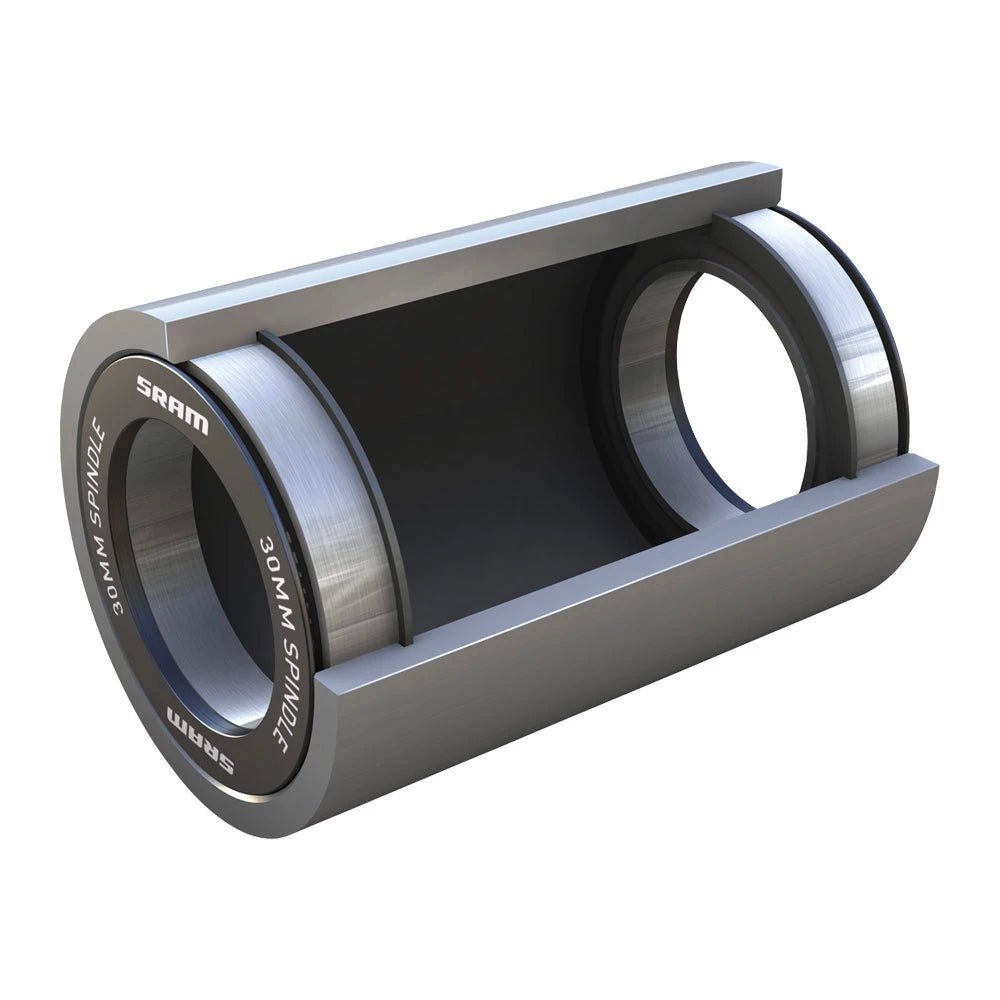

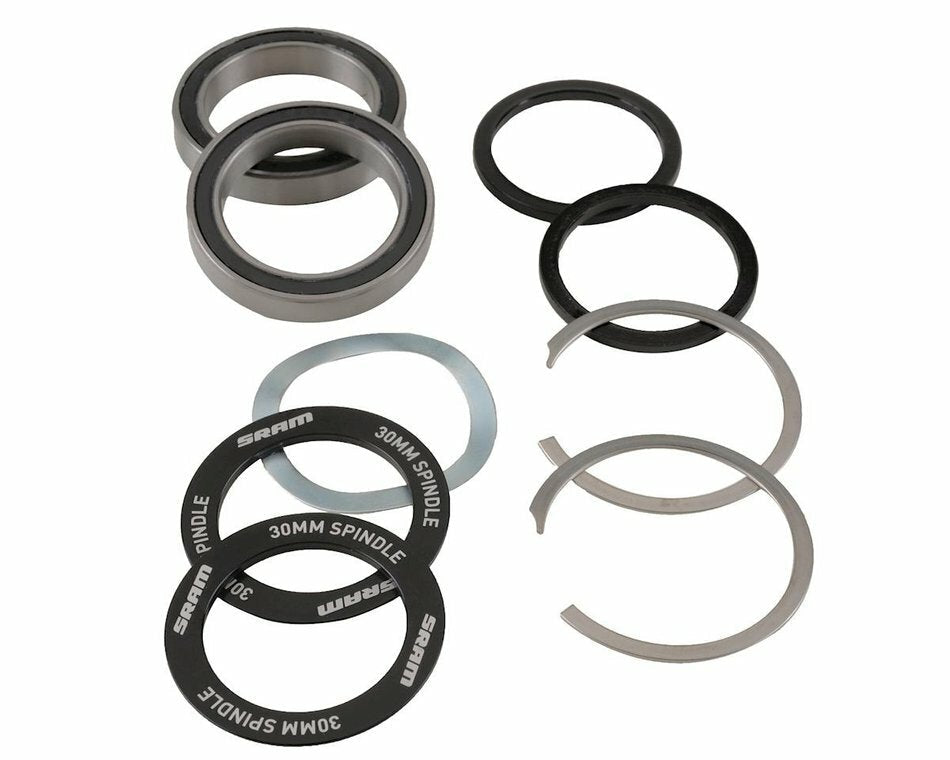

SRAM BB30 Bottom Bracket (BB-BB30-A1)
The SRAM BB30 Bottom Bracket is engineered for frames using the BB30 standard, delivering efficient power transfer, reduced weight, and long-lasting bearing performance. Designed around a 30 mm spindle, the BB30 system allows for a narrower Q-factor and increased ankle clearance, helping improve pedalling efficiency and rider comfort.
Featuring large sealed bearings housed directly in the frame, the BB30 design reduces weight while increasing bearing durability for reliable performance across road, gravel, and mountain bike applications.
Features
- Genuine SRAM BB30 bottom bracket
- Designed for BB30 frame and crank standards
- Narrow Q-factor improves pedalling efficiency
- Increased ankle clearance for improved rider comfort
- Larger sealed bearings for enhanced durability
- Optimised for smooth, low-friction performance
Specifications
| Model ID | BB-BB30-A1 |
| Bottom Bracket Standard | BB30 |
| Frame Interface | BB30 |
| Crank Interface | BB30 |
| Spindle Diameter | 30 mm |
| Bearing Type | Standard Sealed Bearings |
| Cup Material | Plastic |
| Compatible Shell Width | 68 mm / 73 mm BB30 Shell |
