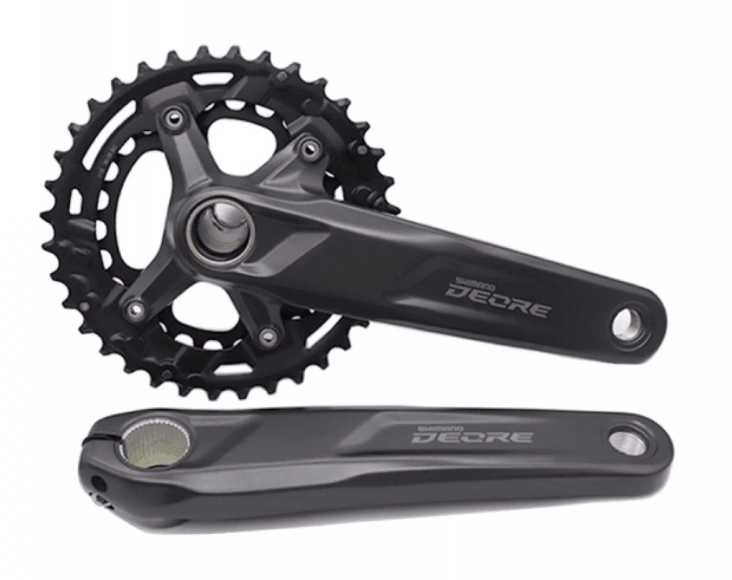

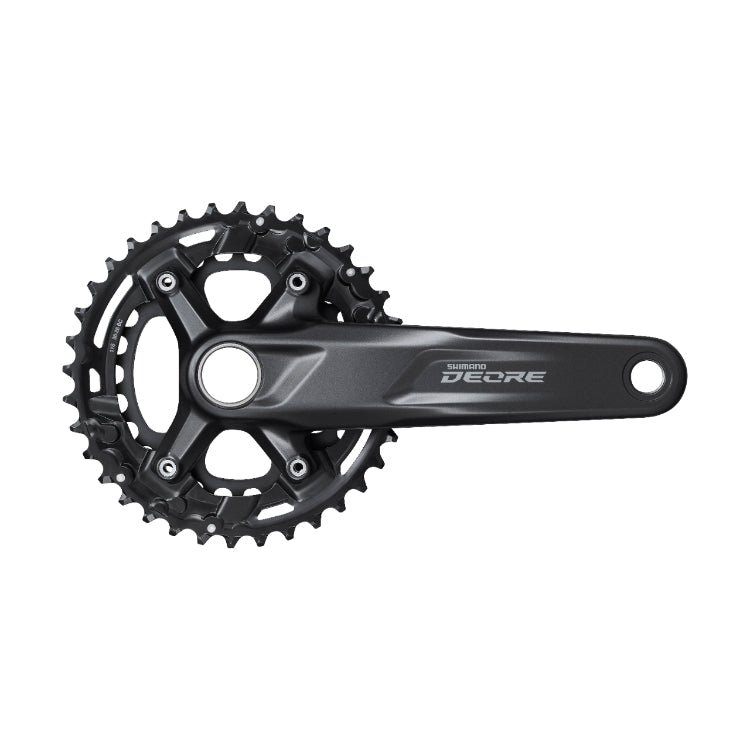

Shimano Deore Front Chainwheel FC-M5100-2 11 Speed
Shimano Deore Front Chainwheel FC-M5100-2 11 Speed
Regular price
Rs. 5,080.00
Regular price
Rs. 0.00
Sale price
Rs. 5,080.00
Taxes included.
Shipping calculated at checkout.
SKU: EFCM51002EX66
UPC: 192790618333
Authorized Shimano Dealer
100% Genuine Product
Easy Exchange
Quantity
Couldn't load pickup availability
Pick up in-store
Viman Nagar
Ready today
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.
FC-M5100-2
The SHIMANO DEORE FC-M5100-2 mountain bike crank delivers precise and reliable shifting for 2x11-speed drivetrains. This 2-piece crank offers a 36-26T gear combination and a 48.8 mm chainline. 2-PIECE CRANKSET increases the rigidity of crankset with less weight and transmits pedalling force efficiently. Extra-wide range with front double 36-26T
- MTB Crankset
- 2-PIECE CRANKSET
- Q-factor 178.5 mm
- Chain Line 48.8 mm
- 2x11-speed.
SPECIFICATION
| MODEL NO | FC-M5100-2 |
| SERIES |
DEORE M5100 Series
|
| Colour | Series Color |
|
2-PIECE CRANKSET
|
✔ |
|
Chainring combination
|
36-26T |
|
Compatible bottom bracket type_Outboard
|
✔ |
|
Crank fixing screw included
|
✔ |
|
Crank arm length (mm)_170
|
✔ |
|
Spider/Gear arms
|
4 |
|
Optional chain guard_Without chain/bash guard
|
✔ |
|
Recommended bottom bracket_Press-fit
|
BB-MT500-PA |
|
Recommended bottom bracket_Threaded (normal)
|
SM-BB52 |
|
Threaded bottom bracket shell width (mm)_68
|
✔ |
|
Threaded bottom bracket shell width (mm)_73
|
✔ |
| Q-factor (mm) | 178.5 |
|
Chain line (mm)
|
48.8 |
|
Compatible chain
|
HG-X11 11-speed
|
| P.C.D. (mm) | 96/64 |
| Rear speeds | 11 |
|
O.L.D._QR/Nut (mm)
|
135 |
|
O.L.D._Thru (mm)
|
142 |
