Shimano

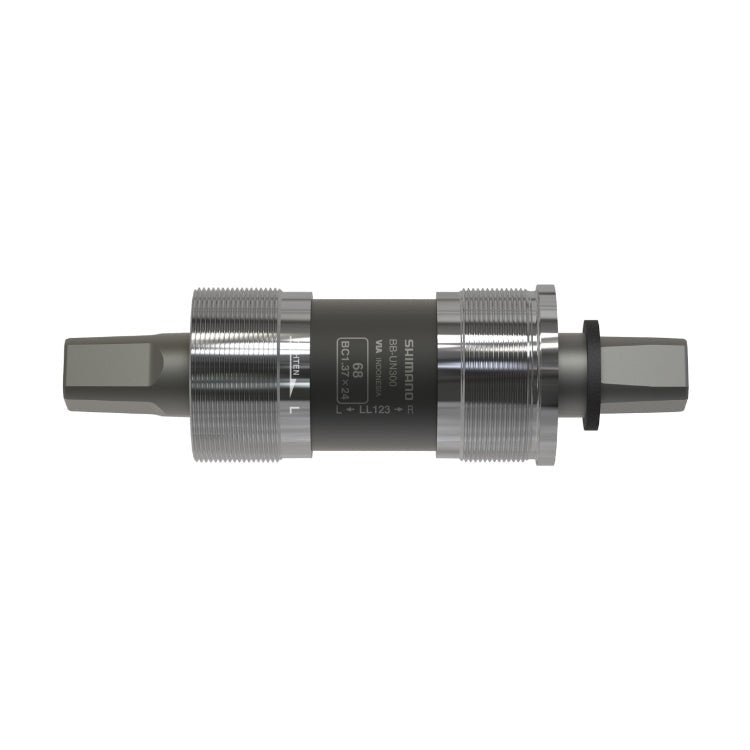

Shimano BB UN300 Square Tyre Bottom Bracket
Shimano BB UN300 Square Tyre Bottom Bracket
Regular price
Rs. 990.00
Regular price
Rs. 0.00
Sale price
Rs. 990.00
Taxes included.
Shipping calculated at checkout.
SKU: EBBUN300B07X
UPC: 192790619286
Authorized Shimano Dealer
100% Genuine Product
Easy Exchange
Quantity
Couldn't load pickup availability
Pick up in-store
Viman Nagar
Ready today
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.
SHIMANO - Square Type Bottom Bracket - MTB - Standard Structure
DESCRIPTION
Square Type Bottom Bracket
- SHIMANO quality/performance cartridge bearing square bottom bracket
- Better chainline stability with chain line stabilizer
- 3 structures available
- Standard, E-type, chaincase options
- Adapter Material: Aluminum
SPECIFICATIONS
| MODEL NO | BB-UN300 |
| SERIES | TOURNEY TX800 Series |
| Remarks | * w/ Crank arm fixing bolts spec. only ** w/ Crank arm fixing bolts spec. is available |
| Structure_Standard | ✔ |
| Axle length/shell width (mm)_107_68 (BC1.37) | ✔ |
| Axle length/shell width (mm)_LL113_73 (BC1.37) | ✔ |
| Axle length/shell width (mm)_D-H_68 (BC1.37) | X * |
| Axle length/shell width (mm)_117.5_68 (BC1.37) | X ** |
| Axle length/shell width (mm)_XL118_68 (BC1.37) | X ** |
| Axle length/shell width (mm)_XL118_73 mm | ✔ |
| Axle length/shell width (mm)_D-NL 122_68 (BC1.37) | X ** |
| Axle length/shell width (mm)_D-NL 122_73 (BC1.37) | X * |
| Axle length/shell width (mm)_D-EL 127_68 (BC1.37) | X * |
| Axle length/shell width (mm)_LL123_68 (BC1.37) | ✔ |
| Axle length/shell width (mm)_LL123_73 (BC1.37) | ✔ |
| Axle length/shell width (mm)_LL113_68 (BC1.37) | X ** |
| Axle length/shell width (mm)_MM110_68 (BC1.37) | X ** |
| Spindle_Square type | ✔ |
