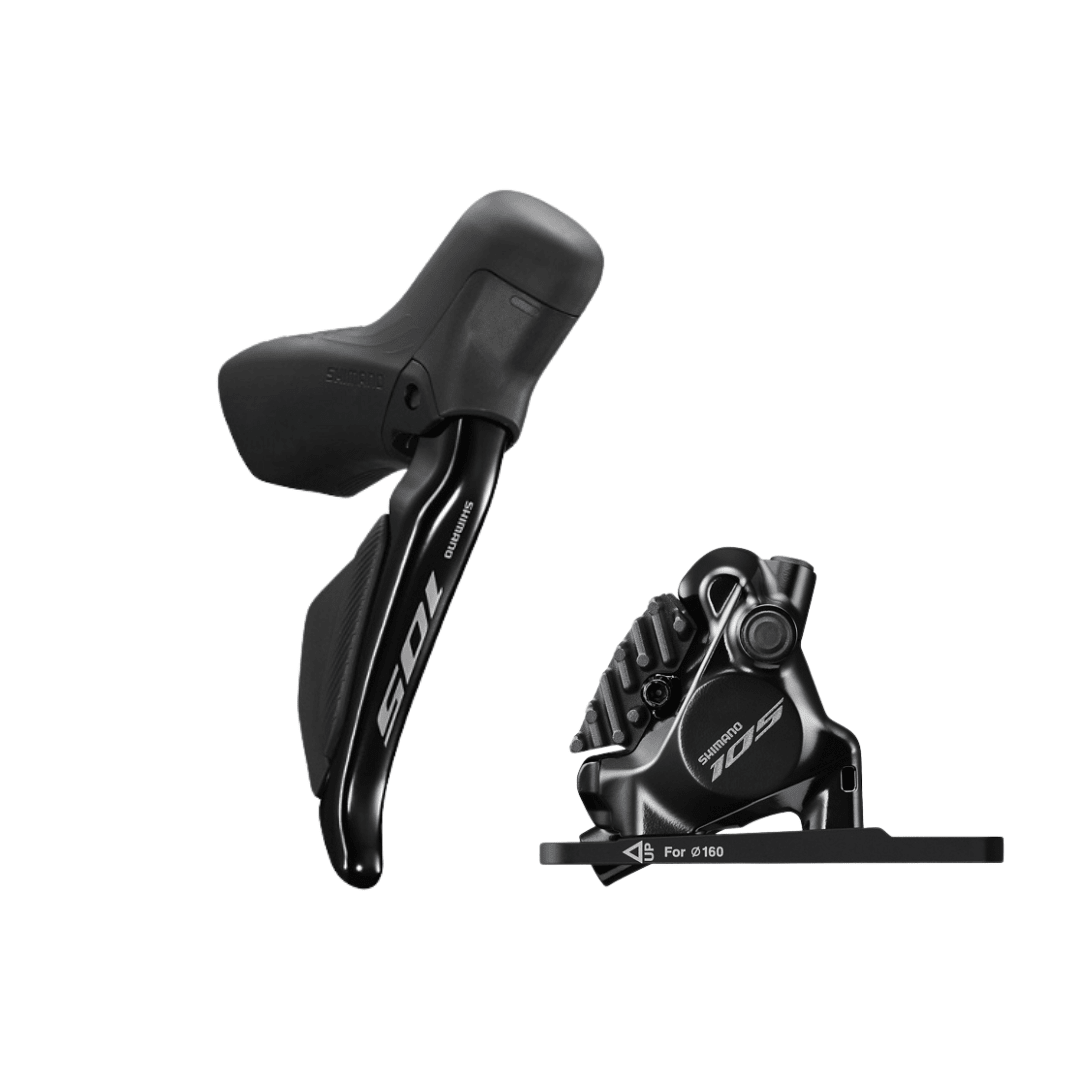

Shimano 105 Disc Brake Set - Dual Control Lever - Right Rear
Shimano 105 Disc Brake Set - Dual Control Lever - Right Rear
SKU: IR7170DRRDSC170B
UPC: 192790231433
Couldn't load pickup availability
Pick up in-store
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.

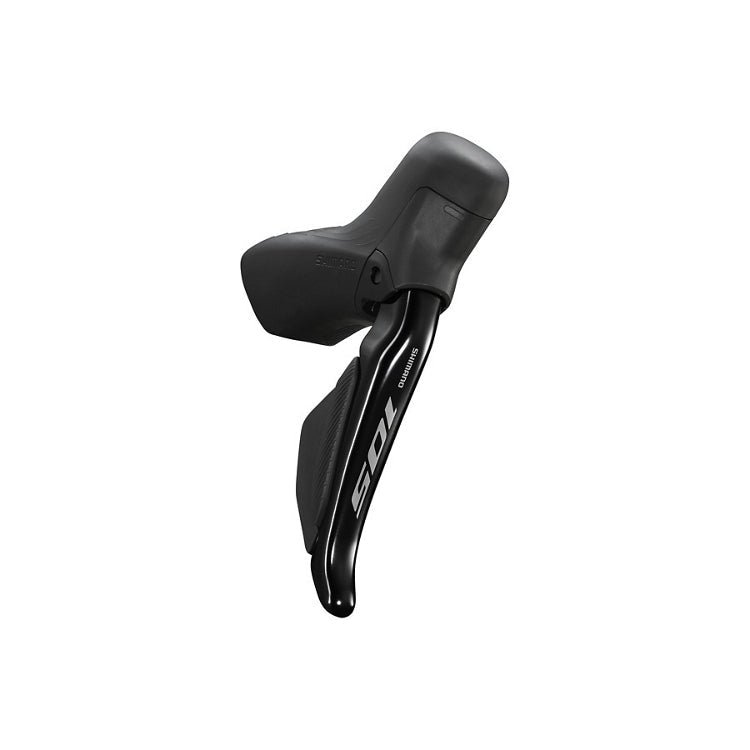

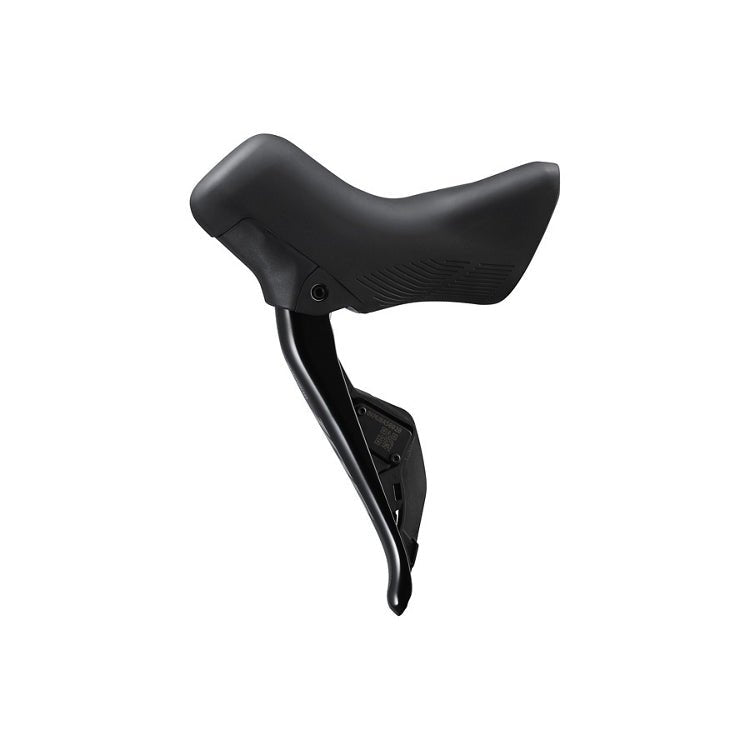

105 Di2 Hydraulic Disc Brake
SHIMANO 105 Di2 Hydraulic Disc Brake DUAL CONTROL LEVER (2x12-speed)
ST-R7170-R
Worry-free Di2 shifting in a compact shifter size
The new SHIMANO 105 shift/brake lever features Di2 electronic shifting for the first time, bringing precise, intuitive gear changes to even more riders. Reach adjustment and customized button functions allow you to dial in your ideal ergonomics.
FEATURES
- Clean cockpit: Wireless connection enhances the aesthetic of your bike while keeping shifting lightning fast

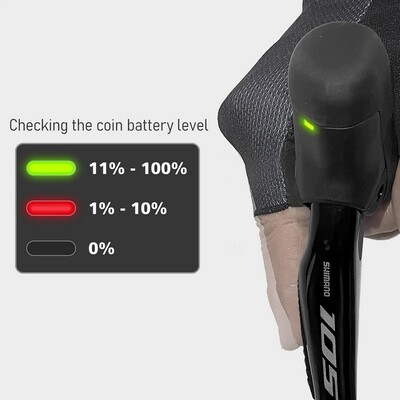

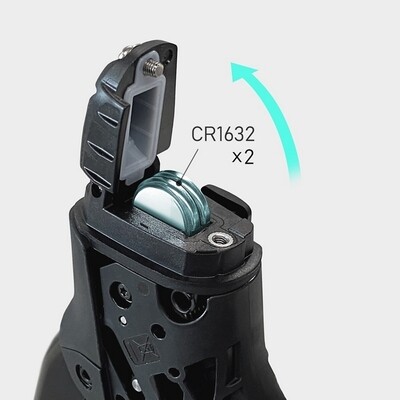

- Longer lasting. Uses two CR1632 batteries (battery life: 3.5 to 4 years)
- Compact, ergonomic performance cascaded from DURA-ACE

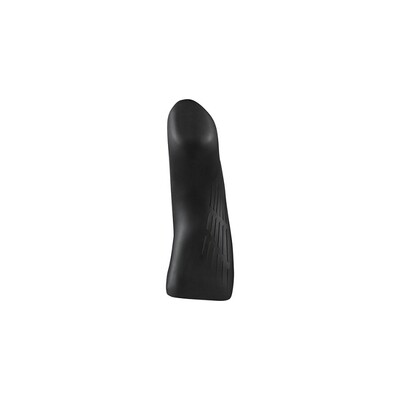

- Raised hood peak improves ergonomics, while a longer hood body increases hand support
- Make DURA-ACE yours with custom button function and adjustable ergonomics

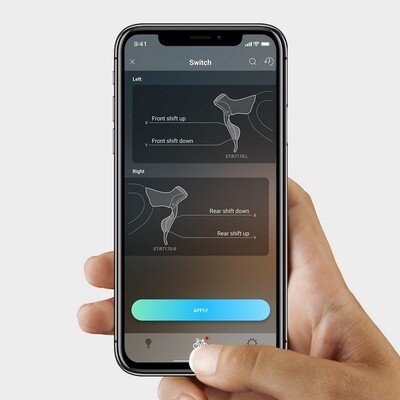

- Easily change button function with the E-TUBE app
- Find your optimum lever position with simple reach adjust
SPECIFICATIONS
| MODEL NO | ST-R7170-R |
| SERIES | SHIMANO 105 R7100 Di2 Series |
| Color | Series color |
| Average weight | 423 (/pair) |
| Shifter type | DUAL CONTROL LEVER |
| Brake lever|Brake hose (kit) | SM-BH90-J-SSR, SM-BH90-JK-SSR |
| Brake lever|Hose joint | Straight |
| Brake lever|Brake hose color (kit)|1 | Black |
| Brake lever|Recommended brake caliper | BR-R7170 |
| Brake lever|Oil | SHIMANO Mineral |
| Brake lever|Reach adjust | ✔ |
| Brake lever|Clamp band (mm) | 23.8-24.2 |
| Brake lever|Funnel bleeding | ✔ |
| Brake lever|Free stroke adjust | ✔ |
| Di2 connectivity wireless|Di2 shifting | ✔ |
| Firmware update by E-TUBE PROJECT | ✔ |
| Battery | CR1632 x 2 |

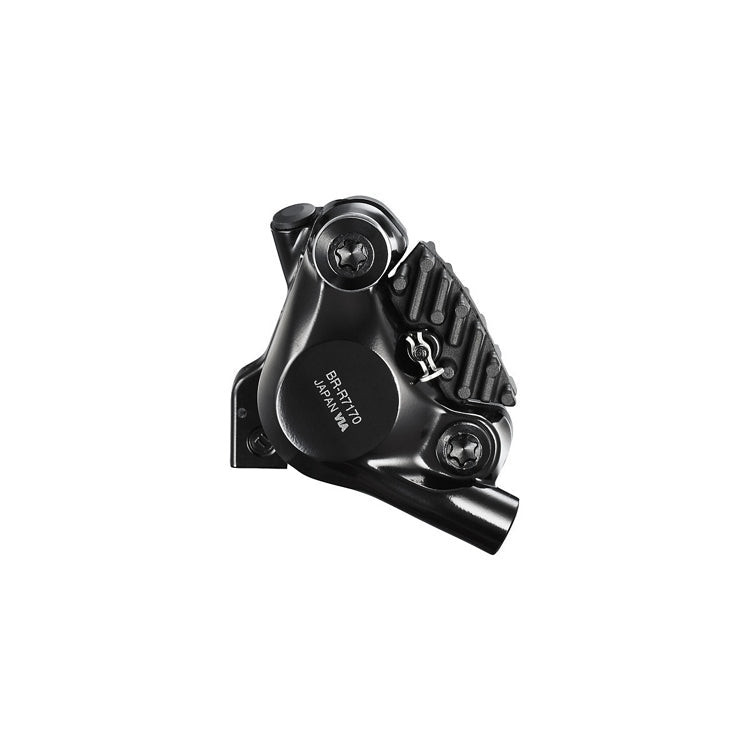

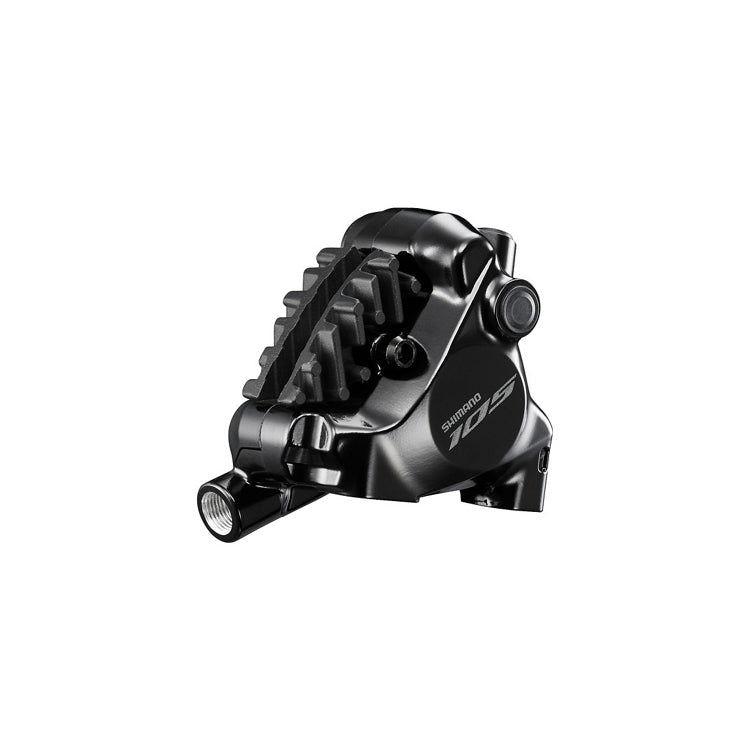

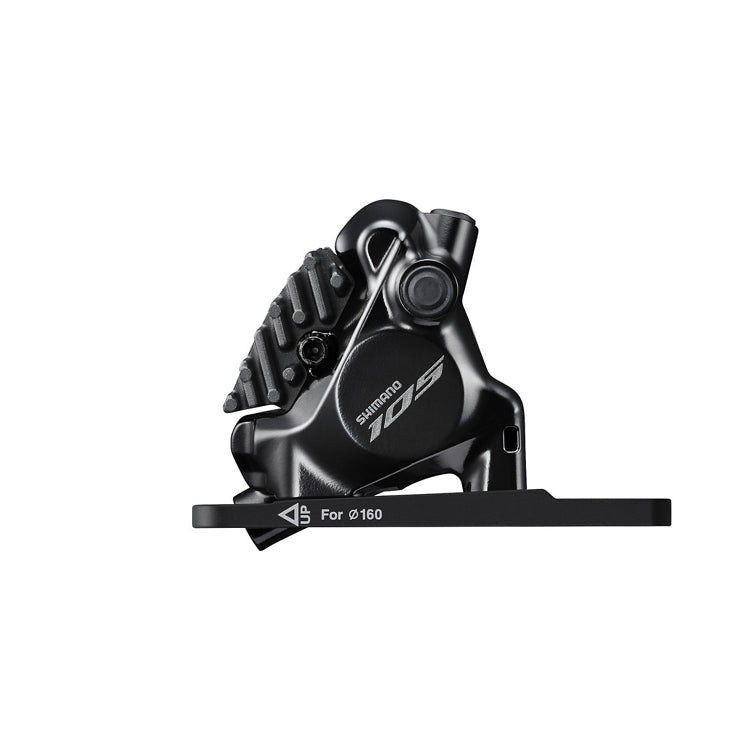

105 Hydraulic Disc Brake Caliper
SHIMANO 105 Hydraulic Disc Brake Caliper
BR-R7170
Disc brakes optimized for road riding
With proven hydraulic braking technology, the new SHIMANO 105 calipers feature the SHIMANO Flat Mount System and its low-profile design that is ideal for road bikes. More compact and lighter than ever, the R7170 brakes offer wide pad clearance for easy wheel removal and quiet performance as well as one-way bleeding for easy, clean maintenance.
FEATURES

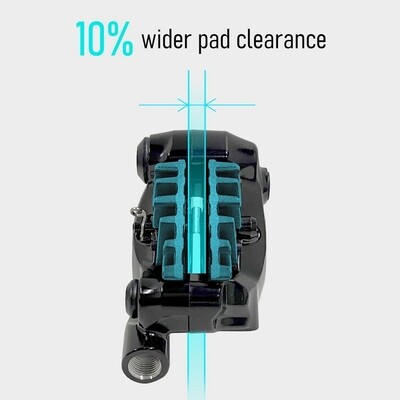

- 10% wider pad clearance decreases the chance of disc brake rotor rub
- Maintenance-friendly bleeding process
SPECIFICATIONS
| MODEL NO | BR-R7170 |
| SERIES | SHIMANO 105 R7100 Di2 Series |
| Color | Black |
| Average weight | 123 |
| Brake type | Hydraulic disc brake |
| Brake hose (kit) | SM-BH90-J-SSR SM-BH90-JK-SSR |
| Hose joint | Straight |
| Brake hose color (kit)|1 | Black |
| J-Kit spec (for OEM) | ✔ |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
| Pad|Option 1 | L04C-MF Metal (w/ fin) |
| Recommended brake lever | ST-R7170 |
| Recommended disc brake rotor | SM-RT70, SM-RT64 |
| Oil | SHIMANO mineral |
| ONE WAY BLEEDING | ✔ |
| Mount type | Flat mount |
| Piston | 2 |
| Pad mount | Pad axle |
