Your build sheet
The spec we'd actually build for you, not a brochure.
Tell us how you ride and what you want to spend. A D Byk mechanic sends a build sheet made for you, on WhatsApp.
- 01Every component, part by part
- 02Real build weight
- 03Size and stem length checked for your height
- 04A cheaper option and a dream option, side by side
- 05Ready-to-ride date and payment options
4 taps · 20 seconds
Tell us how you ride
1 · Mostly riding
2 · All-in budget
3 · Groupset
Three ways to own it
A · Rs. 333,000
Frameset only
You have the parts and a mechanic. We hand over the frameset, checked and ready.
B · Quoted after inspection
Transfer my parts
Bring your old bike. We move over the groupset and wheels, flag anything worn, and quote before we start.
C · Quoted to your spec
Complete build
Start from one of our builds or spec your own. Built, tuned and fitted in our workshop.
Before you ask
Why isn't the full build spec listed here?
Because no two builds are the same. Parts stock changes every week, so we quote what we can actually build today, in your size.
How long does a complete build take?
It depends on parts availability. Your build sheet includes a ready-to-ride date.
Is it genuine, with warranty?
Yes. Everything we sell is genuine and comes with the manufacturer's warranty.
Can I see it before I decide?
Yes. WhatsApp us and we'll have it ready at our Viman Nagar, Bavdhan or Wakad store.
Frame details & specifications

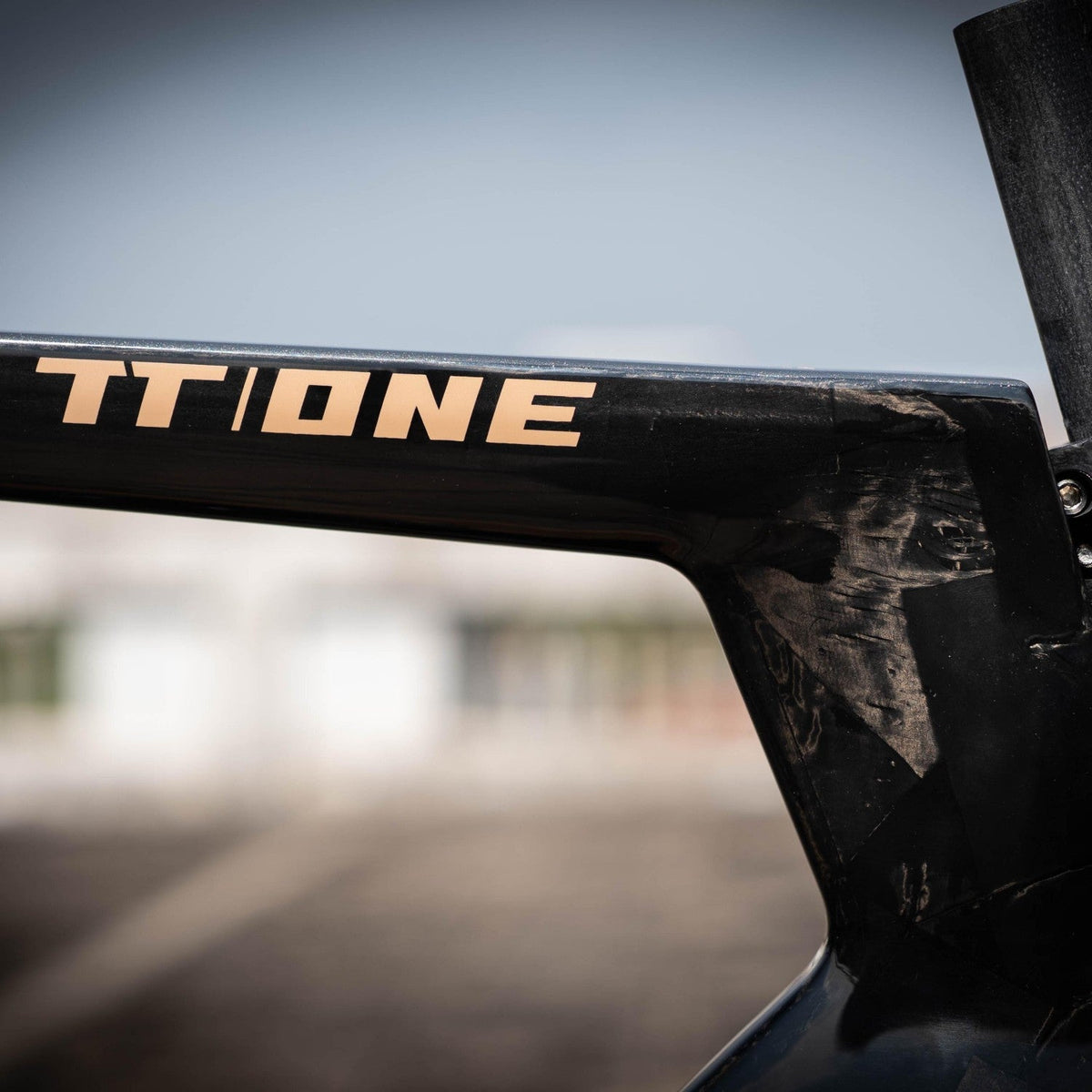

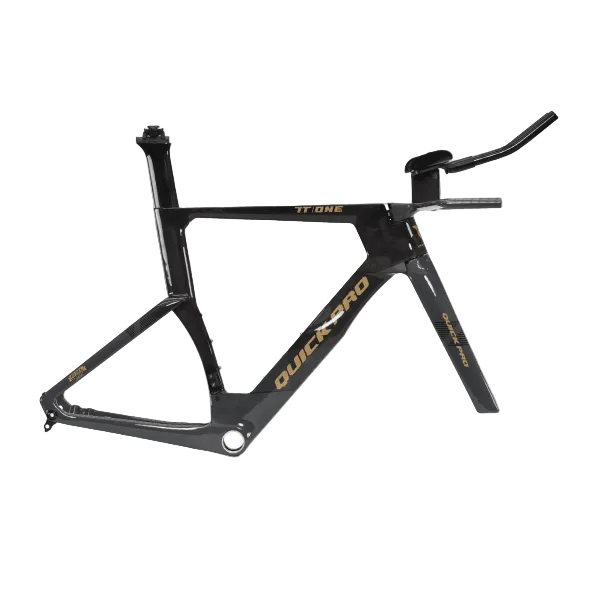

Quick Pro TT:ONE Time Trial Frameset with Cockpit
The TT:ONE is Quick Pro's flagship time trial frameset, refined in the wind tunnel and tested by the Quick Pro professional team, including national time trial champions. Every tube profile and junction is shaped to cut drag and put as much of your power as possible into forward speed.

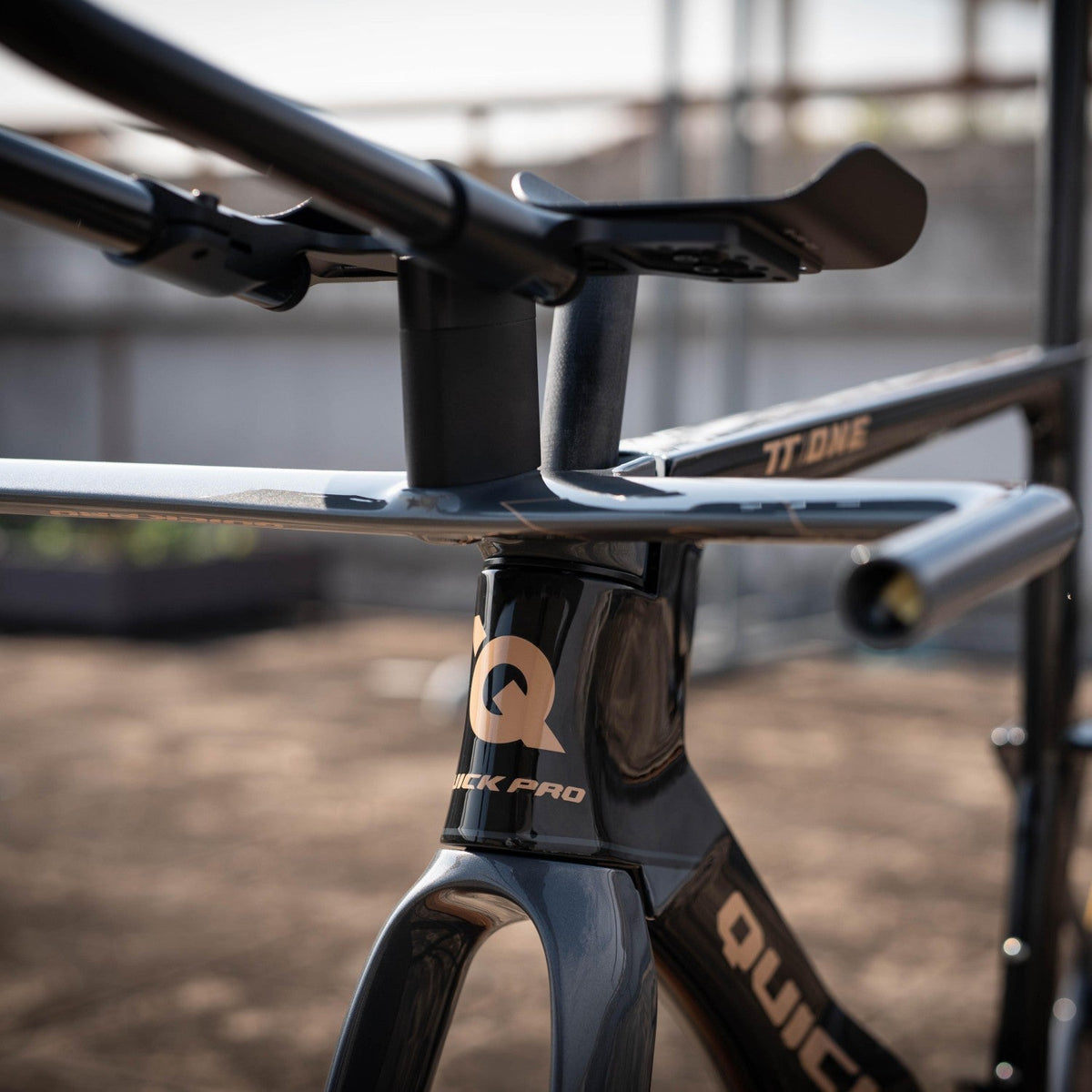

It is supplied with Quick Pro's integrated aero cockpit, with riser blocks for stack adjustment, so you have a complete front end ready to build around.
Fully Internal 52/52mm Head Tube
Oversized upper and lower bearings stiffen the front end for precise steering and allow every cable to be hidden inside the frame for a clean, low-drag profile.
High-Modulus Carbon
T1100 and M65 high-modulus carbon fibre, moulded in one piece, keeps the frame stiff and impact-resistant without adding weight — the frame comes in at around 1089g in size S.
Tested Beyond ISO
Quick Pro frames are tested to German Zedler standards, which go beyond standard ISO requirements, and every frame is X-ray inspected for hidden flaws.
Who Is It For?
Time triallists and non-drafting triathletes who want a dedicated, UCI-approved TT platform rather than a road bike with clip-on bars.
Good to Know
The TT:ONE is designed for electronic groupsets only, with fully internal routing. Stack is adjusted using the supplied riser blocks, so a proper bike fit is strongly recommended when building it up — our team can help with that.
Specifications
Frameset
| Model | TT:ONE Frame |
|---|---|
| Frame / Fork | Full Carbon Monocoque |
| Material | T1100 + M65 High-Modulus Carbon Fiber |
| Brake Mount | Flat Mount Disc |
| Cable Routing | Fully Internal, Electronic Only |
| Front Axle | 100 x 12mm Thru-Axle |
| Rear Axle | 142 x 12mm Thru-Axle |
| Head Tube | 52 x 52mm |
| Bottom Bracket | T47-68mm Threaded |
| Maximum Tyre Size | 700 x 32c |
| Maximum Chainring | 56T |
| Available Sizes | XS (498), XXS (455) |
| UCI Approved | Yes |
Weight
| Frame | 1089g (±5%, size S, no hardware) |
|---|---|
| Fork | 399g (±5%, size S, no hardware) |
Cockpit

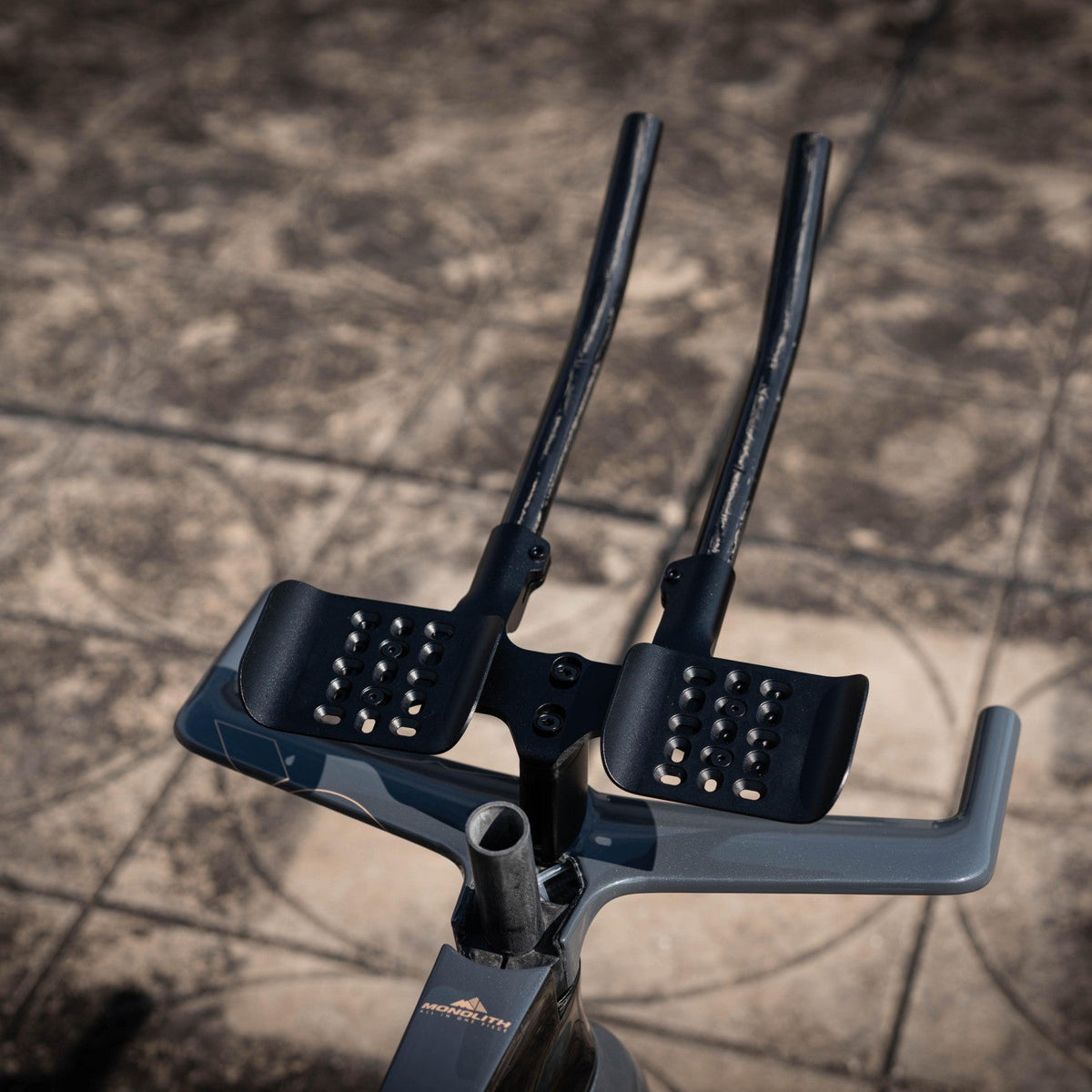

| Handlebar | TT:ONE Integrated Aero Cockpit |
|---|---|
| Design | Carbon aero base bar with extensions, internal routing, riser blocks for stack adjustment |
Geometry
| Code | Measurement | XXS (455) | XS (498) |
|---|---|---|---|
| A | Seat Tube Length | 455mm | 498mm |
| B | Effective Top Tube Length | 504mm | 508mm |
| C | Seat Tube Angle | 75° | 75° |
| D | Head Tube Angle | 71° | 71° |
| E | Head Tube Length | 80mm | 85mm |
| F | Chainstay Length | 410mm | 410mm |
| G | Wheelbase | 968mm | 973mm |
| H | Fork Offset | 45mm | 45mm |
| I | Bottom Bracket Drop | 75mm | 75mm |
| J | Fork Length | 365mm | 365mm |
| K | Standover Height | 735mm | 760mm |
| — | Reach | 375mm | 378mm |
| — | Stack | 481mm | 486mm |
| — | Recommended Rider Height | 160–168cm | 168–174cm |
