Your build sheet
The spec we'd actually build for you, not a brochure.
Tell us how you ride and what you want to spend. A D Byk mechanic sends a build sheet made for you, on WhatsApp.
- 01Every component, part by part
- 02Real build weight

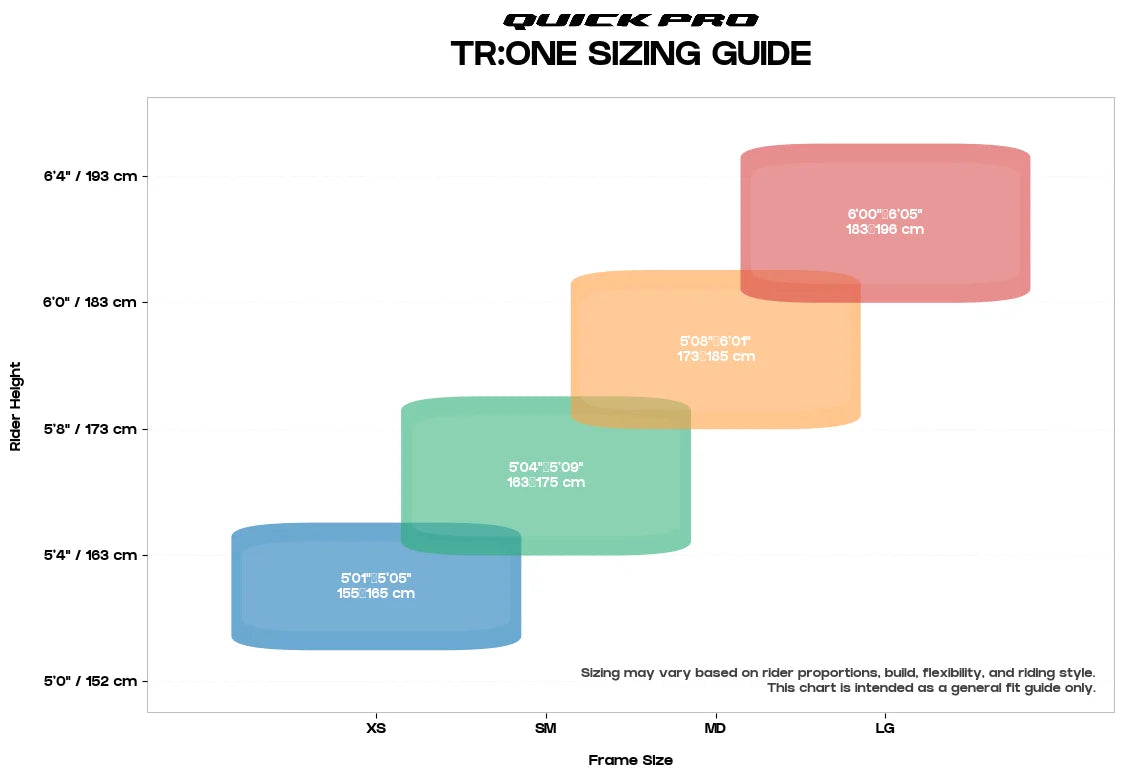

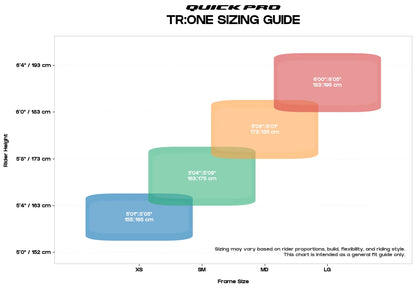

- 03Size and stem length checked for your height
- 04A cheaper option and a dream option, side by side
- 05Ready-to-ride date and payment options
4 taps · 20 seconds
Tell us how you ride
1 · Mostly riding
2 · All-in budget
3 · Groupset
Three ways to own it
A · Rs. 392,000
Frameset only
You have the parts and a mechanic. We hand over the frameset, checked and ready.
B · Quoted after inspection
Transfer my parts
Bring your old bike. We move over the groupset and wheels, flag anything worn, and quote before we start.
C · Quoted to your spec
Complete build
Start from one of our builds or spec your own. Built, tuned and fitted in our workshop.
Before you ask
Why isn't the full build spec listed here?
Because no two builds are the same. Parts stock changes every week, so we quote what we can actually build today, in your size.
How long does a complete build take?
It depends on parts availability. Your build sheet includes a ready-to-ride date.
Is it genuine, with warranty?
Yes. Everything we sell is genuine and comes with the manufacturer's warranty.
Can I see it before I decide?
Yes. WhatsApp us and we'll have it ready at our Viman Nagar, Bavdhan or Wakad store.
Frame details & specifications

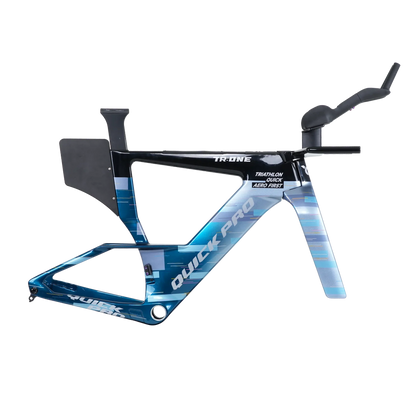

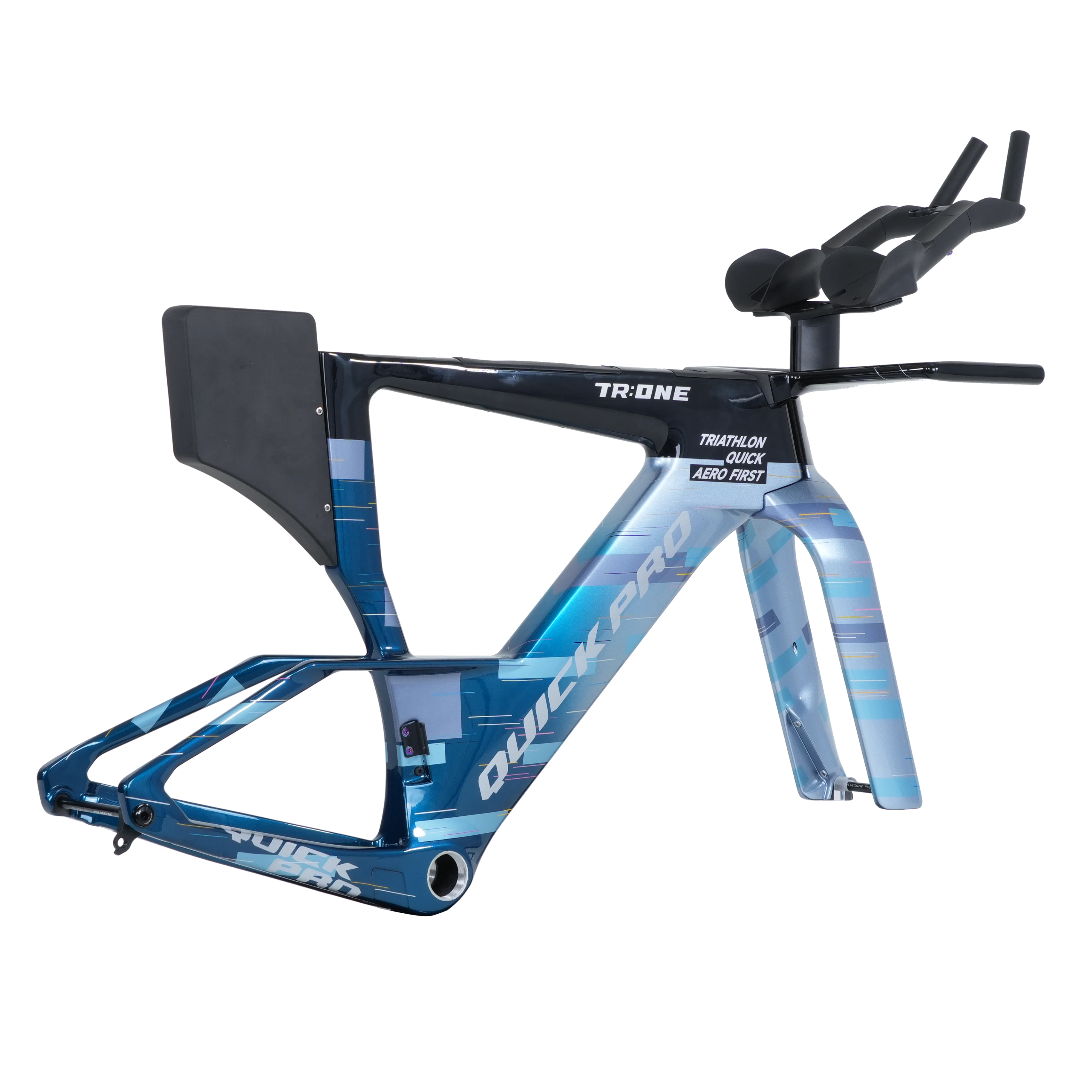

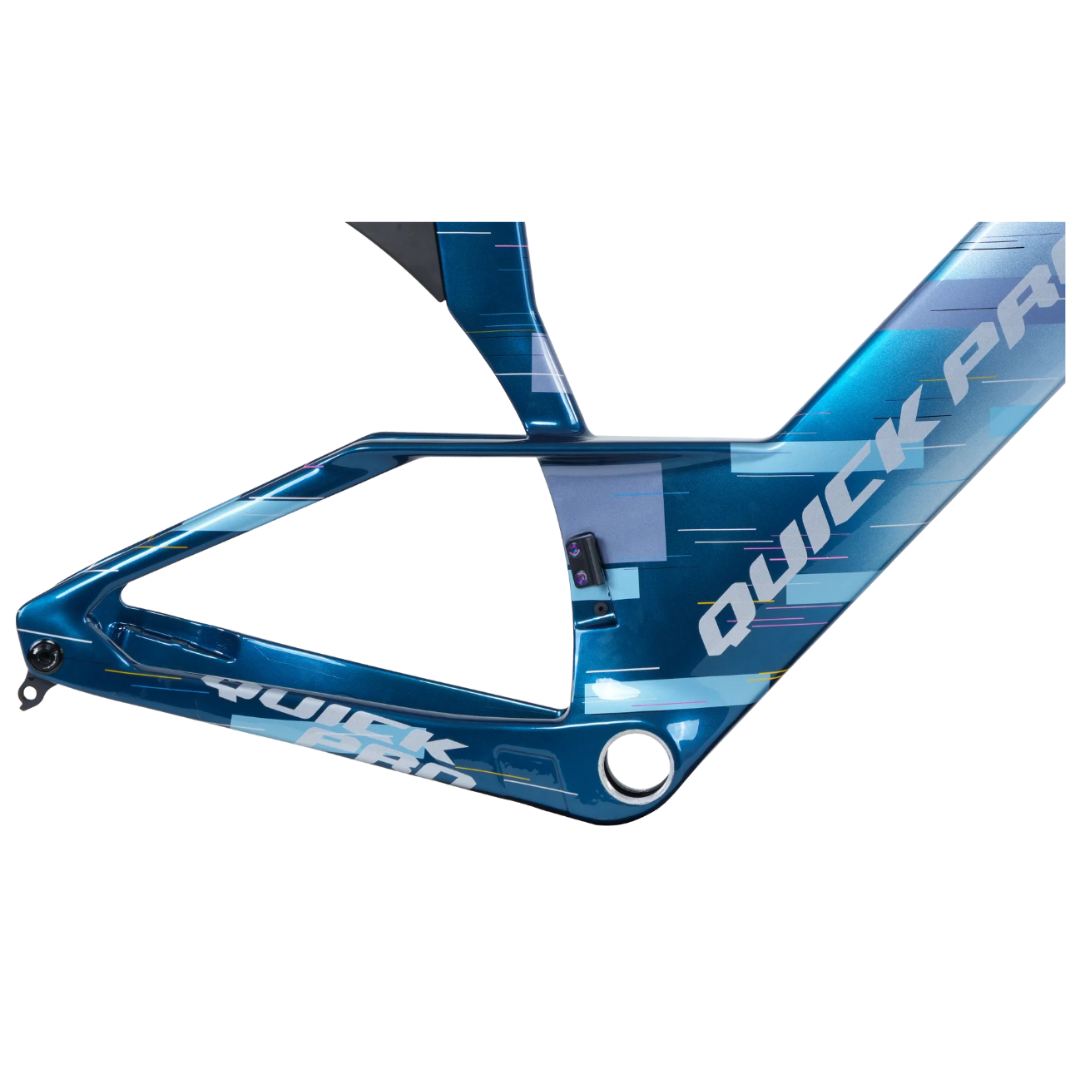

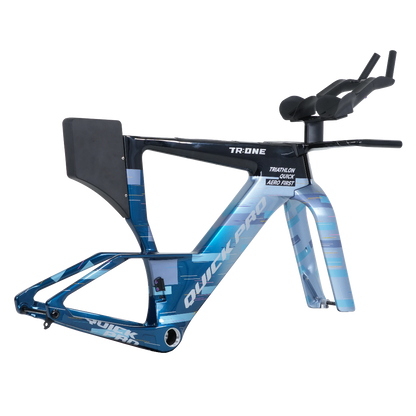

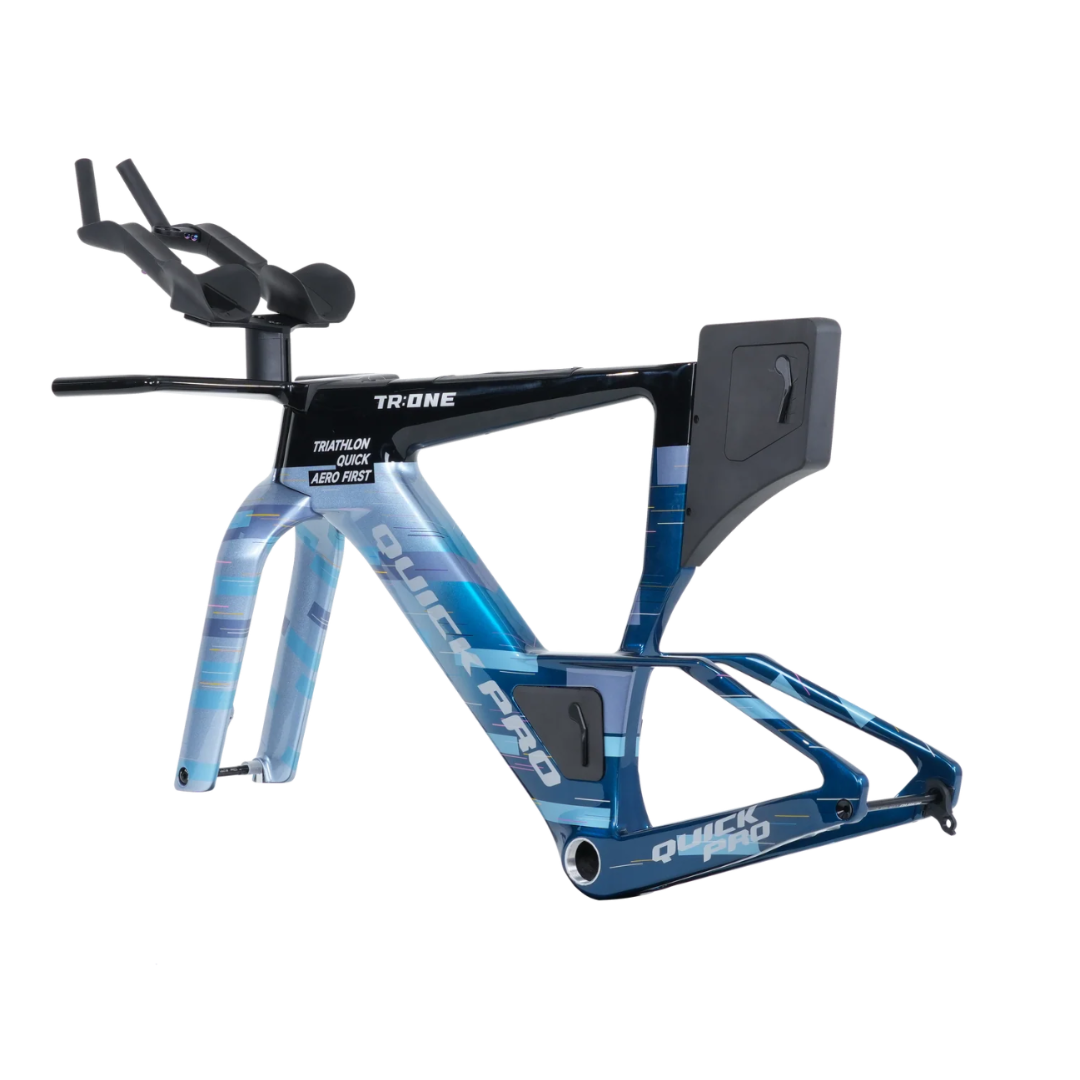

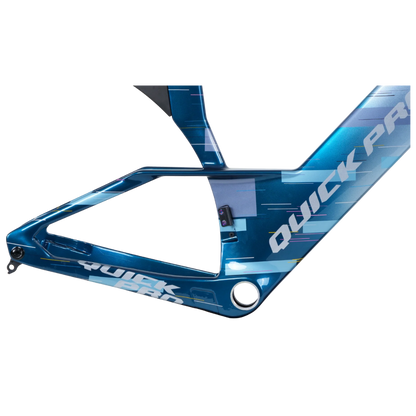

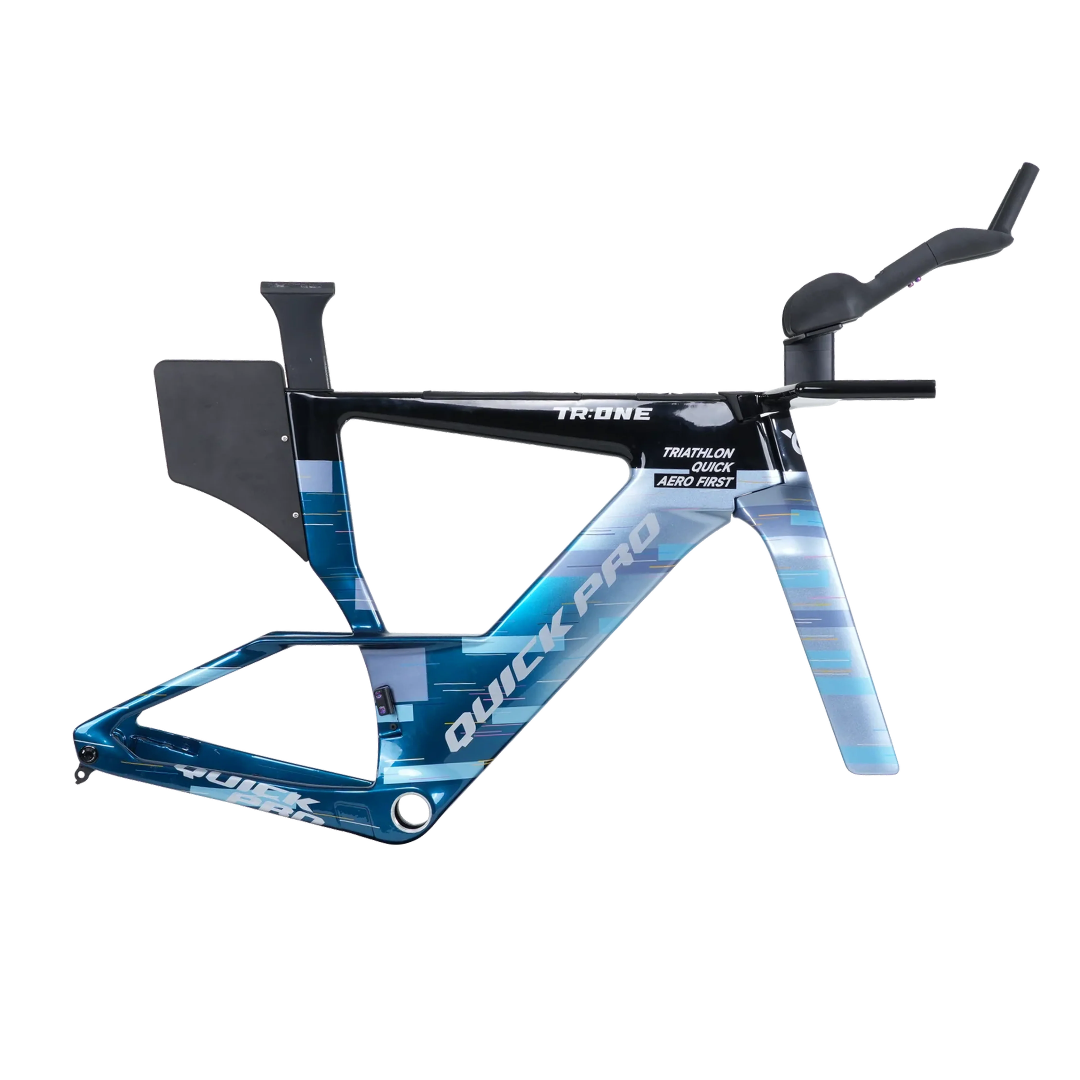

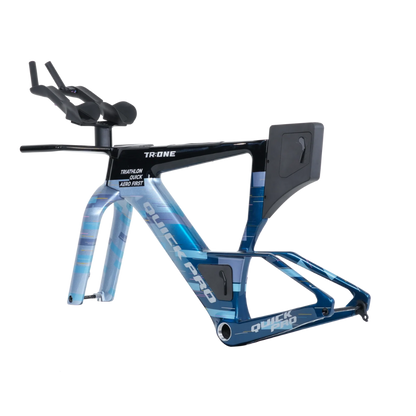

Quick Pro TR:ONE Triathlon Frameset – Aurora Blue
The Quick Pro TR:ONE is a dedicated triathlon frameset designed around the demands of long-distance riding in an aerodynamic position. Built with high-strength, high-modulus carbon fiber, it combines an aero-specific platform with integrated hydration, onboard storage and an adjustable aero cockpit for a purpose-built triathlon setup.
Integrated Hydration & Onboard Storage
A concealed 1.2-liter hydration bladder and hidden storage compartments keep fluids, nutrition and tools neatly integrated into the frame and out of the wind. A computer mount is included as standard.

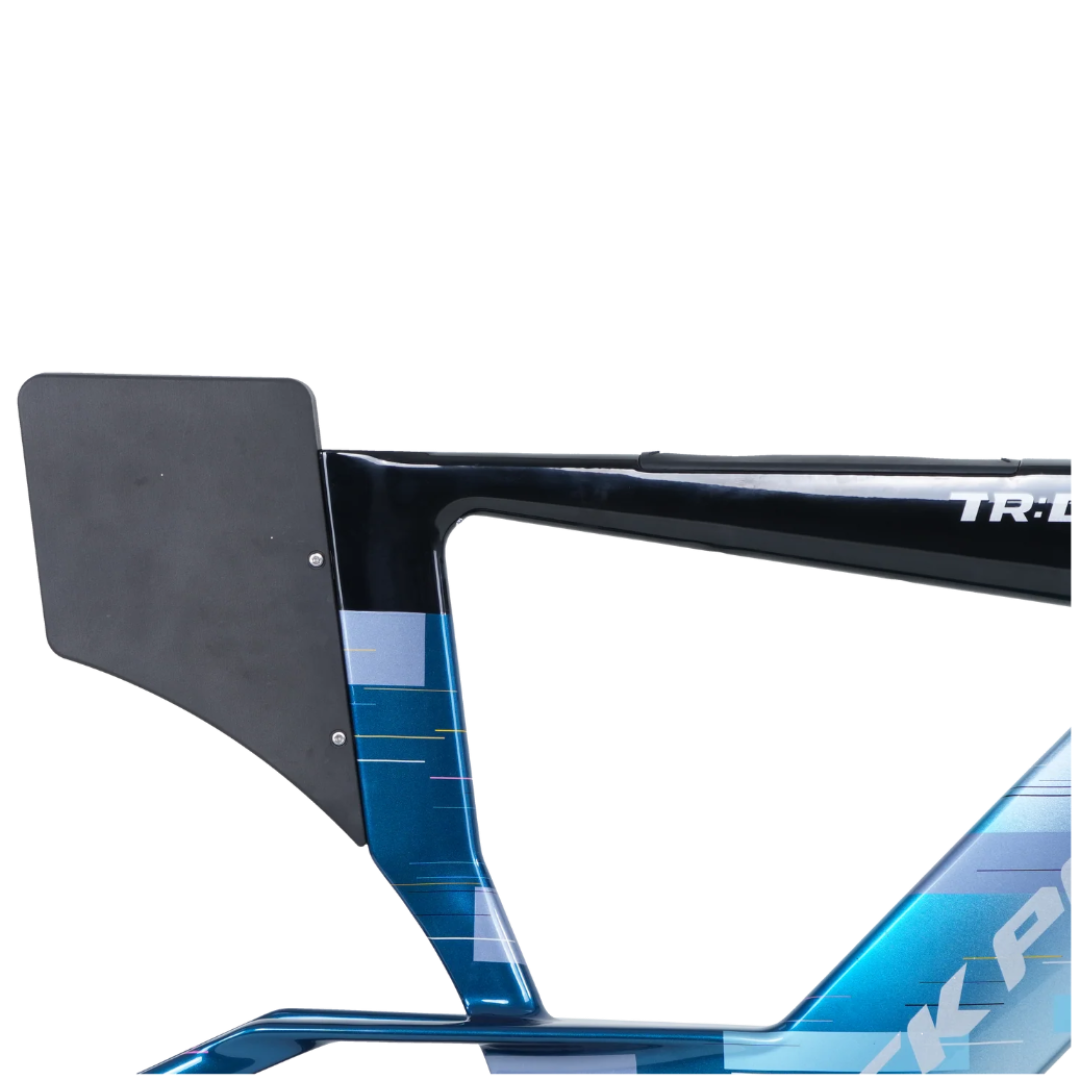

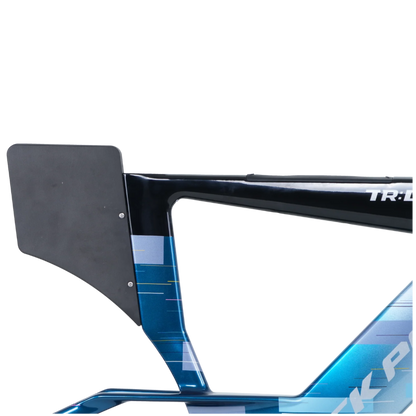

Removable Storage Box
The detachable onboard storage box provides convenient storage for nutrition, tools and spares while maintaining a clean aerodynamic profile. It can also be removed quickly when you want to reduce weight.

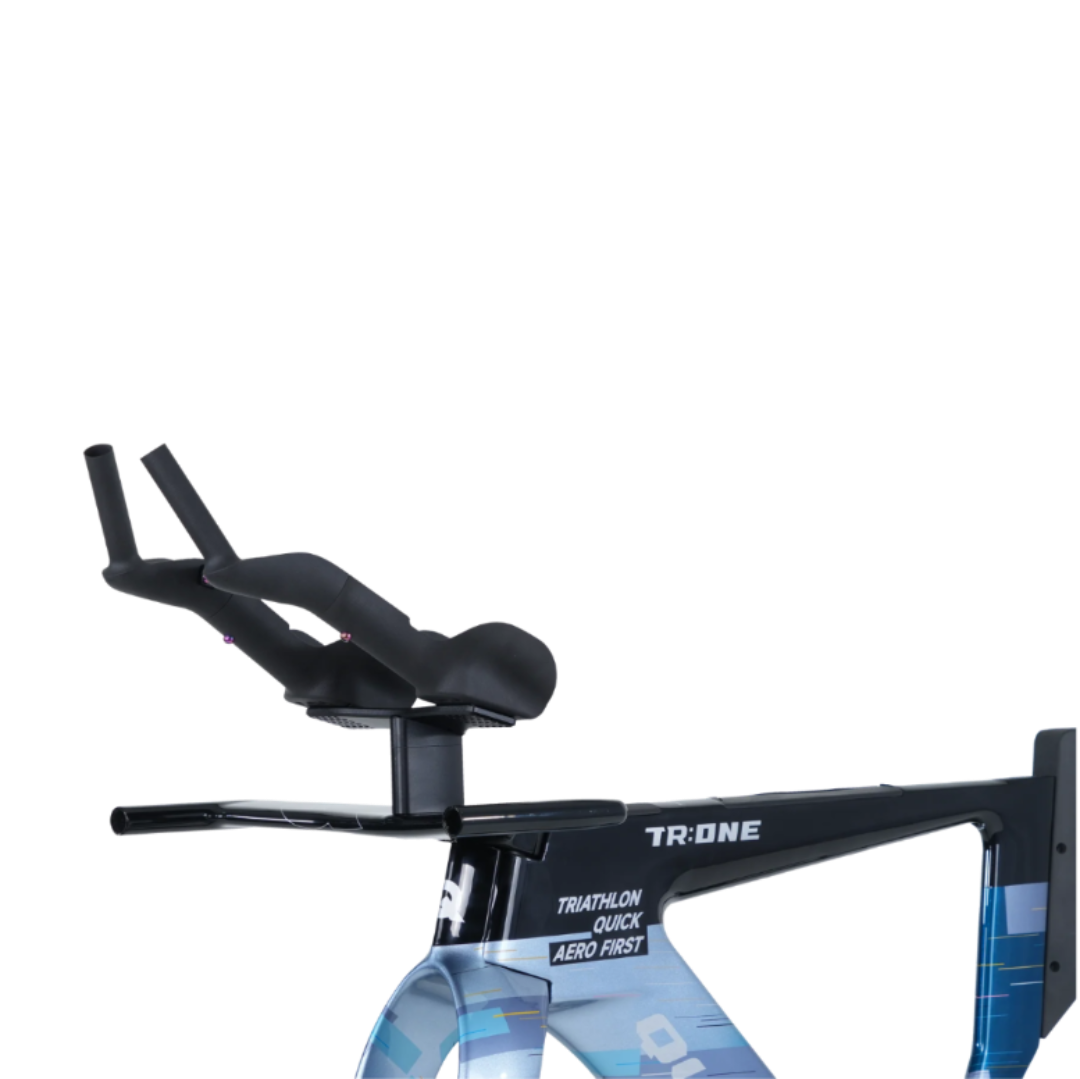

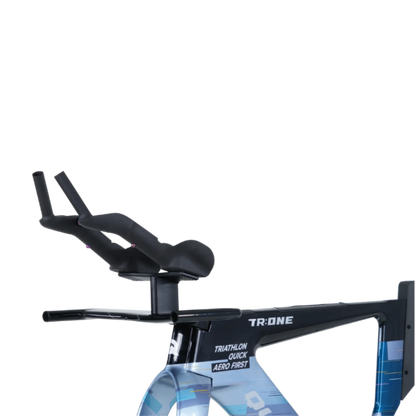

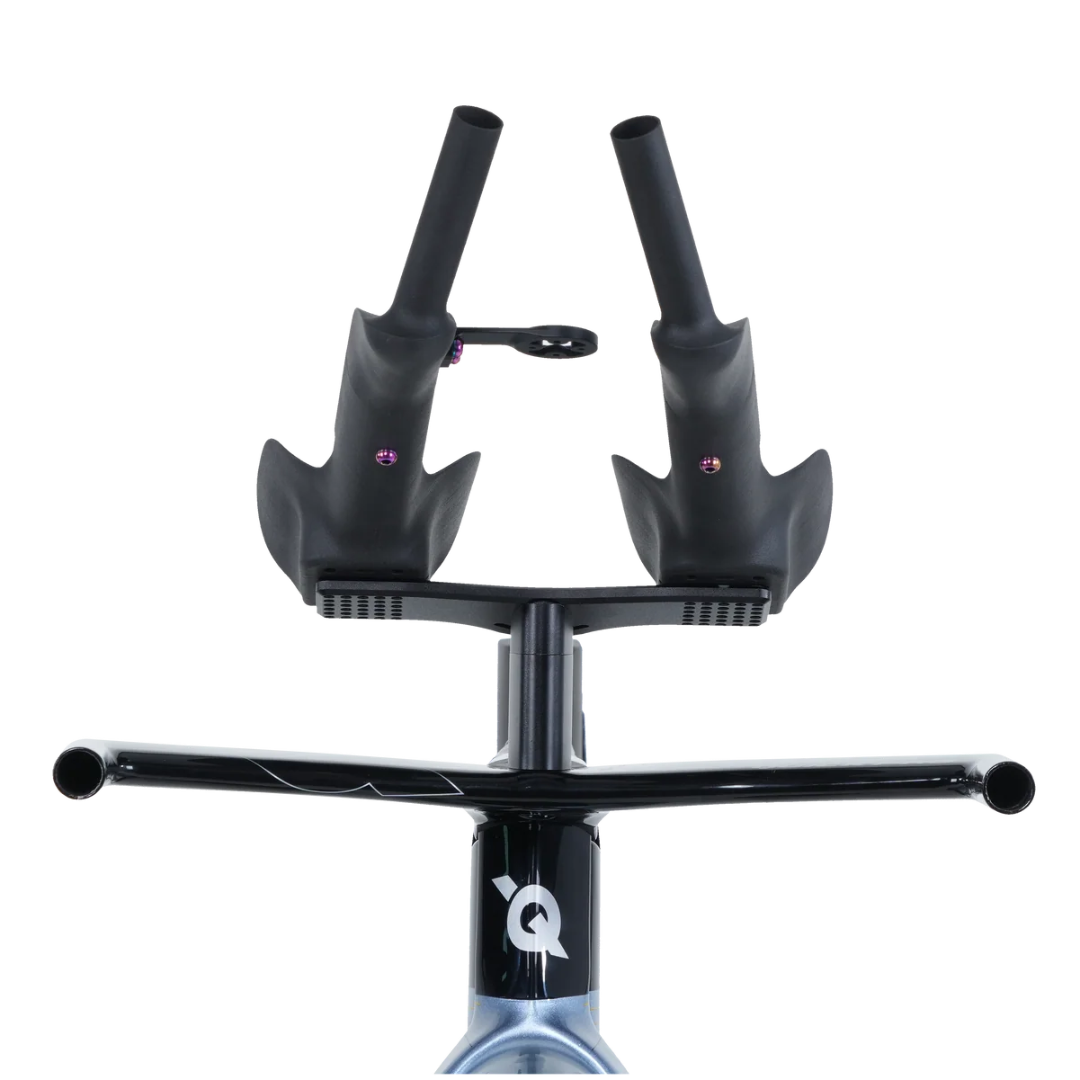

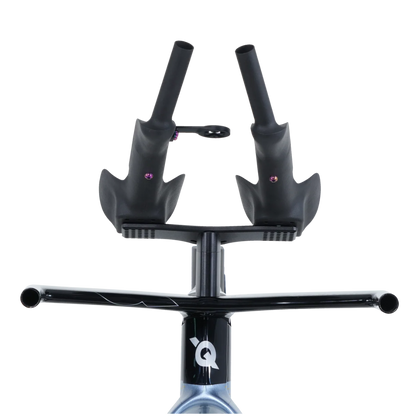

Fully Adjustable Aero Cockpit
The extended, one-piece TR:ONE aero cockpit features multi-point adjustable extensions, allowing you to fine-tune armrest width, reach and angle for a comfortable and sustainable aerodynamic position over long distances.
Built for Triathlon
The TR:ONE features triathlon-specific geometry and an aero-bar-focused cockpit designed around maintaining an aerodynamic and sustainable riding position. Its disc-brake platform uses 100 x 12mm front and 142 x 12mm rear thru-axles.
The frameset is designed for standalone or drafting-illegal triathlon racing and is suited to athletes competing across distances from sprint to full-distance triathlon.
Who Is It For?
The TR:ONE is designed for triathletes looking for a dedicated triathlon platform rather than adapting a conventional road frame with clip-on aero bars. Its geometry and cockpit are purpose-built around an aero-bar setup.
Good to Know
The TR:ONE is designed around a dedicated aero cockpit rather than a standard road handlebar. Consider the cockpit requirements when planning your build.
Specifications
Frameset
| Model | TR:ONE Frame |
|---|---|
| Frame / Fork | Carbon / Composite Construction |
| Material | High-Strength High-Modulus Carbon Fiber |
| Brake Mount | Flat Mount Disc |
| Front Axle | 100 x 12mm Thru-Axle |
| Rear Axle | 142 x 12mm Thru-Axle |
| Head Tube | 52 x 52mm |
| Bottom Bracket | T47-68mm Threaded |
| Maximum Tyre Size | 700 x 32c |
| Available Size | S (510) |
| Colour | Aurora Blue |
Weight
| Frame | 1219g (±5%) |
|---|---|
| Fork | 574g (±5%) |
| Seatpost | 175g (±5%) |
Cockpit
| Handlebar | TR:ONE Cockpit |
|---|---|
| Design | One-piece aero cockpit with multi-point adjustable extensions |
Geometry – Size S (537)
| Code | Measurement | S (537) |
|---|---|---|
| A | Seat Tube Length | 537mm |
| B | Top Tube Length | 507mm |
| C | Seat Tube Angle | 78° |
| D | Head Tube Angle | 73° |
| E | Head Tube Length | 72mm |
| F | Chainstay Length | 410mm |
| G | Wheelbase | 976mm |
| H | Fork Offset | 40mm |
| I | Bottom Bracket Drop | 78mm |
| J | Front Center | 370mm |
| K | Standover Height | 794mm |
| — | Stack-to-Reach Ratio (STR) | 1.33 |
| — | Reach | 395mm |
| — | Stack | 525mm |
| — | Trail | 64.3mm |
