Frame details & specifications

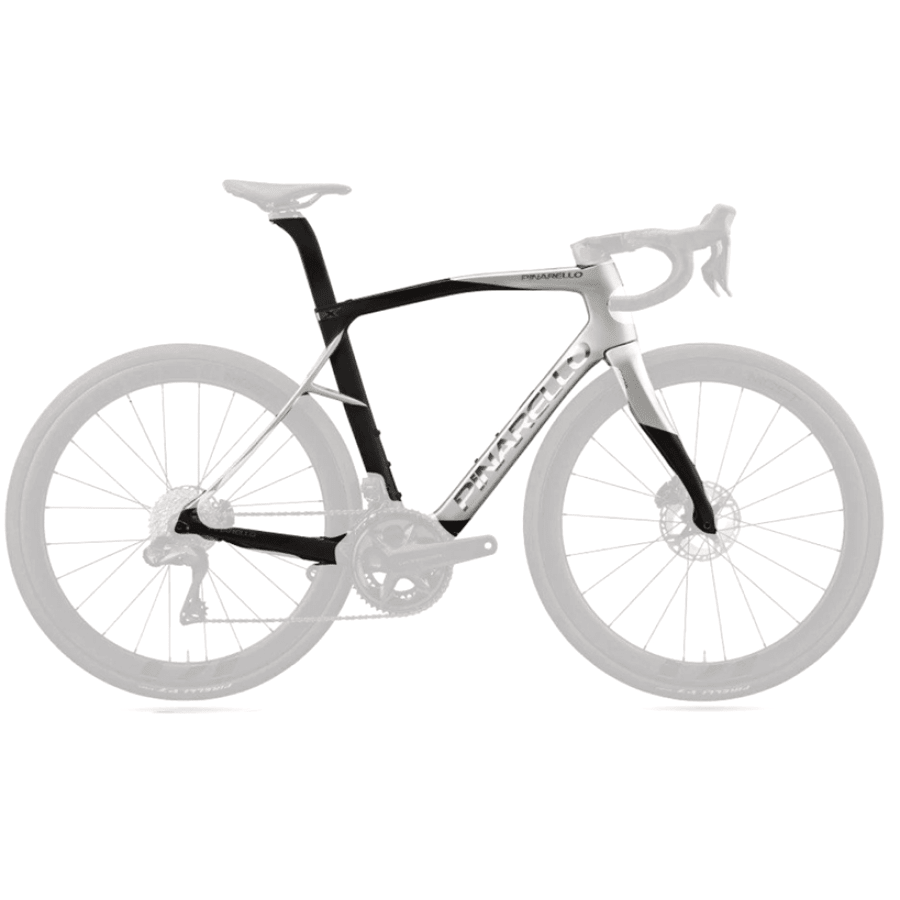

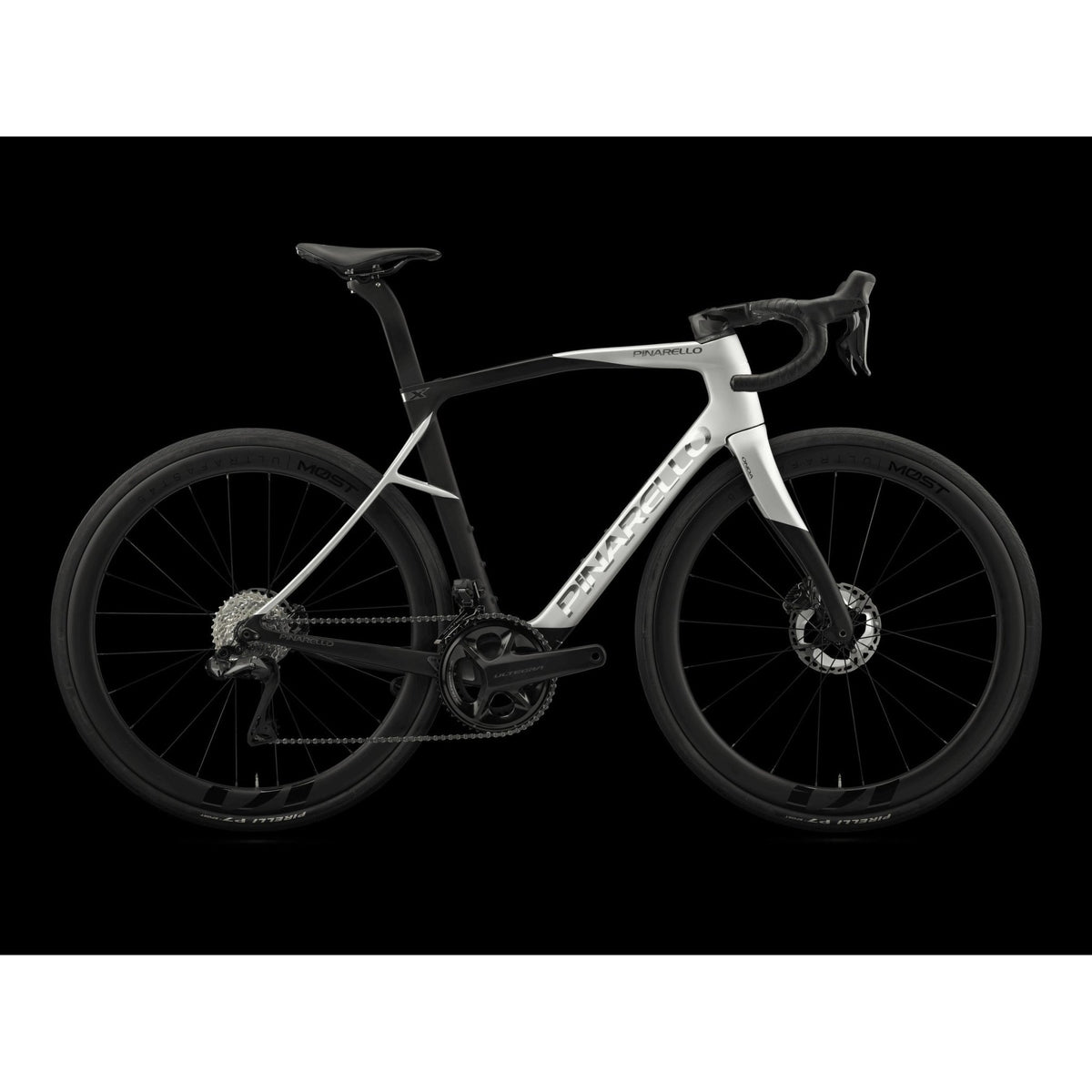

Pinarello X9 Frameset (Xpeed Saturn Silver)
The X9 is the top model in Pinarello's X series of endurance road bikes. It uses Toray T900 UD carbon, an asymmetric frame and Pinarello's endurance geometry. This frame kit is in Xpeed Saturn Silver, size 46.
Endurance Geometry
The X series is built for comfort over long distances while keeping a responsive ride, with a taller front end than Pinarello's race frames.
Integrated Cabling
TiCR routing runs the cables internally for a clean front end, and the Onda fork with ForkFlap uses a tapered steerer.
Who Is It For?
Riders who want a Pinarello endurance frame for long rides and sportives, built up with their own choice of components.
Good to Know
As supplied by the distributor, the frame kit includes the frame, fork, headset and Pinarello aero seatpost with seat clamp. The integrated MOST Talon handlebar is not part of the kit — please confirm with us if you need it. Size 46 is a small frame; please check the geometry below. A proper bike fit is recommended before choosing a size — our team can help.
Specifications
Frameset
| Model | Pinarello X9 |
|---|---|
| Frame Material | Toray T900 UD carbon |
| Fork | Onda fork with ForkFlap, tapered steerer, 52 mm rake (size 46) |
| Brake Type | Hydraulic disc |
| Cable Routing | TiCR, internal |
| Seatpost | Pinarello aero seatpost |
| Seat Clamp | FSC frontal seat clamp |
| Available Sizes | 46 |
| Colour | Xpeed Saturn Silver |
| UCI Approved | Yes |
Geometry
| Measurement (mm) | 46 |
|---|---|
| Seat Tube (centre-end) | 450 |
| Seat Tube (centre-centre) | 460 |
| Top Tube (centre-centre) | 509 |
| Seat Tube Angle (°) | 74.5 |
| Head Tube Angle (°) | 70.5 |
| Chainstay | 422 |
| Head Tube | 128 |
| BB Drop | 72 |
| Fork Rake | 52 |
| Fork Height | 375 |
| Reach | 352.1 |
| Stack | 539.2 |
