Your build sheet
The spec we'd actually build for you, not a brochure.
Tell us how you ride and what you want to spend. A D Byk mechanic sends a build sheet made for you, on WhatsApp.
- 01Every component, part by part
- 02Real build weight
- 03Size and stem length checked for your height
- 04A cheaper option and a dream option, side by side
- 05Ready-to-ride date and payment options
4 taps · 20 seconds
Tell us how you ride
1 · Mostly riding
2 · All-in budget
3 · Groupset
Three ways to own it
A · Rs. 659,999
Frameset only
You have the parts and a mechanic. We hand over the frameset, checked and ready.
B · Quoted after inspection
Transfer my parts
Bring your old bike. We move over the groupset and wheels, flag anything worn, and quote before we start.
C · Quoted to your spec
Complete build
Start from one of our builds or spec your own. Built, tuned and fitted in our workshop.
Before you ask
Why isn't the full build spec listed here?
Because no two builds are the same. Parts stock changes every week, so we quote what we can actually build today, in your size.
How long does a complete build take?
It depends on parts availability. Your build sheet includes a ready-to-ride date.
Is it genuine, with warranty?
Yes. Everything we sell is genuine and comes with the manufacturer's warranty.
Can I see it before I decide?
Yes. WhatsApp us and we'll have it ready at our Viman Nagar, Bavdhan or Wakad store.
Frame details & specifications

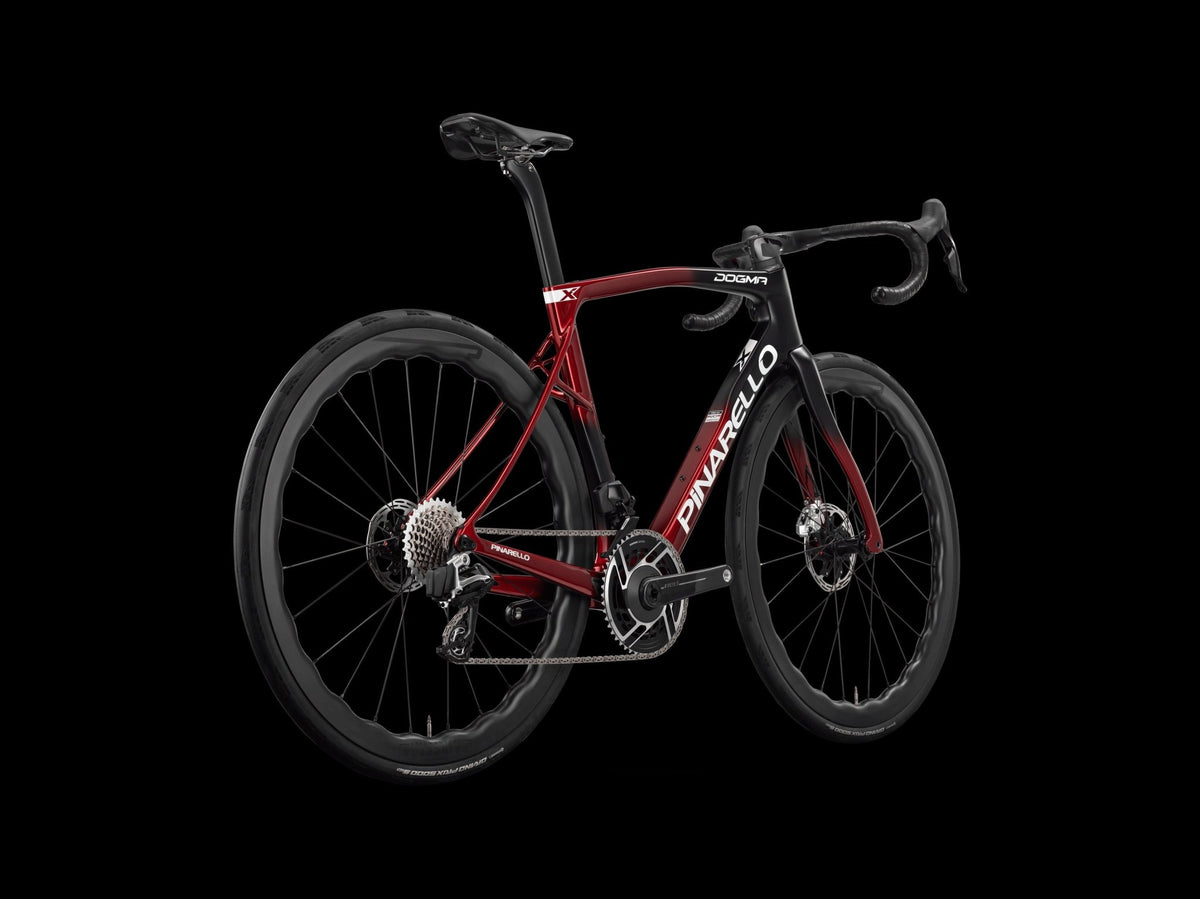

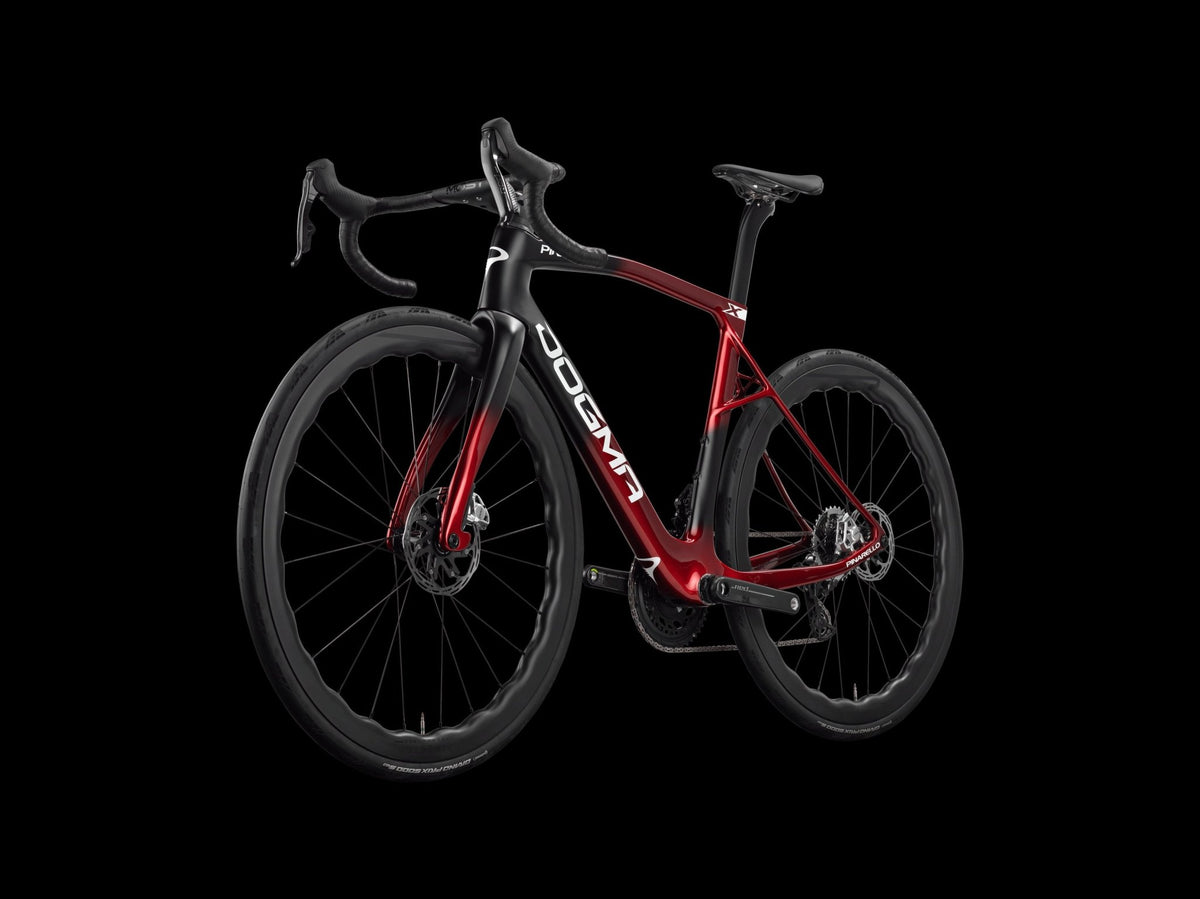

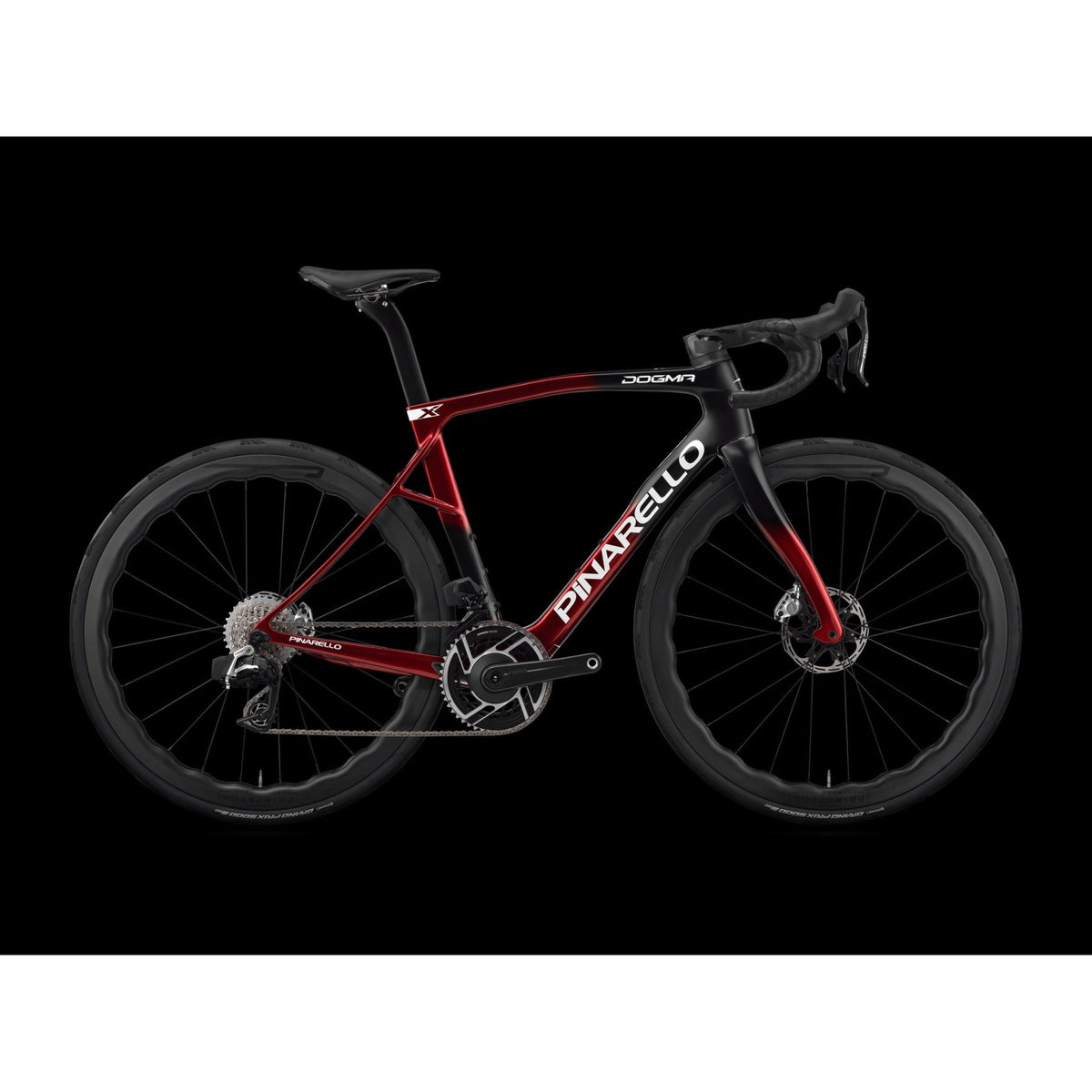

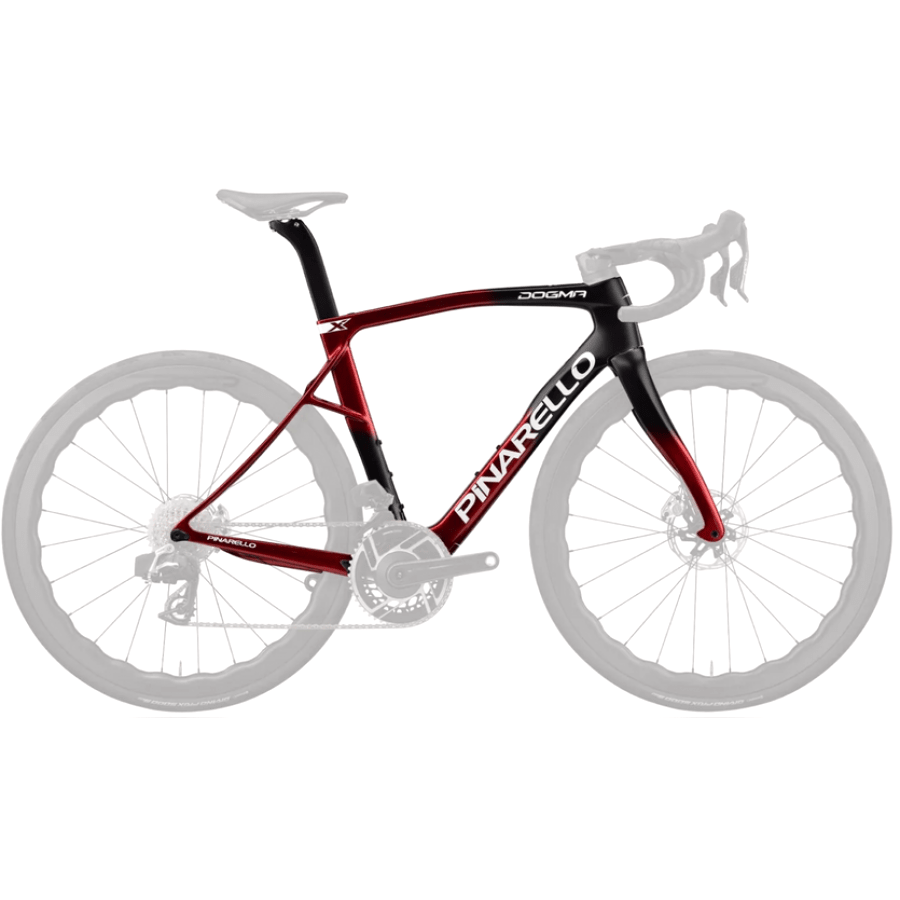

Pinarello Dogma X Frameset (Starry Red Shiny)
The Dogma X is Pinarello's endurance flagship: Dogma-level carbon and finish with a taller, more relaxed geometry and room for wider tyres. This frame kit is in the Starry Red Shiny colourway, size 53.
T1100 1K Dream Carbon
The frame uses Toray T1100 1K carbon with Nanoalloy technology, the same top-grade material used on the previous Dogma F.
Endurance Geometry
Pinarello designed the Dogma X to balance race-bike performance with real-world comfort, with a higher stack and longer wheelbase than the Dogma F.
Tyre Clearance
The frame takes tyres up to 35 mm, for extra comfort and grip on rough roads.
Who Is It For?
Riders who do long days, sportives and fast endurance rides and want a premium Pinarello with a more upright position and wider tyres.
Good to Know
As supplied by the distributor, the frame kit includes the frame, fork, headset and Pinarello aero seatpost with seat clamp. The integrated MOST Talon handlebar is not part of the kit — please confirm with us if you need it. Cables run internally (TiCR), the bottom bracket is Italian threaded, and Pinarello builds it with electronic groupsets such as Shimano Dura-Ace Di2. A proper bike fit is recommended before choosing a size — our team can help.
Specifications
Frameset
| Model | Pinarello Dogma X |
|---|---|
| Frame Material | Toray T1100 1K Dream Carbon with Nanoalloy technology |
| Fork | F Onda fork with ForkFlap, 1.5", 47 mm rake |
| Brake Type | Hydraulic disc |
| Cable Routing | TiCR, internal |
| Front Axle | 12 x 100 mm thru-axle (MOST Ultra Light) |
| Rear Axle | 12 x 142 mm thru-axle (MOST Ultra Light) |
| Headset | Ultra Light Dogma headset |
| Bottom Bracket | Italian threaded (ITA) |
| Seatpost | Pinarello aero seatpost, 3D titanium clamp |
| Seat Clamp | FSC frontal seat clamp |
| Max Tyre Clearance | 35 mm |
| Available Sizes | 53 |
| Colour | Starry Red Shiny |
| UCI Approved | Yes |
Geometry
| Measurement (mm) | 53 |
|---|---|
| Seat Tube (centre-end) | 500 |
| Seat Tube (centre-centre) | 530 |
| Top Tube (centre-centre) | 545 |
| Seat Tube Angle (°) | 73.7 |
| Head Tube Angle (°) | 71.5 |
| Chainstay | 422 |
| Head Tube | 138 |
| BB Drop | 77 |
| Fork Rake | 47 |
| Fork Height | 375 |
| Reach | 379.4 |
| Stack | 559 |
| Wheelbase | 997 |
