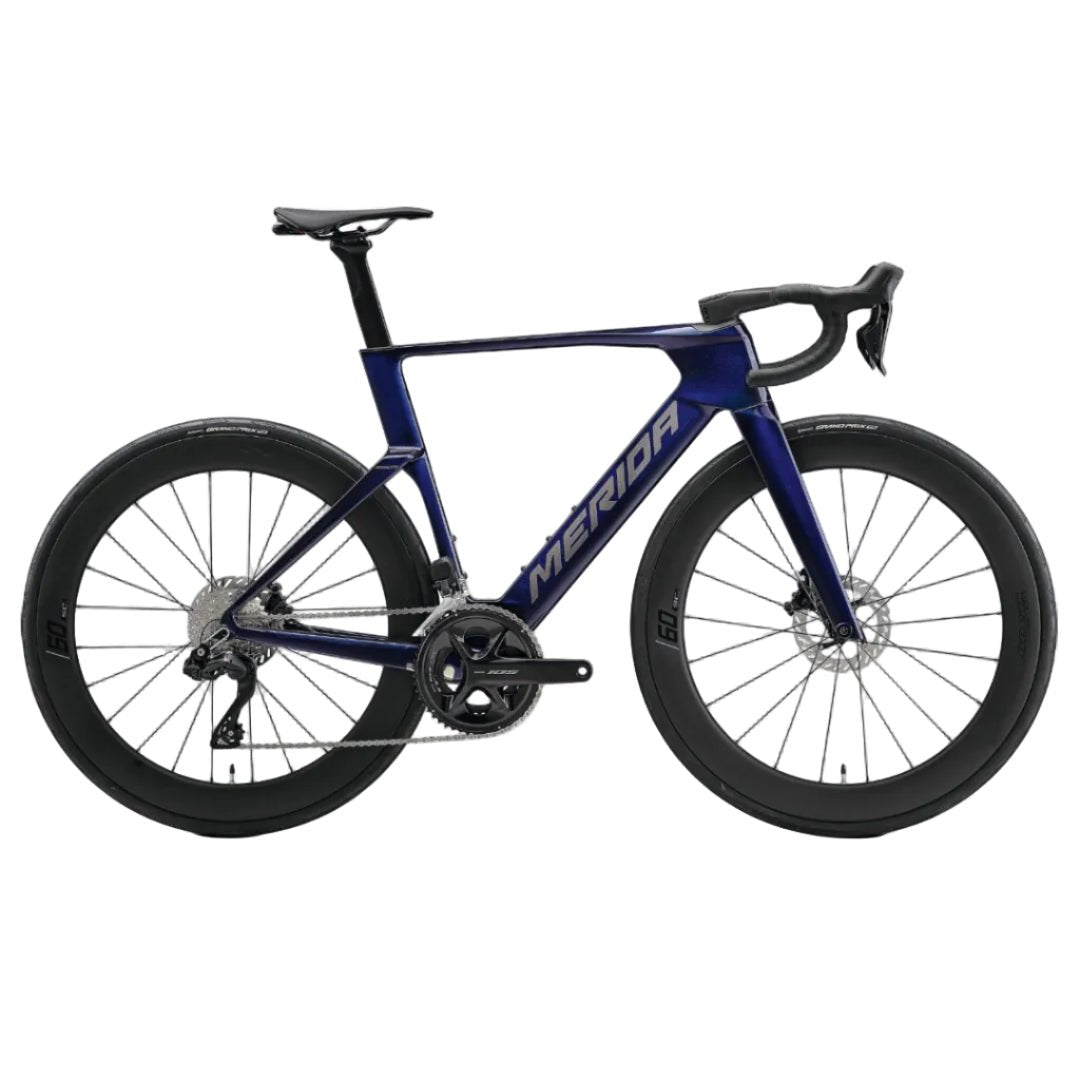

Merida Reacto 6000 - Starfield Purple (Slate Grey)
Merida REACTO 6000 (CLICK HERE FOR 360 VIEW)
Aero carbon road bike with Shimano 105 Di2 electronic shifting and deep-section carbon wheels.
Based on the latest generation REACTO CF3 aero platform, the REACTO 6000 combines aerodynamic efficiency, race-focused handling, and modern electronic shifting into a fast and refined road bike package.
Designed for riders who value speed, responsiveness, and clean integration, the REACTO 6000 pairs Shimano 105 Di2 electronic shifting with a lightweight one-piece carbon cockpit and Vision SC 60 carbon wheelset to deliver serious performance both for racing and fast endurance riding.
The latest REACTO platform improves aerodynamics, reduces overall weight, increases tyre clearance up to 32 mm, and maintains the comfort and control the REACTO series is known for. :contentReference[oaicite:0]{index=0}
Key Highlights
- Lightweight REACTO CF3 aero carbon frame
- Shimano 105 Di2 12-speed electronic groupset
- Integrated MERIDA TEAM SL 1P carbon cockpit
- Vision SC 60 carbon wheelset
- Continental Grand Prix TR 700x28C tubeless-ready tyres
- MERIDA S-FLEX carbon aero seatpost
- DISC COOLER brake heat management technology
- Tyre clearance up to 32 mm
Frame & Ride Characteristics
The REACTO CF3 V frame is engineered for aerodynamic efficiency without compromising comfort and control. The updated frame design offers improved airflow management, reduced drag, and a more refined ride quality, making it suitable for aggressive racing as well as long high-speed endurance rides.
Internal cable routing, integrated cockpit design, and aerodynamic tube profiles create a clean, race-oriented appearance while maintaining excellent stiffness and predictable handling.
Specifications
| Frame | REACTO CF3 V Carbon Max Tyre Clearance: 700x32C Axle Standard: 100x12 mm Front / 142x12 mm Rear Bottom Bracket Standard: BB86.5 |
| Frame Sizes | 3XS, XXS, XS, S, M, L, XL |
| Colour | Starfield Purple (Slate Grey) |
| Fork | MERIDA REACTO CF3 V DISC Carbon Max Tyre Clearance: 700x30C |
| Groupset | Shimano 105 Di2 12-Speed |
| Shifters | Shimano 105 Disc Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Crankset | Shimano 105 R7100 – 52/36T 160 mm (3XS), 165 mm (XXS/XS), 170 mm (S/M), 172.5 mm (L/XL) |
| Cassette | Shimano 105 R7101 – 11-34T – 12-Speed |
| Chain | Shimano M6100-12 |
| Bottom Bracket | Shimano SM-BB71-41B PressFit 86.5 |
| Brakes | Shimano 105 Hydraulic Disc |
| Rotors | Shimano CL700 – 160 mm |
| Headset | MERIDA TEAM SL (RCT 608 Neck) |
| Handlebar | MERIDA TEAM SL 1P Integrated Carbon 380 mm (3XS-XXS-XS-S) 400 mm (M-L) 420 mm (XL) |
| Stem | MERIDA TEAM One-Piece Integrated Carbon Includes MERIDA SMART MOUNT 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL) |
| Bar Tape | MERIDA ROAD EXPERT |
| Seatpost | MERIDA REACTO V S-FLEX Aero Shape / Carbon / 0 mm Setback |
| Seat Clamp | MERIDA REACTO V |
| Saddle | Akero RS PAS T2.0 Includes V-Mount Adapter & MERIDA Mini Tool |
| Wheelset | Vision SC 60 i23 Disc Brake Carbon 23 mm Internal Width / 60 mm Rim Height Centerlock / 100x12 Front / 142x12 Rear |
| Tyres | Continental Grand Prix TR 700x28C Folding / Tubeless Ready |
| Axles | MERIDA EXPERT SL Removable Lever / 6 mm & 4 mm Allen Key Compatible |
Geometry
| Frame Size | 3XS | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| Top Tube (mm) | 506 | 521 | 535 | 545 | 560 | 575 | 590 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Head Tube Angle | 70.5° | 70.5° | 72° | 72.5° | 73.5° | 73.5° | 74° |
| Seat Tube Angle | 75.5° | 74.5° | 74° | 74° | 73.5° | 73° | 73° |
| Head Tube (mm) | 100 | 105 | 112 | 128 | 140 | 155 | 175 |
| Reach (mm) | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| Stack (mm) | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| Wheelbase (mm) | 981 | 987 | 984 | 992 | 992 | 1002 | 1011 |
| Standover Height (mm) | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
