Merida

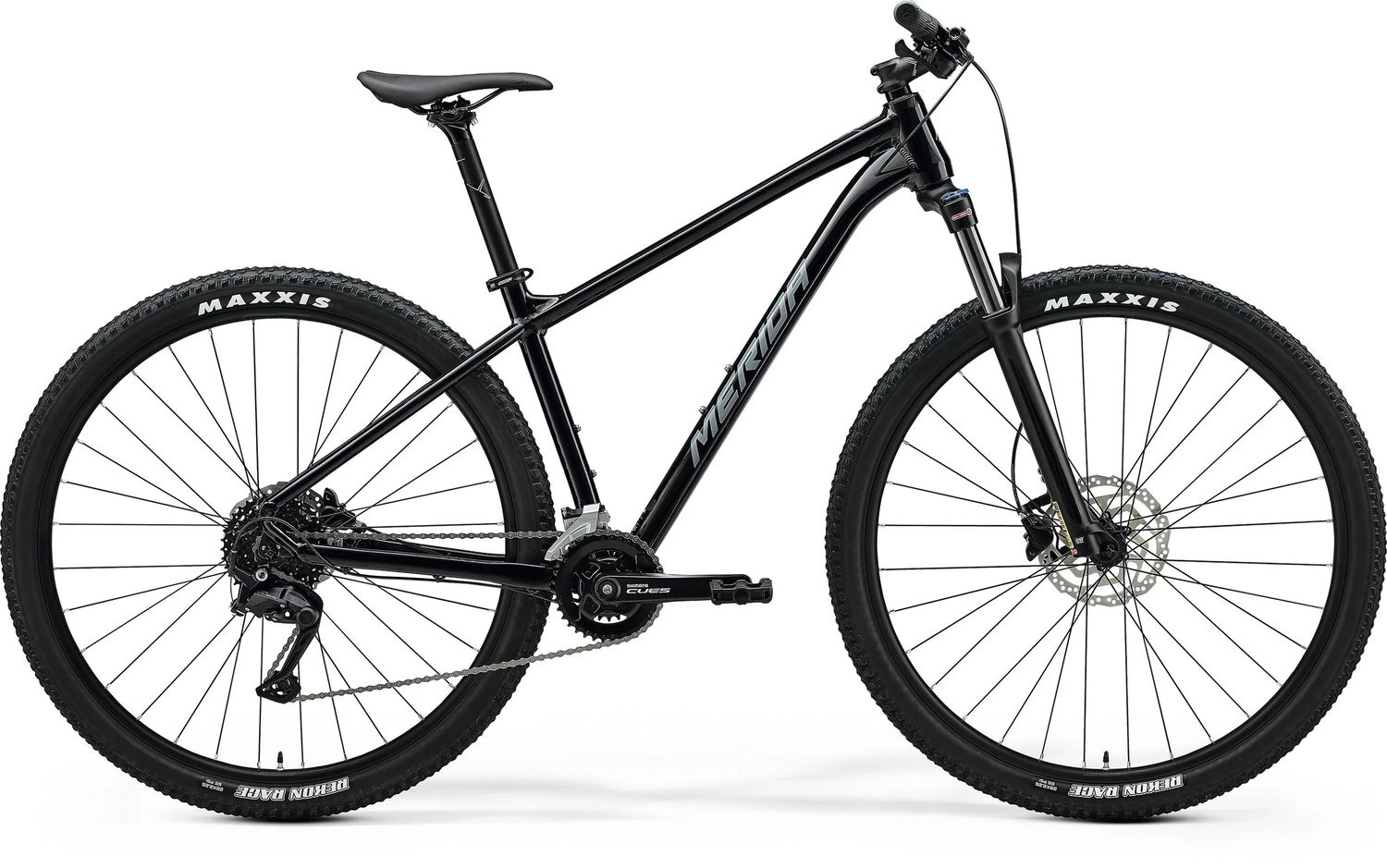

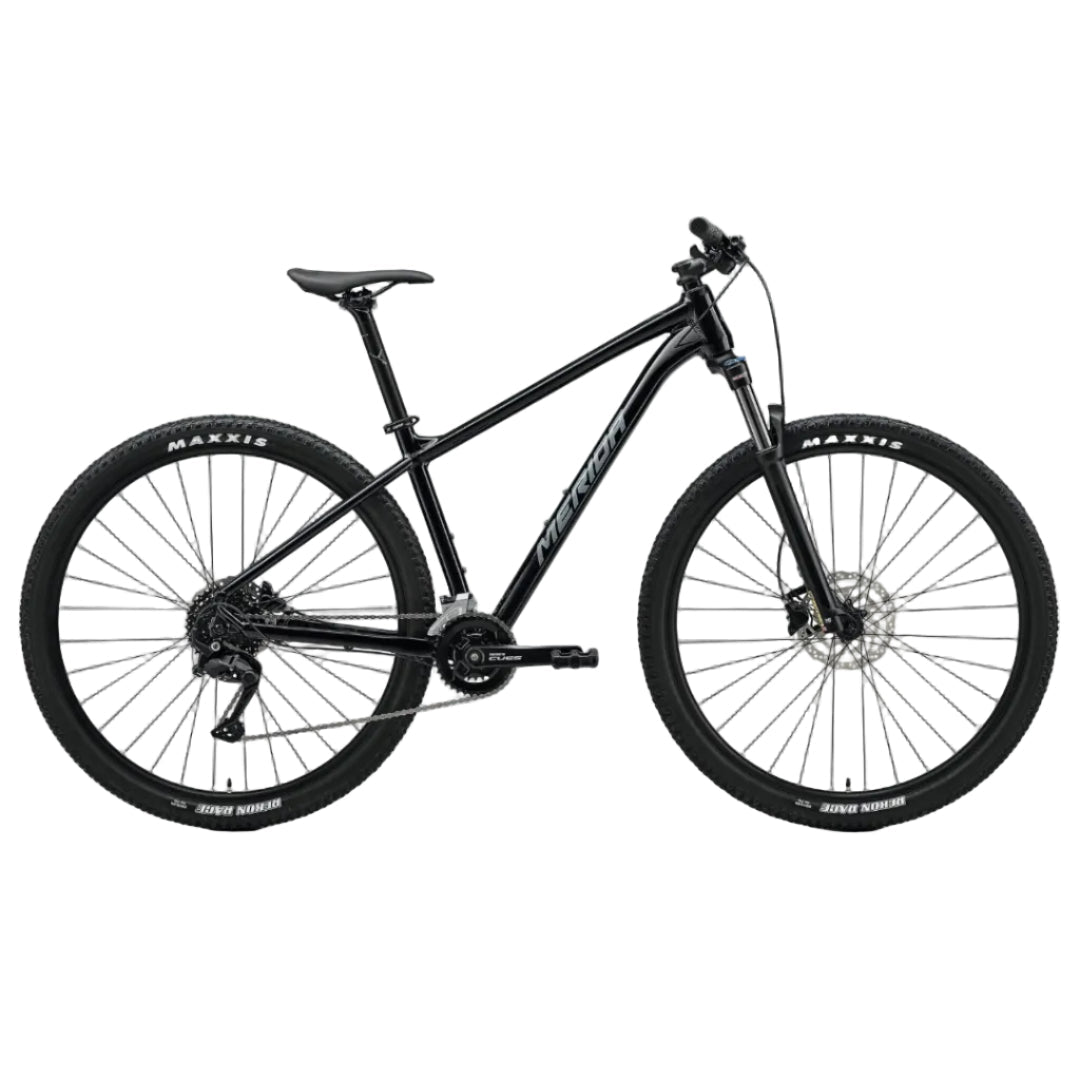

Merida Big Nine 100 IV1 - Metallic Black/Grey
Merida Big Nine 100 IV1 - Metallic Black/Grey
SKU: A62511A00897
UPC: 4711256490793
Couldn't load pickup availability
Pick up in-store
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.
The Merida BIG.NINE 100 IV1 is built for riders who want speed, control, and comfort across mixed terrain. With fast-rolling 29” wheels, a 100 mm air suspension fork, and a reliable Shimano CUES drivetrain, this hardtail is equally at home on long trail rides and quick urban escapes.
Its more upright and less aggressive geometry reduces lower-back strain, improves control, and makes it ideal for riders looking for efficiency without sacrificing comfort.
Key Highlights
- Lightweight double-butted aluminium frame
- Fast and stable 29er wheel platform
- 100 mm SR Suntour air suspension fork with lockout
- Shimano CUES 2x9 drivetrain for a wide gear range
- Upright geometry for comfort and better visibility
- Internal cable routing for a clean, modern look
Specifications
| Specification | Details |
|---|---|
| Intended Use | Trail / Urban Riding |
| Wheel Size | 29” |
| Frame Material | Aluminium |
| Fork Travel | 100 mm |
| Braking System | Hydraulic Disc Brakes |
| Drivetrain | Shimano CUES 2x9 |
| Suspension Type | Front Suspension (Hardtail) |
Frame & Geometry
| Component | Specification |
|---|---|
| Frame | BIG.NINE TFS IV Aluminium |
| Wheel Size Compatibility | 29” |
| Rear Axle Standard | 135x9 mm |
| Bottom Bracket Standard | BSA |
| Cable Routing | Internal |
| Welding | Smooth Welding |
| Riding Position | Upright, comfort-focused |
Suspension
| Component | Specification |
|---|---|
| Fork | SR Suntour XCR32 LOR Air |
| Travel | 100 mm |
| Lockout | Yes |
| Fork Offset | 44 mm |
Drivetrain
| Component | Specification |
|---|---|
| Shifters | Shimano CUES U4000 |
| Front Derailleur | Shimano CUES U4000 |
| Rear Derailleur | Shimano CUES U4020 SGS |
| Crankset | Shimano CUES U4000 (36-22T) |
| Cassette | Shimano LG300, 11–36T, 9-speed |
| Chain | KMC xGlide |
| Bottom Bracket | FSA TH-7420ST Cartridge Bearing |
Brakes
| Component | Specification |
|---|---|
| Front Brake | Shimano MT200, 2-piston |
| Rear Brake | Shimano MT200, 2-piston |
| Brake Type | Hydraulic Disc |
Wheels & Tyres
| Component | Specification |
|---|---|
| Rims | MERIDA COMP CC II, Aluminium, Tubeless Ready |
| Inner Rim Width | 25 mm |
| Hubs | Shimano QC300 / QC300-HM |
| Spoke Count | 32H |
| Mount Type | Centerlock |
| Tyres | Maxxis Rekon Race 29 x 2.25” (Wire Bead) |
Cockpit & Contact Points
| Component | Specification |
|---|---|
| Handlebar | MERIDA EXPERT CC, Aluminium, 720 mm width, 10 mm rise |
| Stem | MERIDA COMP CC, Aluminium, 31.8 mm |
| Stem Lengths | S:70 mm / M:80 mm / L:90 mm / XL:100 mm / XXL:110 mm |
| Grips | MERIDA COMP EC |
| Saddle | MERIDA COMP SL (25% recycled material) |
| Seatpost | MERIDA COMP CC, Aluminium, 30.9 mm |
| Pedals | VP VPE-891 |
Why Choose the BIG.NINE 100 IV1?
- Comfortable geometry that works for long rides
- Air suspension fork offers better tuning and efficiency
- Shimano CUES drivetrain delivers durability and smooth shifting
- Perfect balance between trail capability and everyday usability
MTB Hardtails – Size Chart
| Frame Size | Recommended Rider Height |
|---|---|
| XS | Below 163 cm |
| S | 157 – 173 cm |
| M | 167 – 183 cm |
| L | 177 – 190 cm |
| XL | 187 – 196 cm |
| XXL | Above 192 cm |
