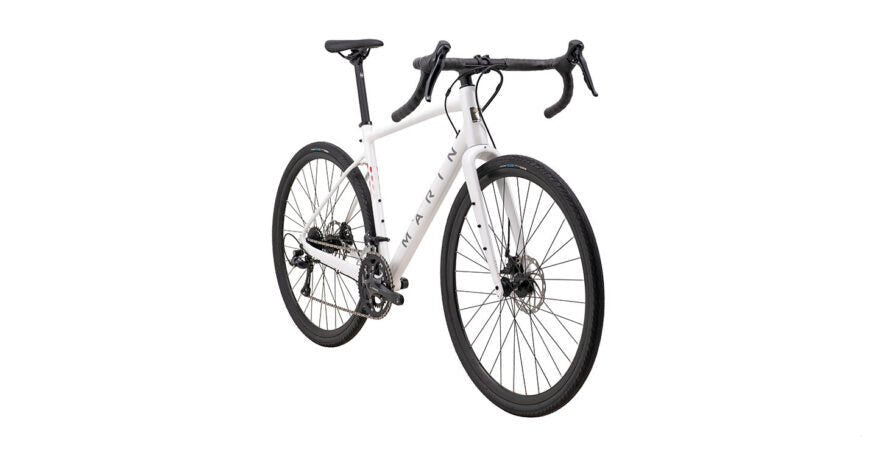

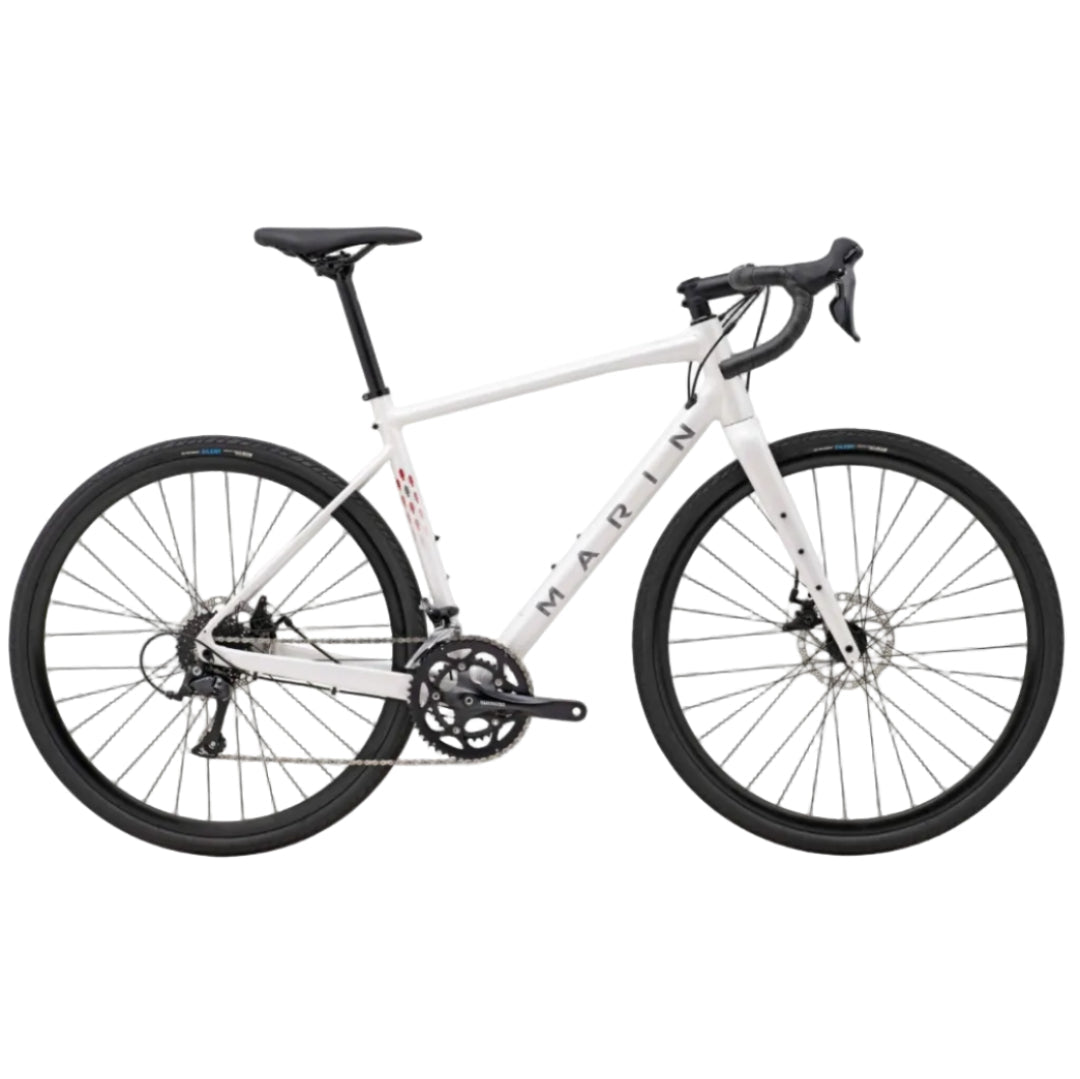

Marin Gestalt 1 - 2023 - White

50
Rs. 84,499.00 INR
Rs. 84,499.00 INR Rs. 99,499.00 INR
Skip to product information
Marin Gestalt 1 - 2023 - White - D Byk Store
Marin Gestalt 1 - 2023 - White

Marin Gestalt 1 - 2023 - White

Rs. 84,499.00 INR
Rs. 84,499.00 INR Rs. 99,499.00 INR
SIZE50
735960001
1 left

ADVENTURE ROAD RIDING

LONG DISTANCE COMMUTING

ENDURANCE AND ALL-WEATHER PAVEMENT

The Gestalt is for the drop bar rider that doesn’t want to stick to pavement, and can’t help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour.

Key upgrades over Gestalt:

  • Series 3 Beyond Road frame w/highly formed & butted custom tubeset
  • Marin full carbon fork
  • Shimano Sora 2x9 drivetrain
  • Tektro mechanical disc brakes

SPECIFICATIONS

FRAME Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIMS Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible
HUB, REAR Forged Aluminum Alloy, 6-Bolt Disc, 32H
HUB, FRONT Forged Aluminum Alloy, 6-Bolt Disc, 32H
SPOKE, NIPPLES 14g Black Stainless Steel
TIRES Vee Tire Co., Zilent, 700x35
DERAILLEUR, REAR Shimano Sora 9-Speed
DERAILLEUR, FRONT Shimano Sora
SHIFT LEVER Shimano Sora 2x9-Speed
CRANKSET Shimano R345 Octalink Compact, 50/34T
BOTTOM BRACKET Shimano Octalink V2 Cartridge
CHAIN KMC X9
CASSETTE SunRace 9-Speed, 11-32T
BRAKE, FRONT Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
BRAKE, REAR Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
BRAKE LEVERS Shimano w/ Integrated Shifters
HANDLEBAR Marin Butted Alloy, Compact 12º Flared Drop
STEM Marin 3D Forged Alloy
GRIPS Marin Perforated Tape
HEADSET FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST Marin Alloy, 27.2mm
SADDLE Marin Beyond Road Concept
PEDALS Commute Platform

Specifications, pricing, and availability are subject to change without notice.

SIZING AND GEOMETRY

SIZE GUIDE :

Size
Rider height range
50cm 5'0" to 5'3"
52cm 5'3" to 5'6"
54cm 5'6" to 5'9"
56cm 5'9" to 6'0"
58cm 6'0" to 6'2"
60cm 6'2" to 6'4"

GEOMETRY:

Gestalt 1 geometry diagram

50 52 54 56 58 60
A STACK 552 568 582 601 620 641
B REACH 367 372 377 387 402 404
C HEADTUBE ANGLE 71° 71.5° 71.5° 71.5° 71.5° 71.5°
D HEADTUBE LENGTH 120 135 150 170 190 210
E SEATTUBE ANGLE 74.5° 74° 73.5° 73.5° 73.5° 73°
F SEATTUBE LENGTH 460 480 500 520 540 560
G TOPTUBE EFFECTIVE 520 535 550 565 585 600
H BB HEIGHT 276 276 276 276 276 276
I BB DROP 78 78 78 78 78 78
J CHAINSTAY 432 432 432 432 432 432
K WHEELBASE 1008 1014 1024 1040 1060 1070
L STANDOVER HEIGHT 714 732 755 775 794 814
M FORK OFFSET 50 50 50 50 50 50
SEATPOST DIAMETER 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 420 420 440 440 460 460
STEM LENGTH 70 70 90 90 110 110
CRANK LENGTH 170 170 175 175 175 175
All lengths in millimeters
