Marin Four Corners 1 - Green
Marin Four Corners 1 - Green
SKU: 741780001
Pickup not available — this is an online exclusive.
Ships direct · Not stocked in our stores
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.

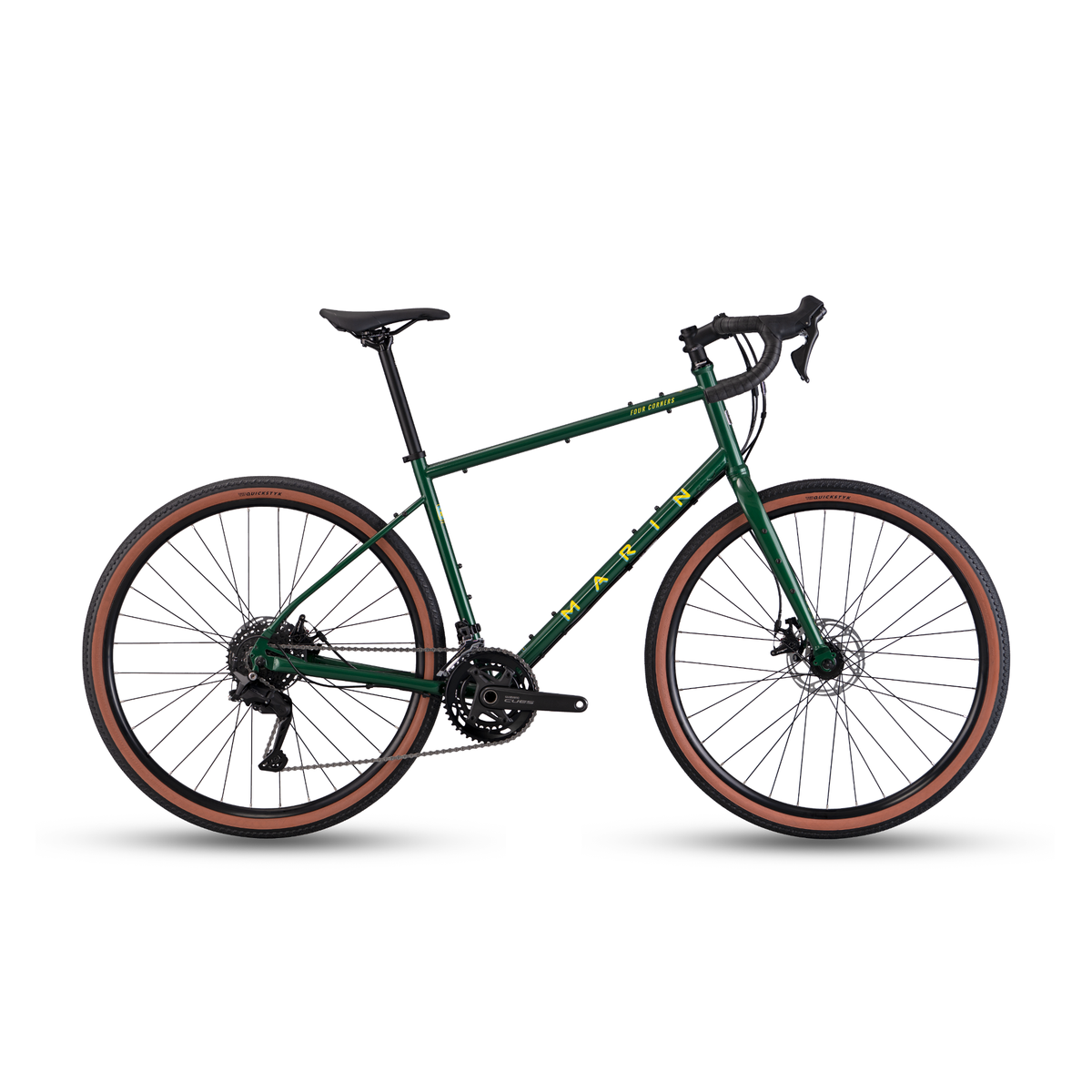

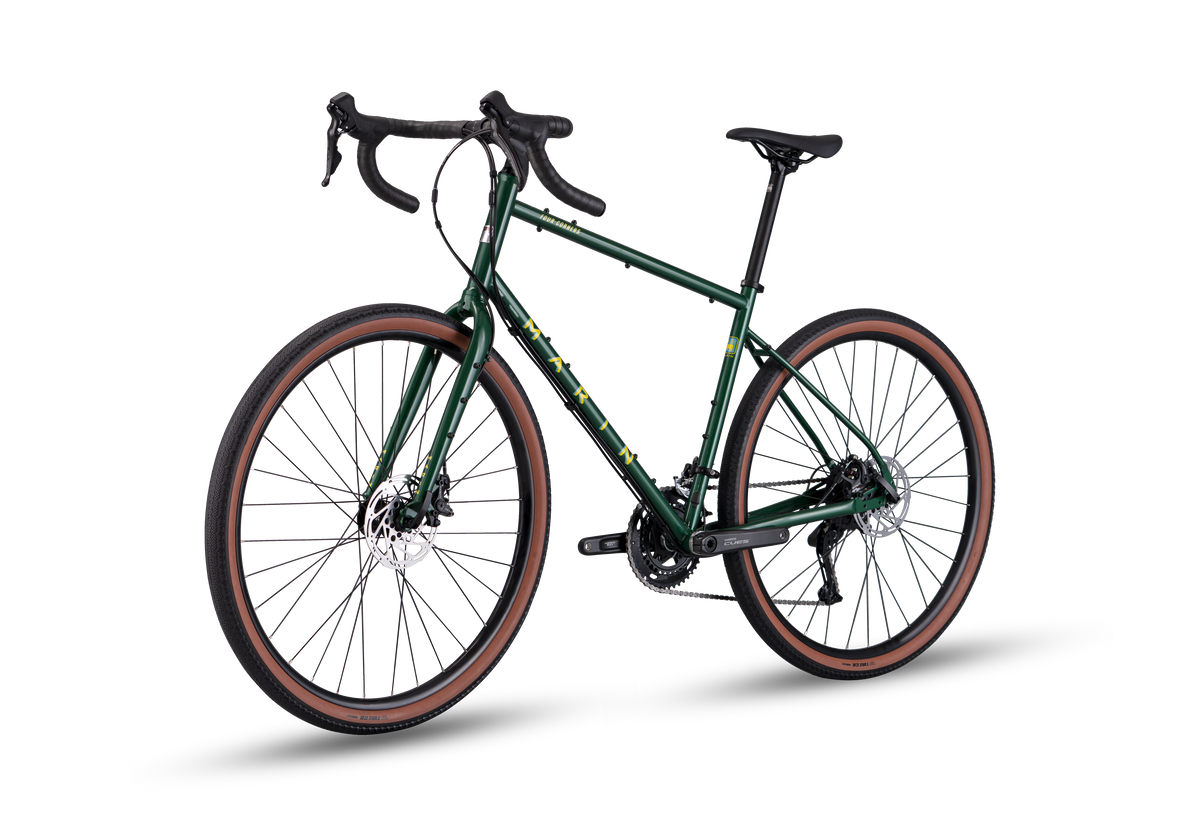

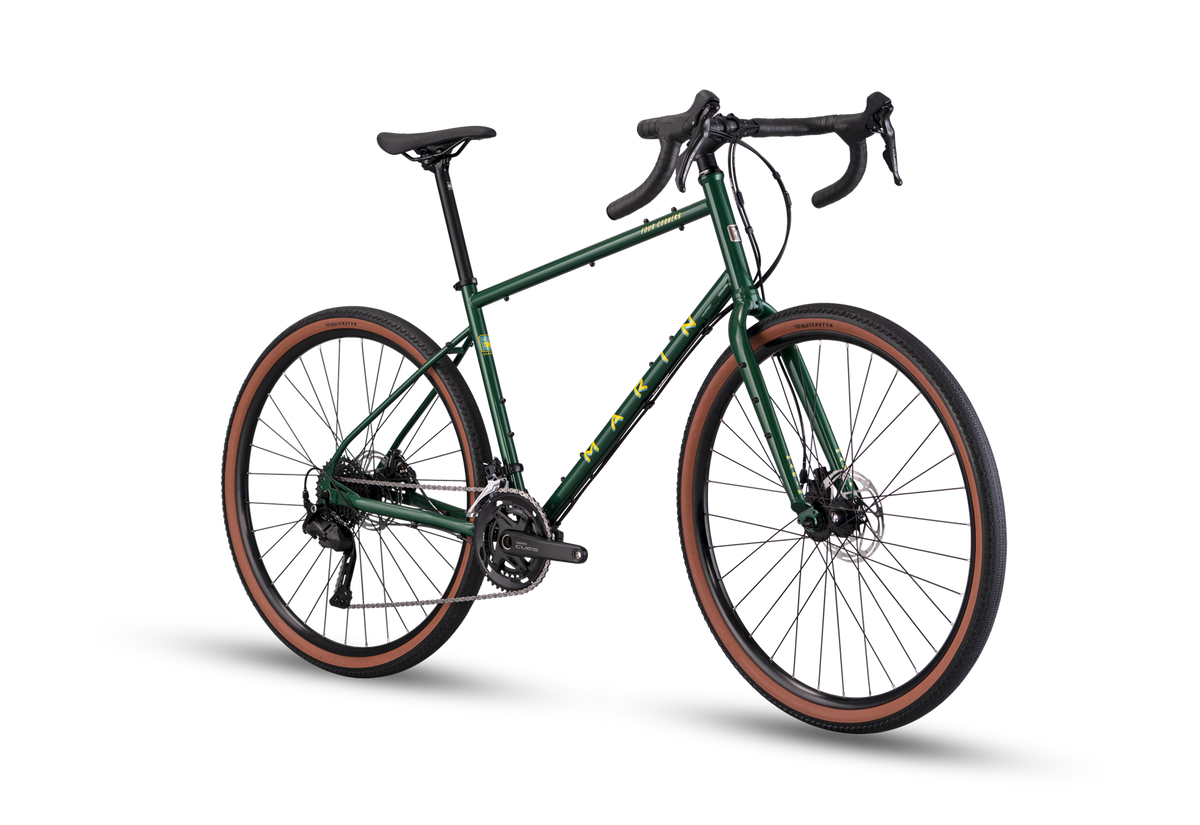

Marin Four Corners 1 Touring & Gravel Bike - Green
The Marin Four Corners 1 is a steel drop-bar touring bike built for daily commutes, weekend gravel loops and multi-day bikepacking trips. A custom-butted 4130 CrMo frame and fork smooth out broken roads and washboard gravel while carrying a full load of gear.
Wheel size is matched to frame size: XS and S frames roll on 650b wheels, M to XL on 700c, so every size rides in proportion. Shimano CUES 2x9 gearing, Tektro mechanical disc brakes and 45 mm tyres make it a dependable all-rounder for Indian roads, from city tarmac to monsoon-soaked village tracks.
Features
- Custom-butted 4130 CrMo steel frame and fork with Marin biometric geometry.
- Size-specific wheels: 650b on XS/S, 700c on M/L/XL.
- Front and rear rack mounts, fender mounts, fork cargo mounts and top tube bag mounts.
- Up to four bottle/accessory mounts in the main triangle (three on XS/S).
- Shimano CUES 2x9 drivetrain with 46/32T crankset and 11-36T cassette.
- Tektro Spyre-C mechanical disc brakes with 160 mm rotors.
- Vee Tire Co. QuickStyk 45 mm tyres, with room for different tyres to suit your terrain.
Specifications
| Bike Type | Touring / Gravel |
|---|---|
| Frame | Series 1 CrMo, size-specific wheels (XS, S = 650b; M, L, XL = 700c), fender and rack mounts, disc mount |
| Fork | Series 1 CrMo, fender, rack and bottle cage eyelets, IS disc mount |
| Drivetrain | Shimano CUES 2x9-Speed |
| Brakes | Tektro Spyre-C Road Mechanical Disc, 160 mm rotors |
| Wheels | Marin aluminium double-wall disc rims, forged alloy 32H hubs |
| Tyres | Vee Tire Co. QuickStyk, wire bead, 700/650 x 45 |
Components
| Shifters | Shimano CUES Dual Control STU3030, 2x9 |
|---|---|
| Front Derailleur | Shimano CUES FDU6030 |
| Rear Derailleur | Shimano CUES RDU3020, 9-speed |
| Crankset | Shimano CUES FCU6030-2, 46/32T |
| Bottom Bracket | Shimano outboard bearing |
| Cassette | Shimano CUES CSLG300, 11-36T |
| Chain | Shimano LinkGlide LG500 |
| Hubs | Forged aluminium alloy, disc, 32H |
| Spokes | 14g black stainless steel |

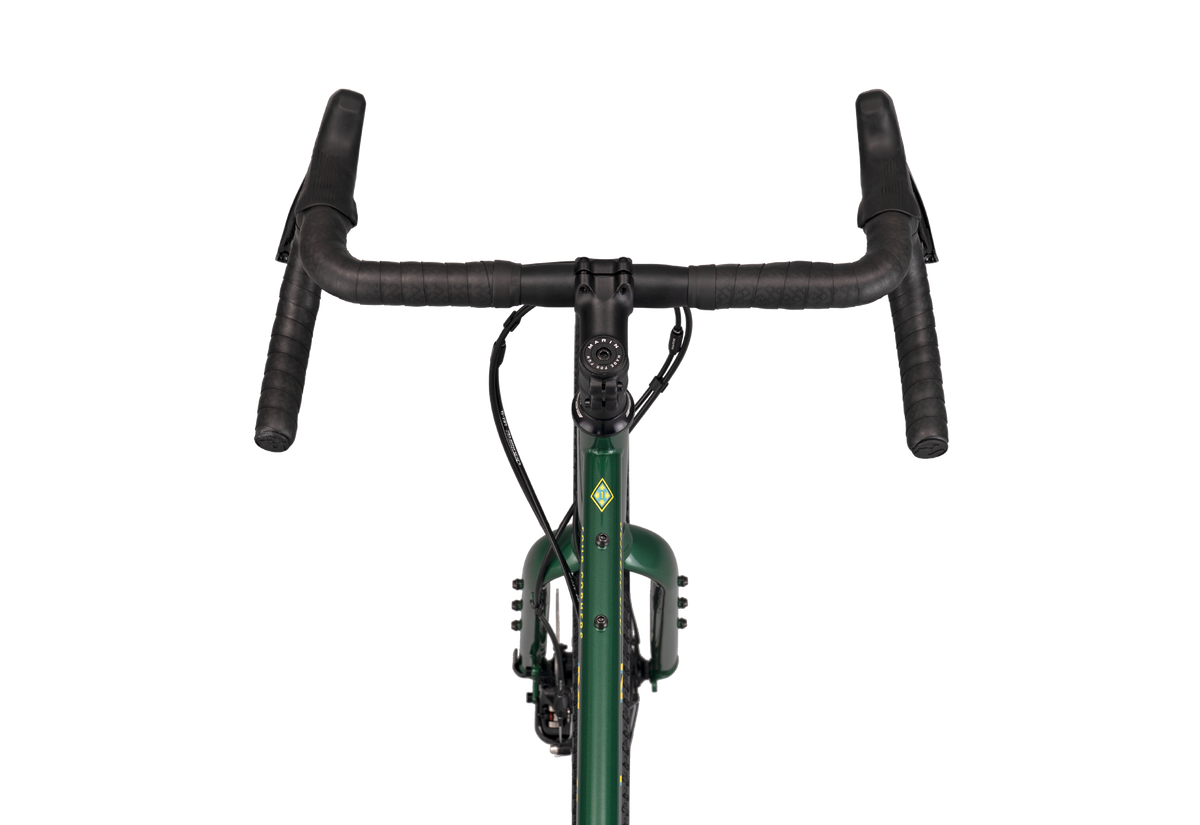

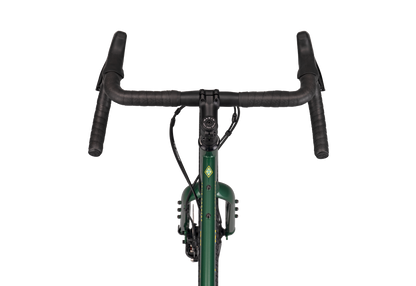

| Handlebar | Marin butted alloy, compact 16° flared drop |
| Stem | Marin 3D forged alloy |
| Bar Tape | Marin comfort bar tape with gel pads |
| Headset | FSA No.8D, sealed cartridge bearings |
| Seatpost | Marin alloy, 27.2 mm |
| Saddle | Marin MTB |
| Pedals | Nylon platform |
Ideal For
- Daily commuting with racks and panniers.
- Touring and multi-day bikepacking.
- Gravel and mixed-surface rides.
- All-weather riding.
Size Guide (geometry, mm)
| Size | Wheel | Stack | Reach | Standover | Crank |
|---|---|---|---|---|---|
| XS | 650b | 560 | 376.7 | 668 | 170 |
| S | 650b | 580 | 381 | 707 | 170 |
| M | 700c | 618 | 403.3 | 745 | 175 |
| L | 700c | 648 | 412.6 | 777 | 175 |
| XL | 700c | 679 | 426.6 | 810 | 175 |
Not sure of your size? WhatsApp us on +91 70204 25618 or visit the store for a fit check.
