Magene EXAR Pro DB45 Carbon Wheelset-45mm (Disc Brake)
Magene EXAR Pro DB45 Carbon Wheelset-45mm (Disc Brake)

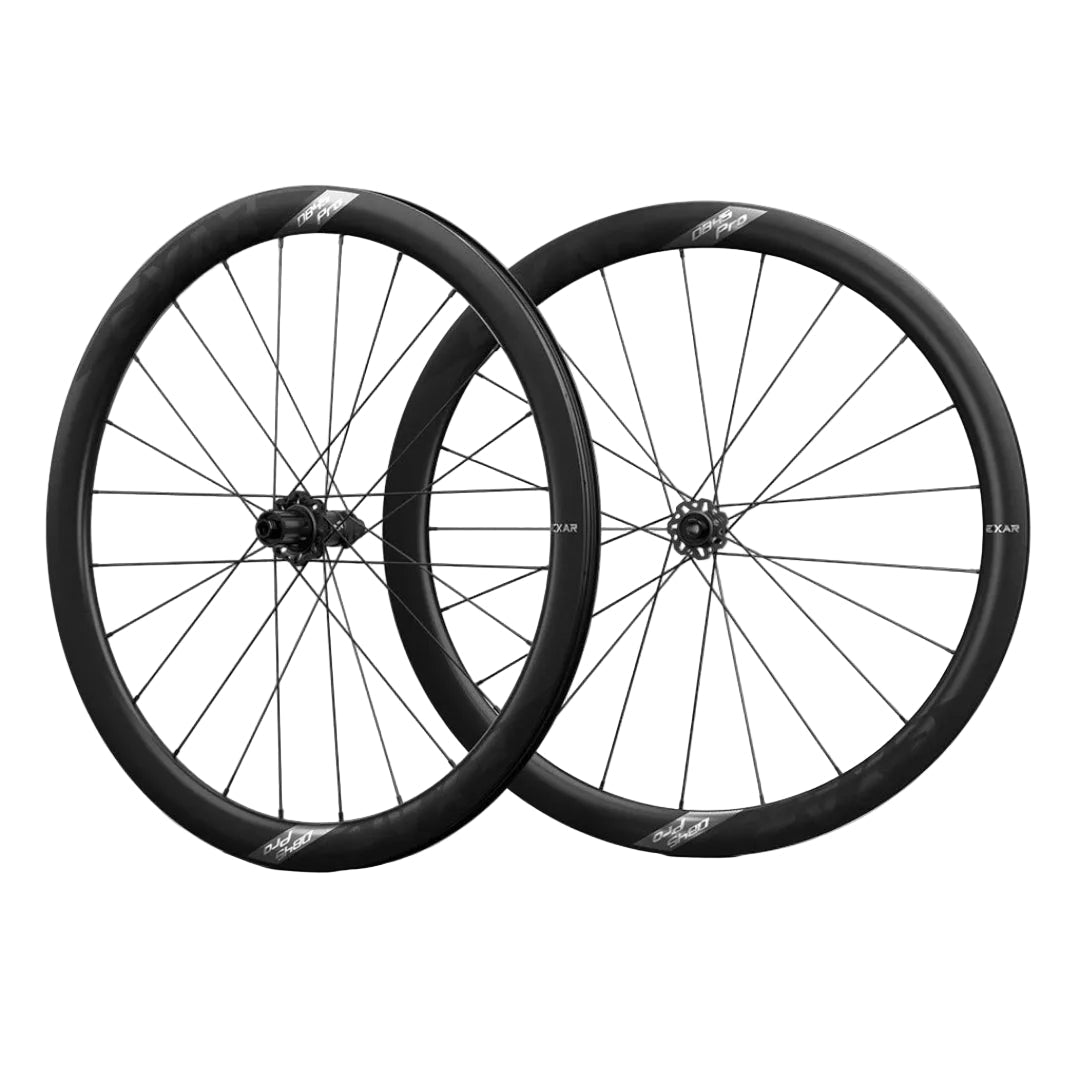

Magene EXAR Pro DB45 Carbon Wheelset
The Magene EXAR Pro DB45 Carbon Wheelset is designed for performance-focused road cyclists seeking lightweight climbing efficiency, aerodynamic speed, and reliable disc brake performance in a modern carbon wheel platform.
Built using HI-MOD carbon fiber rims and optimized spoke geometry, the EXAR Pro DB45 balances stiffness, acceleration, and crosswind stability for fast road riding and endurance performance. The 45mm rim depth delivers an ideal combination of aerodynamic efficiency and confident handling across varied riding conditions.
Featuring a refined integrated design philosophy, the wheelset combines lightweight construction, balanced spoke tension, and precise hub engineering to maximize responsiveness and ride quality.
Features
- HI-MOD carbon fiber rim construction for lightweight stiffness
- 45mm aerodynamic rim profile balances speed and control
- 36T flat ratchet system for fast and precise engagement
- 27mm wide rim profile improves aerodynamics with modern wider tires
- 2:1 spoke lacing pattern improves tension balance and pedaling efficiency
- UCI approved carbon rim construction
- Compatible with tubeless and clincher tire systems
- Factory-installed tubeless rim tape for easier setup
- Pillar Wing21 spokes improve aerodynamic performance and stiffness
- Designed for disc brake road bike platforms
Specifications
| Product Name | Magene EXAR Pro DB45 |
|---|---|
| Series | EXAR Pro Series 2025 |
| Brake Compatibility | Disc Brake (Centerlock) |
| Rim Height | 45 mm |
| External Rim Width | 27 mm |
| Internal Rim Width | 20 mm |
| Rim Material | HI-MOD Carbon Fiber |
| Spokes | Pillar Wing21 |
| Front Spoke Tension | 100 kgf ±10% |
| Rear Spoke Tension | Drive Side 120 kgf ±10% / Non-Drive Side 110 kgf ±10% |
| Front Spoke Lacing | 21H 2:1, Brake Side ×2, Non-Brake Side Radial |
| Rear Spoke Lacing | 21H 2:1, Drive Side ×2, Brake Side Radial |
| Ratchet System | 36T Flat Ratchet |
| Frame Spacing | 100/142 mm Thru-Axle |
| Optional Frame Compatibility | 100/135 mm Quick Release (Available Separately) |
| Freehub Standard | Shimano 11-Speed |
| Optional Freehub Compatibility | Campagnolo N3W / SRAM XDR (Sold Separately) |
| Cassette Compatibility | Shimano 8–12 Speed, SRAM 8–12 Speed, Campagnolo 8–13 Speed |
| Tire Compatibility | Clincher and Tubeless Tires |
| Recommended Tire Width | 28c – 32c |
| Minimum Compatible Tire Width | 25c and Above |
| Maximum Tire Pressure |
Clincher: 120 psi (25c), 110 psi (28c), 100 psi (30c), 90 psi (32c) Tubeless: 110 psi (25c), 100 psi (28c), 90 psi (30c), 80 psi (32c) |

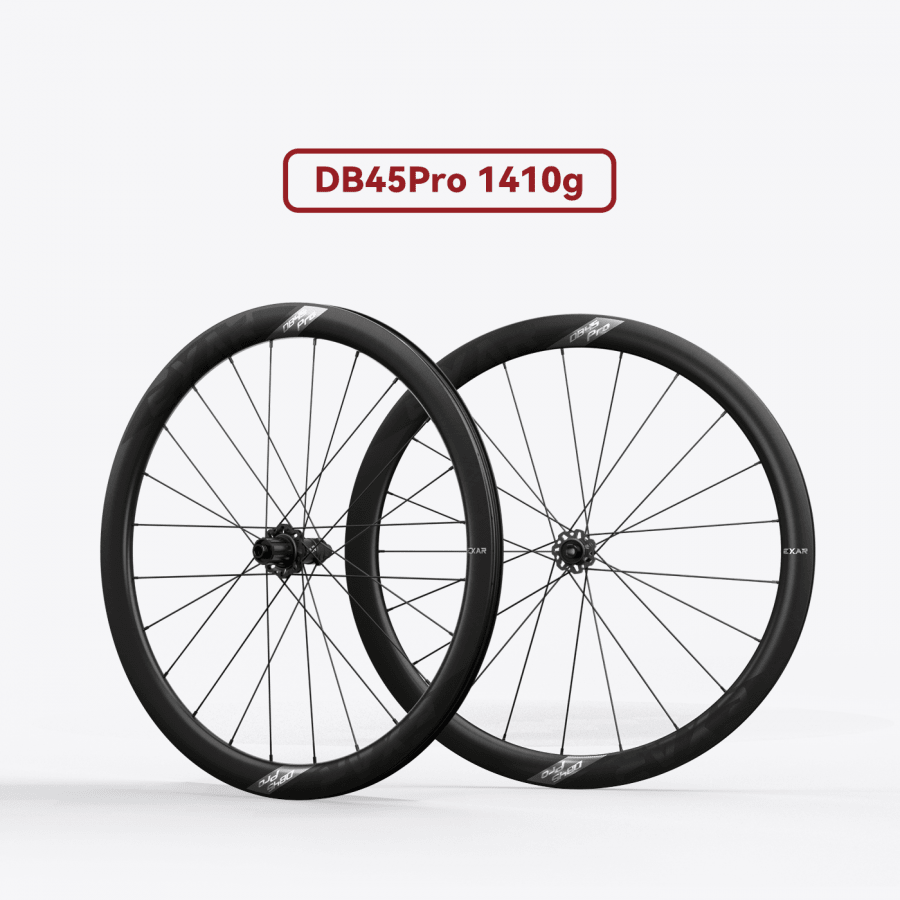

| Weight | 1410 g ±3% |
Technologies
- Automatic carbon fiber winding technology improves stiffness consistency
- 2:1 balanced spoke tension design enhances pedaling efficiency

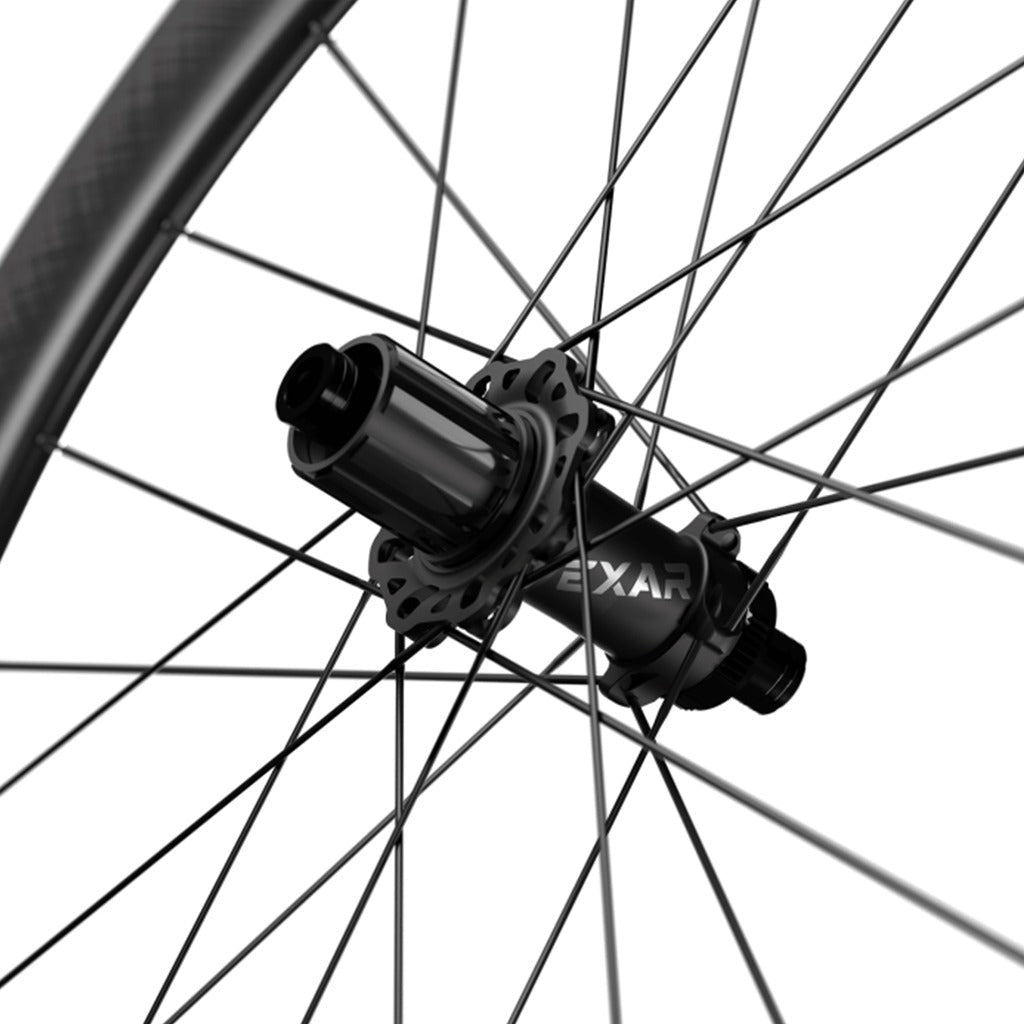

- FEA-optimized hub structure improves lateral stiffness and durability
- Symmetric rim structure improves stability and crosswind resistance
- Self-locking spoke nipples improve wheel durability and spoke retention

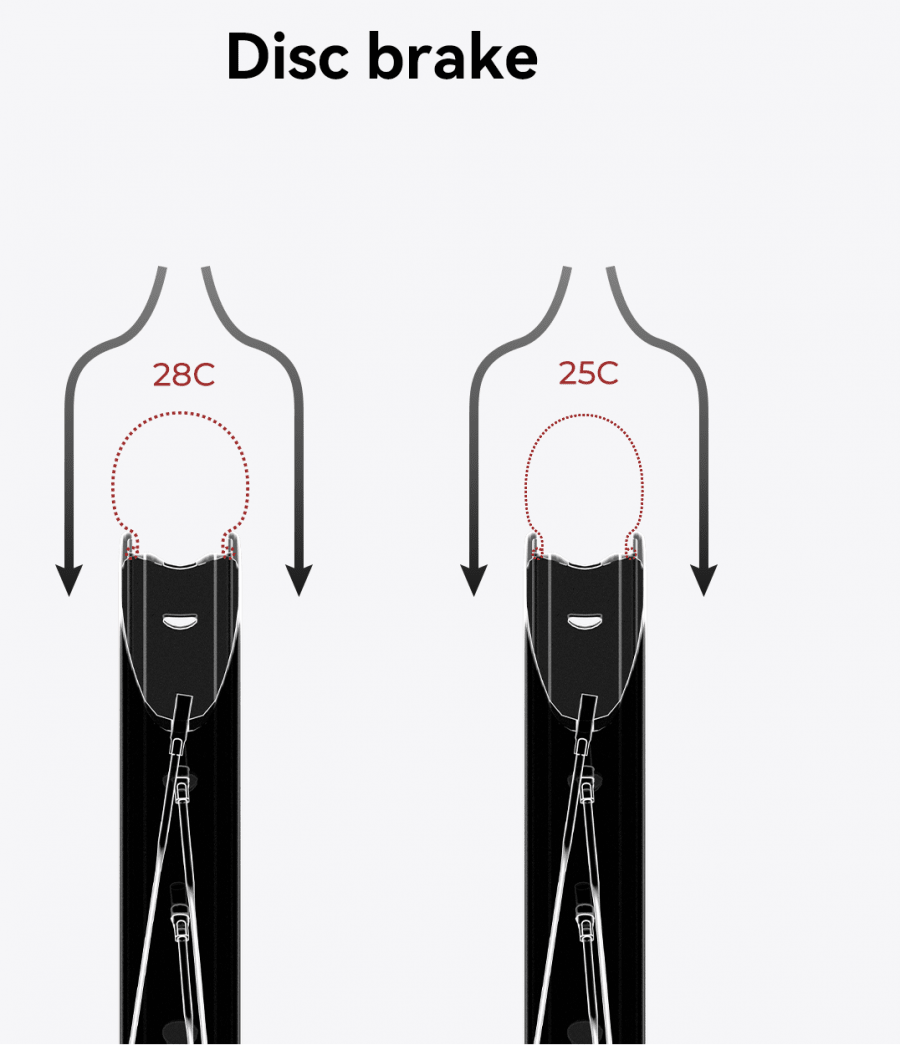

- Wide rim profile creates a flatter aerodynamic tire transition
In The Box
- Carbon Fiber Front Wheel ×1
- Carbon Fiber Rear Wheel ×1
- Factory-Installed Tubeless Rim Tape ×2
- Tubeless Valves ×2
- User Manual ×1
Designed For
- Performance Road Cycling
- Endurance Riding
- Climbing and Sprinting
- Disc Brake Road Bikes
- Aero Road Bike Builds
