Frame details & specifications

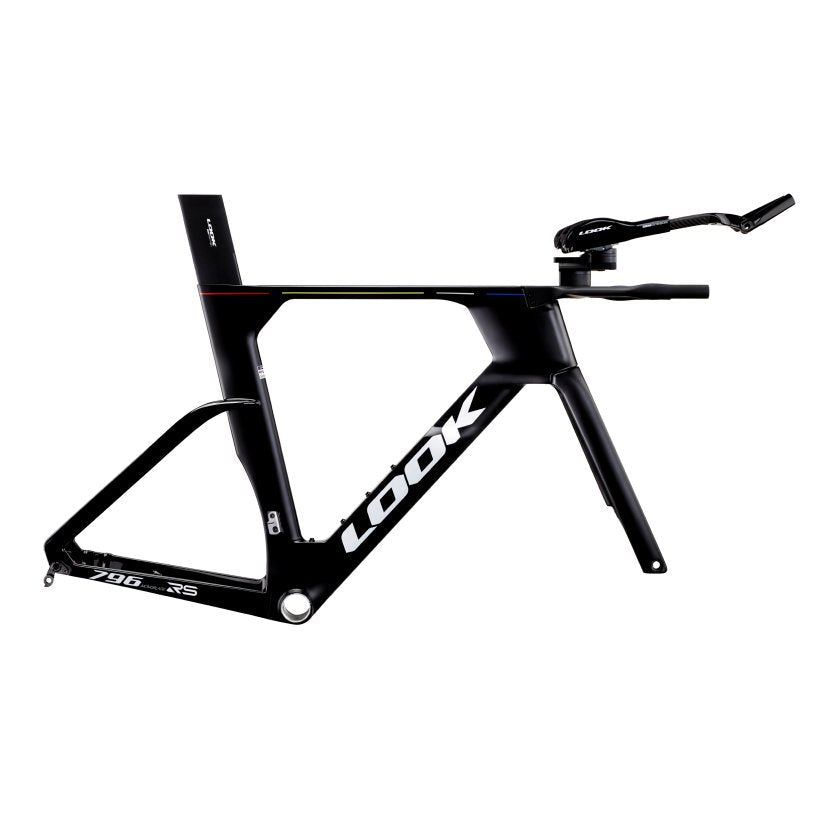

LOOK 796 Monoblade 2 RS Disc Frameset
The 796 Monoblade RS is LOOK's disc-brake triathlon and time trial frameset, with aerodynamics developed with the Cofidis WorldTour team. It brings together LOOK's track experience and carbon know-how in an adjustable, fit-friendly package.
Developed in the Wind Tunnel
LOOK worked on the shapes through digital modelling, wind tunnel and on-road testing. Bottle holders are placed on the frame for aerodynamics and easy reach, and inserts are provided for fitting an aero box on long-distance rides.
Easy to Adjust
The sliding LOOK Aeropost Tube 2 seatpost has a reversible head and integrated clamp, and LOOK says fit adjustments can be made without disconnecting cables.
Disc Brakes, Modern Standards
Flat-mount disc brakes, X12 thru-axles, a T47 bottom bracket and room for tyres up to 32 mm.
Who Is It For?
Triathletes and time triallists who want a dedicated, adjustable TT/tri frame to build with their own groupset and wheels.
Good to Know
As per LOOK's frameset specification: frame, fork, LOOK Aeropost Tube 2 seatpost and the one-piece Combo Aeroflat Bar 2 carbon base bar/stem. Please check with our team whether aero extensions are included in the box. Works with single or double chainring setups. Internal cable routing. A proper bike fit is recommended — our team can help.
Specifications
Frameset
| Model | LOOK 796 Monoblade RS (Monoblade 2) Disc Frameset |
|---|---|
| Frame Material | Ultra High Modulus carbon, with high-strength fibres at the bottom bracket, head tube and seat tube |
| Fork | Carbon, 363 mm length, 44 mm offset |
| Brake Type/Mount | Disc only, flat mount |
| Cable Routing | Internal |
| Front Axle | X12, 100 mm, M12 P1.5 |
| Rear Axle | X12, 142 mm, M12 P1.5 |
| Bottom Bracket | T47, 85.5 mm |
| Seatpost | LOOK Aeropost Tube 2, sliding, reversible head, integrated clamp |
| Base Bar / Stem | LOOK Combo Aeroflat Bar 2 Carbon |
| Max Tyre Clearance | 32 mm |
| Chainring Setup | Single or double |
| Available Sizes | XS, S |
| Colour | Proteam Black Glossy (Pro Team black satin/glossy) |
| Warranty | Lifetime frame warranty (registration required) |
Geometry
| Measurement | XS | S |
|---|---|---|
| Stack (mm) | 502 | 527 |
| Reach (mm) | 393 | 405 |
| Head Tube Angle (°) | 72.5 | 72.5 |
| Seat Tube Angle (°) | 77 | 77 |
| Seat Tube (mm) | 512.5 | 541 |
| Top Tube, horizontal (mm) | 508.9 | 526.7 |
| Front Centre (mm) | 578.6 | 598.4 |
| Trail (mm) | 62.6 | 62.6 |
| Fork Offset (mm) | 44 | 44 |
| Chainstay (mm) | 410 | 410 |
| Head Tube (mm) | 96.6 | 124.8 |
| Fork Length (mm) | 363 | 363 |
| Standover (mm) | 772 | 797 |
