Frame details & specifications

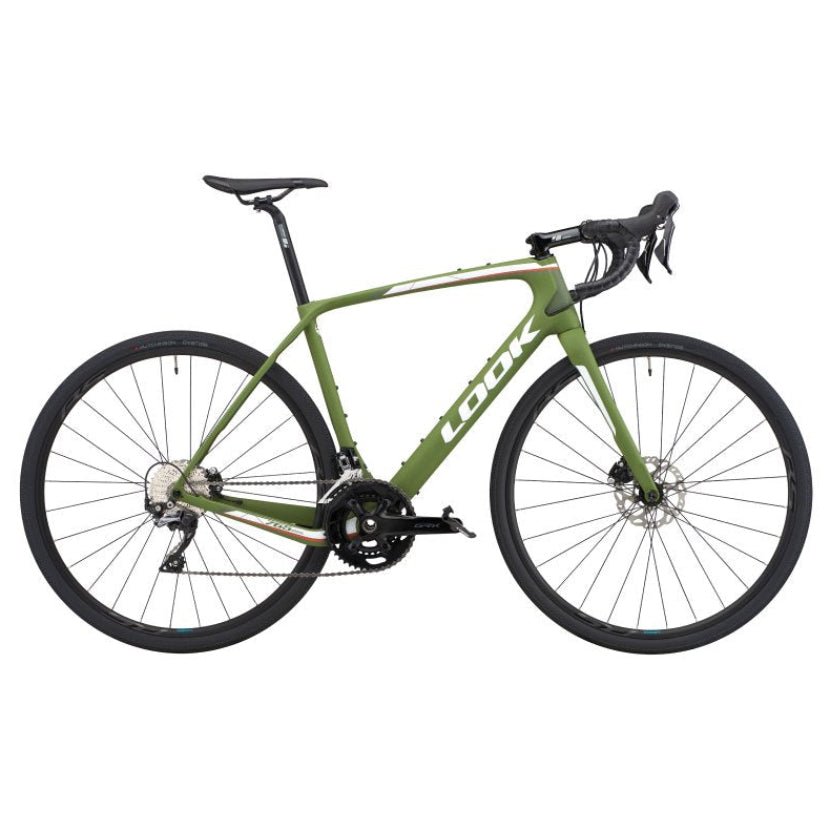

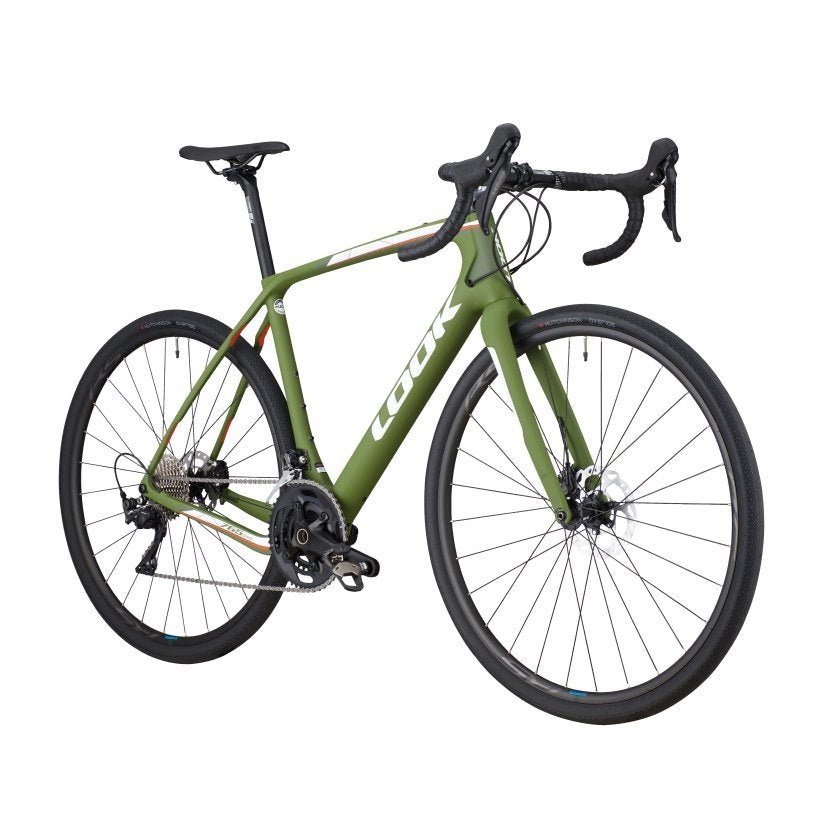

LOOK 765 Gravel Disc Frameset – Green Mat
The LOOK 765 Gravel is a carbon gravel frameset built for riders who move between tarmac and dirt on the same ride. It uses LOOK's 3D Wave seatstays for comfort, thru-axles and hydraulic disc brakes. This is the Green Mat finish with white logos.
Carbon Frame and Fork
Full carbon frame and carbon fork, designed by LOOK to be equally at ease on road and gravel paths.
3D Double Wave Seatstays
The wave-shaped seatstays are designed to flex and take the sting out of rough surfaces, so you stay fresher on long, mixed-surface rides.
Wide Tyre Room
Accepts wide 700c gravel tyres or 650b x 2.1in tyres, so you can set the bike up for fast gravel or rougher trails.
Disc Brakes and Thru-Axles
12 mm thru-axles front and rear (Speed Release ready) with hydraulic disc brake mounts for steady braking in all weather.
Who Is It For?
Riders who want one drop-bar bike for gravel, broken roads, adventure rides and everyday training, and who prefer to build it with their choice of groupset and wheels.
Good to Know
This is a frameset: carbon frame and carbon fork. Groupset, wheels and cockpit are not included. It is built around a BB386 bottom bracket, 12 x 100 mm / 12 x 142 mm thru-axles and a 27.2 mm seatpost, and suits 1x or 2x disc-brake road and gravel groupsets. This is an earlier model-year frameset (around MY2021). A proper bike fit is recommended — our team can help.
Specifications
Frameset
| Model | LOOK 765 Gravel (Disc) |
|---|---|
| Frame Material | Carbon |
| Fork | Carbon |
| Brake Type | Hydraulic disc |
| Front Axle | 12 x 100 mm thru-axle (Speed Release ready) |
| Rear Axle | 12 x 142 mm thru-axle (Speed Release ready) |
| Bottom Bracket | BB386 |
| Seatpost | 27.2 mm round |
| Cable Routing | Internal |
| Max Tyre Clearance | Approx. 700 x 40 mm / 650b x 2.1in |
| Groupset Compatibility | Disc-brake road and gravel groupsets, 1x or 2x |
| Available Sizes | S, M |
| Colour | Green Mat (white logo) |
Geometry
| Measurement | S | M |
|---|---|---|
| Stack (mm) | 554 | 578 |
| Reach (mm) | 365 | 375 |
| Head Tube Angle (°) | 70.3 | 70.3 |
| Seat Tube Angle (°) | 74 | 73 |
| Seat Tube (mm) | 490 | 510 |
| Top Tube Horizontal (mm) | 524 | 552 |
| Front Centre (mm) | 595.5 | 614 |
| Trail (mm) | 72 | 72 |
| Fork Offset (mm) | 50 | 50 |
| Chainstays (mm) | 420 | 420 |
| Head Tube (mm) | 137 | 162.5 |
| Fork Length (mm) | 395 | 395 |
| HAV (mm) | 70 | 70 |
| Standover (mm) | 765 | 793 |
