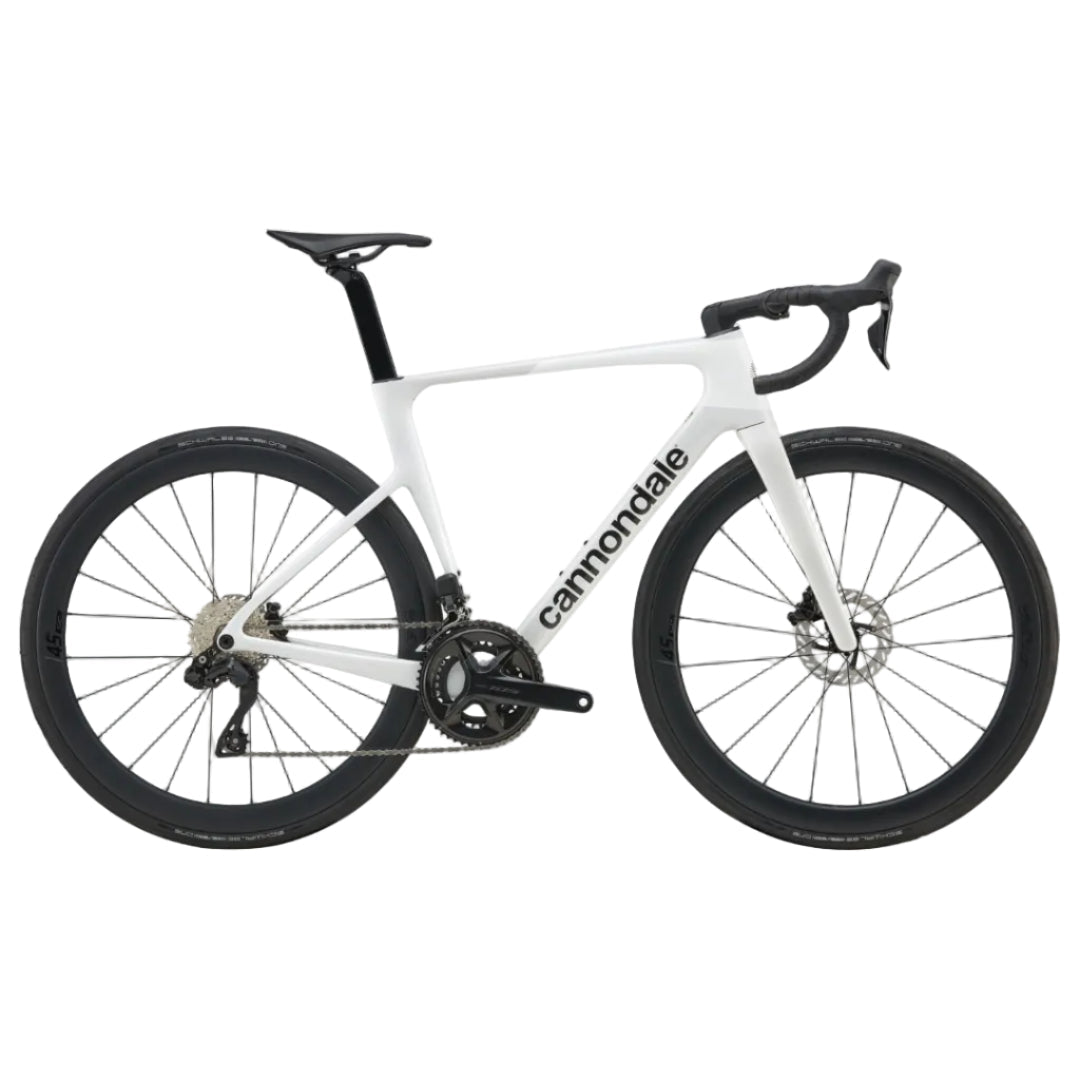

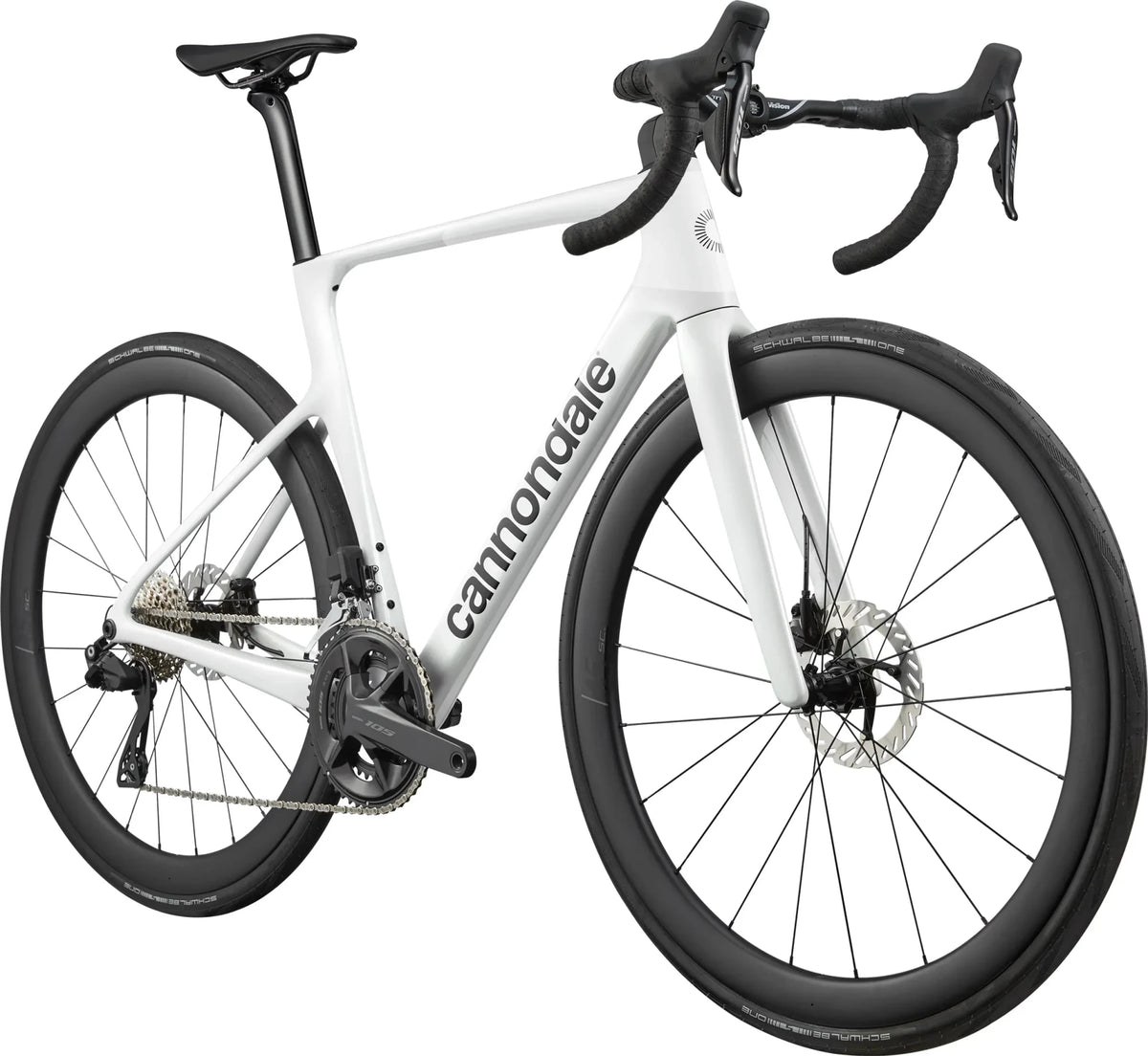

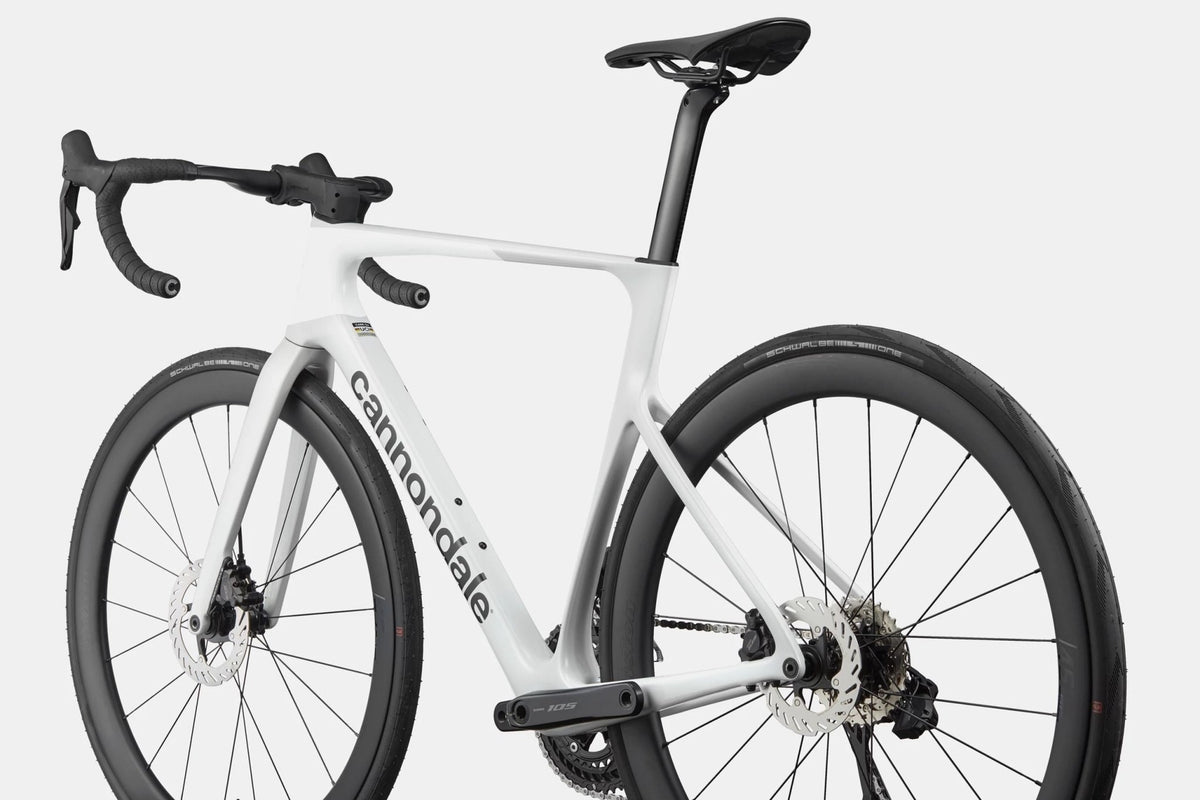

Cannondale SuperSix EVO 5 – Gen 5
The Cannondale SuperSix EVO 5 combines lightweight carbon construction, refined aerodynamics and race-focused handling in a road bike built for speed. Its fifth-generation SuperSix EVO carbon frameset is paired with Shimano 105 Di2 electronic shifting, Vision SC45 carbon wheels and an aerodynamic cockpit for a responsive and efficient ride.
From demanding climbs and fast group rides to breakaways and competitive racing, the SuperSix EVO 5 delivers a balance of low weight, aerodynamic performance and precise control.
Key Features
- Gen 5 SuperSix EVO Carbon Frameset: Lightweight, aerodynamic carbon construction with race-focused geometry and size-specific engineering.
- Shimano 105 Di2 Electronic Shifting: A 2x12-speed electronic drivetrain for precise, consistent gear changes.
- Vision SC45 Carbon Wheelset: 45mm-deep aerodynamic carbon rims with a 23mm internal width.

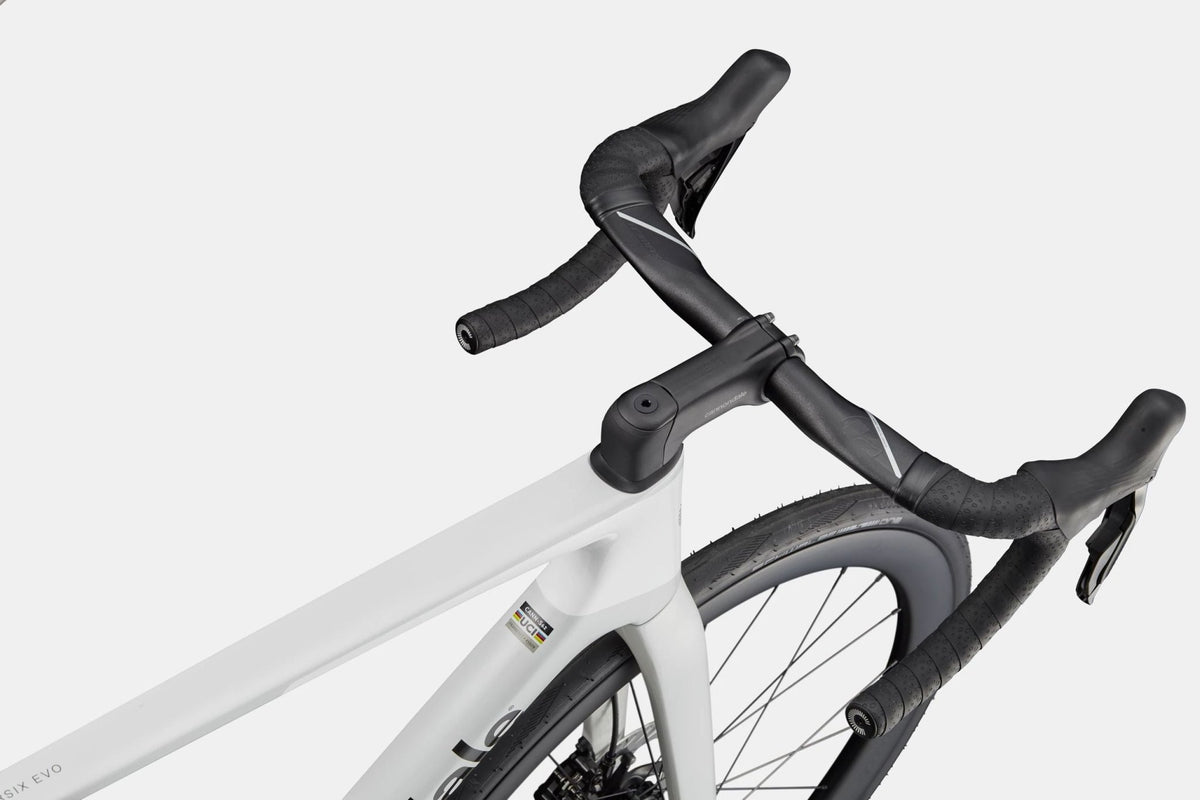

- Integrated Aero Cockpit: Vision Trimax Aero handlebars and Cannondale C1 Conceal stem with hidden cable routing.
- Shimano Hydraulic Disc Brakes: Shimano 105 hydraulic braking with 160mm rotors front and rear.
- Race-Ready Tyres: Schwalbe One TLR 700x28c tyres with tubeless-ready construction.
- Carbon Aero Seatpost: Cannondale C1 Aero 40 Carbon V2 seatpost with size-specific offset.
- Performance Saddle: Fizik Vento Antares R7 saddle with a pressure-relieving cutout.
- UDH Compatibility: Universal Derailleur Hanger interface and a threaded BSA bottom bracket.
Specifications
Frameset
| Frame | SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142mm thru-axle, BSA 68mm threaded bottom bracket, flat-mount disc, integrated seat binder, UDH |
|---|---|
| Fork | SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat-mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer |
| Fork Offset | 55mm (44–54cm); 45mm (56–61cm) |
| Headset | Integrated, 1-1/8" to 1-1/4" |
Drivetrain

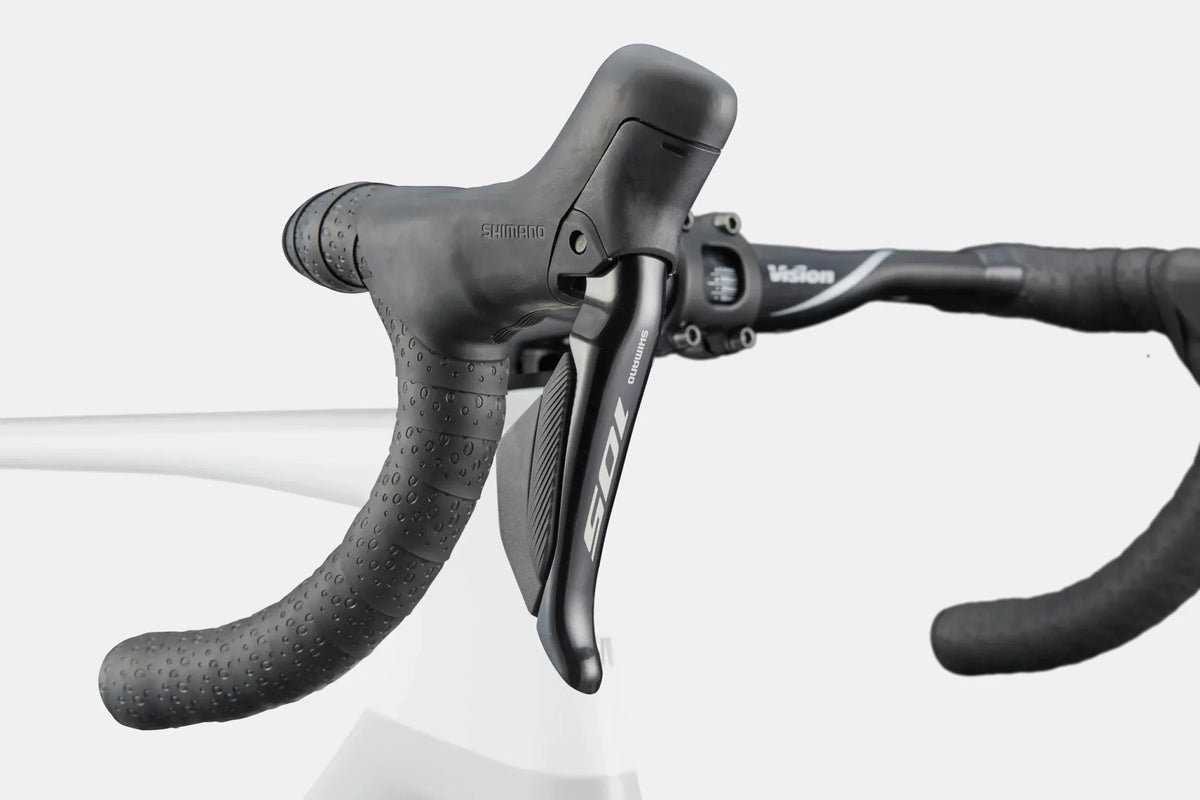

| Shifters | Shimano 105 Di2 R7170, wireless, 2x12-speed |
|---|---|
| Front Derailleur | Shimano 105 Di2 R7170 |

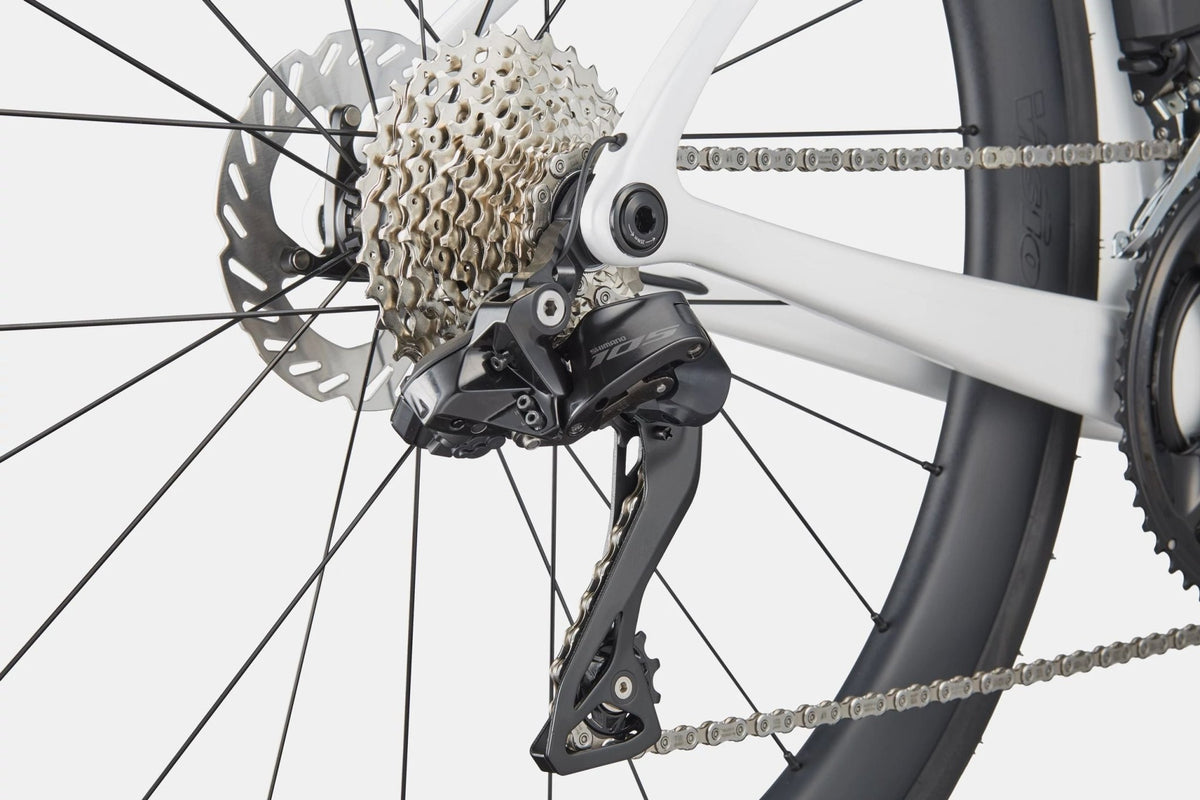

| Rear Derailleur | Shimano 105 Di2 R7150, 12-speed |

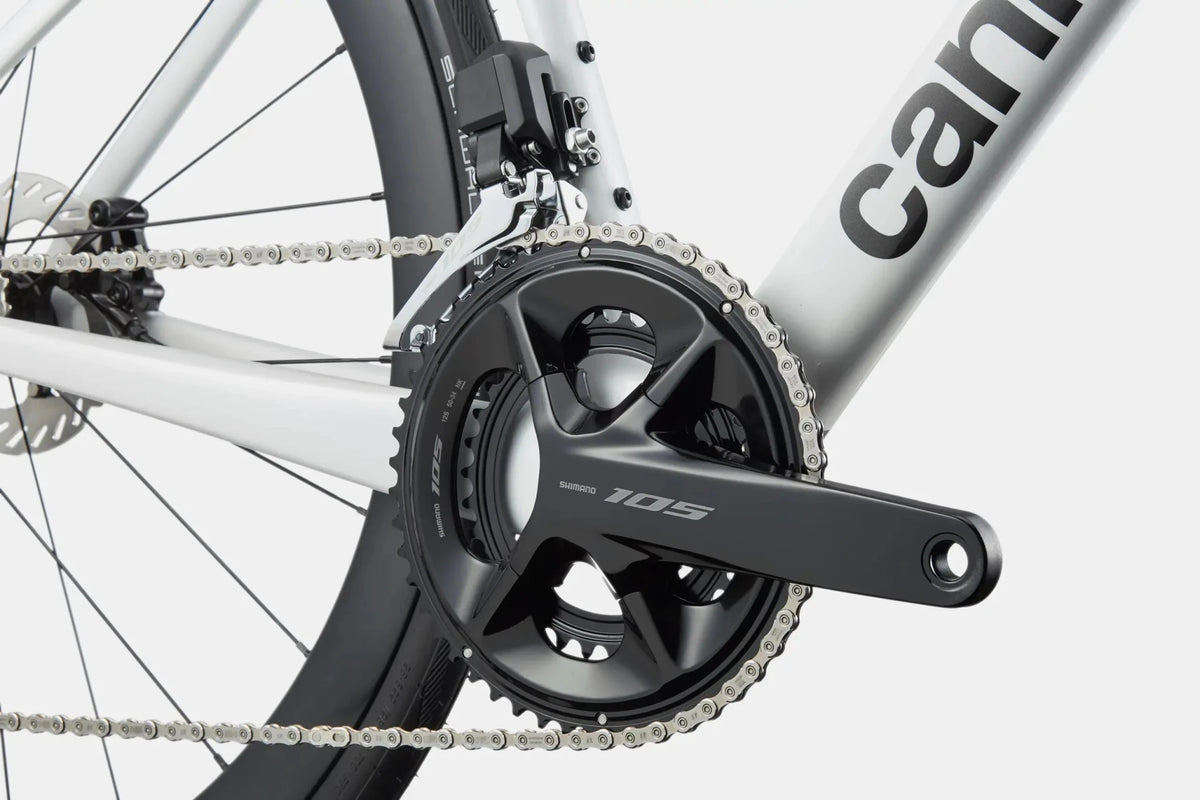

| Crankset | Shimano 105 R7100, 50/34T |
| Crank Length | 165mm (44–50cm); 170mm (52–56cm); 172.5mm (58–61cm) |
| Cassette | Shimano 105 R7100, 11–34T, 12-speed |
| Chain | Shimano 105, 12-speed |
| Bottom Bracket | Shimano BB-RS500, BSA 68mm |
Brakes
| Brakes | Shimano 105 R7170 hydraulic disc |
|---|---|
| Brake Levers | Shimano 105 Di2 R7170 hydraulic disc |
| Rotors | Shimano CL700, 160mm front and rear |
Wheels & Tyres
| Wheelset | Vision SC45 I23 Carbon |
|---|---|
| Rim Depth | 45mm |
| Internal Rim Width | 23mm |
| Spokes | 2:1 aero-bladed direct-pull |
| Front Hub | Vision, Center Lock, 12x100mm |
| Rear Hub | Vision, Center Lock, 12x142mm |
| Tyres | Schwalbe One TLR, 700x28c, tubeless ready |
| Wheel Size | 700c |
Components
| Handlebar | Vision Trimax Aero, 400mm (44–56cm); 420mm (58–61cm) |
|---|---|
| Stem | Cannondale C1 Conceal, alloy, 31.8mm, -6° |
| Stem Length | 80mm (44cm); 90mm (48–52cm); 100mm (54–56cm); 110mm (58–61cm) |
| Handlebar Tape | Cannondale Bar Tape, 3.5mm |
| Saddle | Fizik Vento Antares R7, 140mm |
| Seatpost | Cannondale C1 Aero 40 Carbon V2, 365mm |
| Seatpost Offset | 0mm (44–54cm); 15mm (56–61cm) |
Additional Details
| Model | SuperSix EVO 5 |
|---|---|
| Model Code | C1122GU SMU |
| Colour | Cashmere |
| Frame Sizes | 44, 48, 50, 52, 54, 56, 58, 61cm |
| Included Accessories | Shimano EC300 charging connector and Conceal Stem accessory/computer mount compatible with Garmin and Wahoo |
Performance Benefits
- Lightweight Climbing Performance: Advanced carbon construction helps keep the bike responsive on steep climbs and during accelerations.
- Refined Aerodynamics: Aero-optimised frame tubes, deep-section carbon wheels and integrated cockpit components help reduce aerodynamic drag.
- Precise Electronic Shifting: Shimano 105 Di2 delivers dependable gear changes during demanding rides and races.
- Confident Handling: Race geometry balances responsive cornering with stability at speed.
- Efficient Power Transfer: Size-specific carbon engineering balances stiffness, weight and ride quality across the frame range.
Ideal For
- Competitive road racing and criteriums
- Fast group rides and breakaways
- Climbing and KOM attempts
- Gran fondos and performance-focused road cycling
- Riders upgrading to a carbon race bike with electronic shifting and carbon wheels
Note: Specifications and components may change without notice depending on manufacturer availability.
