Frame details & specifications

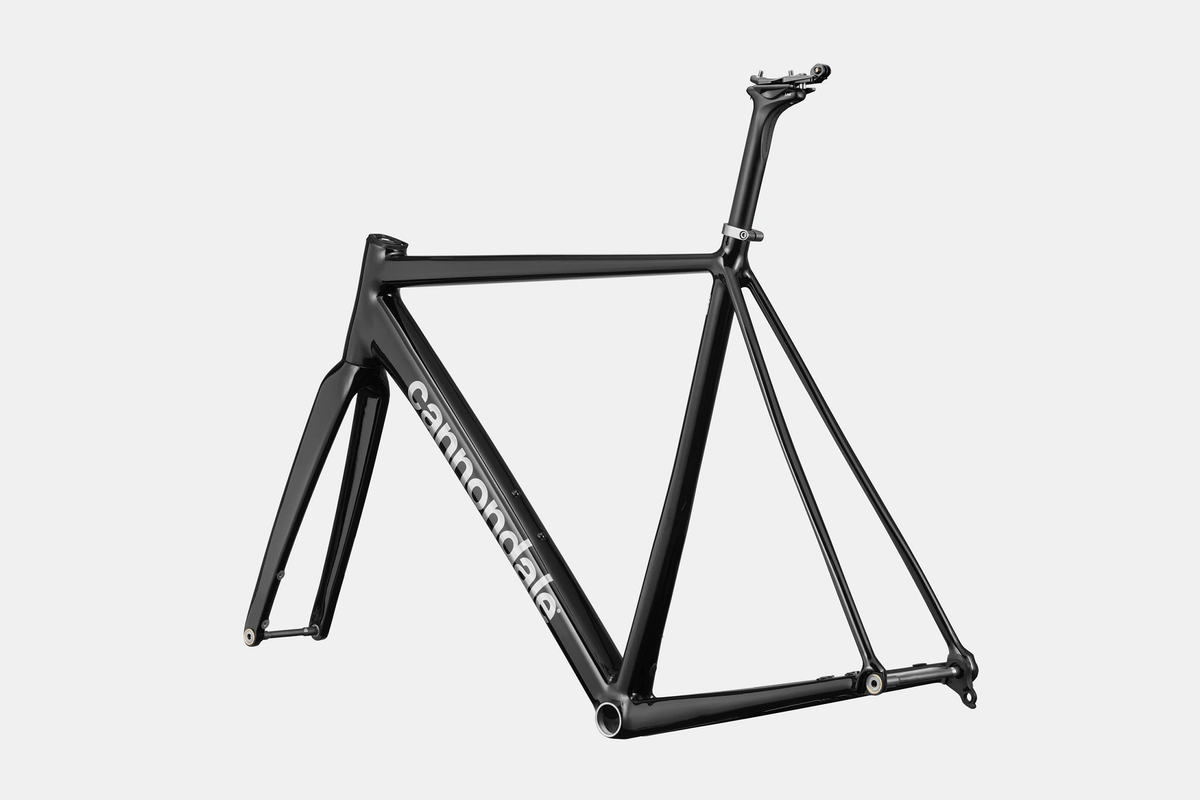

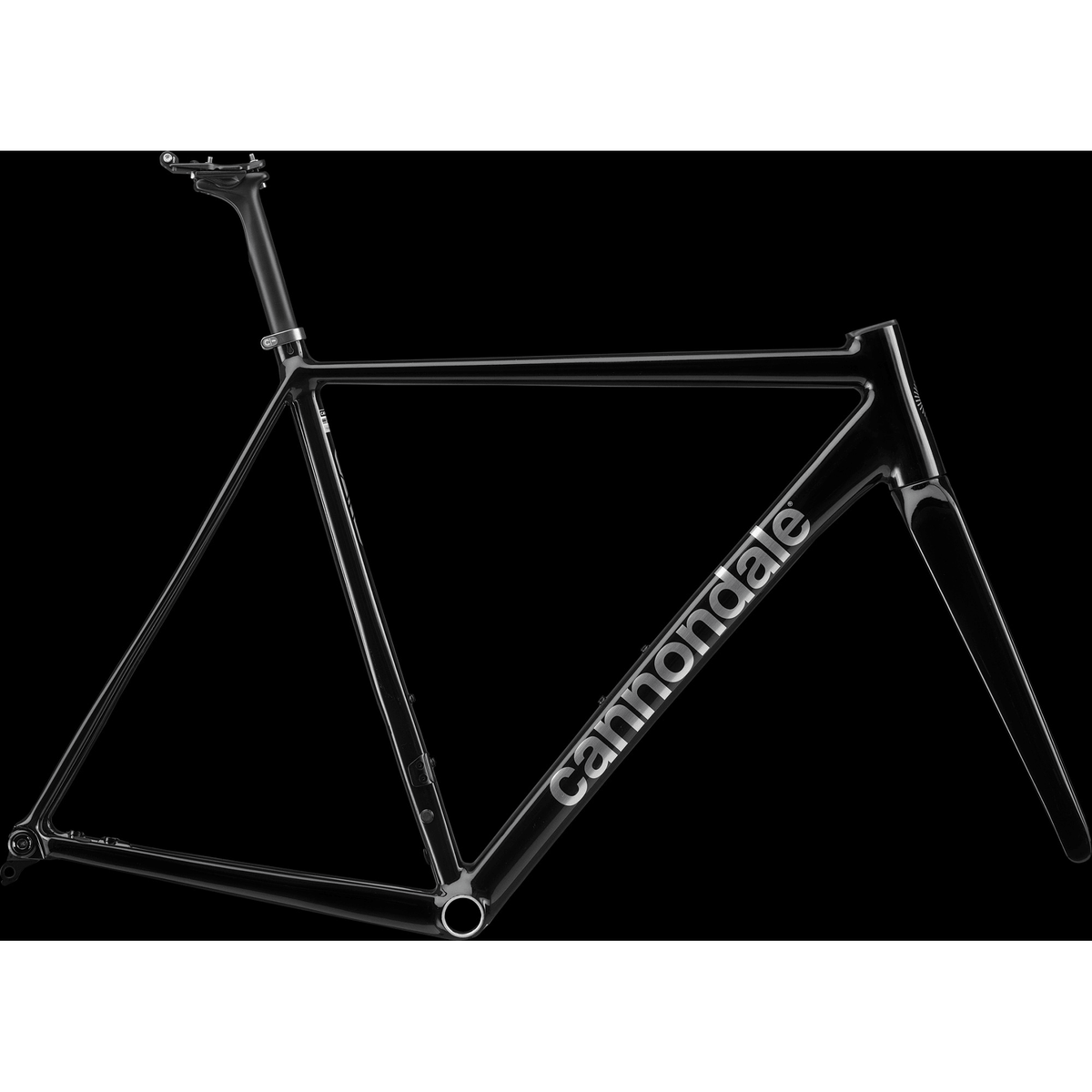

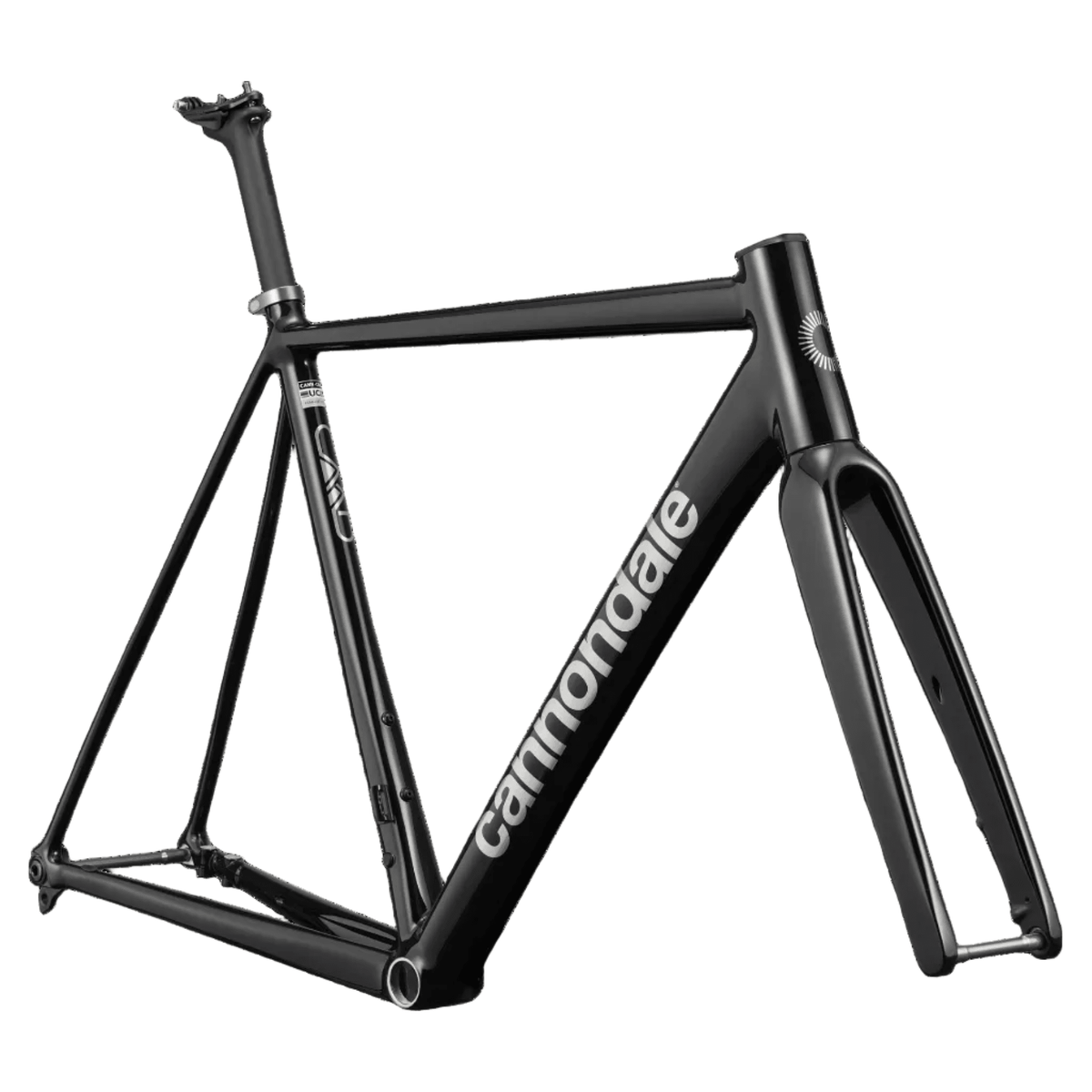

Cannondale CAAD14 Frameset (Black)
The CAAD14 frameset is Cannondale's most advanced aluminium road race chassis, supplied as a frame, full carbon fork, integrated headset and carbon seatpost. It uses SmartForm C1 Premium Alloy tubing with Delta Steerer integration, a threaded BSA bottom bracket and UDH, making it a modern and easy-to-service base for your own build. This listing is for the Black colour.
SmartForm C1 Premium Alloy
Cannondale's premium aluminium tubing with smooth welds and integrated cable routing, built for fast road riding and racing.
Delta Steerer and Full Carbon Fork
The full carbon fork uses Cannondale's Delta Steerer (1-1/8" to 1-1/2"), which routes cables from the cockpit into the frame for a clean front end.
BSA Threaded Bottom Bracket and UDH
A 68mm threaded BSA bottom bracket is simple to service, and the Universal Derailleur Hanger is easy to replace and works with SRAM full-mount derailleurs.
32mm Tyre Clearance
Fits tyres with a measured width of up to 32mm, with 4mm of clearance on all sides.
Who Is It For?
Riders who want a fast, durable aluminium race frame to build up with their own choice of groupset, wheels and cockpit, whether for racing, fast group rides or a first custom build.
Good to Know
This is a frameset: frame, CAAD14 full carbon fork, integrated headset and Cannondale SAVE carbon seatpost (27.2 x 350mm). Groupset, wheels, cockpit (handlebar and stem compatible with the Delta Steerer) and other parts are not included. The frame is designed for flat mount disc brakes, 12mm thru-axles and works with UDH-compatible derailleurs. A proper bike fit is recommended — our team can help.
Specifications
Frameset
| Model | CAAD14 Frameset (Model Code C13044U) |
|---|---|
| Frame Material | SmartForm C1 Premium Alloy (aluminium) |
| Fork | CAAD14 full carbon, integrated crown race, internal routing; 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Steerer | 1-1/8" to 1-1/2" Delta Steerer |
| Brake Type/Mount | Disc, flat mount |
| Cable Routing | Integrated |
| Front Axle | 12 x 100mm thru-axle |
| Rear Axle | 12 x 142mm thru-axle |
| Derailleur Hanger | UDH (Universal Derailleur Hanger) |
| Headset | Integrated, 1-1/8" - 1.5" |
| Bottom Bracket | BSA 68mm threaded |
| Seatpost | Cannondale SAVE Carbon, 27.2 x 350mm, 11mm offset |
| Wheel Size | 700c |
| Max Tyre Clearance | 32mm measured width (with 4mm clearance on all sides) |
| Available Sizes | 54, 56 |
| Colour | Black |
