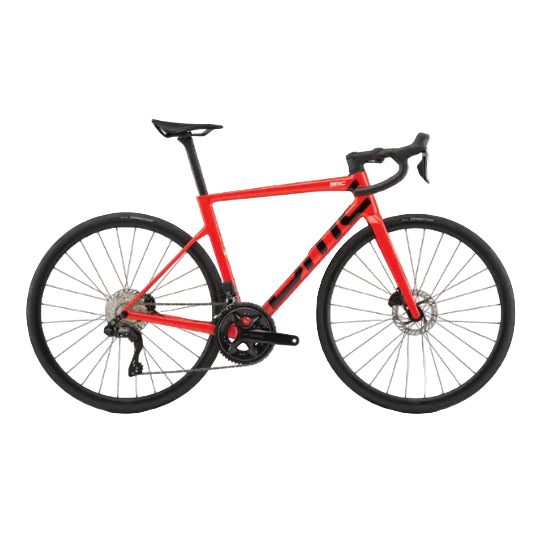

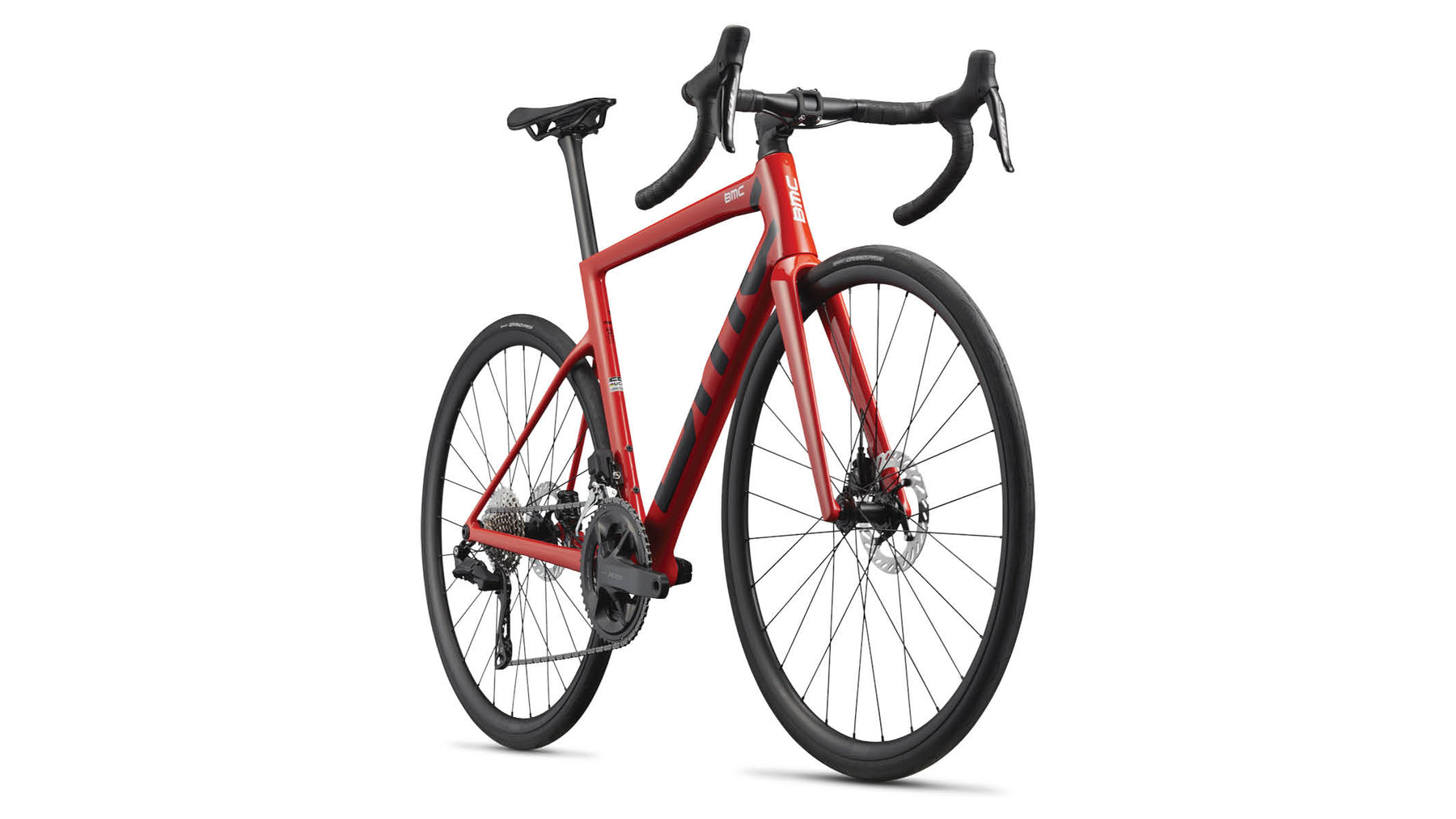

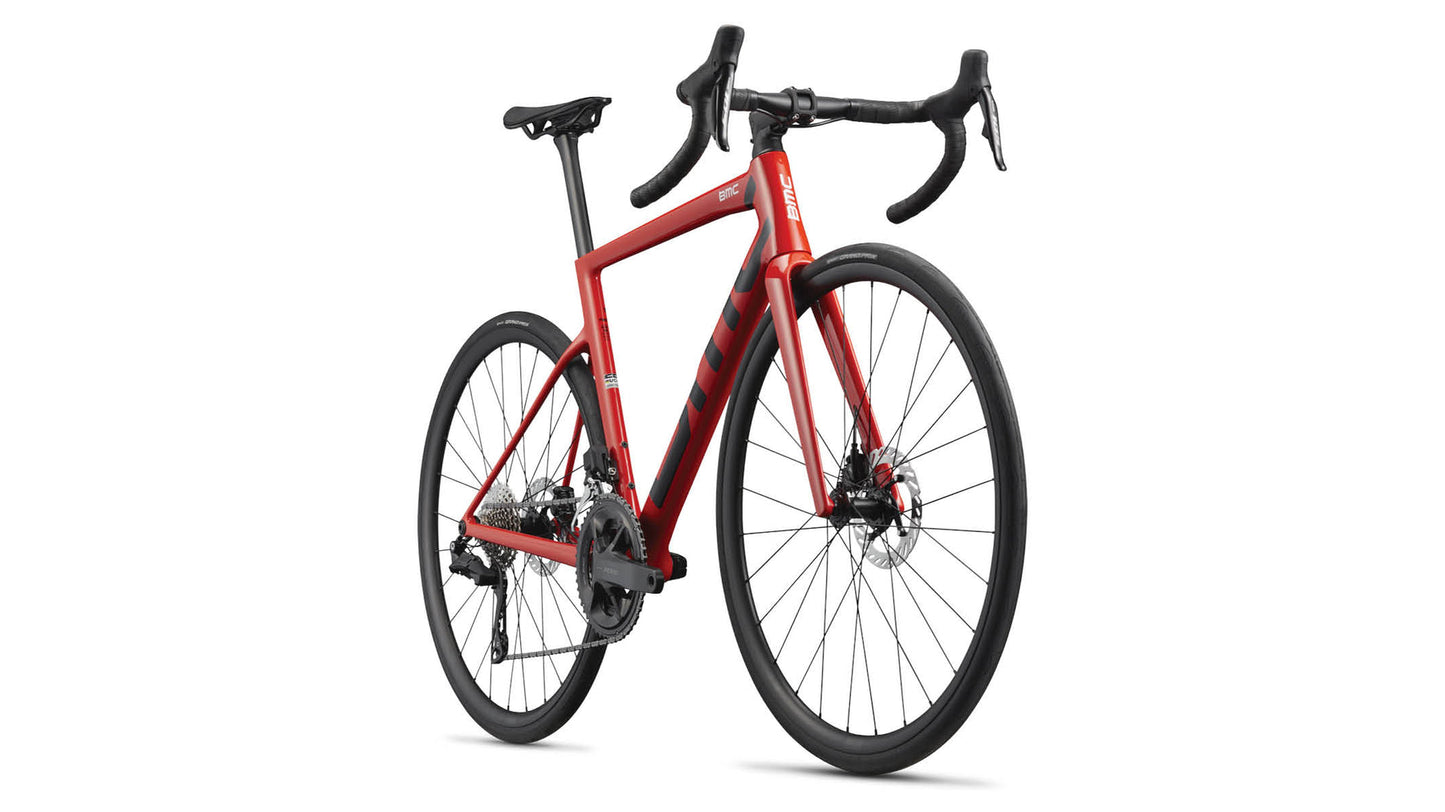

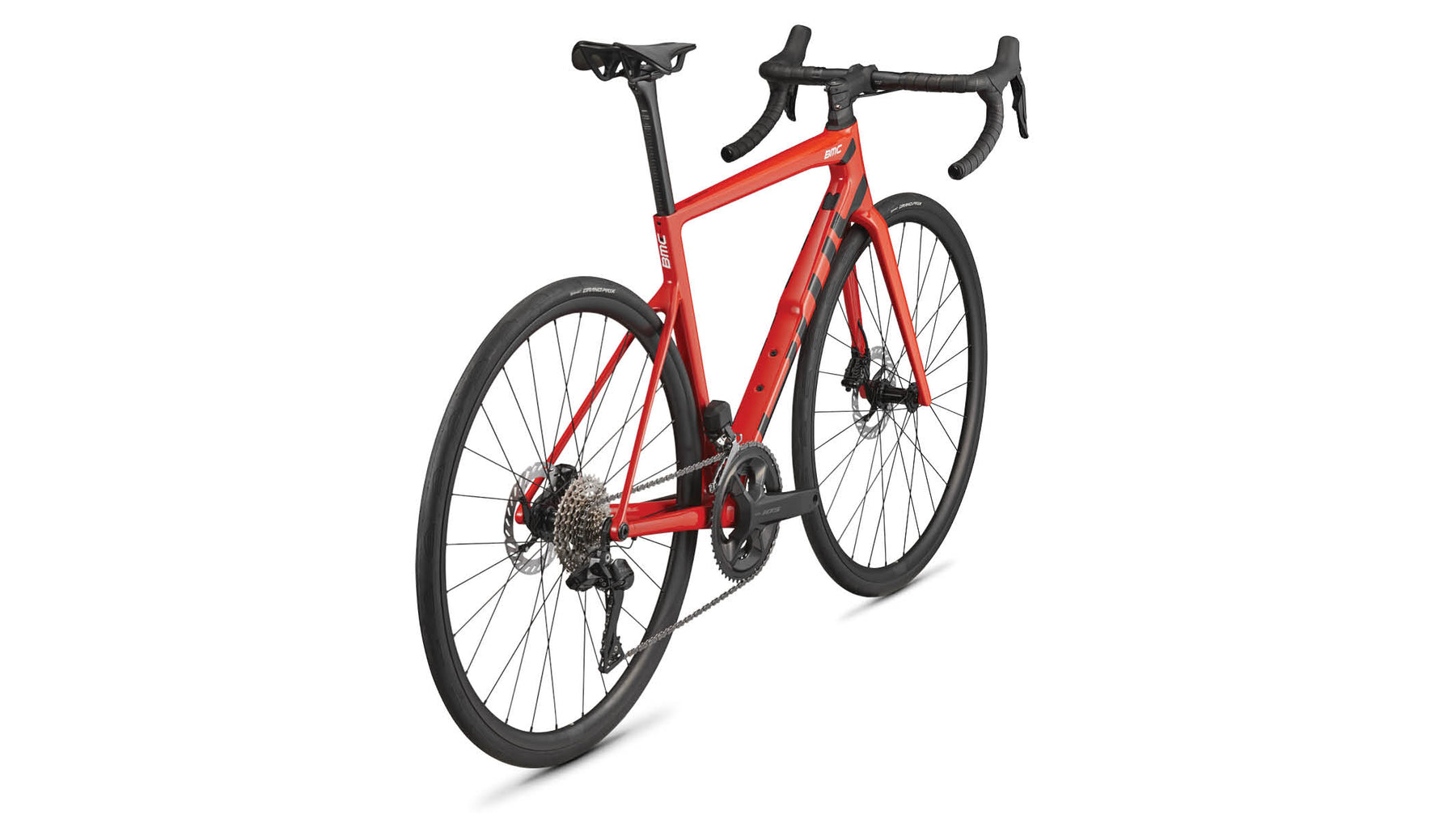

BMC Teammachine SLR TWO Gen 5 - Neon Red
BMC Teammachine SLR TWO Gen 5 - Neon Red
SKU: BMC-SLR2-RED-47
Couldn't load pickup availability
Pick up in-store
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.
The Teammachine SLR TWO is built around a lightweight Advanced Carbon frame, forming the core of a race bike designed to defy gravity and perform across all gradients, in a package that's more accessible. As the introduction to BMC's flagship climbing bike range, it carries the full suite of BMC design intelligence, including TCC Race compliance and the D-shape seatpost, delivering an explosive, precise and impressively smooth ride even when the road turns rough. Shimano 105 Di2 provides reliable electronic shifting and braking, paired with the RSM01 stem and alloy handlebars for clean cable routing and straightforward position tuning. PRD23 wheels round out a carbon race bike build that stays focused on consistency, control, and ride quality.
Specifications

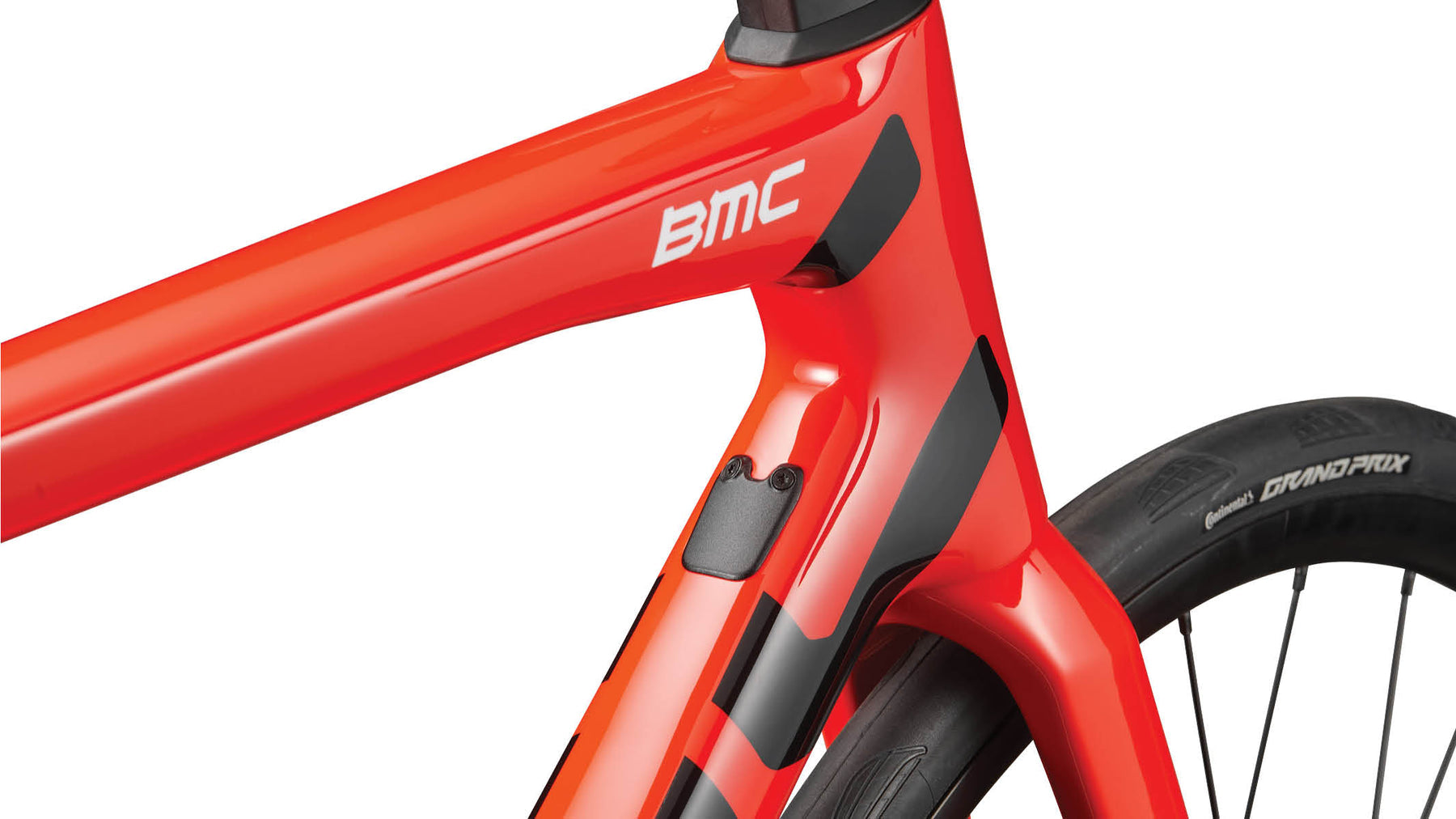

| Frame | Teammachine SLR Gen 5 | Advanced Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages |
| Fork | Teammachine SLR Gen 5 | Advanced Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61 |
| Stem | BMC RSM 01 | Integrated Cockpit System Technology |
| Handlebar | BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare |
| Grips | BMC Tacky 3mm |

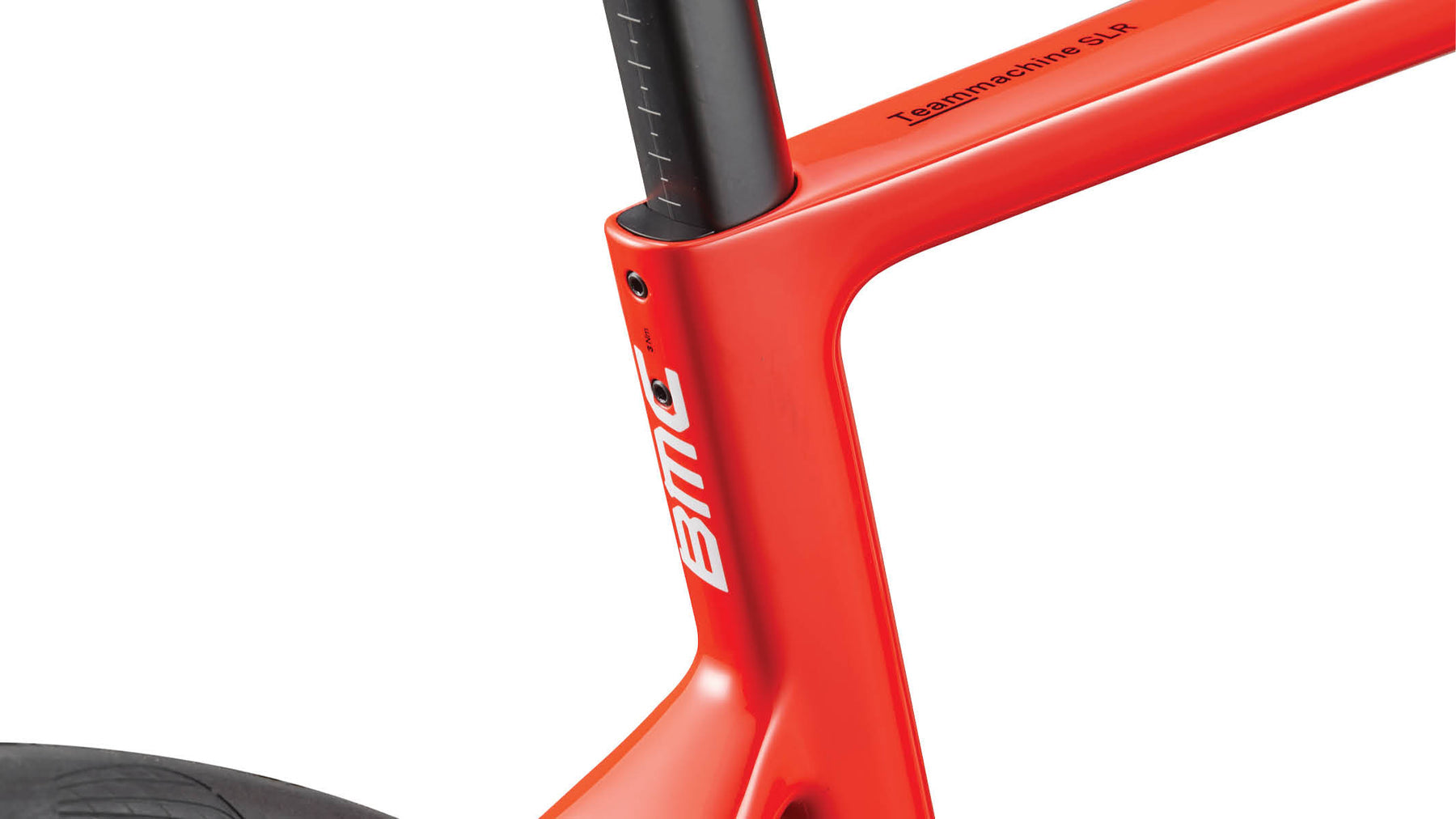

| Seatpost | Teammachine SLR 01 Gen 5 | Advanced Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61 |
| Saddle | Selle Italia Model X Greentech | FeC Alloy Rail | 145mm |
| Crankset | SHIMANO 105 (FC-R7100), 52-36T |
| Cassette | SHIMANO (CS-HG710), 11-36T, 12-speed |
| Chain | SHIMANO CN-M6100 |
| Front/Rear Derailleur | SHIMANO 105 Di2 (FD-R7150 / RD-R7150) |
| Shifters | SHIMANO 105 Di2 (ST-R7170), 2 x 12 |
| Bottom Bracket | SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB) |
| Levers / Calipers | SHIMANO 105 (BR-R7170) |
| Rotors | SHIMANO SM-RT64 | Centerlock | 160/160mm |
| Rims | PRD23 | 23mm |
| Hubs | SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock | 28H |
| Tyres | Continental Grand Prix | Tube type | 28mm | Non-Tubeless Rims, Tubeless Clincher Tyre |
| Bike weight | 8.6kg without pedals | Size 54 as pictured with all accessories |
| System weight limit | 110kg |
| Tyre clearance | 32mm measured tyre |
Specifications are subject to change without notice; compatible parts may be substituted due to supply chain issues.
Sizing and geometry
Rider height guide
| Size | 47 | 51 | 54 | 56 |
|---|---|---|---|---|
| Rider height | <166 cm | 166-174 cm | 172-180 cm | 178-186 cm |
Full geometry (mm unless noted)
| Size | 47 | 51 | 54 | 56 |
|---|---|---|---|---|
| Reach | 367 | 377 | 386 | 392 |
| Stack | 506 | 530 | 550 | 565 |
| Top Tube | 515 | 532 | 552 | 562 |
| Seat Tube | 422 | 464 | 491 | 509 |
| Head Tube | 108 | 133 | 149 | 165 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° |
| Seat Angle | 74° | 74° | 73.5° | 73.5° |
| BB Drop | 69 | 69 | 69 | 69 |
| Chainstay (Rear Center) | 410 | 410 | 410 | 410 |
| Wheelbase | 968 | 986 | 989 | 1000 |
| Front Center | 568 | 586 | 589 | 599 |
| Trail | 63 | 63 | 63 | 63 |
| Standover Height | 717 | 752 | 779 | 797 |
| Fork Rake | 48 | 48 | 43 | 43 |
| Fork Length | 369 | 369 | 369 | 369 |
| Crank Length | 165 | 170 | 170 | 170 |
| Stem Length | 70 | 90 | 90 | 100 |
| Stem Angle | -8° | -8° | -8° | -8° |
| Bar Width | 390/414 | 390/414 | 390/414 | 410/434 |
| Bar Drop / Reach | 125 / 80 | 125 / 80 | 125 / 80 | 125 / 80 |
| Seatpost Length | 335 | 335 | 385 | 385 |
| Seatpost Offset | 0 | 0 | 10 | 10 |
All measurements in mm unless stated otherwise. Data sourced from BMC's official geometry chart.
