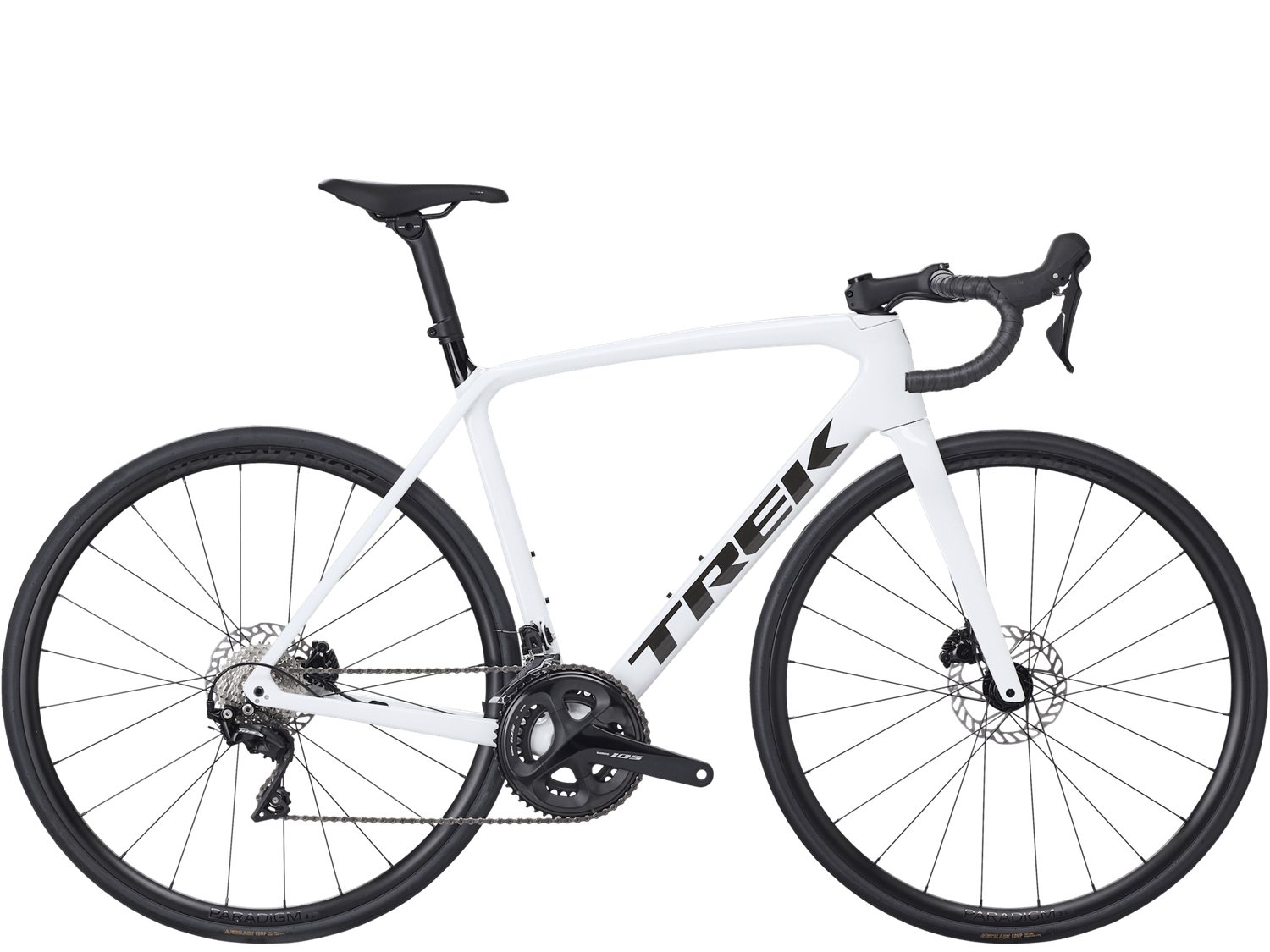

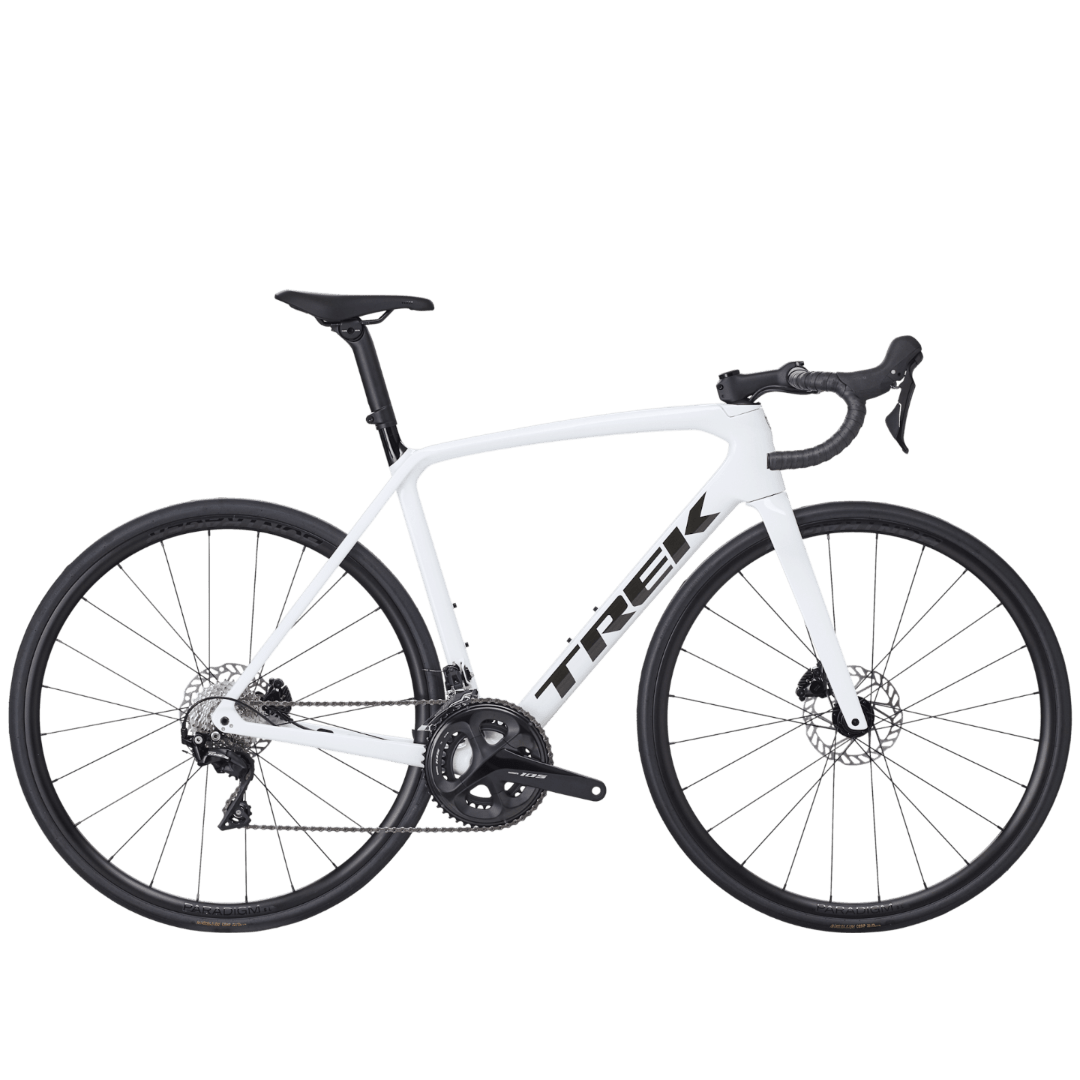

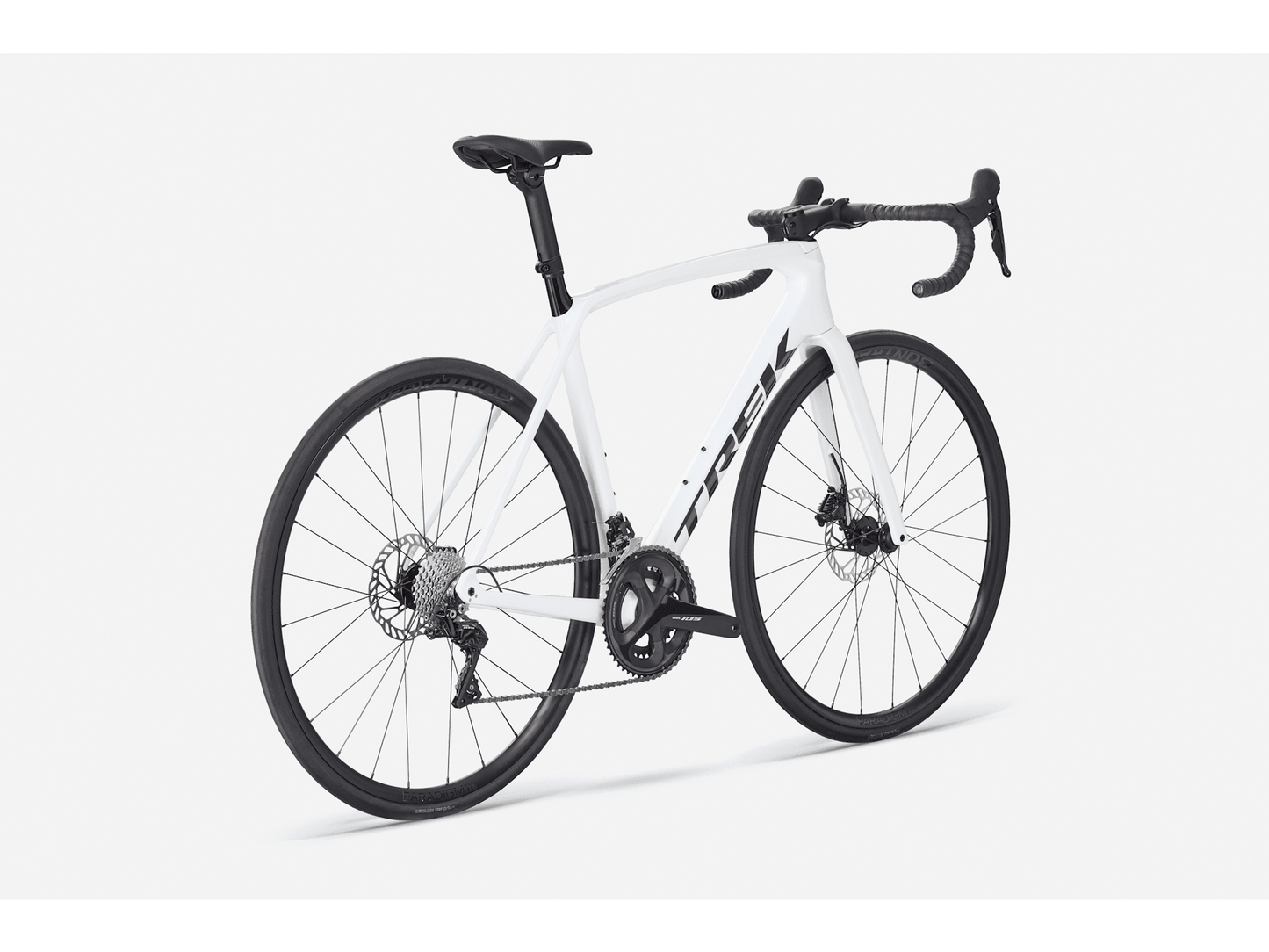

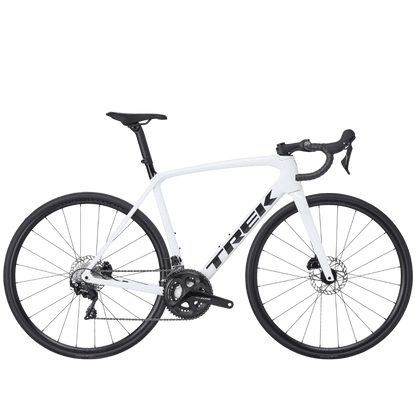

Émonda SL 5 is a lightweight carbon road bike built for soaring up climbs. Its featherweight frame pairs with a 2x11 Shimano 105 drivetrain for clean shifting, while Bontrager Paradigm SL wheels and Aeolus Comp tyres keep handling precise down winding canyon descents.
Specifications
Frameset
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
Drivetrain

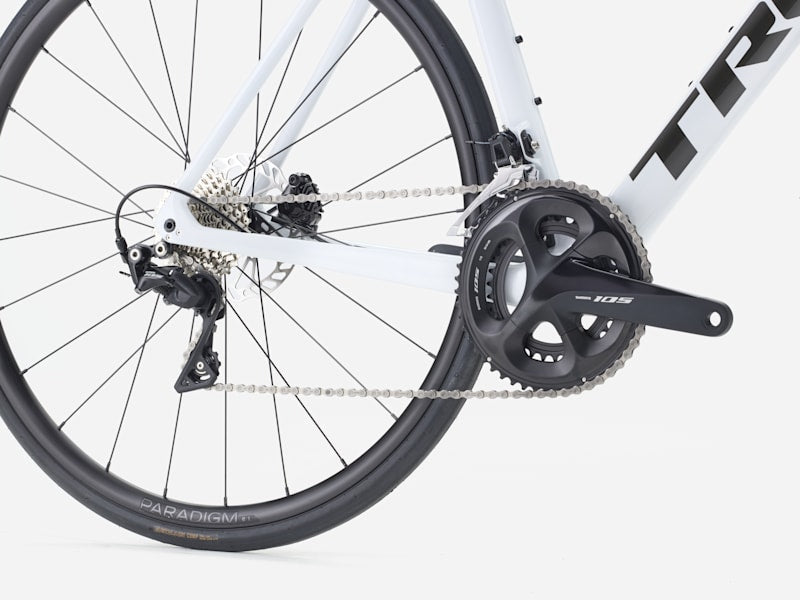

| Shifting | Shimano 105 R7020 shifter, R7000 front/short-cage rear derailleur, 11-speed, 30T max cog |
| Crank | Shimano 105 R7000, 50/34 compact — 165 mm (47–54), 175 mm (56–58) |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 R7000, 11-30, 11-speed |
| Chain | Shimano 105 HG601, 11-speed |
Wheels
| Hubs | Formula RX-512 front / RX-142 rear, alloy, 6-bolt, Shimano 11-speed freehub, 100x12/142x12 mm thru axles |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14g stainless steel, black |
| Tyres | Bontrager R1 Hard-Case Lite or Aeolus Comp Hard-Case Lite, wire bead, 60 tpi, 700x28 mm — max 28 mm |
Components
| Saddle | Verse Short, steel rails, 145 mm width |
| Seatpost | Bontrager alloy seat mast cap, 10 mm offset — short (47–54), tall (56–58) |

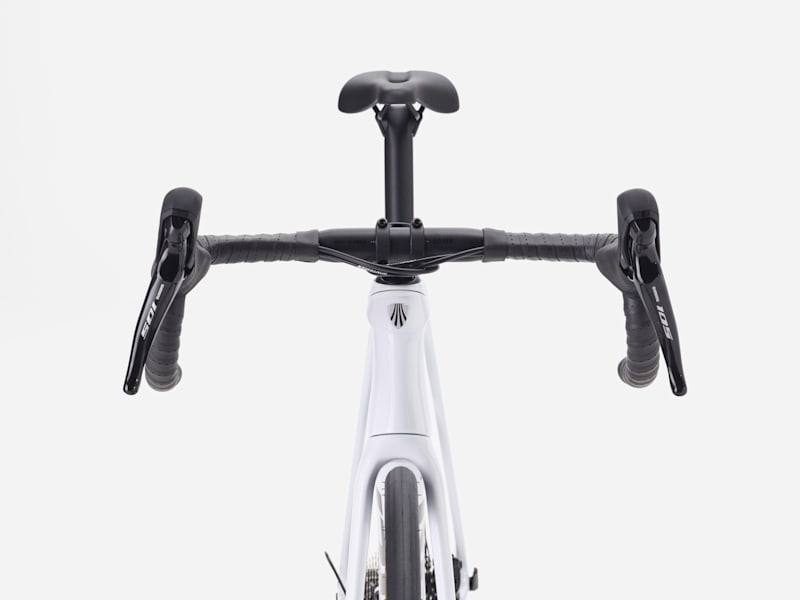

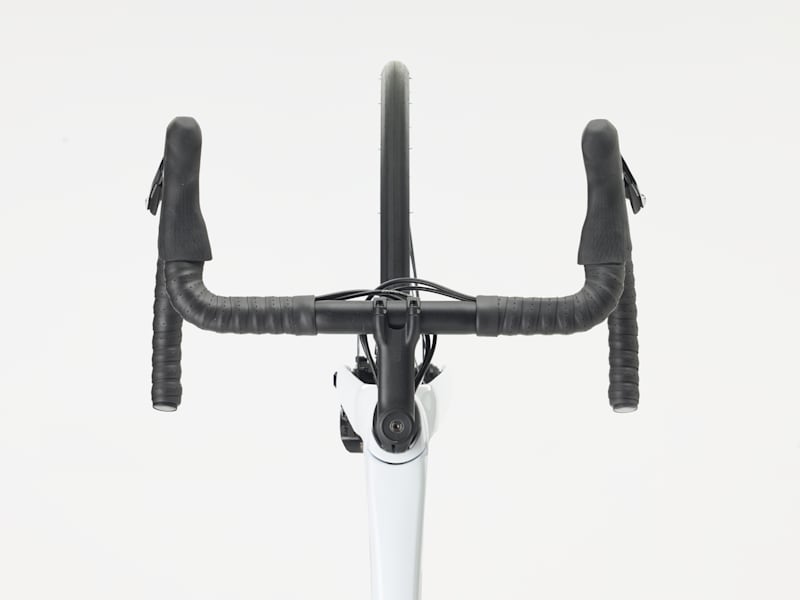

| Handlebar | Bontrager Comp alloy, 31.8 mm, 80 mm reach, 121 mm drop — 38 cm (47–52), 40 cm (54–58) |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7° — 70–110 mm depending on size |

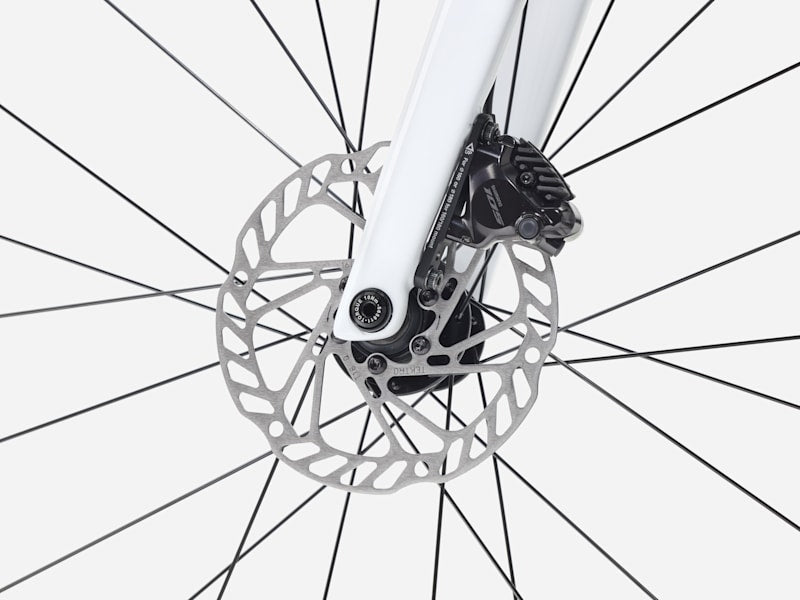

| Brakes | Shimano 105 hydraulic disc, Tektro 6-bolt 160 mm rotors |
Weight
| Bike weight (56) | 9.10 kg / 20.07 lbs |
| Weight limit | 125 kg / 275 lbs total — bike + rider + cargo |
Bike and frame weights are based on pre-production painted frames at time of publication and may vary in final production.
Sizing and geometry
Sizing
| Size | 47 | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|---|
| Rider height | 152–158 cm | 158–163 cm | 163–168 cm | 168–174 cm | 174–180 cm | 180–185 cm | 185–190 cm | 190–195 cm |
All measurements in cm unless stated otherwise.
| Frame size | 52 | 54 | 56 |
|---|---|---|---|
| Seat tube | 48.3 | 49.6 | 52.5 |
| Seat tube angle | 74.2° | 73.7° | 73.3° |
| Head tube length | 12.1 | 13.1 | 15.1 |
| Head angle | 72.8° | 73.0° | 73.5° |
| Effective top tube | 53.4 | 54.3 | 55.9 |
| Bottom bracket drop | 7.2 | 7.0 | 7.0 |
| Chainstay length | 41.0 | 41.0 | 41.0 |
| Wheelbase | 97.7 | 98.1 | 98.3 |
| Standover | 73.2 | 74.4 | 76.8 |
| Frame reach | 38.3 | 38.6 | 39.1 |
| Frame stack | 53.3 | 54.1 | 56.3 |
Full geometry chart for all sizes, plus saddle rail height reference, available in-store.
