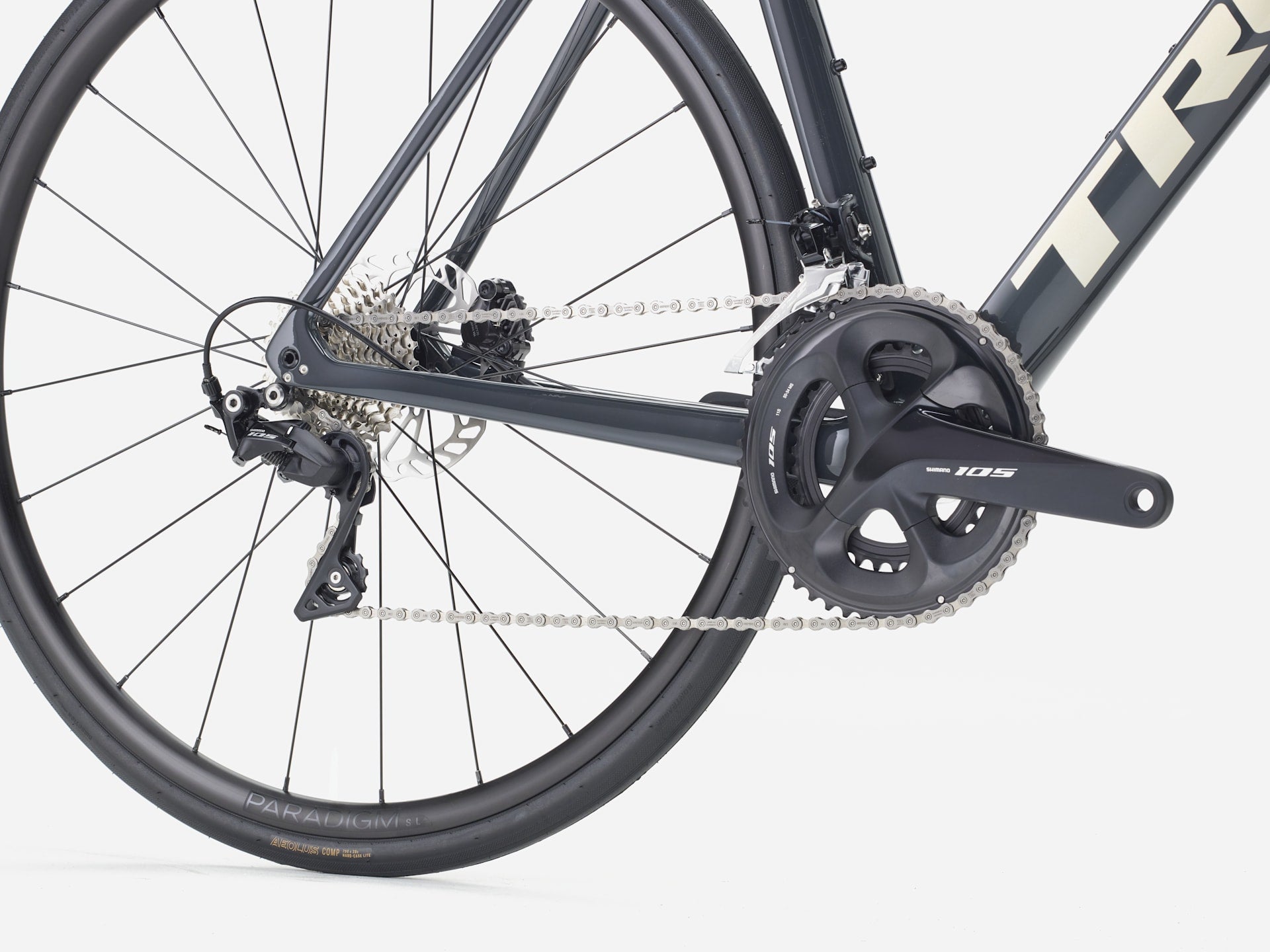

Émonda SL 5 is a lightweight carbon road bike built for soaring up climbs. Its featherweight frame pairs with a 2x11 Shimano 105 drivetrain for clean shifting, while Bontrager Paradigm SL wheels and Aeolus Comp tyres keep handling precise down winding canyon descents.
| Frameset |
|
| Frame |
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
|
| Fork |
|
| Weight |
|
| Weight |
56 - 9.10 kg / 20.07 lbs
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lbs).
|
| Drivetrain |
|
| Shifter |
Shimano 105 R7020, 11-speed
|
| Front derailleur |
Shimano 105 R7000, braze-on
|
| Rear derailleur |
Shimano 105 R7000, short cage, 30T max cog
|
|
*Crank
|
Size: 47, 50, 52, 54 Shimano 105 R7000, 50/34 (compact), 165 mm length
|
|
Size: 56, 58 Shimano 105 R7000, 50/34 (compact), 175 mm length
|
|
| Bottom bracket |
|
| Cassette |
Shimano 105 R7000, 11-30, 11 speed
|
| Chain |
Shimano 105 HG601, 11-speed
|
| Max. chainring size |
1x: 50T, 2x: 53/39
|
| Wheels |
|
| Hub front |
Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
|
| Skewer front |
|
| Hub rear |
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
|
| Skewer rear |
|
| Rim |
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
|
| Spokes |
14 g stainless steel, black
|
| Tyre |
Size: 47, 50, 52, 54, 56, 58 Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm Size: 47, 50, 52, 54, 56, 58 Bontrager Aeolus Comp, Hardcase Lite, wire bead, 60 tpi, 700x28 mm
|
| Max tyre size |
28 mm (as measured, see manual for details) |
| Components |
|
|
*Saddle |
|
|
|
|
|
*Seatpost |
Size: 47, 50, 52, 54 Bontrager alloy seat mast cap, 10 mm offset, short length
|
|
Size: 56, 58 Bontrager alloy seat mast cap, 10 mm offset, tall length
|
|
|
*Handlebar
|
Size: 47, 50, 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
|
|
Size: 54, 56, 58 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
|
|
|
|
|
| Handlebar tape |
Bontrager Supertack Perf tape
|
|
*Stem
|
|
|
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length Size: 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110mm length
|
|
| Brake |
Shimano 105 hydraulic disc
|
| Brake rotor |
Tektro, 6-bolt, 160mm
|
| Rotor size |
Max brake rotor sizes: 160 mm front and rear
|
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
| Size |
47 |
50 |
52 |
54 |
56 |
58 |
60 |
62 |
| Rider Height |
152 - 158 cm 5'0" - 5'2" |
158 - 163 cm 5'2" - 5'4" |
163 - 168 cm 5'4" - 5'6" |
168 - 174 cm 5'6" - 5'9" |
174 - 180 cm 5'9" - 5'11" |
180 - 185 cm 5'11" - 6'1" |
185 - 190 cm 6'1" - 6'3" |
190 - 195 cm 6'3" - 6'5" |
| Inseam |
71 - 75 cm 28" - 30" |
74 - 77 cm 29" - 30" |
76 - 79 cm 30" - 31" |
78 - 82 cm 31" - 32" |
81 - 85 cm 32" - 33" |
84 - 87 cm 33" - 34" |
86 - 90 cm 34" - 35" |
89 - 92 cm 35" - 36" |
| Frame size number |
52 cm |
54 cm |
56 cm |
| Wheel size |
700c |
700c |
700c |
| A — Seat tube |
48.3 |
49.6 |
52.5 |
| B — Seat tube angle |
74.2° |
73.7° |
73.3° |
| C — Head tube length |
12.1 |
13.1 |
15.1 |
| D — Head angle |
72.8° |
73.0° |
73.5° |
| E — Effective top tube |
53.4 |
54.3 |
55.9 |
| G — Bottom bracket drop |
7.2 |
7 |
7 |
| H — Chainstay length |
41 |
41 |
41 |
| I — Offset |
4.5 |
4.5 |
4 |
| J — Trail |
5.8 |
5.6 |
5.8 |
| K — Wheelbase |
97.7 |
98.1 |
98.3 |
| L — Standover |
73.2 |
74.4 |
76.8 |
| M — Frame reach |
38.3 |
38.6 |
39.1 |
| N — Frame stack |
53.3 |
54.1 |
56.3 |
| Stem length |
90 |
90 |
100 |
| Saddle rail height min (w/short mast) |
61.5 |
64 |
67 |
| Saddle rail height max (w/short mast) |
67.5 |
70 |
73 |
| Saddle rail height min (w/tall mast) |
65 |
67.5 |
70.5 |
| Saddle rail height max (w/tall mast) |
71 |
73.5 |
76.5 |
