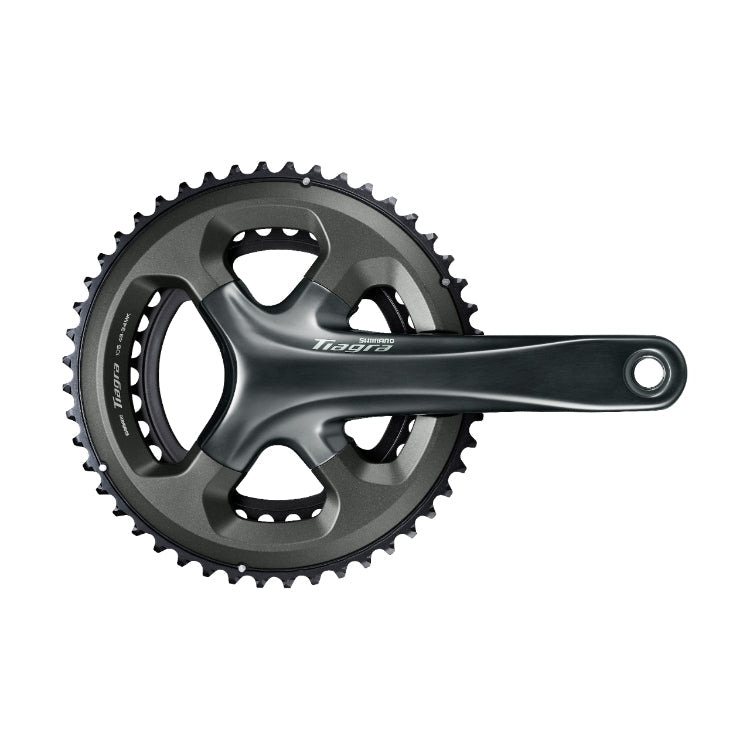

Shimano Tiagra FC-4700 Crankset
Shimano Tiagra FC-4700 Crankset
SKU: EFC4700CX04
UPC: 689228925908
Couldn't load pickup availability
Pick up in-store
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.
Shimano Tiagra FC-4700 2x10-Speed Road Crankset
The Shimano Tiagra FC-4700 crankset delivers an ideal balance of stiffness, weight, and pedalling efficiency for road cyclists. Designed for Shimano Tiagra 4700 2x10-speed drivetrains, it features a reinforced 4-arm construction that maximises power transfer while maintaining a lightweight design for long rides and fast-paced training.
Available in multiple chainring combinations and crank arm lengths, the FC-4700 offers the versatility to suit a wide range of riding styles, from steep climbs to high-speed road riding.
Features
- Designed for Shimano Tiagra 2x10-speed road drivetrains
- Optimal balance between stiffness and lightweight construction
- Efficient power transfer for improved pedalling performance
- Reinforced 4-arm crank design
- 110 mm BCD (Bolt Circle Diameter)
- Optimised chainring profile for HG-X 10-speed chains
- Available chainring combinations: 50-34T, 52-36T, and 48-34T
- Available crank arm lengths: 165 mm, 170 mm, 172.5 mm, and 175 mm
- Compatible with Shimano Hollowtech II outboard bottom brackets
Specifications
| Model | FC-4700 |
| Series | Shimano Tiagra 4700 |
| Speed | 2x10-Speed |
| Crank Construction | Hollowtech II 2-Piece |
| Chainring Options | 48-34T / 50-34T / 52-36T |
| Crank Arm Lengths | 165 mm / 170 mm / 172.5 mm / 175 mm |
| Bolt Circle Diameter (BCD) | 110 mm |
| Spider Arms | 4 |
| Chainline | 43.5 mm |
| Q-Factor | 150 mm |
| Compatible Chain | Shimano HG-X 10-Speed |
| Compatible Bottom Bracket | BB-RS500 (Threaded) / BB-RS500-PB (Press-Fit) |
| Bottom Bracket Shell Width | 68 mm / 70 mm |
| Crank Fixing Bolt Included | Yes |
