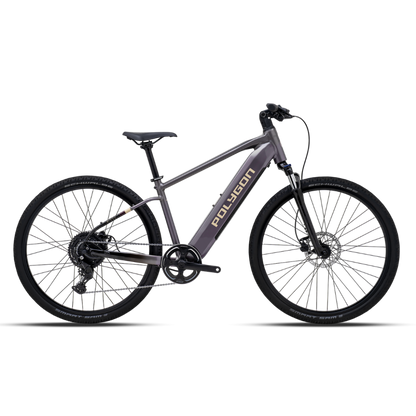

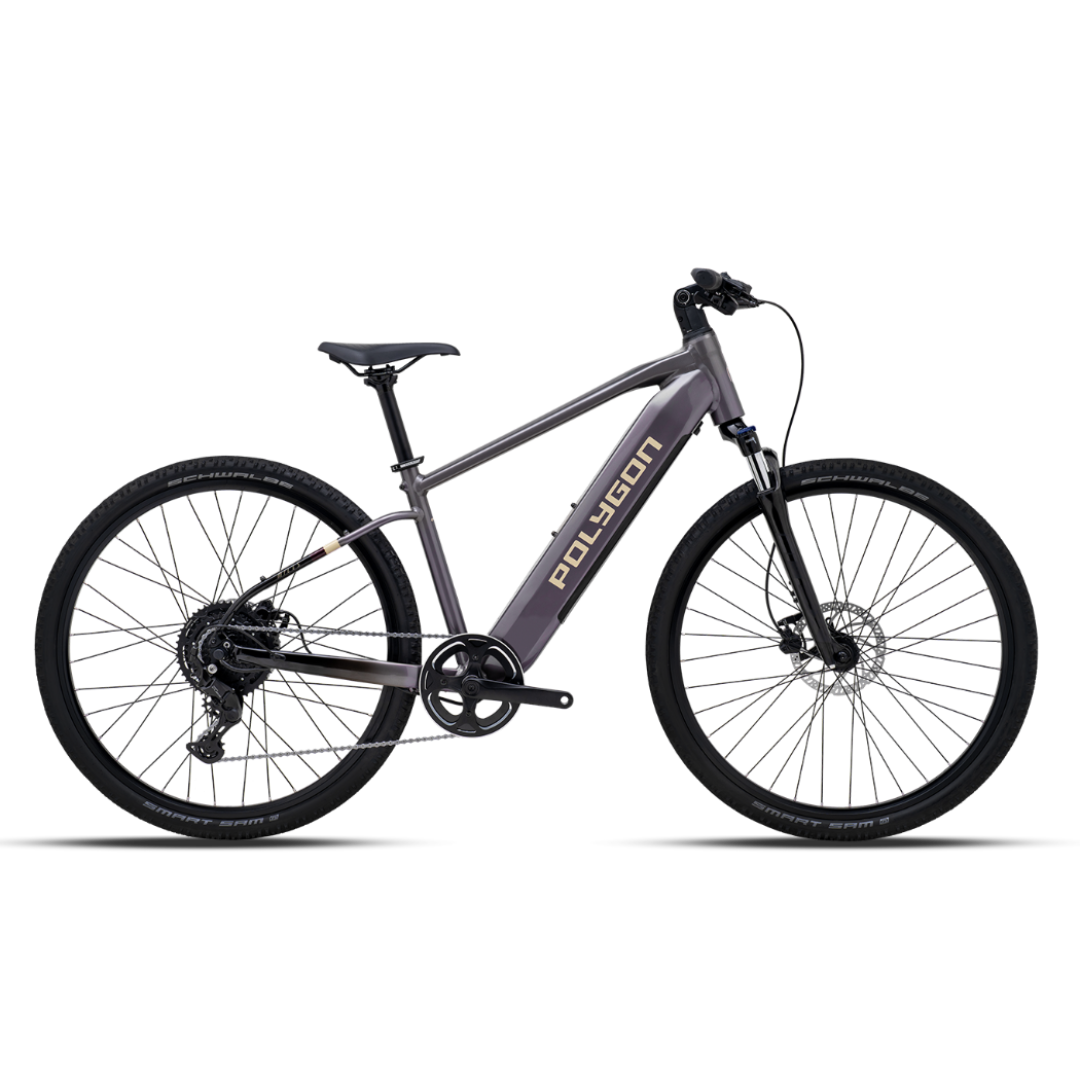

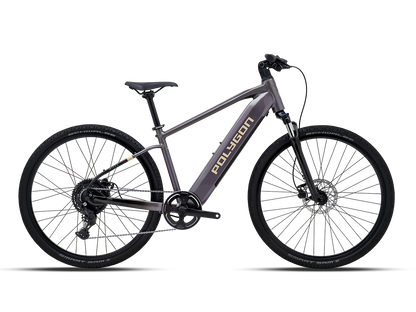

Polygon Kalosi Miles High Step - Electric Hybrid Bike - Charcoal
Polygon Kalosi Miles High Step - Electric Hybrid Bike - Charcoal
SKU: POLY-KALOSI-MILES-HS-CHAR-M
Pick up in-store
Ships out (for delivery)
Calculating…
Delivery time depends on parcel size and destination pincode — you'll see an estimate at checkout. Choosing in-store pickup instead? See pickup availability above.
2025 Polygon Kalosi Miles High Step — an electric hybrid bike built for effortless city commuting and weekend escapes. Pedal-assist power meets an upright, comfortable geometry so steep hills feel flat and long distances feel quick.
The Kalosi Miles pairs a rear hub motor with a torque sensor for smooth, intuitive assist, a front suspension fork with high-volume 700C tires to soak up potholes and cobblestones, and Shimano hydraulic disc brakes for confident stopping power in any weather.
Highlights
- ALX Urban-Commuting alloy frame, High Step
- Bafang rear hub motor, 36V 250W with torque sensor
- Greenway 520Wh battery — under 4 hours to charge, up to 120km range on full assist
- Max assisted speed: 32 km/h | 5 power modes incl. Walk Assist
- SR Suntour SF20-NEX front suspension fork, 63mm travel
- Shimano CUES 1x9-speed drivetrain
- Shimano MT200 hydraulic disc brakes, 180mm rotors
- 29" wheels, Urban Performance 700C tires
- Max rider load: 125kg
- Frame warranty: 5 years | Battery & motor warranty: 2 years
Specifications
Frameset
Frame: ALX Urban-Commuting
Fork: SR Suntour SF20-NEX, 63mm travel
Available Sizes: M, L
Drivetrain
Shifter: Shimano CUES SL-U4010-R, 1x9-speed trigger
Crank: Prowheel EB01-PRO44A-S3, 44T x 170mm
Cassette: Shimano CUES CS-LG300-9, 9-speed 11-46T
Rear Derailleur: Shimano CUES RD-U4000, 9-speed
Chain: KMC eGlide 9/10/11-speed
Cockpit
Saddle: LINC Ease, steel
Seatpost: Polygon Sport, 30.9 x 350mm
Handlebar: Polygon Sport, W: 680mm
Stem: Polygon Sport (adjustable), 75mm
Wheel & Tire
Wheel Size: 29"
Tire: Urban Performance 700C
Rim: Alloy double wall, 36H
Hub: Front alloy 36H / Rear Bafang DC motor 36V 250W
Brakes
Lever: Shimano MT200
Caliper: Shimano MT200 hydraulic disc
Rotor: Shimano RT26, 180mm
Electric System
Motor: Bafang rear DC motor, 36V 250W
Sensor: Bafang torque sensor
Battery: Greenway ZZ618 520Wh, LG21700 cells
Geometry & Size Chart (mm)
| Measurement | M | L |
|---|---|---|
| Rider Height (cm) | 160–170 | 170–180 |
| Seat Tube Length (A) | 431 | 470 |
| Seat Tube Angle (B) | 74° | 74° |
| Effective Seat Tube Angle (C) | 74° | 74° |
| Head Tube Length (D) | 120 | 130 |
| Head Tube Angle (E) | 73° | 73° |
| Effective Top Tube (F) | 593 | 621 |
| BB Height (G) | 294.5 | 294.5 |
| BB Offset (H) | 70 | 70 |
| Chainstay Length (I) | 445 | 445 |
| Wheelbase (J) | 1091 | 1119 |
| Frame Reach (K) | 415 | 440 |
| Frame Stack (L) | 621 | 630.5 |
| Standover Height (M) | 714 | 748 |
Note: We currently have Size M in stock. Size L may be available on request — contact the store for availability.
What's Included
Bike comes fully assembled/tuned. Charger included with battery.
