Magene EXAR Pro DB58 Carbon Wheelset-58mm (Disc Brake)
Magene EXAR Pro DB58 Carbon Wheelset-58mm (Disc Brake)

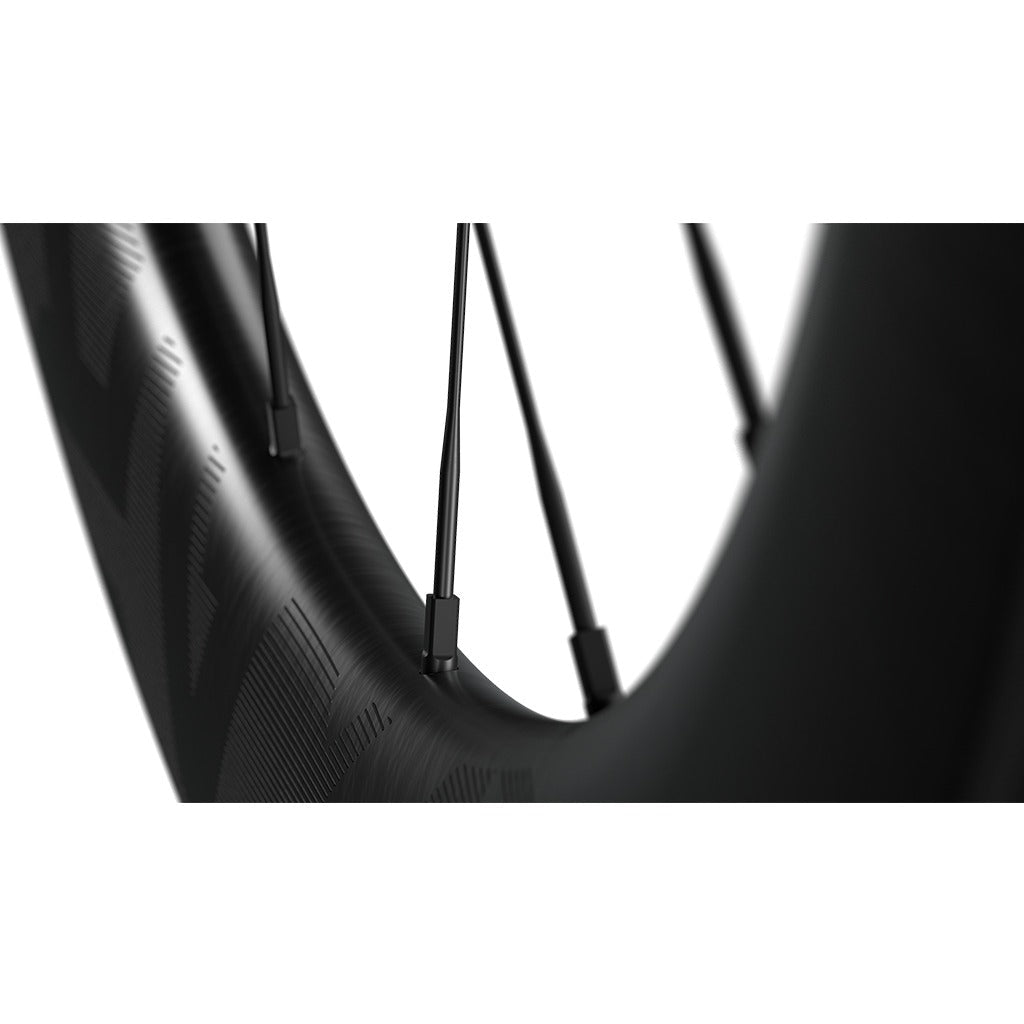

Magene EXAR Pro DB58 Carbon Wheelset
The Magene EXAR Pro DB58 Carbon Wheelset is designed for riders seeking aerodynamic efficiency, high-speed stability, and responsive acceleration in a lightweight disc brake platform.
Built using HI-MOD carbon fiber rims and optimized spoke geometry, the EXAR Pro Series combines low rotational weight with excellent stiffness and power transfer. The 58mm deep rim profile is engineered for sustained speed and aerodynamic performance while maintaining predictable handling in demanding riding conditions.
With DT-compatible 36T ratchet engagement, tubeless-ready compatibility, and balanced 2:1 spoke lacing, the DB58 is built for competitive road riding, fast endurance efforts, and aero-focused bike builds.
Features
- HI-MOD carbon fiber rim construction for lightweight stiffness
- 58mm aerodynamic rim profile optimized for speed and efficiency
- 36T flat ratchet system with fast and precise engagement
- 27mm wide rim profile improves aerodynamics with modern wider tires
- 2:1 spoke lacing pattern improves wheel balance and power transfer
- UCI approved carbon wheel construction
- Compatible with tubeless and clincher tire systems
- Factory-installed tubeless rim tape for simplified setup
- Optimized hub geometry improves stiffness and durability
- Disc brake specific design with thru-axle compatibility
Specifications
| Product Name | Magene EXAR Pro DB58 |
|---|---|
| Series | EXAR Pro Series 2025 |
| Brake Compatibility | Disc Brake (Centerlock) |
| Rim Height | 58 mm |
| External Rim Width | 27 mm |
| Internal Rim Width | 20 mm |
| Rim Material | HI-MOD Carbon Fiber |
| Spokes | Pillar Wing21 |
| Front Spoke Tension | 100 kgf ±10% |
| Rear Spoke Tension | Drive Side 120 kgf ±10% / Non-Drive Side 110 kgf ±10% |
| Front Spoke Lacing | 21H 2:1, Brake Side ×2, Non-Brake Side Radial |
| Rear Spoke Lacing | 21H 2:1, Drive Side ×2, Brake Side Radial |
| Ratchet System | 36T Flat Ratchet |
| Frame Compatibility | 100/142 mm Thru-Axle |
| Optional Compatibility | 100/135 mm Quick Release (Available Separately) |
| Freehub Standard | Shimano 11-Speed |
| Optional Freehub Compatibility | Campagnolo N3W / SRAM XDR (Sold Separately) |
| Cassette Compatibility | Shimano 8–12 Speed, SRAM 8–12 Speed, Campagnolo 8–13 Speed |
| Tire Compatibility | Clincher and Tubeless Tires |
| Recommended Tire Width | 28c – 32c |
| Minimum Compatible Tire Width | 25c and Above |
| Maximum Tire Pressure |
Clincher: 120 psi (25c), 110 psi (28c), 100 psi (30c), 90 psi (32c) Tubeless: 110 psi (25c), 100 psi (28c), 90 psi (30c), 80 psi (32c) |
| Weight | 1500 g ±3% |
Technologies
- Automatic carbon fiber winding technology improves stiffness consistency
- 2:1 balanced spoke lacing improves pedaling efficiency and wheel balance
- FEA-optimized hub structure enhances stiffness and durability
- Wide rim profile improves aerodynamic efficiency with modern wider tires
- Self-locking spoke nipples improve spoke retention and wheel reliability
In The Box
- Carbon Fiber Front Wheel ×1
- Carbon Fiber Rear Wheel ×1
- Factory-Installed Tubeless Rim Tape ×2
- Tubeless Valves ×2
- User Manual ×1
Designed For
- Performance Road Cycling
- Aero Road Bike Builds
- High-Speed Endurance Riding
- Competitive Racing
- Disc Brake Road Bikes
