Chapter2 TERE All-Road Disc Brake Frameset-Glossy Black
Chapter2 TERE All-Road Disc Brake Frameset-Glossy Black
Important: This listing is available as both a Frameset and a Full Bike Build option. Components, wheels, cockpit, drivetrain, and overall specifications may vary depending on the selected build configuration and component availability.
For complete build details, custom build options, pricing, and availability, please contact us directly before placing your order.

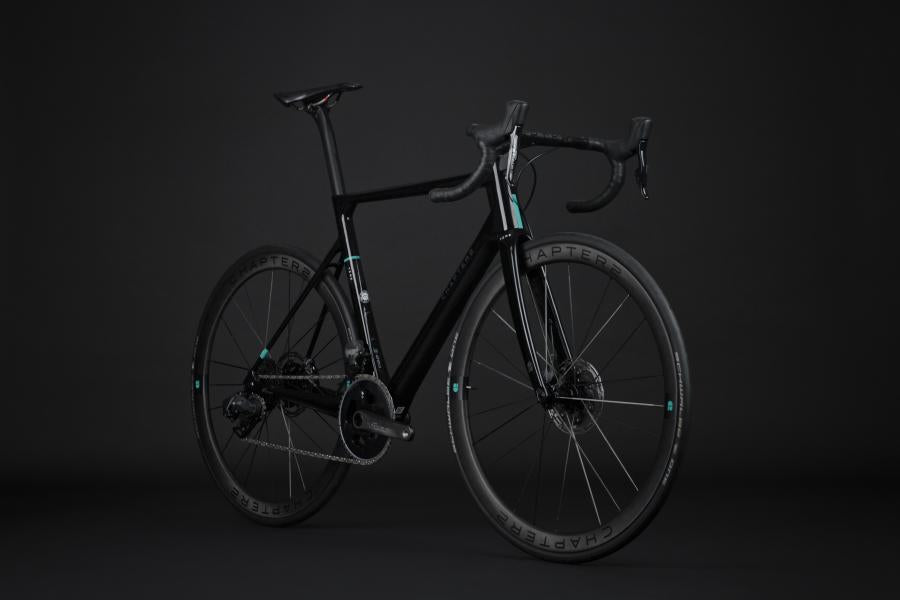

Chapter 2 TERE
The CHAPTER2 TERE is a high-performance all-road frameset designed for riders who want speed, stiffness, and long-distance comfort in one package.
Built using premium Toray carbon fibre with aerodynamic Kamm-Tail tube shaping, the TERE delivers efficient power transfer, confident handling, and excellent ride quality for racing, climbing, endurance rides, and fast weekend spins.
Dropped seat stays and a compliant seatpost help reduce road vibrations for improved comfort during long rides, while the lightweight carbon construction keeps the bike responsive and agile.
Features
- Performance all-road carbon frameset
- Toray T700 & T800 carbon construction
- Aerodynamic Kamm-Tail tube profiles
- Stiff bottom bracket area for efficient power transfer
- High modulus carbon headtube for precise cornering
- Dropped seat stays for improved comfort
- Compatible with Shimano Di2, SRAM eTap & Campagnolo EPS
- UCI Approved frameset
- Disc brake compatible
- Tyre clearance up to 28mm
What’s Included
- Frame
- Fork
- Seatpost
- Headset
- Headset spacer kit
- Thru axles
- C2 fork expansion bolt
Specifications
| Frame Material | Toray T700, T800 & 3K Directional Carbon |
|---|---|
| Frame Weight | 1015g (Disc - Size M ±3%) |
| Fork Weight | 425g Uncut ±3% |
| Bottom Bracket | BB86.5 Press Fit |
| Headset | CHAPTER2 Tapered 1-1/8” – 1.5” |
| Brake Mount | Flat Mount Disc |
| Thru Axle | 12x100mm Front / 12x142mm Rear |
| Tyre Clearance | Up to 28mm |
| Electronic Shifting Compatibility | Shimano Di2, SRAM eTap, Campagnolo EPS |
| UCI Approved | Yes |

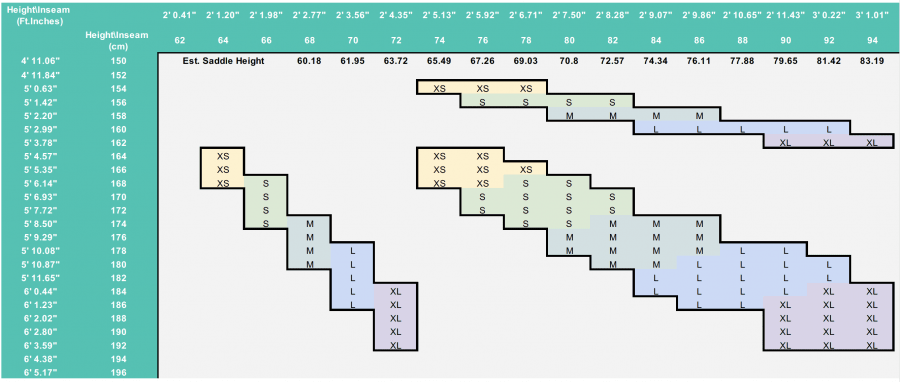

Size Information
Available Size: M
| Frame Size | Recommended Rider Height |
|---|---|
| M | 170cm – 180cm |

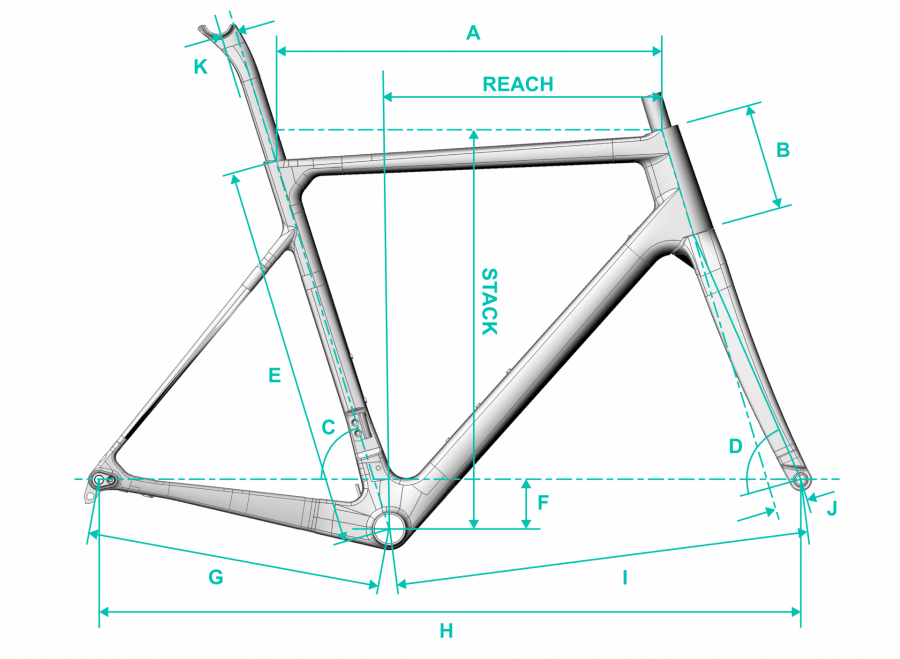

Geometry - Size M
| Measurement | Size M |
|---|---|
| Top Tube Length | 548mm |
| Head Tube Length | 153mm |
| Seat Tube Angle | 73° |
| Head Tube Angle | 73° |
| Seat Tube Length | 535mm |
| BB Drop | 68mm |
| Chainstay Length | 405mm |
| Wheelbase | 970mm |
| Front Centre | 575mm |
| Fork Offset | 43mm |
| Seatpost Setback | 20mm |
| Stack | 555mm |
| Reach | 378mm |
| Standover Height | 800mm |
| Recommended Rider Height | 170cm – 180cm |
