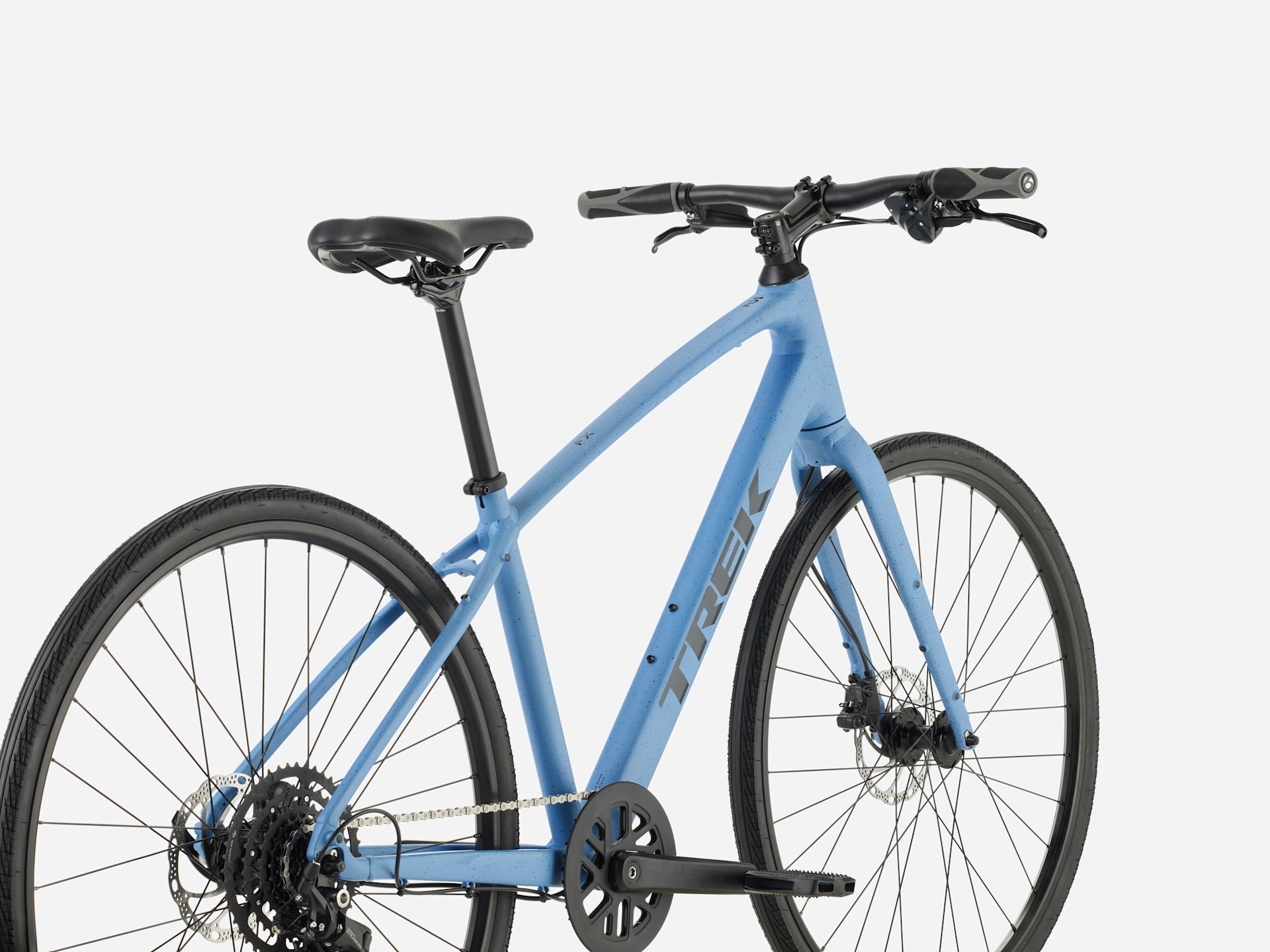

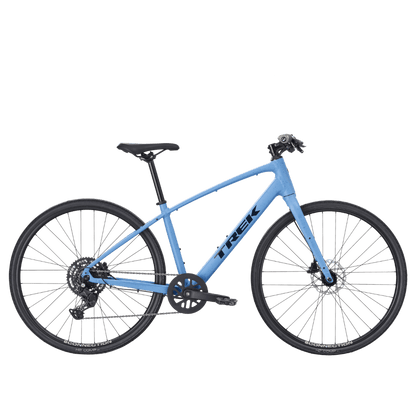

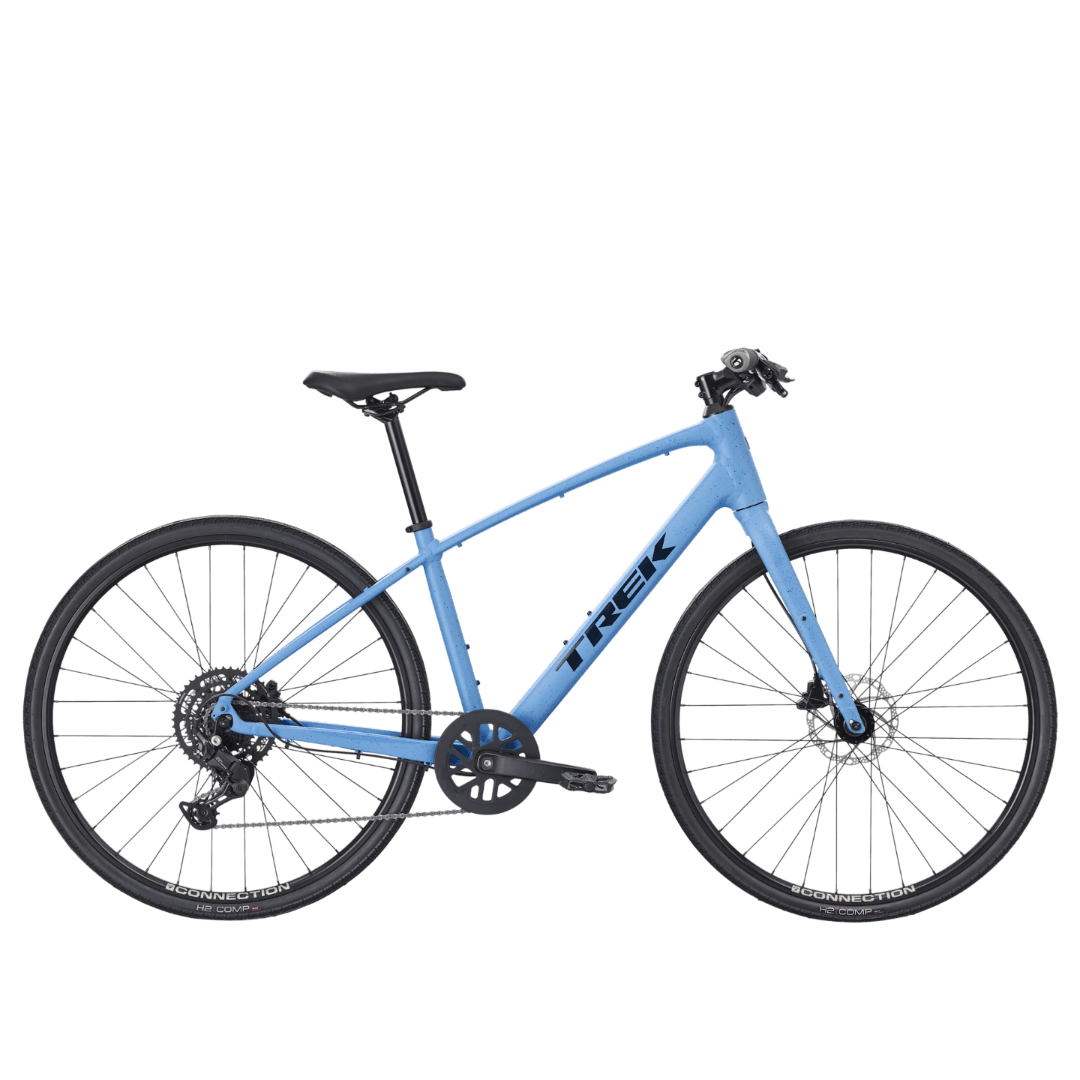

Trek FX 2 Disc Gen 4 - Fjord Blue
Trek
Trek FX 2 Disc Gen 4 - Fjord Blue
🚴 Trek Bikes – In-Store Purchase Only
Trek bicycles and Bontrager accessories are not available for online purchase and can only be bought from our physical stores.
This ensures you get the right size, proper bike fit, and expert guidance before making your purchase.
📞 Call / WhatsApp: +91 7020425618
📍 Viman Nagar | Wakad | Bavdhan (Pune)
Free basic bike setup & sizing assistance included.
The FX 2 is a stylish and versatile hybrid bike with disc brakes that let you stop on a penny – even when the weather isn't cooperating. Exercise, commute or ride for fun with the lightweight aluminium frame, 18 speeds and versatile, long-lasting tyres that are fast on the road and stable on loose terrain.
FEATURES
It's right for you if...
Raining cats and dogs? That shouldn't keep you from riding. You want a high-value hybrid bike with the superior all-weather stopping power of disc brakes, plus a lightweight frame and quality parts that will hold up over time.
The tech you get
A lightweight aluminium frame with hydraulic disc brakes for all-weather stopping power, a Shimano drivetrain with 9 speeds and a wide range of gearing so you're never pedalling too hard or too soft, powerful disc brakes and mounts that make it easy to accessorise your ride!
The final word
The FX 2 is a hybrid bike with parts that perform on fitness rides, trips to the market or your morning commute. It has endless options for accessories and powerful disc brakes, which provide superior stopping power in all-weather conditions.
Why you'll love it
- More confident braking means that bad weather doesn't have to keep you from enjoying your ride
- It's versatile and does whatever you want it to do, whether that's riding for fitness, commuting or cruising to the farmer's market to do the weekly shop
- The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
- Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners
- Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners
SPECIFICATIONS
*Please note - spec applies to all sizes unless listed separately
| Frameset | |
| Frame |
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
|
| Fork |
FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
|
| Wheels | |
| Hub front | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |

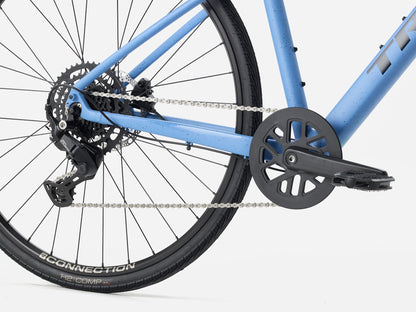

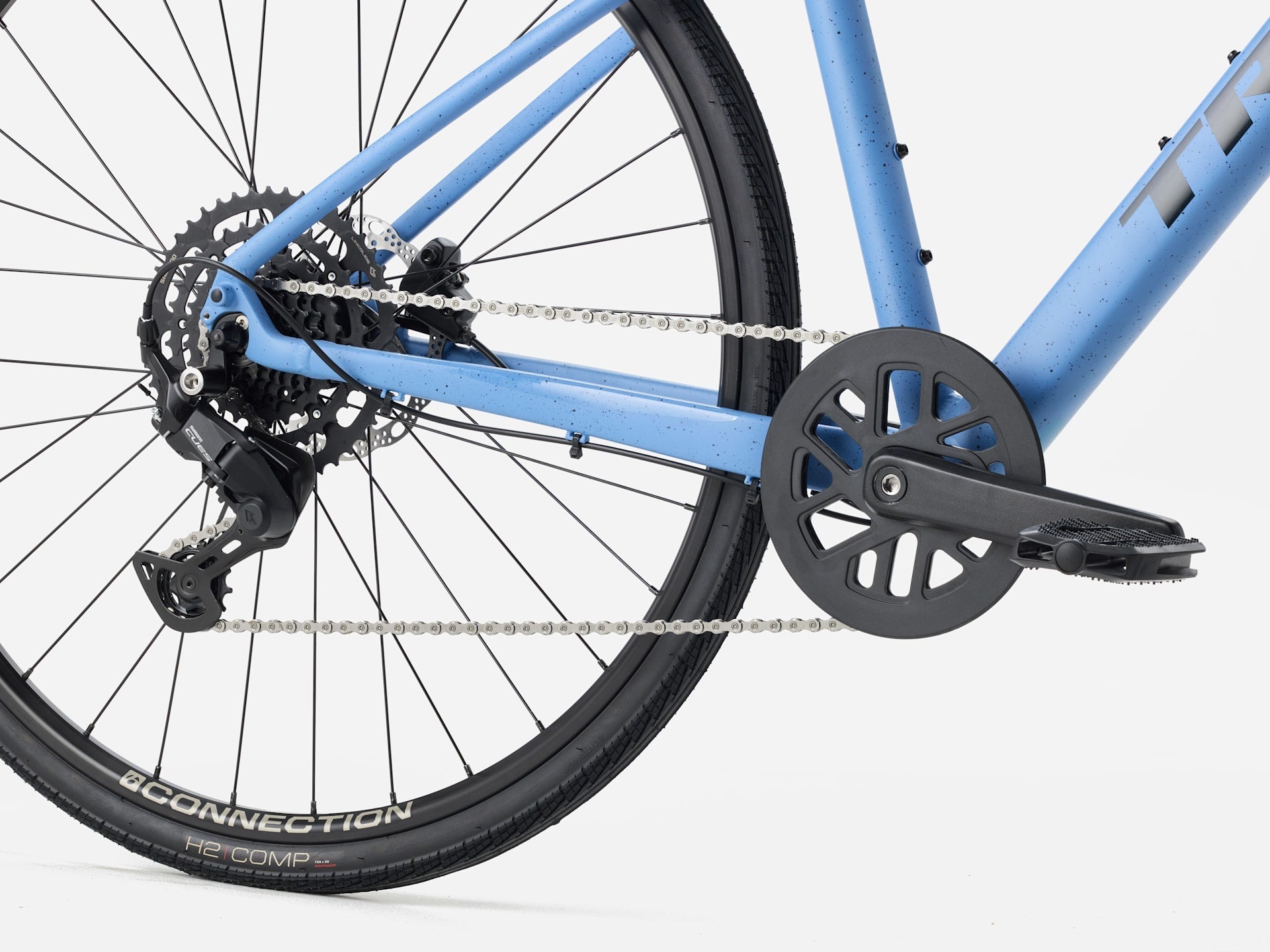

| Drivetrain | |
| Shifter | Shimano U4000, 9-speed |
| Rear derailleur | Shimano CUES U4000 |
| Crank | ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Pedal | Bontrager City pedals |
| Components | |
| Saddle | Bontrager Sport |
| *Seatpost | Size: S, M |
| Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length | |
| Size: L, XL | |
| Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length | |

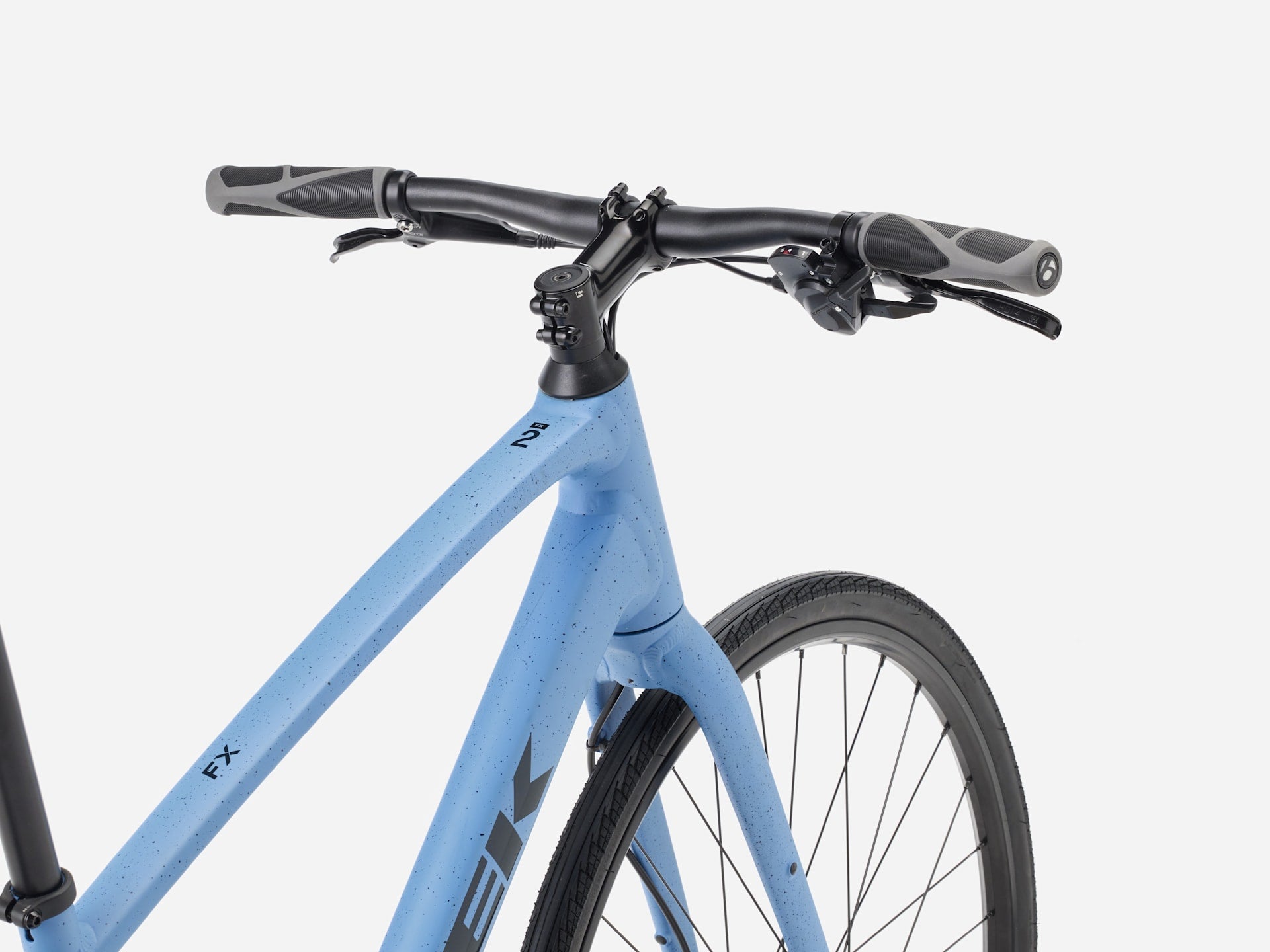

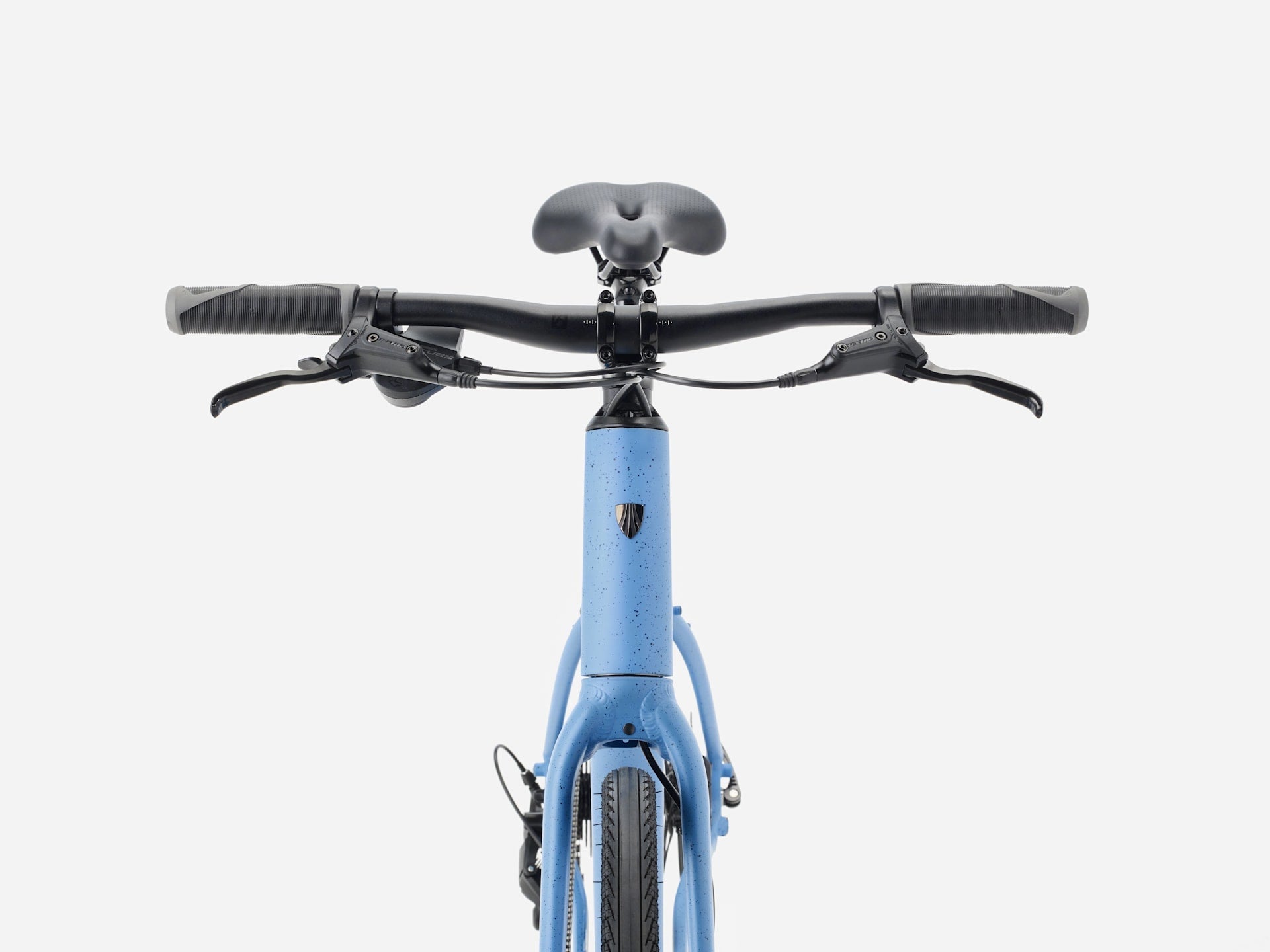

| *Handlebar | Size: S, M |
| Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width | |
| Size: L, XL | |
| Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width | |
| *Stem | Size: S, M |
| Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length | |
| Size: L, XL | |
| Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length | |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Brake Set | Tektro HD-R280 hydraulic disc, 160 mm rotor |
| Weight | WeightM - 12.10 kg / 26.68 lbsWeight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
SIZING AND GEOMETRY
| Size | Rider Height | Inseam |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| Frame size number | 45 |
| Frame size letter | S |
| Wheel size | 700c |
| A — Seat tube | 37.5 |
| B — Seat tube angle | 74.5° |
| C — Head tube length | 14 |
| D — Head angle | 70.5° |
| E — Effective top tube | 54.3 |
| F — Bottom bracket height | 28.5 |
| G — Bottom bracket drop | 6.5 |
| H — Chainstay length | 44.7 |
| I — Offset | 5 |
| J — Trail | 7.1 |
| K — Wheelbase | 105.9 |
| L — Standover | 71.5 |
| M — Frame reach | 38.5 |
| N — Frame stack | 56.8 |
