🚴 Trek Bikes – In-Store Purchase Only
Trek bicycles and Bontrager accessories are not available for online purchase and can only be bought from our physical stores.
This ensures you get the right size, proper bike fit, and expert guidance before making your purchase.
📞 Call / WhatsApp: +91 7020425618
📍 Viman Nagar | Wakad | Bavdhan (Pune)
Free basic bike setup & sizing assistance included.
The Émonda SL 5 Disc is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics, a Shimano 105 drivetrain and the added benefit of free speed thanks to aero tube shaping. It's a great choice for century rides on hilly terrain, windy flats and speedy descents.FEATURES
It's right for you if...
You want the performance of a light, fast carbon bike at a great value. You're a new racer or dedicated road rider looking to upgrade from an aluminium bike, and you want dependable parts, confident stopping power and the weight savings and ride quality of an aerodynamic OCLV Carbon frame.
The tech you get

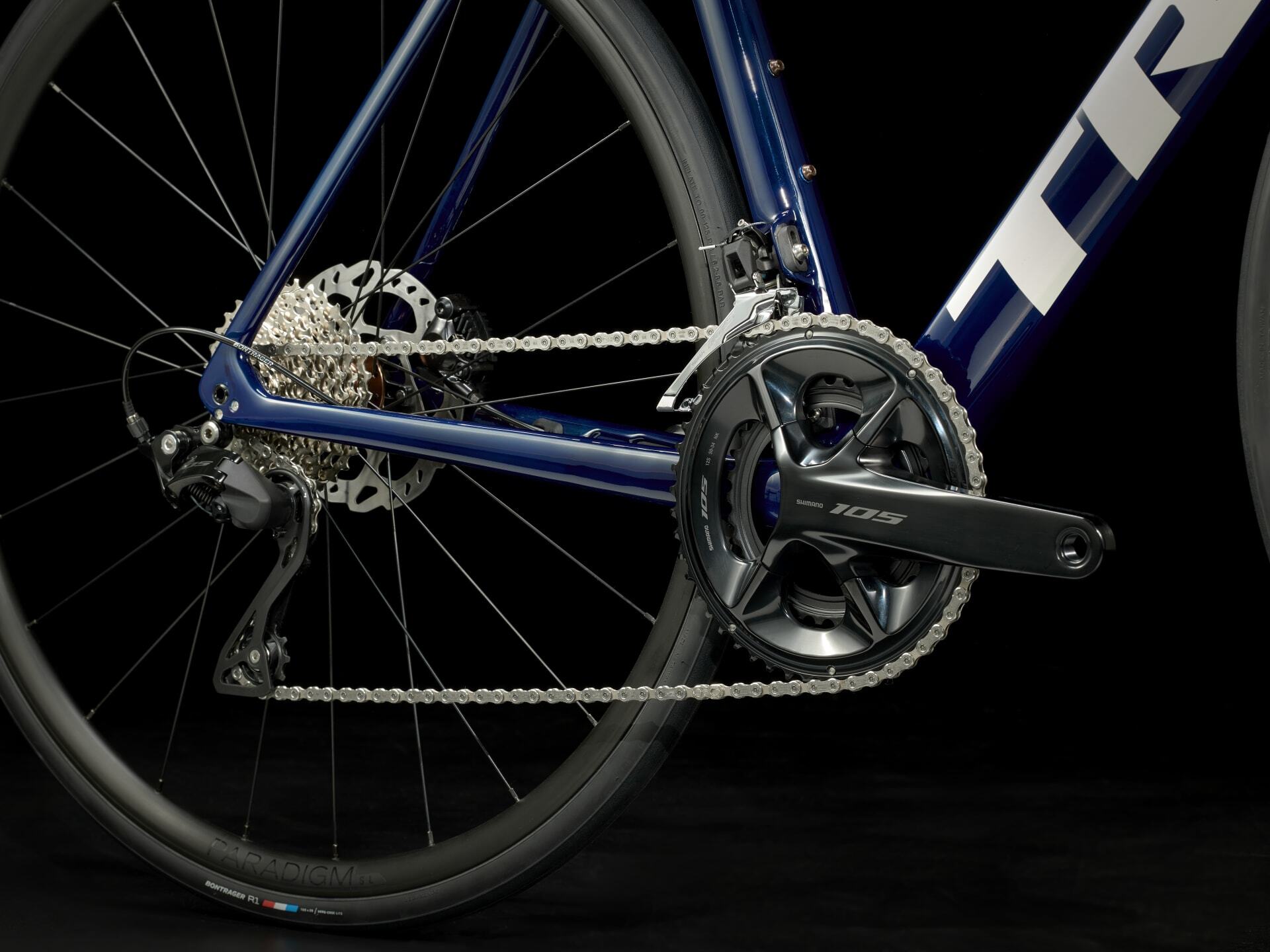

A lightweight and aerodynamic 500 Series OCLV Carbon frame and fork, a full Shimano 105 12-speed drivetrain, powerful flat-mount Shimano hydraulic disc brakes, internal cable routing for clean looks and Bontrager Paradigm SL Tubeless Ready wheels.
The final word
This light and aerodynamic bike is flat-out fast up climbs and on straightaways. It delivers all the stopping power and control you'll need for big descents. The hydraulic disc brake upgrade and reliable drivetrain make it a great choice for your first carbon road bike.
Why you'll love it
- You get a lot for your money: The Émonda SL 5 Disc is light, fast, fun to ride, equipped with a Shimano 105 drivetrain and ready to race
- Aerodynamic tube shaping makes this Émonda ready to roll wicked fast on flats and climbs alike
- It makes the perfect high-value upgrade from an aluminium road bike

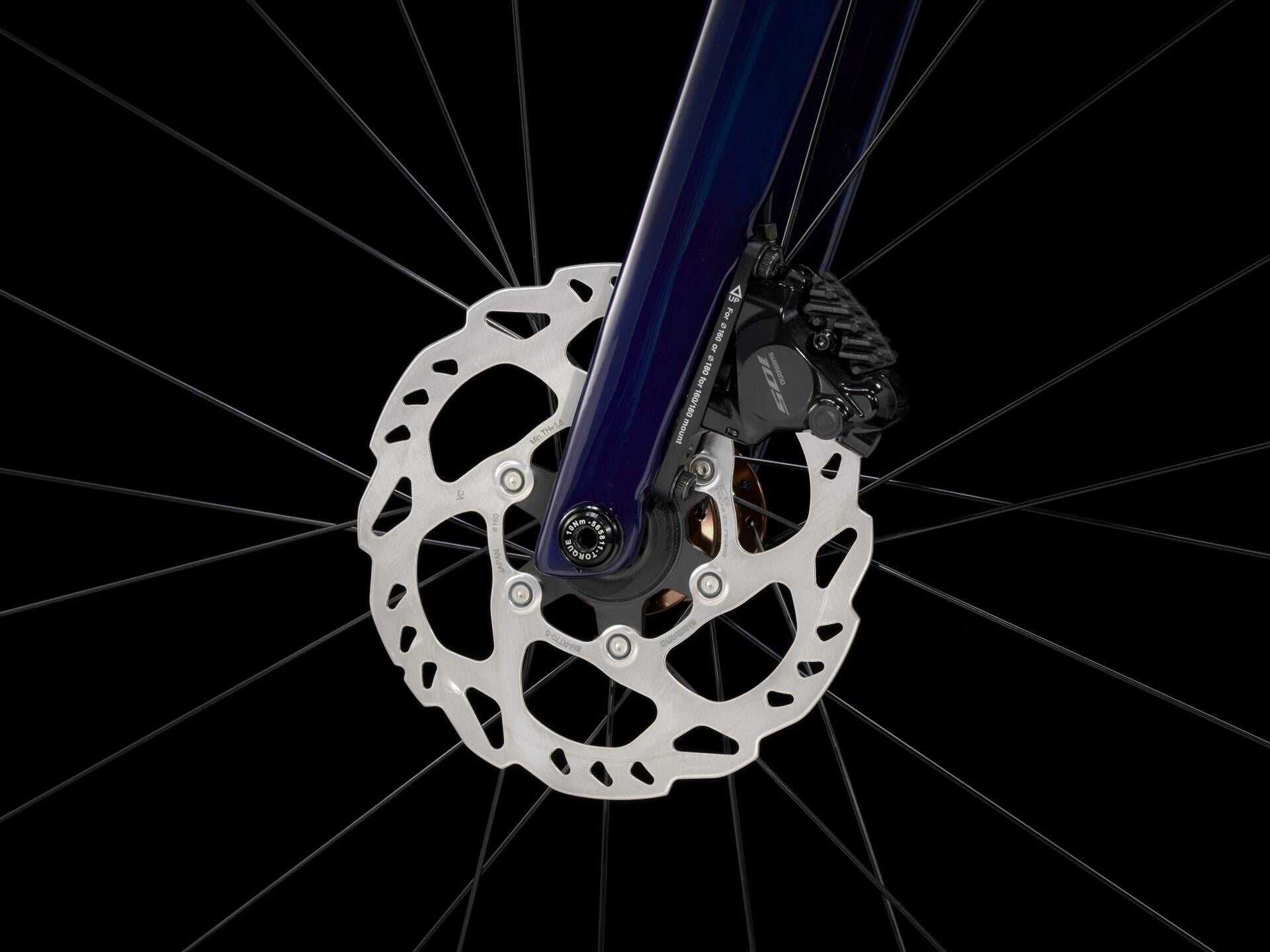

- Hydraulic disc brakes give you stopping power and control in any weather, on any road
- Like every Émonda, it's light and fast – and it's backed by our lifetime warranty
Outstanding bikes for everyone
Every rider – regardless of gender, body type, riding style or ability – deserves a great bike. The all-new Émonda is equipped with size-specific components that deliver a great fit to competitive riders of all genders.
SPECIFICATIONS
| Frameset |
|
| Frame |
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
|
| Fork |
|
| Weight |
|
| Weight |
56 - 9.05 kg / 19.96 lbs (with tubes)
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
|
| Drivetrain |
|
| Shifter |
Shimano 105 R7120, 12-speed
|
| Front derailleur |
Shimano 105 R7100, braze-on, down swing
|
| Rear derailleur |
Shimano 105 R7100, 36T max cog
|
|
*Crank
|
Size: 50, 52
Shimano 105 R7100, 50/34, 170 mm length |
|
Size: 54, 58
Shimano 105 R7100, 50/34, 172.5 mm length |
|
| Bottom bracket |
|
| Cassette |
Shimano 105 7101, 11-34, 12-speed
|
| Chain |
Shimano SLX M7100, 12-speed
|
| Max. chainring size |
1x: 50T, 2x: 53/39
|
| Wheels |
|
| Hub front |
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
|
| Skewer front |
|
| Hub rear |
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
|
| Skewer rear |
|
| Rim |
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
|
| Spokes |
14 g stainless steel, black
|
| Tyre |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
|
| Max tyre size |
28 mm |
| Components |
|
|
*Saddle
|
Size: 50, 52
Verse Short Comp, steel rails, 155 mm width |
|
Size: 54, 58
Verse Short Comp, steel rails, 145 mm width |
|
|
*Seatpost
|
Size: 50, 52, 54
Bontrager alloy seat mast cap, 10 mm offset, short length |
|
Size: 58
Bontrager alloy seat mast cap, 10 mm offset, tall length |
|
|
*Handlebar
|
Size: 50
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
|
Size: 52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
|
Size: 54, 58
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Handlebar tape |
Bontrager Supertack Perf tape
|
|
*Stem
|
Size: 50
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
|
Size: 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
|
| Brake |
Shimano 105 hydraulic disc
|
| Brake rotor |
Shimano RT70, centerlock, 160mm
|
| Rotor size |
Max brake rotor sizes: 160 mm front and rear
|
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
SIZING
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
| Size |
47 |
50 |
52 |
54 |
56 |
58 |
60 |
62 |
| Rider Height |
152 - 158 cm 5'0" - 5'2" |
158 - 163 cm 5'2" - 5'4" |
163 - 168 cm 5'4" - 5'6" |
168 - 174 cm 5'6" - 5'9" |
174 - 180 cm 5'9" - 5'11" |
180 - 185 cm 5'11" - 6'1" |
185 - 190 cm 6'1" - 6'3" |
190 - 195 cm 6'3" - 6'5" |
| Inseam |
71 - 75 cm 28" - 30" |
74 - 77 cm 29" - 30" |
76 - 79 cm 30" - 31" |
78 - 82 cm 31" - 32" |
81 - 85 cm 32" - 33" |
84 - 87 cm 33" - 34" |
86 - 90 cm 34" - 35" |
89 - 92 cm 35" - 36" |
| Frame size number |
52 cm |
54 cm |
56 cm |
| Wheel size |
700c |
700c |
700c |
| A — Seat tube |
48.3 |
49.6 |
52.5 |
| B — Seat tube angle |
74.2° |
73.7° |
73.3° |
| C — Head tube length |
12.1 |
13.1 |
15.1 |
| D — Head angle |
72.8° |
73.0° |
73.5° |
| E — Effective top tube |
53.4 |
54.3 |
55.9 |
| G — Bottom bracket drop |
7.2 |
7 |
7 |
| H — Chainstay length |
41 |
41 |
41 |
| I — Offset |
4.5 |
4.5 |
4 |
| J — Trail |
5.8 |
5.6 |
5.8 |
| K — Wheelbase |
97.7 |
98.1 |
98.3 |
| L — Standover |
73.2 |
74.4 |
76.8 |
| M — Frame reach |
38.3 |
38.6 |
39.1 |
| N — Frame stack |
53.3 |
54.1 |
56.3 |
| Stem length |
90 |
90 |
100 |
| Saddle rail height min (w/short mast) |
61.5 |
64 |
67 |
| Saddle rail height max (w/short mast) |
67.5 |
70 |
73 |
| Saddle rail height min (w/tall mast) |
65 |
67.5 |
70.5 |
| Saddle rail height max (w/tall mast) |
71 |
73.5 |
76.5 |
