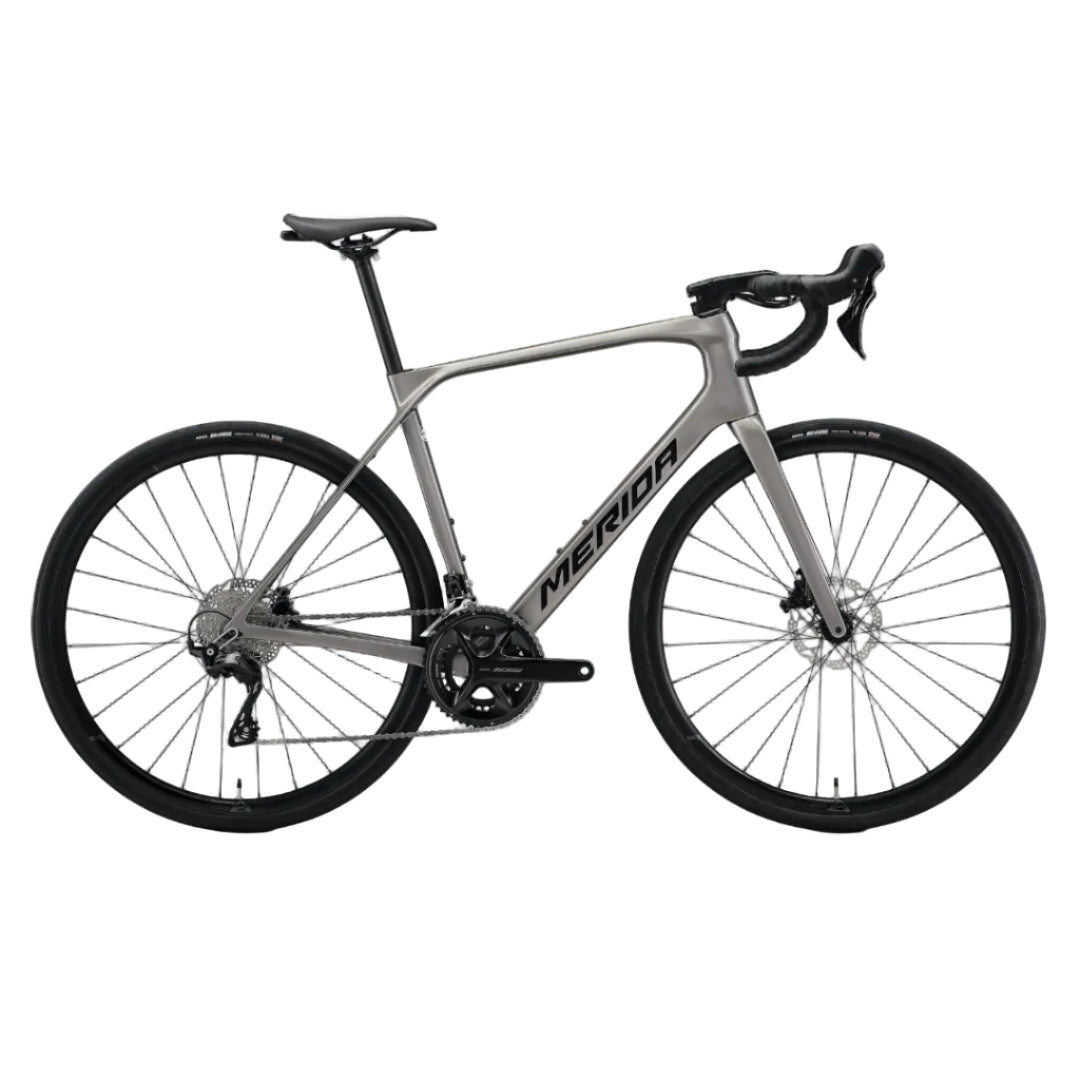

Merida Endurance 4000 - Warm Slate Grey (Black)
Merida SCULTURA ENDURANCE 4000
Carbon endurance road bike with Shimano 105 12-speed groupset and comfort-focused geometry.
The SCULTURA ENDURANCE 4000 is designed for riders who want long-distance comfort, confident handling, and modern road bike performance in a lightweight carbon package.
Featuring the same award-winning CF3 carbon frame platform as higher-end models in the range, the bike combines endurance-oriented geometry, wide tyre clearance, and clean cable integration to create a refined and versatile road bike suited for everything from endurance rides to fast weekend training. :contentReference[oaicite:0]{index=0}
Compared to the standard SCULTURA, the ENDURANCE platform offers a more upright riding position, improved comfort, and additional tyre clearance while still maintaining efficient road bike handling and responsiveness.
Key Highlights
- Lightweight SCULTURA ENDURANCE CF3 carbon frame
- Comfort-oriented endurance geometry
- Shimano 105 12-speed drivetrain
- Shimano hydraulic disc brakes
- MERIDA carbon seatpost for improved comfort
- Maxxis Re-Fuse 700x32C tyres
- Internal WIRE PORT cable routing system
- MERIDA under-saddle pouch with mini multitool included
Frame & Ride Characteristics
The SCULTURA ENDURANCE CF3 II frame is built around rider comfort and all-day stability without sacrificing road bike performance.
A taller front end, longer head tube, and relaxed geometry help reduce rider fatigue during long rides, while the lightweight carbon construction keeps the bike responsive and efficient under power.
Wide tyre clearance up to 35 mm improves comfort and versatility across rough roads and broken pavement, making the bike equally suitable for endurance riding, fitness riding, and sportive events.
Specifications
| Frame | SCULTURA ENDURANCE CF3 II Carbon Max Tyre Clearance: 700x35C Max Tyre Clearance with Fender: 700x32C Axle Standard: 100x12 mm Front / 142x12 mm Rear Bottom Bracket Standard: BB86 |
| Frame Sizes | XXS, XS, S, M, L, XL |
| Colour | Warm Slate Grey (Black) |
| Fork | MERIDA SCULTURA ENDURANCE CF3 DISC Carbon Max Tyre Clearance: 700x35C |
| Groupset | Shimano 105 12-Speed |
| Shifters | Shimano 105 Disc |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 GS |
| Crankset | Shimano 105 R7100 – 50/34T 165 mm (XXS/XS) 170 mm (S/M) 172.5 mm (L/XL) |
| Cassette | Shimano 105 R7101 11-34T / 12-Speed |
| Chain | Shimano M6100-12 |
| Bottom Bracket | Shimano SM-BB71-41B PressFit 86.5 |
| Brakes | Shimano 105 Hydraulic Disc |
| Rotors | Shimano RT54 – 160 mm |
| Headset | MERIDA TEAM SL – VP-MRBHB (SE-301 Neck) |
| Handlebar | MERIDA EXPERT SL II Aluminium 380 mm (XXS-XS-S) 400 mm (M-L) 420 mm (XL) |
| Stem | MERIDA EXPERT SL 2PII Aluminium -9° Stem Angle 90 mm (XXS/XS/S) 100 mm (M) 110 mm (L/XL) |
| Bar Tape | MERIDA ROAD EXPERT |
| Seatpost | MERIDA EXPERT SL Carbon 27.2 mm Diameter 0 mm Setback |
| Seat Clamp | MERIDA EXPERT |
| Saddle | MERIDA COMP SL 25% Recycled Material V-Mount Compatible |
| Hubs | Shimano TC500 / TC500-HL 100x12 Front / 142x12 Rear Centerlock / 28 Hole |
| Rims | MERIDA EXPERT SL III 23 mm Internal Width 26 mm Rim Height Aluminium / Tubeless Ready |
| Spokes | Double Butted Black Stainless Steel |
| Tyres | Maxxis Re-Fuse 700x32C Folding |
| Axles | MERIDA EXPERT TR / EXPERT SL Removable Lever / 6 mm & 4 mm Allen Compatible |
| Approx. Weight | 9.4 kg (Size M) |
| Maximum System Weight | 120 kg |
Geometry
| Frame Size | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Seat Tube (mm) | 440 | 470 | 490 | 510 | 530 | 560 |
| Top Tube (mm) | 515 | 524 | 538 | 553 | 568 | 583 |
| Chainstay (mm) | 418 | 418 | 418 | 418 | 418 | 418 |
| Head Tube Angle | 70.5° | 71° | 72° | 73° | 73° | 73.5° |
| Seat Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° |
| Head Tube (mm) | 140 | 152 | 161 | 177 | 197 | 222 |
| Reach (mm) | 360 | 366 | 376 | 380 | 389 | 397 |
| Stack (mm) | 539 | 552 | 565 | 584 | 603 | 629 |
| Wheelbase (mm) | 992 | 997 | 1001 | 1001 | 1017 | 1026 |
| Standover Height (mm) | 742 | 767 | 785 | 803 | 823 | 852 |
